Air Dryers Dealers in Alpha Commercial, Greater Noida

(8 products available)

All IndiaGreater NoidaDelhi Ahmedabad Coimbatore Mumbai Pune Bangalore Chennai Vadodara Noida

Ecotech Iii Gautam Budh Nagar

Explore More

Refrigerated Air Dryer

45,000 / Piece

Number Of FlowerRefrigerated Air Dryers
CertificationISO 9001:2015
Availability20-200 Kg
Country of Origin220V, 440V
ConditionNew
Power1-3kw
Total Carbohydrate1yrs
Brand NameSonitech
ApplicationWater Vapor Removing
Automatic GradeFully Automatic
Driven TypeElectric
StructureMetallic Frame
After-sales Service ProvidedYes
ColourLight Blue
cooling typeGas
Liquid Flow Rate30LPM Onwards
Maximum Working Pressure10kg/cm2
RefrigerantR22, R134a, R407c

We are identified as one of the most reputed Refrigerated Compressed Air Dryer Manufacturers and Suppliers, based in the Capital City of India. We provide Refrigerated Air Dryers Using Freon Gas. The superior Refrigerated Air Dryer System provided by us is extremely effective to purify impure compressed air that contains dust, oil, and moisture. AIR Drying : These are two basic modes of removal of moisture (drying of air) from compressed air: Adsorption drying. Refrigeration drying. adsoption drying works on basic principle of mass transfer i.e. adsorption of moisture from compressed air by desiccant like Silica Gel, Activated Alumina or Molecular Sieves. These types of air dryers are economical when extremely dry air having atmoshpheric dew point of -40oC or lower is required. On the other hand, Refrigerated air dryer works on the principle of cooling down air to_3oC by a suitable refrigerant like freon, NH3 Etc. Refrigerated dryers are the best choice for instrument-air applications. SONITECH has expertise in design and manufacture of both the above types of air dryer and depending upon the ultimate use, we can offer suitable dryer, duly selected and designed to meet your specific need. HOW A REFRIGERANT AIR DRYER WORKS : Enclosed engineering line diagram illustraes the operation of typical SONITECh refrigerated air dryer circuit can be divided into two parts : Air circuits Refrigerant circuit. Air circuit : The hot moist air and oil vapour from an air compressor enters into precooler-Reheater (1), where it is pre-cooled by the outgoing cool air, Precooling enhances maximum efficiency of the reRefrigeration unit. This pre-cooled air then enters into an EVoporator(2)and is cooled to +3oC. Moisture and oil vapour are condenced in this Evaporator. Cooled air is then passed throught a moisture seperator(3) and Condenced liquids are drained out by automatic drain(4). From the seperator, the cold dry and pure air flow through the Pr_cooler-Reheater and is reheated by the incoming air. Reheateing increase the volume of air, prevents sweating and lowers the relative humidity of the air. This clean dry air is then available for use. Refrigerant circuit : Cold liquid refrigerant absorbs heat from hot compressed air in the Evaporator. As a result, the refrigerant changes its phase from liquid to vapour. Vapourous refrigerant (cold) flow into the Refrigerant compressor (5). The compressor compresses cold, low pressure vapour to hot, high pressure vapour. AIt then flows through the Condenser (6) and is cooled, forming a liquid of nearly ambient temprature. Liquid refrigerant is then collected in a reciever. From there the liquid refrigerant is then collected in a reciever. from there, the liquid refrigerant flows into the expansion valve(7) through a filter dryer. The filter dryer filters the refrigerant and removes any traces of moisture and contaminants which may have been introduced during the cherging of the condensing unit. the expansion valve lowers the pressure and onsequently the saturation point of the liquid refrigerant. This liquid refrigerant absorbs heat from the air being dried and begins to change its phase back to vapour. Click here for Water Content Conversion Chart

...more
www

Sonitech India Private Limited

Kasna, Greater Noida (1.0 km from Alpha Commercial)

GST 18 yrs 4.5 (30)

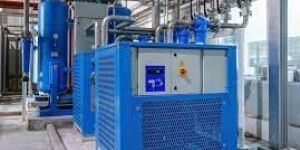

Air Dryers

60,000 / Piece

FinishingPolished
Power5kW

We offer air dryers. The heatless air dryers we manufacture have low initial investment and operating cost and they require absolutely no maintenance. Also, there is single phase power supply and no extra energy is required for generation. They also have an ambient working temperature and give high performance. We come amongst the high pressure heatless air dryers manufacturers and suppliers supplying genuine quality heatless air dryers. our heatless air dryers consisting of two towers filled with activated alumina and at a time one tower is under process and another tower is under regeneration simultaneously. We can achieve dew point of (-) 40 degree c (at atmospheric pressure) we can also get a dew point up to (-) 80 degree c but quantity of purging air will increase up to 25%. The capacities that we offer in this category are 10 nm3 hr to 1000 nm3 hr. Some of the features that need to be highlighted are:- low initial investment and operating cost. No maintenance. High performance. Single phase power supply. No extra energy required for regeneration ambient working temperature. Desiccant life 3-5 year. Dew point (-) 40 degree c.

...more
S K Engineering Company

Gautam Budh Nagar, Greater Noida (0.5 km from Alpha Commercial)

17 yrs 4.7 (3)

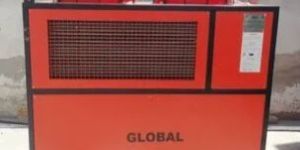

Refrigerated Air Dryers

80,000 / Piece

Frequency50 Hz
Country of OriginMade in India
Drying Capacity50 cfm
Dryer TechnologyRefrigerated
Dryer Horse Power2 HP
BrandGlobal
Maximum Pressure7 bar
FeaturesCompact and easy to install, Economical and consumes less power, Has in-built safety equipment.

...more
Global Refregeration and Equipments

Gautam Budh Nagar, Greater Noida (0.5 km from Alpha Commercial)

18 yrs
Adsorption Air Dryer

Get Price Quote

The Adsorptive Air Drying has been specifically designed to enable the complex theoretical principles of adsorption processes to be conveyed clearly and comprehensibly. Moist air flows through the adsorbent (silica gel), which is placed in a transparent column as a packed bed, and the moisture is adsorbed. The adsorbent contains an indicator. The colour of this indicator shows the position of the mass transfer zone. Once the capacity of the adsorbent in this column is exhausted, the moist air is fed through a second column with regenerated adsorbent. The experimental setup allows simultaneous investigation of the adsorption process and the regeneration process for the adsorbent which uses heated air. Recordings of all relevant parameters enable both processes to be completely balanced.
...more

Elab Engineering

Gautam Budh Nagar, Greater Noida (0.5 km from Alpha Commercial)

12 yrs
Air Dryers

50,000 / Units

AutomaticAutomatic

Air dryers are special types of filter systems that are specifically designed to remove the water that is inherent in compressed air. The compression of air raises its temperature and concentrates atmospheric contaminants, primarily water vapor, as resulting in air with elevated temperature and 100% relative humidity. As the compressed air cools down, water vapor condenses into the tank(s), pipes, hoses and tools connected downstream from the compressor which may be damaging. Therefore water vapor is removed from compressed air to prevent condensation from occurring and to prevent moisture from interfering in sensitive industrial processes.

...more
S K Engineering Company

Alpha 1, Greater Noida (0.4 km from Alpha Commercial)

8 yrs
Heatless Air Dryer

Get Price Quote

Heatless Air Dryer, Nitrogen Gas Plants, Oxygen Gas Plant

Patel Gas Plants

Alpha Commercial, Greater Noida

12 yrs
Hot Air Dryer

Get Price Quote

Hot Air Dryer, Mold Temperature Controller, Descaling Pum

Matsui Technologies India Ltd

Gautam Budh Nagar, Greater Noida (0.5 km from Alpha Commercial)

14 yrs

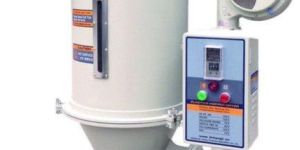

Hopper Dryer

25,000 / piece

Hopper Dryer, Injection Molding Machine, MOULDING MACHINE PL

KOP MACHINERY PRIVATE LIMITED

Kasna, Greater Noida (1.0 km from Alpha Commercial)

GST 4 yrs
