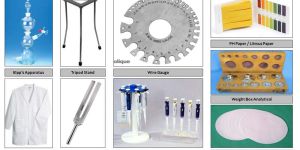

We are engaged in Manufacturer, Wholesaler and Supplier Chemistry Lab Equipments all over the India. Based in Gwalior (M.P.), our chemistry lab equipments are preferred for their high quality, reliable performance, and easy operation. These equipments are suitable for research institutes, educational institutions, and many more. We bring forth Chemistry Lab Equipment at reasonable prices in the market.
Dimensions of drum W 500 mm x L 1000 mmThickness of drum sheet 5 to 6 mm
Gear Box with 1:60 RatioShaft Hardened SS material
Speed of rotation of drum 25 +/- 1 RPMCounter 6 Digit Electronic counter
Dimensions of lifters 50 x 50 x 5 mm thickRPM 8 minutes : 200 Rotation
Tumbler-index-apparatus
ref. Standard - is : 6495 - 1994
precision tumbler index test apparatus for iron ore pellets
determination of resistance of iron ore pellets to breakage or degradation by impact and abrasion.
The precision's, ti01b tumbler tester for iron oxide lump cores, sinters, and pellets consists of a cylindrical drum constructed of mild steel plate. The two circular sides of the drum have two stub axles attached through two circular flanges. The axles are held in two double-row self-aligning ball bearings with the common axis of the axles located in a horizontal plane. The drum is rotated about its axis at the specified speed with the help of an electric motor, worm reduction gearbox, and vbelt pulley arrangement. A pre-set type digital counter is provided to record the number of rotations of the drum and to automatically stop the motor after a set number of rotations. The bearings on which the drum is pivoted are supported on a heavy-duty fabricated metal frame made from mild steel sections. The motor and worm reduction gearbox are also mounted on the same frame to give a single composite unit. A sheet metal hop- per is provided below the drum to collect the material coming out when the drum is rotated with the door removed. The hopper has a square opening to enable the collected material to be removed. A removable stainless steel tray is provided to collect the material from the drum.
