This new digitally controlled large shear box is ideal for testing geosynthetics and also soils and other materials that contain large particles of up to 120 mm largest dimension. Sample sizes up to 300 mm square can be tested, with insert allowing the testing of 150 mm square samples. The shear box has two loading systems, one for consolidation and one for shear. The sample is consolidated via a hydraulic drive. This is powered by the Sercomp 7 Automatic Hydraulic Console with PID closed loop control and programmable consolidation load. The machine includes 100 kN load cell and linear potentiometric transducer 50, 25 and 10 mm travel complete with mounting brackets. The machine can be connected with the 30-WF6016 Geodatalog data acquisition unit.

Description :-For demonstrating the rate of heat conduction in five different metals. The kit consists of five metal rods, approximately 20mm in diameter and 40mm long equally spaced on a brass disc and mounted on an insulated handle. The rods are aluminium, brass, copper, iron and steel and each having a cavity at the end for holding paraffin.

Endecotts   Endecotts are the world’s leading manufacturer of quality laboratory equipments like Test Sieves, Sieve Calibration Samples, Sieve Shakers, Air – Jet Sizer, Sonic Sifter, Sample accessories, Rotary Sample Divider, Grain Moisture Analyser, Consistometer, Screening Equipments, Milling equipments like Roller Ball Mill, Gy-Ro Dish/Puck Mill GM100, Swing Hammer Mill, Cross Beater Mill. Over 70 years manufacturing experience give Endecotts an enviable reputation for quality and accuracy. Founded in 1936, over 70 years manufacturing experience gives Endecotts an enviable reputation for quality and accuracy.   Products   Sieves Sieve Shakers Air Assisted Sieving Air – Jet Sizers Sonic Sifters

LC-50: WATER STILL (Barnstead Type) Table Model complete Body and Inner parts of St. Steel suitable for pyrogen free distilled water. Fitted with SS Tubular Type water heater, Complete SS joint will be argon welded to avoid water leakage Power supply: 230440VAC 50H

Unique Features : Extremely Compact Construction Long Lasting Vacuum Pump Polycarbonate Vacuum Dessicator Stainless Steel (GMP) Construction           Vacuum Level now Upto 25” of Hg It’s the most ideal “ LEAK TEST” instrument for checking Blister Packs, Strips and Pouches. It makes the conventional dessicator with a huge vacuum pump, obsolete. The Vacuum Pump ensure that a high level of vacuum is created in the shortest possible time. And the die-pressed, polycarbonate vacuum dessicator sustains the vacuum for a long time. A vacuum gauge is provided to indicate the vacuum level. This is connected to the isolation valve which helps disconnect the source, thereby avoiding the need for running the vacuum pump continuously. While it’s amazing compactness saves valuable space in process laboratories and timer helps the operator attend to other chores at a time.

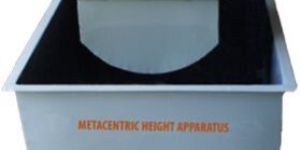

Metacentric Height of Ship Model TLG116 Setup has a Sturdy Tank made up of thick M. S. sheet, as a Storage Reservoir Model of Hollow Ship of suitable size is provided alongwith Loading Arm & Balancing weights to perform experiments Model floats on Water, which simulates Warship or Cargo - ship floating on the Sea water Tilting Angle measurement.

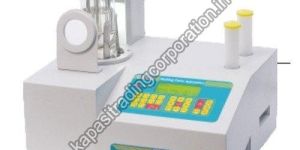

This apparatus is used for the determination of single or mixed melting points of most organic substances in powder form. These substances , which are opaque at ambient temperature become transparent on melting. The melting point is noted on a mercury-in glass thermometer just when the substance under test starts melting.The apparatus consists of an aluminum block in which three small holes for inserting thin glass capillaries , and one larger hole to accommodate a mercury in- glass thermometer are provided. The aluminum block is heated from two sides by clamped-on nichrome wire strip heaters which are electrically insulated. The block assembly is housed in an aluminum casting housing which is finished in elegant paint.  The thin glass capillaries which are inserted into the three holes in the aluminum block are illuminated by an incandescent lamp and are seen magnified by the use of a built-in double convex lens. This eliminates the strain of viewing the thin glass capillaries in which the powders under test is / are placed.The rate of rise of temperature of the aluminum block is controlled by a rotary rheostat built into the apparatus. The glass capillaries are in thermal contact with the aluminum block and therefore heat transfer is efficient. When the substance starts melting, the temperature as indicated by the inserted thermometer is noted , which is the melting point temperature of the particular substance.  A boost heater to heat the block rapidly is also provided. Put of booster heater when temperature will reach 25ºc to 30ºc below the required temperature (i.e. Rough melting point of the substance) . Slow heating will help to give accurate melting point. As an optional accessory , a cooling plug to bring down the temperature can be supplied, which is to be inserted in the hole where thermometer bulb was kept . Cooling takes place by circulation of water in the cooling plug which has an inlet outlet.

The apparatus consists of a variable speed D.C.Motor, Driving pulley and Driven pulley of equal diameter. The pullies are mounted on input shaft (Motor shaft) and output shaft. The driven pulley can slide on the base with bearing block to change initial tension in belt. Brake drum is mounted on output shaft helps to measure power output. The motor speed is varied by dimmerstat. A two channel RPM Indicator is provided to measure speeds of driven and driving pullies respectively. Specifications - D.C.Motor - 1 HP, 1500 RPM, variable speed. Driving & Driven pullies of equal diameters. Brake drum along with spring balance. Flat Belt of fixed length of following materials -a) Fabric Belt. b) Canvas Belt. c) Rubber Belt. Belt tightening arrangement. Speed Controller unit. Two Channel digital RPM Indicator. Experimentation - 1. To measure power transmitted with varied belt tensions and plotting graph of (T1 - T2) Vs. (T1+T2)/2 ie Tension Characteristics.2. To measure percentage slip at fixed belt tension by varying load on brake drum and plot graph of (T1-T2) Vs. percentage slip ie. Slip Characteristics.. 3. To measure belt slip speed and observe the limiting value of load at constant speed when the slip just starts. Service Required - 230 V.A.C. stabilised power supply.

Description :- The Dew Point Apparatus is commonly used for determining vapor content of gaseous fuels by measuring their dew point temperature. Salient Features: The apparatus has a sturdy construction. There is a closed stainless steel dew point chamber in the instrument containing a highly polished stainless steel “target mirror” along with sample inlet and outlet control valves. There is an arrangement for chilling the chamber by a refrigerant, which flows through the outer cooling jacket, thereby preventing any refrigerant contact with the test sample. There is a thermometer inserted into the mirror support structure, which provides the temperature of the target mirror. The apparatus meets the standard test specifications.
