Viswakirti Conveyors Pvt. Ltd. Cherlapalli, Hyderabad, Telangana

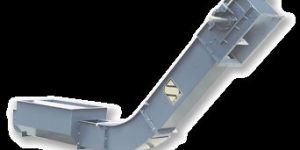

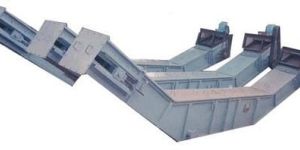

Wet Scrapper is commonly conveyed to collect DUST at elevated temperature which includes Bagasse, Clay Dirt, Coal , Fly Ash & slag etc. Generally, construction is more or less identical to chain conveyor filled with water. However, differs in Tail end and Drive end.   Wet Scrapper will always have;• Tail End & Drive end are at inclined position normally.• Double Strand.• Low linear speed for highly abrasive material.It is normally used in Furnace Coal Ash Disposal, Bio-mass Fuel Ash, Pulverized Coal fired Boilers & other fuel applications and are largely used in power & Sponge iron plants.

Viswakirti design & supply En Masse Conveyors as per customer requirements. En Masse principle of conveying is both unique and highly efficient. It has got Horizontal Chain Conveying & Inclined Vertical Chain Conveying system. En Masse Conveyor can be installed with bend sections enabling horizontal-to-vertical(or)horizontal-to-inclined configurations. Chain Conveyor designed for open-trough, fabric-filter dust collectors. The action of the return chain moving across the Hopper has live bottom effect which ensures a smooth, continuous flow of material into the conveyor. Coal and Limestone materials have a surcharge angle. Hence, en masse conveying is well suited.

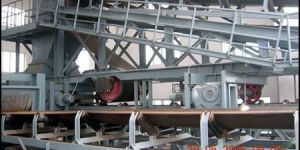

These customized , stationary conveyor systems are designed for large volume stockpiles on limited footprints like inside storage or a small section.   With intermediate discharge points, users can unload material on either side of the conveyor, create custom heights, lengths and locations for multiple different piles.

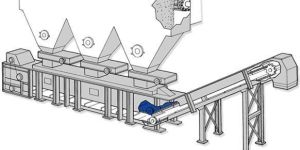

Submerged Belt Conveyors is meant for Hot Ash collected from travelling grate of Boiler furnace. Is collected directly into water filled trough, wherein a moving belt is installed to take out Wet Ash from the trough.   A process wheel is employed at entry & exist point of belt to hold the belt in it’s troughed shape. These process wheels are free to rotate by moving belt to avoid friction & thus damage to belt.   The trough is either fabricated from thick plates with suitable stiffners or can be provided in casting as per client’s requirement.

Easy installation and High degree of homogeneity of conditioned material Variable throughout rates, wide range of construction materials, Easy cleaning, Modular system, Reduced overall dimensions , Little maintenance , No contamination.

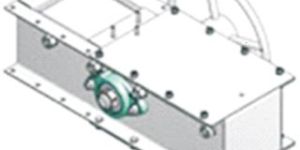

Viswakirti Designed for positive control of material discharge from chutes , bins, hoppers. Self-cleaning gate is non-clogging, closes completely to prevent trickling. Available in manual, air or motor-operated models to fit square chutes. Rugged construction.

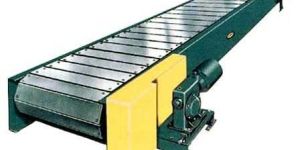

Viswakirti Design & Supply Slat Chain Conveyors which are efficient in moving the materials from one place to another place.   It is generally used in PROCESS INDUSTRIES and are capable of transport bulk commodities of light, Medium & Heavy applications like Bagasse etc.

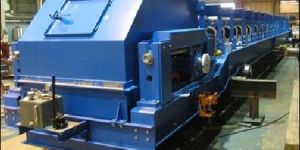

Shuttle Conveyor is self propelled type. The whole conveyor & its support is mounted on wheels which can move to and fro to certain distance on a pair of rails. This conveyor is used where the conveyed material is required to be discharged at number of points but one after another, because it can be affected only at a time. Depending upon the overall length of the conveyor and its structure, quantum of load that the conveyor carries there may be a onetwothree sets of driving wheels which are driven by electric motor and gear box. Shuttle conveyor will be required to fill different bunker; to feed different conveyors; to divert the material from one part to another part of the plant.

Shuttle Conveyor is self propelled type. The whole conveyor & its support is mounted on wheels which can move to and fro to certain distance on a pair of rails.   This conveyor is used where the conveyed material is required to be discharged at number of points but one after another, because it can be affected only at a time.   Depending upon the overall length of the conveyor and its structure, quantum of load that the conveyor carries there may be a one/two/three sets of driving wheels which are driven by electric motor and gear box.   Shuttle conveyor will be required to fill different bunker; to feed different conveyors; to divert the material from one part to another part of the plant.

Material is extracted in batches from a silo and then fed into a weigh hopper. Feed rates of smaller screws are more accurate than those achieved with larger diameters.   Consistently, larger Screw Feeders require micro-feed aids in order to improve their poor feeding accuracy.

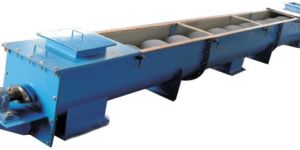

Viswakirti Screw Coolers are continuous cooling or heating screw conveyor for bulks , powder, granules, pasty or muddy products. The cooling and heating function is accomplished through chilled water, steam or other thermal fluid passage into the screw and double jacket.   The air extraction in the top opening allows the control of the atmosphere conditions above the products wet extraction , dried air injection… Paddles fixed to the screw allow a perfect homogenous treatment ,mixing, conveying , and cooling or heating transfer.   Upto 10M3/HMinimum Temperature +2°CMaximum Temperature +900°C

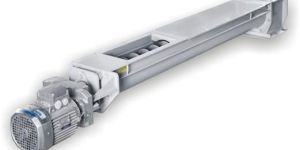

Viswakirti makes horizontal/inclined as well as vertical screw conveyors based on CEMA / IS standards and also, with troughs designed for dust-tight construction.   Screw Conveyors are bulk material transporting devices capable of handling a great variety of materials which have good flow-ability and takes up very little space aside from the necessarily occupied by the moving stream of material .   Standard Screw diameters are offered ranging from 100 mm upto 1250 mm (or) as per customer’s requirement.

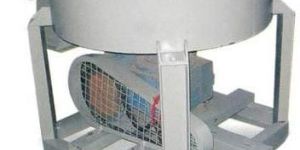

Viswakirti Rotary Table Feeder consists of a power circular plate, rotating directly below the bin opening. An adjustable feed collar, located above the rotating table, determines the volume of material delivered.   These feeders are used generally with round, vertical bins and for handling materials which have a tendency to arch ; such a dump sand, wood chips, and fine salt.   The opening in the bottom of the round , vertical bin is large, so that material cannot arch over it.

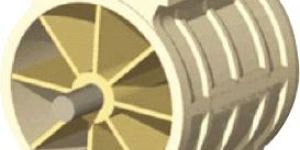

Viswakirti Design & supply Mechanical type of Manual / Motorized Rotary Feeders meant for Feed Material in process to Next Station.   They are suitable for controlled discharging and feeding from silos, Hoppers etc.

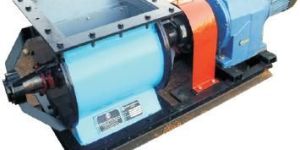

Viswakirti Rotary Air Locks designed for either manual or remote controlled drive, are used under silo deck slabs and bins to permit the free flow of pulverized materials which tend to arch, such as lime and cement raw materials.Free movement of the rotor to an opened or closed position is assured by careful machining and alignment of the trunnion shafts and dust-tight bearings.Leakage in the closed position is prevented by close tolerance and double seal. Knife edges and “v” slots at the end of the rotor avoid sticking of packed material.

Viswakirti are the leading manufacturer, supplier and exporter of Rack And Pinion Gates in India. We provide Rack And Pinion Gates in order to fulfill the need of industries. We provide these RACK AND PINION GATES at much competitive rates in the market.

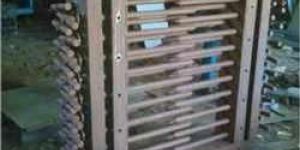

Viswakirti are offering a comprehensive range of Pin Gates to the esteemed patrons. These are constructed by using optimum quality raw material, procured from the most reliable vendors of the market. Further, these offer fast & precise positioning so that the flow of the bulk material can be controlled. These have high tensile strength and corrosion & abrasion resistant nature.

Viswakirti design and manufacture chutes to meet specific customer requirements. Chutes are used for guiding the flow of bulk materials and connecting conveying and processing equipment together.

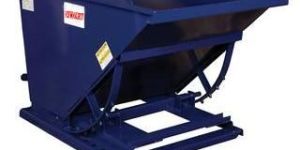

We are offering first-class quality Hopper Silos & we use finest raw material in the fabrication of this product. The offered storage hopper silos are available with hopper Bottom are used to store bulk material.   We provide this product in custom form as per the requirements of the clients. Salient Features are Durable, Corrosion resistant & are in different sizes.

Viswakirti gates are precision-built for selection of flow path in pneumatic conveying lines or gravity discharge chutes.Tunnel-type or plugtype for pelletized materials; flap-type for powdered materials.Available in manual, air or motoroperated models.Accurate operation maintained throughout long life.

Viswakirti design & supply En Masse Conveyors as per customer requirements.   En Masse principle of conveying is both unique and highly efficient. It has got Horizontal Chain Conveying & Inclined / Vertical Chain Conveying system.   En Masse Conveyor can be installed with bend sections enabling horizontal-to-vertical(or)horizontal-to-inclined configurations.   Chain Conveyor designed for open-trough, fabric-filter dust collectors. The action of the return chain moving across the Hopper has live bottom effect which ensures a smooth, continuous flow of material into the conveyor.   Coal and Limestone materials have a surcharge angle. Hence, en masse conveying is well suited.

A scraper flight conveyor consists of metal, wood, or plastic flights attached at uniform intervals to one or two strands of endless chain which moves the flights along in a trough, the chain or chains passing around sprockets at the end of the trough.   Material can be discharged at any point along the trough through gates or at the end.

Viswakirti valve consists of two flaps connected by counterweights or spring loaded spindles, which are operated by means of a motor driven cam. The cam alternately opens each flap allowing materials to pass through the separate chambers in batch form and thereby ensuring a gas seal.

Viswakirti Bucket Elevators are made to a high quality standard design based on CEMA/IS standards.   Bucket Elevator consists of a series of uniformly fed buckets mounted on an endless chain or belt which operates overhead and foot wheels. The buckets are used to elevate (usually vertically) pulverized , granular , or lumpy materials.   Casings are fabricated from MS sheets & liberally stiffened to give added load carrying capacity and true alignment. Chains are normally used for elevators with heavier duties, high capacities and lifts.   Belts are recommended for handling free flowing materials as also for corrosive materials while pin and Bush type chain is normally used. Link Chain & U-Bolt combination is provided on heavy-duty elevators depending on the applications.   The materials is received at the boot, raised and then discharged by passing overhead wheel at the top, into a discharge chute.
