Hardness Testing Machine Dealers in Kolhapur

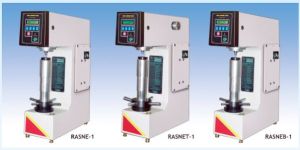

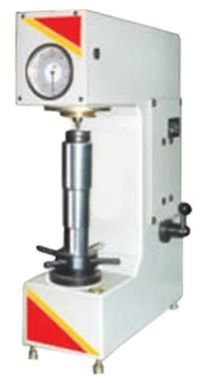

Principal : Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.RASNE series machines are suitable for Rockwell, Rockwell superficial & Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement.   Operation : Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high/low limits, dwell time, auto/manual start, printer selection, scale selection etc. All set data can be verified edited by pressing SCL key one after another.Machine operation is very simple. The normal mode is a bar followed by "SET" indication. Raise elevating screw slowly through bar indication till "SET" position which will show "PRESS START" indication. Now press "START" button. Loading/unloading cycle will be completed and hardness is shown on LCD display with High/Good/Low indication. Lower down elevating screw. Panel will show normal mode for next test. Also when required 'AUTO START' on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till "SET" position then it will starts loading/unloading cycle automatically & hardness is shown on LCD Display with High/Good/Low indication.     FIE's new 'RASNE' series of Hardness Testing Machines come with much improved design & look with following major design changes.   1) This is motorized machine having automatic loading/unloading cycle suitable for production testing. 2) The machine body is having a taper front look and a large size read-out in the front. The machine is powder coated for better look. The paint shade do not fade and machine  looks like new over year. 3) The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accessory is retained for years together due to hardened bush.  4) A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy. 5) An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia. 6) These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy. 7) IS:1586:2000 for Rockwell and superficial test. IS:2281:2005 for Brinell Hardness Test.

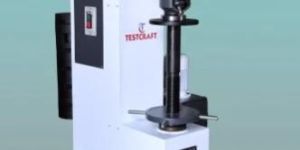

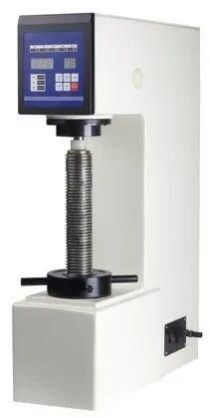

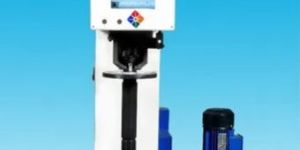

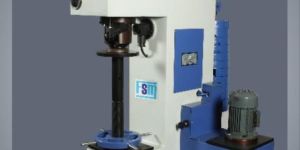

The Brinell Hardness Testing Machine, which we offer, is precision engineering confirming to different industrial standards. Our variety of Brinell Hardness Testing Machine confirms to measure hardness of forging and casting of several metals and alloys of any form (soft or hard) and shape (round, flat or irregular).

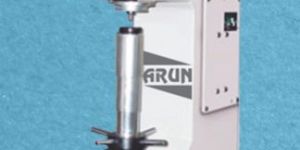

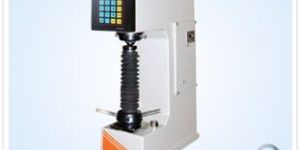

Digital Hardness Tester for Rockwell Tests has motorized automatic cycle operation i.e. loaddwellunload. The Preliminary Test Force is 98.07N (10kgf). Total Test Force is 588.4, 980.7, 1471N (60,100,150 kgf). Test Force Selection is by external mechanical dial. The system has bar indication on display for Preload. User can set Preload Dwell time, Dwell time for Total Load and Elastic recovery Dwell time. The operation is easy with keyboard entry through reliable membrane switches for scaleHI-GO-LODwell time selection. The scale display is with 0.1 Rockwell Resolution.

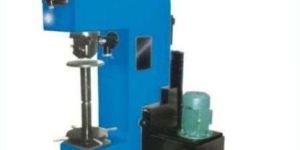

Machine designed with a hydraulic power pack and control circuits for effortless loading unloading operations. A dial gauge in front measures depth of ball penetration. This facilitates production testing within tolerance limits by compression method Mechatronic Control System Hardness Testers Model B-3000(H), (O) & (J) are precision engineered to IS:2281- 1968, BS:240 and ASTM:E10. However B-3000(H), (O), (J) are most suitable for production testing. These machines are designed to measure hardness of casting, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape. Technical Data SPECIFICATIONS UNIT Mech.CS.B3000(H) Loads 200 500 to 3000 in stages of 250 Initial Load kgf 250 Max. Testing Height mm 410 Depth of Throat mm 200 Max. Depth of elevating screw below base mm 180 Size of Base mm 370 x 670 Machine Height mm 1127 Net Weight (Approx.) kg. 450 Drive Motor HP 0.33-415v/p Standard Accessories MODEL SE B-3000 H Testing table 200 mm 1 pc Testing table Y groove 70 mm 1 pc Ball Holder 5 mm 1 pc Ball Holder 10 mm 1 pc Test Block HB - 5/750 1 pc Test Block HB - 10/3000 1 pc rockwell Microscope 1 pc Allen Spanner 7 pcs Instruction Manual 1 book

The Brinell scale characterizes the indentation hardness of materials through the scale of penetration of an indenter, loaded on a material test-piece. It is one of several definitions of hardness in materials science Method - All Brinell tests use a carbide ball indenter. The test procedure is as follows: The indenter is pressed into the sample by an accurately controlled test force The force is maintained for a specific dwell time, normally 10 - 15 seconds After the dwell time is complete, the indenter is removed leaving a round indent in the sample The size of the indent is determined optically by measuring two diagonals of the round indent using either a portable microscope or one that is integrated with the load application device The Brinell hardness number is a function of the test force divided by the curved surface area of the indent. The indentation is considered to be spherical with a radius equal to half the diameter of the ball

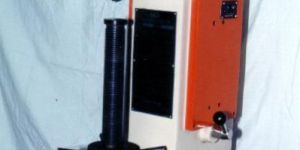

Principal Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.RASNE series machines are suitable for Rockwell, Rockwell superficial & Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement.   Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high / low limits, dwell time, auto / manual start, printer selection, scale selection etc. All set data can be very ARUN edited by pressing SCL key one after another.Machine operation is very simple. The normal mode is a bar followed by "SET" indication. Raise elevating screw slowly through bar indication till "SET" position which will show "PRESS START" indication. Now press "START" button. Loading / unloading cycle will be completed and hardness is shown on LCD display with High / Good / Low indication. Lower down elevating screw. Panel will show normal mode for next test. Also when required 'AUTO START' on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till "SET" position then it will starts loading / unloading cycle automatically & hardness is shown on LCD Display with High / Good / Low indication.   ARUN's new 'RASNE' series of Hardness Testing Machines come with much improved design & look with following major design changes This is motorized machine having automatic loading/unloading cycle suitable for production testing. The machine body is having a taper front look and a large size read-out in the front. The machine is powder coated for better look. The paint shade do not fade and machine looks like new over year. The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accessory is retained for years together due to hardened bush. A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy. An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy. IS:1586:2000 for Rockwell and superficial test. IS:2281:2005 for Brinell hardness test.

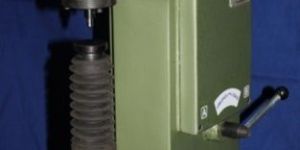

We stand tall as a highly efficient Manufacturer, Exporter & Supplier of Electronic Rockwell Hardness Testing Machines. The Model ‘T RAS' Electronic Rockwell Hardness Testing Machines provide optimum accuracy and can be customized as per the specifications of our clients. These Electronic Rockwell Hardness Testing Machines are competitively priced as well as timely delivered. Specifications Automatic zero setting dial gaugeCapacity : Throat 133 mm Test loads 60, 100 & 150 kg for tests on Rockwell A, B, C scaleConfirm to IS: 3804, BS: 891 & ASTM: E -18External load selection just by dialingMaximum Text Height : 230 mm

We are engaged in offering Brinell Hardness Testing Machine that is used for testing the hardness of metals and alloys. Our Brinell Hardness Testing Machine allows loading and unloading operation manually by durable operating lever. Salient Features Precisely designed as per BS: 240, IS: 2281-1968, and ASTM: E10.RB-3000Easy to operateDurableLess wear and tear Ideal For Measuring hardness of casting and forging of hard, soft, whether flat, round and irregular shapes metals and alloys

Hardness Testing Machines, Universal Testing Machine
