Swaroop Engineers Ichalkaranji, Kolhapur, Maharashtra

We are one of the well reckoned Universal Testing Machines Suppliers based in Maharashtra. The technologically advanced Universal Testing Machines provided by us has been termed as the best available in the market because of the following features. Attributes High Loading accuracy of ±1%Equipped with Training roll autographic recorderPrecise reading accuracy due to large design dialDifferent accessories for different applicationsLoading and unloading by motorized cycleEffective clearance between columnsSimple and easy to operateSafe operations backed by safety devices and mechanismEnclosed and protected pendulum Principle of Operations Hydraulic transmission of load from the test specimen to a separately housed load indicatorReplacement of transmission load; through levers and knife edgesLoad applications by a hydrostatically lubricated ramTransmission of Main cylinder pressure to the cylinder of the pendulum dynamometer system housed in the control panelSelf-lubricating design of Cylinder of the dynamometerThe load of the dynamometer is transferred through a leverage to the pendulumPendulum displacement actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorderReturn Pendulum mechanism is effectively damped to absorb energy in the event of sudden breakage of the specimen Machine Consists of Straining UnitControl Panel Power PackHydraulic ControlsLoad Indicator SystemAutomatic Continuous Roll Load - Elongation RecorderMechanical Extensometer - To Measure elongation test specimen under load

We provide Hardness Testing Machine in different Models that are manually operated. Our Hardness Testing Machine is ideal for testing hardness of alloys and metals; be it hard or soft, round or irregular shapes, whether flat, or any other. The Hardness Testing Machine, offered by us comply with IS: 3804-1988, BS: 891 parts1&2, IS: 2281-1983, BS: 240, ASTM: E10 for Rockwell Test, IS: 5073-1988, ASTM: E18 for Rockwell Superficial Test, and ASTM: E18 for Rockwell Test. Models Available SE RAS : Manual operation, automatic load section having automatic zero setting dial gaugeSE RASM : Motorized mode, semi-automatic operation for production testing having motor drive single phase 230V 50 cyclesSE RAB-1SE RAB-250SE TWIN Salient Features Rugged constructionSimple designPrecisely madeEasy to operate Suitable For LaboratoriesInspection departmentsManufacturing tool roomFactoriesEngineering colleges, etc.

We are one of the renowned boring machines suppliers, from India. We proffer durable Portable Boring Machine which is widely well-known for the durability. Additionally, we also provide Deep Hole Drilling machines which is widely used for any drilling application. Our entire gamut of portable boring machine can be purchased on very reasonable price. Deep Hole Drilling Machine Slide with LM rail and LM blockDrilling wood peck cycleDrilling length 500 mm long250 mm long driulling from one side and 250 from other sideConcentericity - 0.5 mm. for dia. 10 mm drill

We are proud to offer Mechanical Extensometer which is widely used to measure the elongation of test specimen under load and their mechanical properties. Equipped with best technical specifications our Mechanical Extensometer has carved niche in markets across the country. Why our Mechanical Extensometer ? Designed by expertsSuperior mechanical propertiesEasy to install, maintain and useEquipped with best technical features Technical Data Measuring Range : 0 to 3 mmLeast Count : 1/100 mmGauge Length (Adjustable) : 30 to 120 mmThickness or diameter : 1 to 20 mmNet Weight : 0.3 kg Approx.

We are identified as one of reputed Impact Testing Machine Suppliers in the national market. Our Impact Testing Machine is designed with utmost precision to conduct Izod & Charpy Test. The Impact Testing Machine, offered by us is ideal to test the resistance of metal and various other alloys to external impacts. General Description Our highly efficient Pendulum Impact Tester Model MCS-IT 30 is developed for conduction Charpy and Izod Test. Herein, the test methods comply with BS: 131: PART 4-1972 (Amended 15 Aug. 1993) and BSEN: 10045 - 2: 1993. The Pendulum Mounted on friction resistance bearings, the pendulum has two starting positions. The lower position is for Izod and the upper one is for Charpy Testing. When released, the pendulum swings down breaking specimen and rendering energy that is absorbed, which is measured as the difference between the height of drop before and after rupture as the test specimen. This is notified from the maximum pointer on the dial scale. Izod Test The Izod test piece is fixed upright in Izod support anvils, fixed on the lower part of the machine. Herein, the support is given with machined vertical groove that suits the test piece size. The alien screw and front clamp piece empowers fixing test piece on precise height by the help of Izod setting gauge. Charpy Test The Charpy test piece relaxes on alloy steel that supports anvils fixed on the base of the machine that stiffly held in position through alien screws. Herein, the end stopper available for precise and quick placing of test piece in between the supports. Controls of Pendulum The Pendulum supported in the starting positions is by a self-resetting latch. The release mechanism is operated by lever. The Pendulum release latch is operated only when this lever is operated. Strikers & Supporters Apart from strikers, there is one combined support that is provided for fixing to the base of the machine for Charpy and Izod Tests and Pendulum. New striker is fixed in to its position to achieve charging. Optional Accessories Available U - notch milling cutterV - notch milling cutterCaliper gauge for checking V notch for Charpy and Izod according to BS:131 :PART 1, 2, 3Depth notch gauge that includes V & U notch, radius and angleSelf-centering tong

We are one of the leading Facing Machines Suppliers, from India. We manufacture wide range of Flange Facing Machines which include Centering Facing Machines and facing machines. We possess a gigantic range of flange facing machines which is also admired by global clients. Furthermore, our entire collections of flange facing machines are available at the most genuine price.

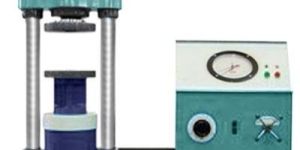

We are listed among the foremost Compression Testing Machines Suppliers based in Maharashtra. We offer superior quality Compression Testing Machines that are equipped with wear resistant spares and latest technology which makes them the best available option in the market. Complies To Indian Standards Specification 516-1959 Test Cube Size 5cm x 5cm x 5cm7.06cm x 7.06cm x 7.06cm10cm x 10cm x 10cm15cm x 15cm Test Concrete Cylinders 10 x 20cm15 x 30 cm

Centering & Facing Machine

We are engaged in offering Brinell Hardness Testing Machine that is used for testing the hardness of metals and alloys. Our Brinell Hardness Testing Machine allows loading and unloading operation manually by durable operating lever. Salient Features Precisely designed as per BS: 240, IS: 2281-1968, and ASTM: E10.RB-3000Easy to operateDurableLess wear and tear Ideal For Measuring hardness of casting and forging of hard, soft, whether flat, round and irregular shapes metals and alloys

Swaroop Engineers is a distinguished Bandsaw Machinery Supplier, located in India. At Swaroop Engineers, we bring a wide gamut of bandsaw machines and bandsaw cutting machine. We manufacture bandsaw machines which are widely appreciated by local as well as international clients. Our entire range of bandsaw machines are available at the most competitive price. DOUBLE COLUMN HEAVY DUTY BAND SAW MACHINE MODEL - DCA 340 Specifications MODEL - DCA- 340 Cutting capacity in mm :- DAI 340& SQ.340 X 340. Blade size in mm :- 3920 X 32 X 1.1 Saw motor capacity HP :- 5 HP Hydraulic motor capacity Hp :- 1.5 H P Hydraulic tank LTR :- 60 LTR Coolant motor HP :- 0.16HP Coolant tank LTR :- 50 LTR. Approx. Machine Weight :- 1500KG
