Impact Testers Dealers

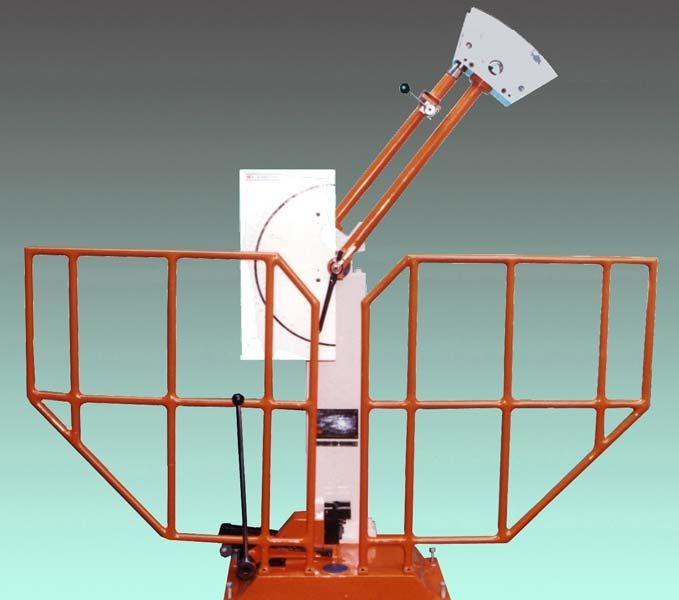

Mechatronic Control System is one of the leading manufacturer and exporter of Impact Testing Machines. We design and build different models of impact testing machines with utmost precision, with the help of state of the art technology. Impact testing machine is used to test the resistance of metal & alloys to external impacts. GENERAL DESCRIPTION     The Pendulum Impact Tester Model MCS-IT 30 is designed for conduction Izod & Charpy Test. The test methods confirm to BS:131:PART 4-1972 (Amended 15 Aug. 1993) & BSEN: 10045 - 2 : 1993. The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the Pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after repture of the test specimenn and is read from the maximum pointer on the dail scale. Charpy Test The Charpy test piece rests on alloy steel supports anvils fitted on the base of the machine rigidly held in position by alien screws. End stopper is provided for quickly & accurately locating the test piece centrally between the supports. Izod Test The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & alien screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied. Controls of Pendulum The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever. The Pendulum release latch is operated only when this lever is operated. Strikers & Supporters There are strikers & one combined support available for fitting into the Pendulum & on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achieved simply by fixing the new striker into its position.   SPECIFICATIONS Mech.CS.IT30 Mech.CS.DIT30 Maximum Capacity 300 J/168 J 300 J / 170 J Minimum Scale Graduation 2J 0.5 J Overall Size (Approx.) 1.65 m (H) 1.65 m x 0.45 mx 1.1 m x 0.45 mx 1.65 m (H) Net Weight (Approx.) 375 Kg. 375 Kg.   Optional Accessories: Caliper gauge for checking V notch for Izod & Charpy as per BS:131 :PART 1, 2, 3 Depth notch gauge including V & U notch, angle & radius. Self centering tong. V - notch milling cutter. U - notch milling cutter

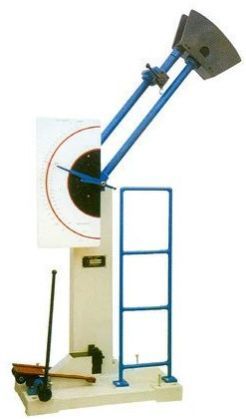

The need to carry out hassle-free Charpy Test and Izod Test is met once this Impact Testing Machine is purchased. We offer the Impact Testing Machine at competitive rates to clients. These Impact Testing Machines are available in diverse specifications and ensure that these tests are performed accurately. The Test Methods Confirm To : BS : 131 : PART 4 - 1972 (Amended 15 Aug - 1993) & BSEN : 10045 - 2 : 1993 Construction : The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rupture of the test specimen and is read form the maximum pointer on the dial scale. Strikers & Supports : There are two strikers & one combined support available for fitting into the Pendulum & on to the base of the machine for Izod, Charpy test. Changing form one striker to another is achieved simply by fixing the new striker into its position. Working : Controls of Pendulum : The Pendulum supported in the starting position is by a self resetting latch. The release mechanism is operated by lever. The pendulum release latch is operated only when this lever is operated. Optional Accessories : Caliper gauge for checking V notch for Izod & Charpy as per BS : 131 :PART1, 2 and 3 Depth notch gauge including V&U notch, angle & radiusPreliminary Test force 29.42, 98.07 N 3, 10KgF Self centering tong V-notch milling cutter U-notch milling cutter How The Tests Are Performed? Charpy Test : In this test, the specimen is put on the Alloy Steel Support Anvils that are firmly fixed on base of machine. The anvils are held together by alien screws. Also, the end stopper is provided to accurately and quickly locate the test specimen in a central location between the supports. Izod Test : The Izod Test Specimen is clamped in a vertical position on support anvils. These anvils are fitted on base of the machinery. Further, this support is supplied with a machined vertical groove that suits the size of the test specimen. The front clamp piece as well as alien screw enables correct clamping of test piece in an accurate height : such correct clamping is done with the help of Izod setting gauge. Range Impact Testing Machine - Heavy Base - Model - AI - IT - 30Impact Testing Machine - Light Base - Model - AI - IT - 30Impact Testing Machine - Digital - Model - AI - IT - 30Impact Testing Machine - ASTM -With NIST Samples - Model - AI - IT - 30 - ASTMImpact Testing Machine - ASTM -Without NIST SamplES - Model - AI - IT - 30 - ASTM

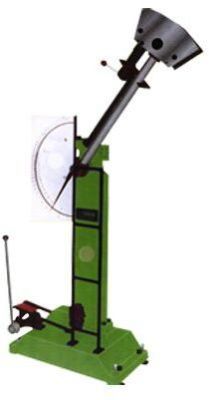

General Description :       The pendulum Impact Tester Model IT 30 is designed for conducting izod, Charpy test. The test methods confirm to  BS : 131 : part 4-1972 (amended 15 Aug. 1993) BSEN : 10045-2 : 1993 & ASTM : E-23-94a.     The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for izod testing. On release, the pendulum swings down to brake the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture and the height of rise after rupture of the test specimen and is read from the maximum pointer position on the dial scale. (It is read on digital readout in case of electronic machines.)     There are two strikers and one combined support available for lifting in to the pendulum and on to the base of the machine for Izod., Charpy test, Changing from one striker to another is achieved simply by fixing the new striker into it's position.   The charpy test piece rests on alloy support anvils, fitted on the base of the machine rigidly held in position by Allen screws. End stopper is provided for quickly and accurately locating the test piece centrally between the supports.

The company is a major Manufacturer, Exporter & Supplier of Pendulum Impact Testing Machines. Manufactured as per the BSEN standard, the Pendulum Impact Testing Machines are available in the electronic models and can be customized as well. The Pendulum Impact Testing Machine is known for their remarkable efficiency as well as consistent accuracy. Optional Accessories Caliper gauge for checking V notch for Izod & CharpyTemplates for checking 10 x 10mm. cross section of Izod/ Charpy test specimenDepth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radiusY Izod support for 0.450" diameter Izod round specimenSelf centering tong for quick and accurate setting of Charpy test specimenV notch milling cutterIT notch milling cutter

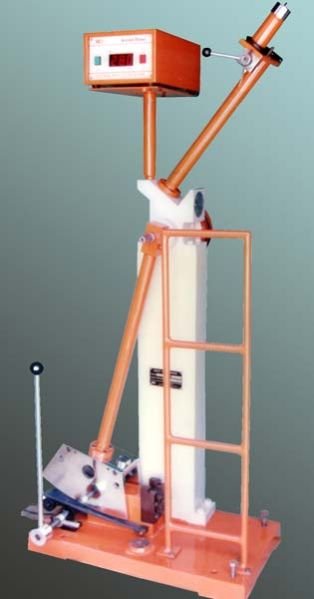

The pendulum is mounted on antifriction bearing. It has two starting positions, for Charpy test pendulum swings down to breack the specimen and the enery absorbed in the specimen is between height of drop before rupture and the height of rise after rupture of test specimen. The reading is shown on dial scale from maximum pointer positon. MCS has developed electronic model MIT - 30 (E) microprocessor based panel with digital display. The reading is directly available on digital display. It aslo provided printer interface.

avail the model no : mit-30 (d) of impact testing machine. Manufactured with precision, this impact testing machine is relied for providing precise results in conducting several tests. special features it-30 - suitable for izod and charpy tests as per is-1598, 1499 & 3766 and bs:131 parts 1, 2, 3, & 4.digital facility

The pendulum Impact Tester, Model IT-30 is designed for conducting Izod, Charpy test. The test methods confirm to BS : 131 : Part 4-1972 (Amended 15 Aug. 1993) BSEN : 10045-2 : 1993 The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to brake the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture of the test specimen and is read from the maximum pointer position on the dial scale.

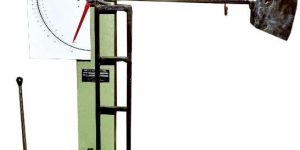

The Pendulum Impact Tester Model - It30 is designed for conducting Izod & Charpy test The test methods confirm to BS-131:PART 4 - 1972 (Amended 15 Aug - 1993) & BSEN : 10045 - 2 : 1993.The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for charpy and the lower one for Izod testing On release, the pendulum swings down to break the speciment and the energy absorved indoing so is measured as the differnece between the height of drop before rupture & height of raise after rupyture of the test specimen and is read from the maximum pointer on the dial scale.The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for charpy and the lower one for Izod testing On release, the pendulum swings down to break the speciment and the energy absorved indoing so is measured as the differnece between the height of drop before rupture & height of raise after rupyture of the test specimen and is read from the maximum pointer on the dial scale. Controls of Pendulum :The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever The pendulum release latch is operated only when this lever isoperated. Sirikers & Supports :There are two strikers & one combined support availabel for fitting into the Pendulum & on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achived simply by fixing the new striker into its positions. Optional Accessoris : Caliper gauge for checking V notch for Izod Charpy as per BS : 131 : PART 1,2,3. Depth notch gauge including V&U notch, angle & radius. Self centering tong. V-notch miling cutter. U-notch miling cutter. Charpy Test :The Charpy test piece rests on alloy steel supports anvils. Fitted on the base of the machine rigidly held in position by allen screws. End stopper is provided for quickly & accurately loading the test piece centrally between the supports. Izod Test :The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a achined vertical groove to suit the test piece size. The front clamp piece & allen screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied.

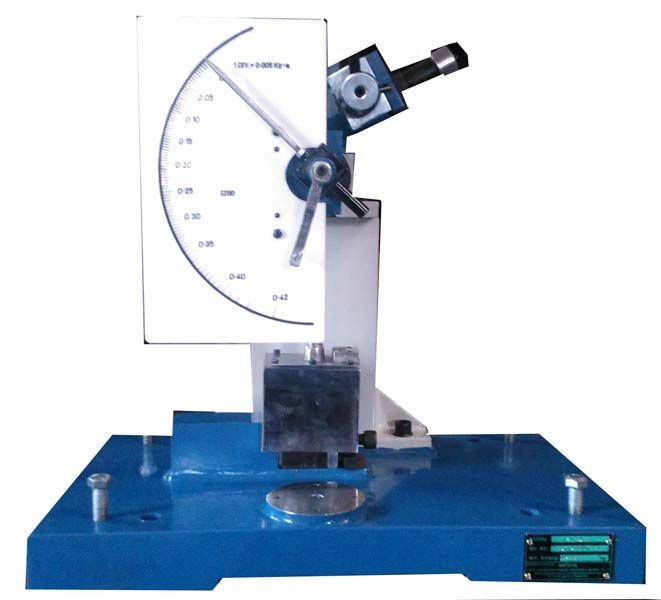

  Plastic Impact Testers.  Most suitable for polymers and similar materials. Calibrated as per BS standard

Another variety that we bring forth to our esteemed buyers is an Impact Testing Machine. Having expertise in this field, we are counted among the leading names for manufacturing & supplying Impact Testing Machine from Maharashtra, India. We have a team of quality controllers that makes use of the quality-tested basic material and advanced techniques for manufacturing these machines. We priced our Impact Testing Machines so well that buyers can easily afford them.
