Inclined Impact Tester
1 Per Piece
1 Piece (MOQ)
Testing Box Size : :60 × 60inch
Max. Payload : 1000kg
Angle of Inclination (Adjustable) : 0 to 10º
Slab Wall (LxW) : 3 × 3.1 Mtr.
Slab Wall Make : MS Make
Controller System : Digital Controller
Motor (To revert back the trolley) : 1 H.P.
Lifting Through : Pneumatic Air Cylinder (to set angle)
‘TBG’ Inclined Impact Tester performs inclined impact tests which simulate distribution handling hazards. Our design meets traditional industry specifications with the added benefits of some innovative design ideas. The unique articulating carriage pivots to load the test item. With the top surface level, it’s safer and easier to place the test load on the carriage with a forklift. The carriage lowers into its testing position and then you can begin performing impacts. TBG Inclined Impact Tester carriage dimensions are Length 4.6 Meter × Width 3.1 Meter. The impact surface (backstop) is Length 3 Meter × Width 3.1 Meter. Impact Tester can test payloads weighing up to 1000 kg. The standard system can generate a maximum impact velocity of 3.9 m/sec. The Digital controller allows an operator to position the carriage while remaining safely away from the machine. Built-in safety interlocks protect the operator from potentially dangerous conditions. SPECIAL FEATURES Articulating carriage system for convenient loading Digital controller for safe operation Movement: by rollers due to gravity Pneumatic lifting and operated by digital controller. RELATED STANDARD IS 7028 (part 3)
Impact Resistance Tester
Color : Blue and Silver
Material : Metal
Impact Resistance Tester
Impact resistance testing is done to check the resistance of paint against the routine exploitation. This machine helps in assessing the shelf life of the surface coating when put into actual working conditions.
Dart Impact Tester
Dart Impact Tester is a consistent tool for determining the impact of a free-falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. PRESTO Dart Impact Tester is manufactured under Test Standard IS 2508:1984(R2003), ASTM D1709-16A. PRESTO Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films, flexible films, sheets and similar other products. Works according to both Method-A and Method-B of test standard.
Dart Impact Tester
The Presto Dart Impact Tester is used for determining the impact of a free falling dart on a plastic film. The energy of the falling dart causes the film to fail under specified conditions. The dart has a hemispherical head and is held by a strong electromagnetic dart holder. The dart is released from the holder at the press of a button. It can be dropped from variable heights. The Presto Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films and similar other products. Presto Dart Impact Tester has been built on a rigid metallic base. It is highly recommended for evaluating the impact resistance and impact failure load of polyethylene films under specified conditions. PRESTO Dart Impact Tester is widely used by plastic film manufacturer for assessing the strength and durability of their plastic films, flexible films, sheets and similar other products. Works according to both Method-A and Method-B of test standard.
Dart Impact Tester
999 Per Piece
1 Piece (MOQ)
Type : Digital
Clamp Diameter : 127mm
Height of Scale : Upto 1524 mm (as per the standards).
Brand : Perfect
Impact Wrench Pin Less Hammer

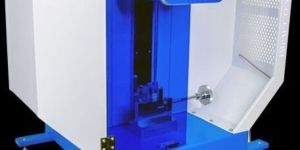

Izod Charpy Impact Tester
