Impact Testers Dealers in Coimbatore

(8 products available)
  • Premium

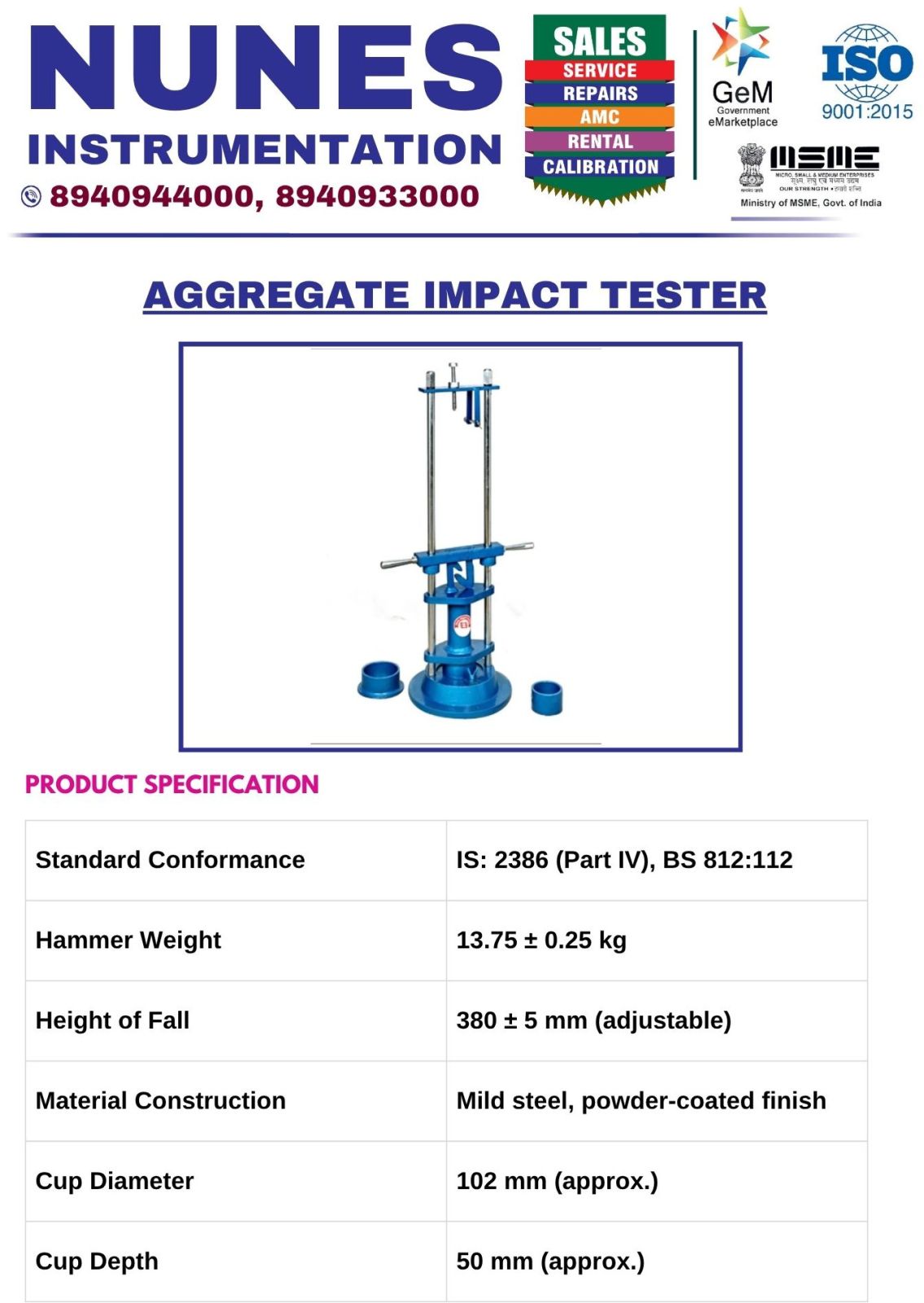

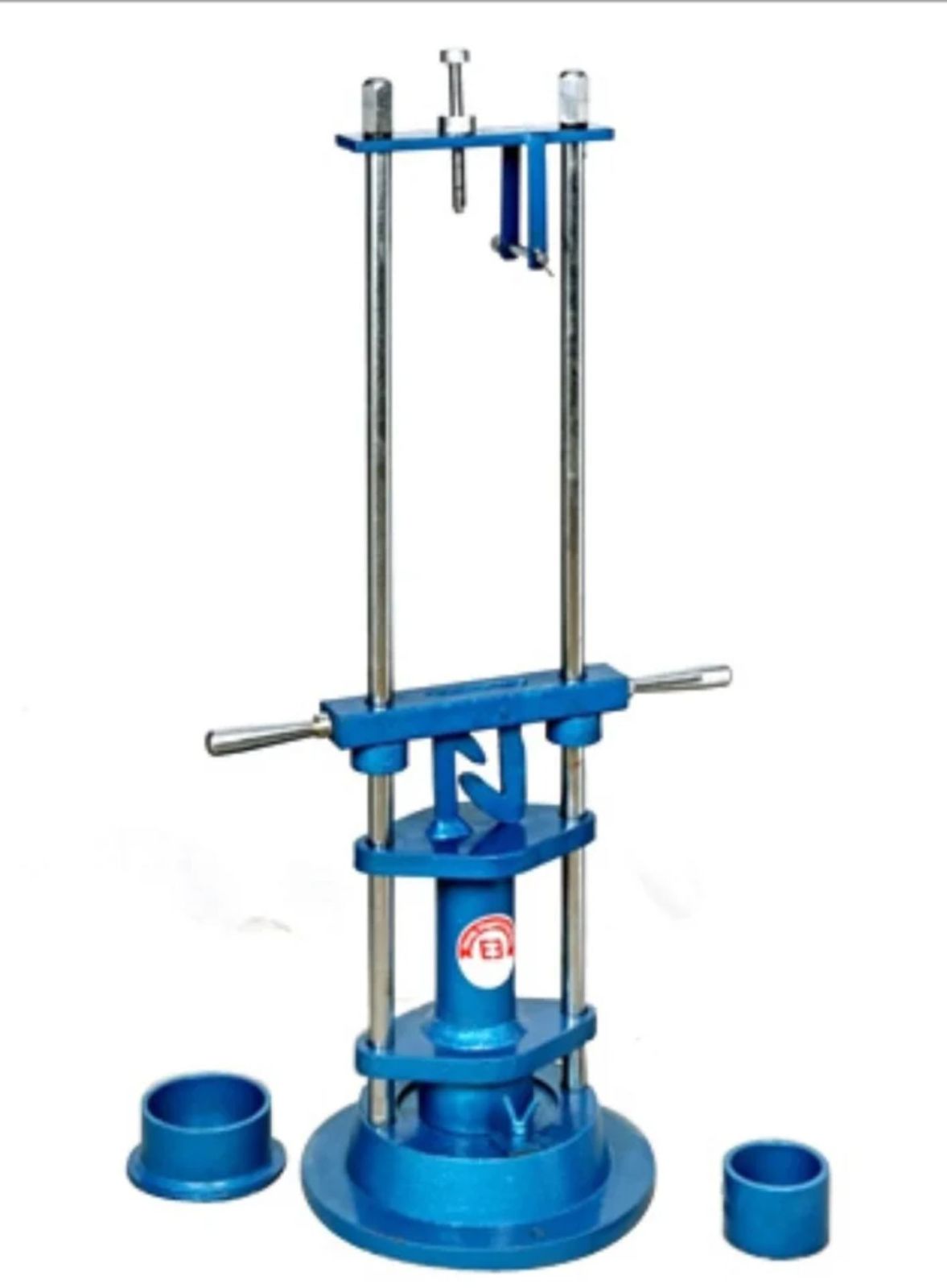

    Aggregate Impact Tester +4

    Aggregate Impact Tester

    13,600 / Piece

    • ApplicationApplications Determining the toughness and impact resistance of coarse aggregates.
    • MaterialMild Steel
    • Display TypeAnalog
    • Automation GradeSemi-Automatic
    • Driven TypeHydraulic
    • Brand NameV-TECH
    • Hammer Weight13.75 ± 0.25 kg
    • Height of Fall380 ± 5 mm (adjustable)
    • Material ConstructionMild steel, powder-coated finish
    • Cup Diameter102 mm (approx.)
    • Cup Depth50 mm (approx.)
    • Description The Aggregate Impact Value Testing Machine is designed to determine the toughness and resistance of aggregates to sudden shock or impact — an essential property for materials used in road construction and concrete. The test helps assess the aggregate’s ability to withstand impact forces, which is critical for assessing its suitability for pavements, roads, and structural concrete. The apparatus complies with standards such as IS: 2386 (Part IV) – 1963, BS 812: Part 112, and equivalent international standards. Key Features   Robust and durable construction from mild steel for long service life. Quick-release mechanism ensures consistent free fall of hammer. Accurate height adjustment for precise impact energy control. Non-slip base minimizes vibration and movement during test. Interchangeable accessories (measure and tamping rod) for standard compliance. Optional digital blow counter for enhanced testing accuracy. Compact design suitable for laboratory and field use. Applications Determining the toughness and impact resistance of coarse aggregates. Assessing aggregate suitability for road base, pavement, and concrete structures. Quality control in construction material testing laboratories. Used in research institutions, civil engineering colleges, and R&D centers.
    ...more
    www

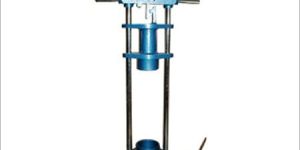

  • Aggregate Crushing Value Apparatus

    Aggregate Crushing Value Apparatus

    10,000 /

    • MOQ1 Pair
    • BlueRed
    • We are manufacturer of Aggregate Crushing Value Apparatus in Coimbatore, Chennai, Tamilnadu Greater Accuracy Cost effective Efficient model Consists of M.S. Cylindrical Container 150mm + 0.5mm dia x 130mm to 140mm high with base plate 200 to 230mm sqr x 6mm thick A Plunger of 148mm + 0.5mm dia x 100 to 115mm high Supplied complete with Tamping Rod 16mm dia x 600mm long both ends rounded 1 no. Metal Measure 115+ 0.5mm dia x 180 + 0.5mm high Aggregate Crushing Value Apparatus Dealer in Coimbatoer, Aggregate Crushing Value Apparatus manufacturer in Coimbatore.
    ...more

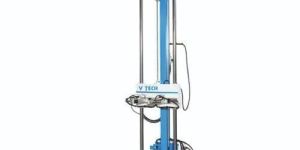

  • VERTICAL IMPACT DROP TESTER

    VERTICAL IMPACT DROP TESTER

    24,000 / Piece

    • MOQ1 Piece
    • Brand NameV TECH
    • Warranty1 Year
    • Packing TypeBox
    • Base dimension1200 X 900 mm
    • MaterialStainless Steel
    • Automation GradeAutomatic
    ...more
  • Impact Test Specimen Broaching Machine

    Impact Test Specimen Broaching Machine

    Get Price Quote

    Sharp’s Impact Test Specimen Broaching Machine can cut correct "V"or "U" notches in Charpy or Izod impact test specimens by means of an accurate multiple-toothed broach.   Advantages: Most simple and accurate Skilled operator not required Expensive machines not required Precision regrinding of tools eliminated Less power requirement *Notches confirm to the following standards:   ASTM Designation A 370 BS 131: Part 1: 1961 / Part 2&3: 1972 DIN: 50115 IS/1598/1977 * Very compact – 575 mm x 375 mm x 975 mm
    ...more
  • Aggregate Impact Tester

    Aggregate Impact Tester

    Get Price Quote

    The instrument consists of a circular base with Two vertical guides. The Hammer of weight 13.75 +-0.25kg can be raised to fall freely down the vertical guides. The Height of fall can be adjusted through 380 +-5mm. The Hammer is provided with a locking arrangement. The hammer falls freely to the base and is removable for employing. Supplied complete with metal measure 75mm dia x 50mm high (For specimen preparation) and Tamping Rod 230mm long x 10mm diameter. A Blow Counter to count the number of strokes is fitted on top of the equipment.
    ...more
  • Aggregate Impact Tester

    Aggregate Impact Tester

    17,000 / Piece

    • Automation GradeManual
    • MaterialMS , SS
    • Availability2 - 3 KG
    • FeaturesReliable, Seamless finish, Unmatched quality
    • Surface TreatmentPolished
    • ColorBlue
    • Inner Diameter10.2 mm
    • Depth5 cm
    ...more
  • Impact Testing Machine

    Impact Testing Machine

    Get Price Quote

    Impact Testing Machine, Ndt Consultancy Services, Painting Inspectio
  • Tubular Impact Tester

    Tubular Impact Tester

    Get Price Quote

    Tubular Impact Tester, Blowout Preventer, Digital RPM Mete
