Dry Type Transformers Dealers in Kolkata

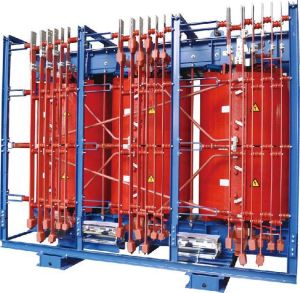

Noteworthy Supplier of Dry Type Transformer. We make sure the products we offer are as per national as well as international quality standards.   Details :  Upto 630 KV, 11 KV.

• Phase: Three Phase

• Capacity: 750 / 800
• Winding Material: Copper
• Brand Name: Servokon
• Material: Copper
• Finishing: Coated
• Driven Type: Electric
• Shape: Racket
• Color: Red

SL NO PARTICULARS RATING 1 KVA rating of transformer 750  KVA 2 Voltage ratio 11/0.433 KV 3 Quantity 01 No. 4 Type of cooling AN (Air Natural) cooling 5 Vector group Dyn11 6 Tapping range +5% to -7.5% in steps of 2.5% 7 Tap-changer OFF CIRCUIT TAP LINK 8 Tapping on Primary 9 Steps 5 steps / 6 steps 10 Temp. rise of wdg     Above ambient 50 deg c 90 degree c class of insulation H 11 Total loss@ 0% load 1700-1800    W (MAX) 12 Total loss@50% load 4000-6000    W (MAX) 13 Total loss@100% load 10000-11000  W (MAX) 14 Impedance at 75 degree c 4.5%  (IS TOL) 15 Insulation level                HV(KVp/KVrms) 75/28              LV(KVp/KVrms) --/03 16 Weights(approx.) in kg Approximate              Core and winding To be Informed by the Supplier              Tank and fittings To be Informed by the Supplier              Total weights To be Informed by the Supplier 17 Dimensions(approx.) in mm.                 Length * Breadth *Height To be Informed by the Supplier 18 Termination                 H.V./L.V./Orientation Inbuilt cable box/ Inbuilt cable box/180 degree 19 Fittings 01 Nos.  Earthing Terminal, Bi-directional rollers. 20 Paint RAL 7032 21 Degree of protection IP-23(Indoor)
