Milling Machine Dealers in Partap Nagar, Ludhiana

Milling machine specification table sr. No. table m-1 m-112 m-2 m-3 1 table width & lenght 230 x 1050 250 x 1070 280 x 1270 310 x 1450 2 t-slot 3 3 3 3 3 distance between t slots 52 mm 56 mm 67 mm 78 mm 3 t slots size 16 mm 16 mm 16 mm 16 mm axes travel a table travel longiinal 540 mm 560 mm 660 mm 735 mm b cross travel 190 mm 230 mm 255 mm 310 mm c knee travel 350 mm 400 mm 560 mm 600 mm feeds a table feeds 3 3 3 3 main spindle a spindle taper iso 4045 iso 4045 iso 4045 iso 4045 b spindle speeds rpm 6 speeds 50-700 6 speeds 50-700 9 speeds 40-1050 9 speeds 40-1050 c cutting airbor 25.4 mm 25.4 mm 32 mm 32 mm power a motor 2 hp 960 rpm 2 hp 960 rpm 5 hp 1440 rpm 5 hp 1440 rpm b coolant pump 0.10 hp 0.10 hp 0.10 hp 0.10 hp space required a lenght 980 mm 1000 mm 1500 mm 1600 mm b width 580 mm 600 mm 900 mm 1300 mm c height 1600 mm 1650 mm 1850 mm 2100 mm d wight 1000 kg 1400 kg 2200 kg 3200 kg note : all the dimension are approximate

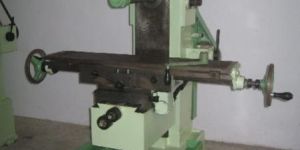

We Manufacture Milling Machine that is use to provide a perfect shape to various metals. We use high tech machines to produce our high class milling machine. It is used at the cutting edge of the manufacturing process. The machine is widely used in various industries and has received appreciation for its fast and efficient performance, in particular.

Milling machines are worked to create shapes and sizes and operated in all kinds of industries. The size, power and built quality of milling machines vary a lot, so choosing any one of them from the machine dock range is quite important to have that precise efficiency. The milling machine has got the cutter installed that makes it operate multi-purposely on milling and turning materials. Also it helps removing the material from the surface of the work piece. A milling process involves cutting tools like the end mills which have special cutting surfaces. The cutters made from highly resistant materials have extended cutting surfaces that produces less friction. Further there is universal horizontal milling machine that facilitates metal to achieve angular or helical machining processes. This machine includes attachments like cutters, rounding end mills, variable flute mills & etc. Then is the vertical milling machine usually required to do more professional metalwork and to receive broad choices of results on work pieces. The basic difference that distinguishes between milling machines is their spindle orientation as to their degree of motion. To say specifically, the machines where the spindle works in Y-Axis is the Vertical milling machine and the one where the spindle works in the X-Axis, it is the Horizontal milling machine. With milling power to work in no time, our milling machines take the productivity to the next level.

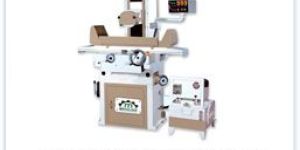

Our range of hydraulic surface grinders is fabricated in keeping with the industry recommended standards and therefore is considered highly reliable and consistent. These hydraulic surface grinders are manufactured from highest grades of material like iron and steel and are available in customized specifications for our clients benefit.

We are one of the leading traders of Universal Milling Machines in the market. Our Universal Milling Machines that we provide are developed with the aid of latest technological methods. Engineered with precision, these universal milling machines are speedy in operation and have an enduring service life. Easy to control and maintain, our range of machines are strictly in accordance with the international quality standards. Attributes: Robust build Easy to operate User friendly Corrosion resistant Anti abrasive Dimensionally correct Sturdy build Easy maintenance

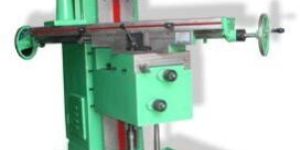

Our Vertical Milling Machine is designed to meet the requirements of various industries. These Vertical Milling Machines are widely used for shaping the metals with utmost accuracy. We are a reliable Manufacturer and Exporter of Vertical Milling Machine from India. Known for Robust constructionHigh performanceLonger working lifeLow maintenance cost Used to Shape metals Technical Specifications MODEL JP-0A JP-M1 JP-M1.5 JP-M2 JP-M3 JP-M4 Working Surface900x2101000x2251050x2501250x2751350x3001600x350 Number & Size of T-Slots3x133x133x133x133x153x15 Distance between T-Slots455055657580 Cross Feeds150160200228279305 Vertical Feeds300325375432507610 Longitudinal425475525625675810 Arbor25.425.425.425.425.425.4 Number Of Speeds6(50-1000)6(50-1000)6(50-750)6(50-950)6(50-950)6(50-950) TaperISO-30ISO-30ISO-40ISO-40ISO-40ISO-40 Distance from Spindle to top (min-max)10/01/7510/01/0010/01/5010/01/0010/01/0010/01/00 Spindle2 H.P. 1440 RPM2 H.P. 1440 RPM2 H.P. 1440 RPM2 H.P. 1440 RPM3 H.P. 1440 RPM5 H.P. 1440 RPM Coolant0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM Net Weight9000 Kg.1100 Kg.1400 Kg.2500 Kg.3500 Kg.4000 Kg. Gross Weight1100 Kg.1350 Kg.1600 Kg.3000 Kg.4000 Kg.4500 Kg. Cross110-225125-275125-350135-425135-400135-535 Vertical75-300125-350150-435100-500100-575100-625 Speeds for vertical Head (Ram Type)3(380-960)3(380-960)6(160-425)6(95-550)6(95-550)6(50-450)

We Manufacture Milling Machine that is use to provide a perfect shape to various metals. We use high tech machines to produce our high class milling machine. It is used at the cutting edge of the manufacturing process. The machine is widely used in various industries and has received appreciation for its fast and efficient performance, in particular. We offer a comprehensive range of Vertical Milling Machines widely used for shaping of metal and other solid materials. The cutting speed in the machine is generated by the tool and its feed rate is generated by work piece rotation. Our milling machine come with improved features that ensure maximum work efficiency and excellent productivity. These machine has compact structure, which makes them easy to handle and maintain. The processing is done with one or two milling units possible delivering an accurate performance.

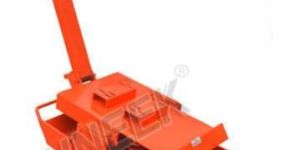

We are indulged in manufacturing and supplying a superior quality of Earth Rammer, which is one of the industry leading products. Our earth rammers have huge admiration from our clients. These products are manufactured under the direction of our trained experts to ensure its dimensional perfection. Our rammers are known for their durability and high reliability. We offer these rammers at a wide range of specifications. Features: 10mm thick sheet Coated with non corrosive sheet Sizes from 24" X 18" to 31" X 21" Powered by engine/motor as per client satisfaction & demand.

We are the manufacturer of header machine and bolt making machines.
