Milling Machine Dealers in Ludhiana

Four cylinder water cooled diesel engine Leyland and kirlosker Gear Box : Four Forward and one reverse Body Frame : Thick 14to 15 MM Wheel : Thick 34 to 35 MM Radiator : Brand New Battery : Brand New (12 v) Weight : 8000 kg With water : 9000 kg

Milling machine specification table sr. No. table m-1 m-112 m-2 m-3 1 table width & lenght 230 x 1050 250 x 1070 280 x 1270 310 x 1450 2 t-slot 3 3 3 3 3 distance between t slots 52 mm 56 mm 67 mm 78 mm 3 t slots size 16 mm 16 mm 16 mm 16 mm axes travel a table travel longiinal 540 mm 560 mm 660 mm 735 mm b cross travel 190 mm 230 mm 255 mm 310 mm c knee travel 350 mm 400 mm 560 mm 600 mm feeds a table feeds 3 3 3 3 main spindle a spindle taper iso 4045 iso 4045 iso 4045 iso 4045 b spindle speeds rpm 6 speeds 50-700 6 speeds 50-700 9 speeds 40-1050 9 speeds 40-1050 c cutting airbor 25.4 mm 25.4 mm 32 mm 32 mm power a motor 2 hp 960 rpm 2 hp 960 rpm 5 hp 1440 rpm 5 hp 1440 rpm b coolant pump 0.10 hp 0.10 hp 0.10 hp 0.10 hp space required a lenght 980 mm 1000 mm 1500 mm 1600 mm b width 580 mm 600 mm 900 mm 1300 mm c height 1600 mm 1650 mm 1850 mm 2100 mm d wight 1000 kg 1400 kg 2200 kg 3200 kg note : all the dimension are approximate

We are a trusted Universal Dividing Head Manufacturer, Exporter and Supplier in Ludhiana. We provide the Universal Dividing Head in varied technical grades and specifications. Known for better and uninterrupted performance, the Universal Dividing Head has great market demand. The clients can avail the Universal Dividing Head from us at reasonable price.

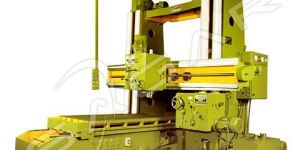

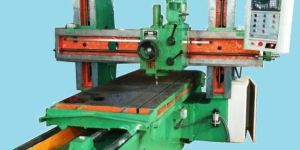

We are offering plano milling machine. Owing to our expertise in this domain, we are indulged in offering a broad spectrum of plano-milling machine.

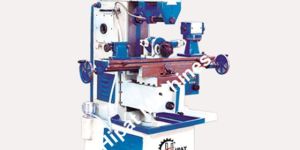

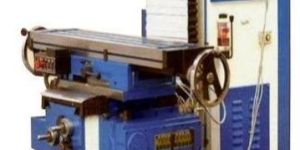

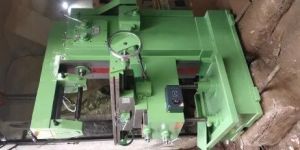

HIPAT brand heavy duty universal milling machine with latest technology, made of high grade standardized cast iron. Spindle and gears of quality steel, Bearings ( Taper Roller, Ball & Thrust) of genuine quality. Alloy steel Arbour, Carbon Steel Lead Screws with working pressure of table lead screw taken up by thrust bearings. Machine is easy to operate and gives maximum production with minimum fatigue and is enameled in ever shine lasting color.BaseThe base which at the same time serves as a coolant tank dimensioned, coolant pump and the coolant pipes are so dimensioned that sufficient coolant is supplied to the cutter.KneeThe heavy knee is made as box and rests on a vertial spindle equipped with tank and protected from earth and chips by telescopic tubs. The moveable parts inside are protected from intrusion of foreign matter and coolant. All the hand wheels are removable type.TableThe worktable is of a very sturdy construction and the dovetail is provided with jig. The table has 3 T- slots and is provided with coolant channels. Accurate Graduation is provided to obtained an exact angle adjustable at each side. The table is provided with Auto feeds ( 2 or 3 Nos.) only in longitudinal direction and is controlled by limit stoppers.

We are one of the leading Manufacture, and distributors of machine tools in India. We mainly deal in Workshop Machineries, Sheet Metal Machines, Wood Working Machines, Automobile & Garage Machines, Plastic & Printing Machines, Paper Cutting Machine, Welding Machines, Food Processing Machines as well as Special Purpose Machines.

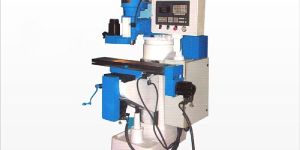

cnc vertical milling machine Table mm 230x1067 T-Slot mm 3x16 Table Load kg 200 X-Axis Travers mm 560 Y-Axis Travers mm 300 Z-Axis Travers (Quill Move) mm 127

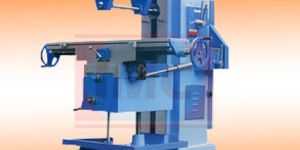

We Manufacture Milling Machine that is use to provide a perfect shape to various metals. We use high tech machines to produce our high class milling machine. It is used at the cutting edge of the manufacturing process. The machine is widely used in various industries and has received appreciation for its fast and efficient performance, in particular.

Working Space 1300 x 300, T.Slot Nos Size 3.22 T NUT, T.Slot Centre 70, Swivel + 45o, Longitudinal Travel By Power X 700, Arbor Diameter 25.4, Net Weight K.gs 2200. Vertical Attatchment, Sltoting Attatchment, Rack Catting Attatchment, Dividing Head, Rotary TAble, Milling Vice, MAchine Lamp

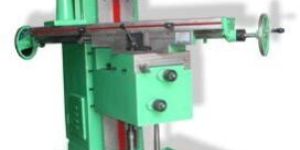

We have in store for our clients, a wide range of vertical Milling Machines. R-3M(AU)GV that is fabricated using quality assured cast iron or stainless steel. Used for metal shaping in machine shops and tool rooms, these all geared, all feeds automatic and rapid traverse machines are offered to our clients at market leading prices.
