Broil Sensotek Industries GIDC, Mahesana, Gujarat

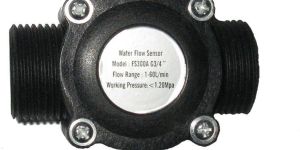

We are offering water flow sensor. Mini turbine flow sensor common specification : working voltage : 4.5 to 24 vdc max. Pressure : 17.5 bar working pressure : 0 to 10 bar max rated current : 8 ma withstand current : 15 ma working temp : up to 120 deg c storage temp : 25 to 65 degc accuracy : 0.5% fsd humidity: 35% to 90% material: pa66 +30gf high electric level : less than 4.5 vdc( input voltage 5 vdc) low electric level : higher than 0.5 vdc( input voltage 5 vdc) pulse output protection: 50+/-10 % model: fs100 flow range: 0.15 to 2.5 litter/minuit accuracy : 0.5% fsd pulse number : 3900 pulses/litter model: fs200a flow range: 0.5 to 25 litter/minuit accuracy : 1 % fsd pulse number : 450 pulses/litter model: fs300 flow range: 1 to 60 litter/minuit accuracy : 3 % fsd pulse number : 270 pulses/litter model: fs400 flow range: 1 to 60 litter/minuit accuracy : 1 % fsd pulse number : 390 pulses/litter.

Brand Name : broiltech

We are offering temperature sensor. Temperature sensor: rtd-pt-100/ thermocouple-j/k/r/s/t type : simplex/ duplex sheath dia : 2/4/6/8/10/12-----30 mm sheath length : 2 inch------5 meter sheath mterial : ss-316/ s.s-310/ s.s-310/ inconel/porceline/ceramic/alumina accuracy : as per din/ansi std. Head :cast al. / bare wire/connector connection : threaded/flange.

Brand Name : broiltech

We are offering pressure transmitter. Pressure transmitter: all wetted part: s.s-316 accuracy: 0.25 %/ 0.5%/ 0.1% range: 0- 40 mbar------2000 bar output signal: 4 . .20 ma, 0 . 5 vdc, 0 .. 10 vdc, other on request power supplier: 10 ... 28vdc (current output) 15 .. 30 vdc (voltage output) process connection: g1/4 or g1/2 option : available with : triclover end, diaphragm seal end, flange end, flush diaphragm type.

Brand Name : broiltech

BROILTECH precision digiatl oval gear positive displacement flow meter available with RS485PulseCurrentHart output and inbuild flowrate and totalize digital display positive displacement flow measurment with two oval shape gear, Gear rotate when flow pass on measuring chamber and Magnetic pickup sensor Hall sensor use for measuring rotation of gear, and each rotation equal to fix value of fluide qty,

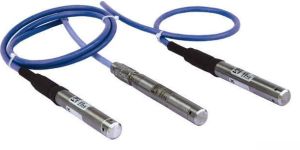

Hydrostatic level transmitter submersible level transmitter - Hydrostatic Level and Pressure Transmitters available with 0.7 meter length to 40 meter length - Hydrostatic Level and Pressure Transmitters available with Flameproof Housing (CMRI Certified) Broiltech Hydrostatic Level and Pressure Transmitters is CE Compliance Range: Hydrostatic Level and Pressure Transmitters Range : 0 to 0.7 meter to 1000 meter available with digital RS-232RS 485 OUTPUT available for all liquied like : water, milk, fuel, diesel, chemical, acid etc

Range : 70 CM to maximum 200 meter

We are offering gprs modem india’s first company that provide online vehicle fleet (cruse) data in your computer via online server. through our server you find out bellow situation of your vehicle from your computer fuel consumption fuel level in tank fueling volume and time fueling discharge volume and time engine operating time traveling time ideal time vehicle speed vehicle current position in map vehicle travel route. we are install engine speed sensor, fuel conjumption sensor, and tank fuel lavel sensor and our gps and gprs base indicator in your vehicle, and our indicator collect data from vehicle and send to our server and you got it from our server, also our indicator has 12 hour internal memory, its help you to got data where no gprs available our full system is outcome from 3 years hard research and development work, all the sensor and indicator is our owen product, so its spare availability long time from us. we are planning to develop our sales and service network full india , so our customer got service any where.

We are offering fuel flow sensor accuracy (standard installation position) : ±1% maximum working pressure: 10mpa (35~85%rh) fluid &ambient temperature: -40 to80â°c flow-rate range (â±1% rs): 5 - 150l/h pulse unit: 0.661 ml/p (1513 p/l) power voltage: 3 - 24v dc output signal: npn open collector connection: r3/8(m) or â¼ female material of construction: rotor and casing : aluminum anodize/ pps/s.s-316 o-ring : nbr/viton/silicon shaft : stainless steel/ hystrolite major fluids : kerosene, gasoline, diesel, light oil, heavy oil flow range: bt-dofs-006(5~150l/h) : 0.000661 p/l 008(20~300l/h) : 0.0025 p/l 010(50~800l/h) : 0.0025 p/l 015(80~1,500l/h) :0.0085 p/l 020(150~2,000l/h) :0.0154 p/l 025(200~4,000l/h) :0.0256 p/l 040(500~10,000l/h) :0.086 p/l 050(600~20,000l/h) :0.19 p/l 065(800~30,000l/h) :0.36 p/l 080(1,000~50,000l/h) :0.54 p/l 100(2,000~100,000l/h) :1.0 p/l 150(5,000~150,000l/h) :3.2 p/l.

Brand Name : broiltech

We are offering fuel consumption meter application -highly reliable and accurate fuel consumption measurement in trucks, tankers, infrastructure and construction machinery, agriculture machinery, river boats and diesel engine. -it define you an accurate consumption of fuel so difficult to theft fuel from vehicle future : - indicate total fuel consumption - indicate total fuel supply toward engine - indicate total fuel return from engine - indicate total time of fuel supply - fuel measurement via positive displacement base principle - suitable with all diesel engine - flow range from 5 l/hour to 120 liter/hour - on board power supply from vehicle-12 vdc technical data: 1) two set fuel flow sensor : one for inlet line and second for return line enclosure : aluminum anodize sensing element : aluminum anodize oval gear accuracy (standard installation position) :1 % power: 12 vdc 2) flow consumption indicator : calculate : in line fuel transfer toward engine :return line fuel return to tank from engine : fuel consumption : inline fuel - return line fuel : total time of fuel flowing in engine 3) y type fuel filter: 30 micon option: 1) fuel consumption meter available with digital output for conect to gprs or gps system 2) available with gps and gprs system to monitoring vehicle fuel data via computer

Brand Name : broiltech

helical rotor Positive displacement base DIGITAL WATER FLOW METER developed by "BROILTECH" indiginiously first time in world for water industries, helical rotor Digital Water Meter design is proven for best accuracy and low pressure loss than turbine and oval gear, so customer got more flow rate and low power consumption, its also not effected on viscosity of liquied and temp. change.

We are offering digital thermometer. Fully s.s. Digital themrometer: make: broiltech dial size: 80/100 mm lcd: wide lcd: 55 mm * 23 mm case and moc: s.s-304 stem(pipe) material : s.s-316 pipe length: up to 25 mm to as you require pipe od: 3mm to 14 mm temperature range: -50 to 150 degc, -50 to 120 degc, -20 to 70 deg c, operating temp: -10 deg c to 80 degc resolution: 0.1 deg c accuracy:1%, or 0.5% or 0.25% mounting: direct bottom, direct beck, beck panel or brecket battery: 1.5 v single battery battery life: 3 years sampling time: 5 sec/ 10 sec/ 30 sec optional: available with suitable themrowell s.s.-316/s.s-314 application: wine industries, pharma industries, food and dairy industries we are producer of digital thermometer in fully s.s. Construction, for wine, pharma and food industries, battery life:3 years.

Brand Name : broiltech

Broiltech Low cost pressure transmitter : BT TP 1100 is very economical pressure transmitter available in indian market with 0.5% accuracy.BT PT 1100 pressure transmitter is very best for OEM application, its very best for air, gas and liquied application.

Accuracy : 0.5%

We are offering digital pressure gauges. Specification of digital pressure gauge input : pressure / vacuum input range : vacuum, compound, pressure: 0 to 1 bar -----------1500 bar display : digital lcd shows reading, self-adjustment (return to zero automatically). special future : ---- backlight, reset and unit switches. ---- to display peak-hold value, ----- gauges will be auto off after 5 minutes without any knobs/switches operations, in order to save the power. range accuracy: +/- 0.15 % of span power supply: lithium battery /: 24 v dc / power consumption: 0.5 va max. ambient temperature: -10 - 60 c. storage temperature: 0 - 70 c. humidity: 90% rh (non-condensing) engineering unit: 1) kg/cm2 , 2) bar, 3) psi 4) kpa 5) mpa.

Brand Name : broiltech

Broiltech digital pressure gauge is rugged with high accuracy solution in testing pressure gauge - Auto off after 5 minute for more battery life - Zero reset from front key - Unit selectable ,BROILTECH brand digital pressure gauge and digital manometer has 0.15% accuracy , with auto reset at zero.

Material : aluminium

Brand Name : broil

Size : 20 and 25 mm

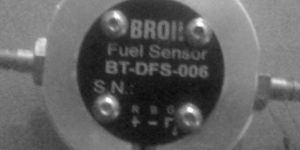

We are offering diesel meter fuel flow sensor : accuracy (standard installation position) : ±1% rs maximum working pressure: 10mpa (35~85%rh) fluid &ambient temperature: -40 to80°c flow-rate range (±1% rs): 5 - 150l/h pulse unit: 0.661 ml/p (1513 p/l) power voltage: 3 - 24v dc output signal: npn open collector connection: r3/8(m) or ¼ female material of construction: rotor and casing : aluminum anodize/ pps/s.s-316 o-ring : nbr/viton/silicon shaft : stainless steel/ hystrolite major fluids : kerosene, gasoline, diesel, light oil, heavy oil flow range: bt-dofs-006(5~150l/h) : 0.000661 p/l 008(20~300l/h) : 0.0025 p/l.

Brand Name : Broiltech

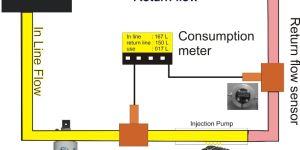

BROILTECH diesel engine fuel consumption meter is creation from two fuel flow sensor and one fuel calculator, full product is design, developed and tested by broiltech, and successfully run from last three years. Broiltech fuel sensor is oval gear flow sensor, its measure and calculate total diesel quantity pass from diesel tank to engine (a) and excess diesel return from engine to diesel tank (b), and after know both diesel quantity its easy to calculate total fuel consumption of diesel generator (c) = (a) - (b), and its our surety that our system accuracy: 0.5 % of real consumption. Broiltech fuel calculator measure and calculate both fuel flow sensor fuel qty, fuel passing time and fuel consumption also broiltech fuel calculator optionally able to provide RS-485RS-232 pulse output against fix use qty for connect with GPS and GPRS modem.

Power : 5 Vdc to 24 Vdc
