Aic Lab Equipments Pvt. Ltd. Goregaon East, Mumbai, Maharashtra

For compaction of concrete Cubes, Cylinders & Beams. The table deck has stops along its edges to prevent moulds from walking off the table during operation. The variable pitch pulley arrangement permits the frequency to be varied step-less between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned Steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, AC supply.

As per IS 654 - 1992. Unit for finding strength of clay roofing tiles and Cement - Concrete flooring tiles. The apparatus consists of two parallel self aligning cylindrical steel bearers about 40 mm in Diameter. The load is applied thru a third steel bearer of similar shape placed midway between and parallel to the supports. Bearing rollers can be placed at 250 or 270 mm centre distance. This is a lever Loading Machine and the load is applied by flow of lead shots, which automatically stops when the sample breaks. The load is applied at the rate of 45 to 55 kg per minute and the accuracy of load indication is ±20%. Without Lead Shots.

Complete with 1 Point Push Button Calibration, Hold, Auto-Off & Self Diagnostic Messages.

Complete with Auto Temperature Compensation, Gel filled Combination pH electrode & RTD Probe and with Recorder output & Slope control facility. Digital LED Display. pH Range : 0 to 14 Ph; pH Resolution : 0.01 pH; pH Accuracy

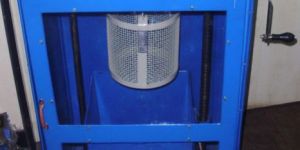

We are offering specific gravity, water absorption test apparatus etc.complete with electronic balance of 6 kg x 0.5 gm accuracy (aic-ewt-6k), density basket (aic-db), pedestal with jack arrangement for density basket (aic-pj), watertight container to suspend density basket (aic-conwt) and g. I. Tray of area not less than 650 cm2 (aic-tray-650gi), supplied with test report and instruction manuals.

Brand Name : AIC

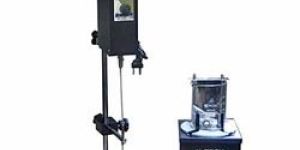

This apparatus is meant for determination of softening point of bituminous materials. The Apparatus consists of a Glass Beaker of Heat resistant Glass of Internal Dia 8.5 cm x 12 cm Depth (Approx.), Two steel balls each of 9.5 mm Dia, Two Tapered Brass Rings, Two ball Guides, Ring Stand and a hand stirrer.

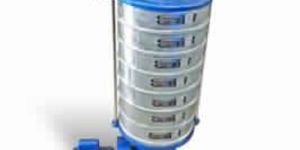

Carries up to 7 sieves of 200mm Diameter. The shaker is driven by ¼ HP motor through a reduction gear immersed in oil. The sieve table does not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in clockwise direction. If the stop pin below the table is removed, the shaker can have rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilised. A pair of rods and a holder is supplied. The holder can be fixed on the top of the upper most sieve and thus the sieve set is firmly held. Suitable for operation from 230 Volts, 50 Cycles, Single Phase, AC Supply. Complete with 0-60 minutes Mechanical Timer. .

These Riffle Sample Dividers are designed for rapid collection of true representative samples from aggregates, sand and fillers. Consist of a metal box fitted with a series of chutes of equal width, which discharges the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow rapid following of the material.

We are offering pycnometer. Complete with brass cone, locking ring with rubber seal. Capacity about 1 kg. Complete with measurement report traceable to national standards and instruction manuals.

Crucibles in this series have nominal capacities ranging from 10 cc to 100 cc. All crucibles are exactly similar in shape and proportion with dimensions confirming simple ratios. These crucibles are designed with extra thick base, to withstand heavy wear. Unless specified, crucibles is always supply having plain rim and with lid. The purity of Platinum metal used for manufacture of these crucibles is 99.95% at least.

As per IS 2720 (Part VII) - 1980. Moisture contents at which soil has smallest plasticity is called limit. For determination purpose plastic limit is defined as the water content at which a soil will just begin to crumble when rolled into a thread of 3 mm Dia.

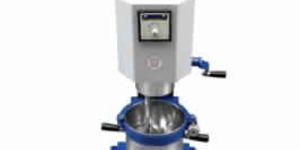

It is used for mixing cement pastes, mortars and pozzolanas. The mixer consists of an epicycle type Stainless Steel Paddle imparting both planetary and revolving motion, by means of gears. Mixers have two speeds of 140±5 RPM and 285±10 RPM with planetary motions of approximately 62±5 RPM and 125±10RPM respectively. The stand of the mixer has an arrangement to raise or lower the bowl. Stainless Steel Bowl of about Six Ltr. capacity is fitted with handle. It shall be provided with a lid made of non-absorbing material and not attached by cement, masonry cement, cement pozzolana mixture or lime pozzolana mixture.

It is used to measure the resistance to plastic flow of cylindrical specimens of bituminous having mixture loaded on the lateral surface. It is for use with mixtures containing asphalt cement and aggregate up to 37.5 mm nominal maximum size.

Consists of a double walled Hot Air Oven of specified inside dimensions and fitted with hinged door containing a double glass window. Heating of oven is maintained within the specified limits either with sensitive thermostat or Dual Display Microprocessor Based Digital Temperature Controller cum Indicator. A perforated self (Round) rotates inside the oven horizontally at a speed of 5 to 6 RPM and carries Aluminium sample containers. Inner Chamber size is 400 x 400 x 400 mm.

We are offering los angeles abrasion testing machine. The machine consist of a hollow cylinder of steel, closed at both ends, having an inside diameter of 700mm and inside length of 500mm. The opening shall be closed dust tight with a removable bolted in place. A detachable shelf, which extends through the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30 to 33 rpm by an electric motor through a heavy-duty reduction gear. It is fitted with counter and push button starter. A tray for collection of the material and set of 12 nos. Hardened steel balls will be supplied with the machine. Fitted with 1 hp, 1440 rpm motor, suitable for operation on three phase, 440 volts, 50 hz. Complete with test report and instruction manuals.

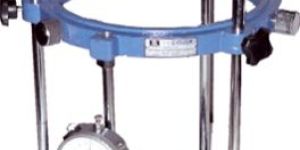

Consists of a frame with a bottom ring and a top ring with tightening screws to firmly clamp the compressometer over the cylinder. A dial of 0.002 mm x 5 mm is mounted on the upper ring and tip of the dial gauge rests on an anvil. The zero of the Dial Gauge can be set by adjusting the anvil screw. Supplied in a wooden carrying case.

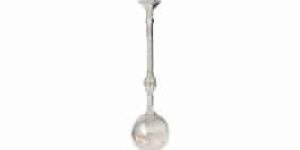

Used for finding Specific gravity of Hydraulic cement. Made from borosilicate glass. The flask is 243mm in total height, having a bulb of 90 mm Dia of 250 ml approximate capacity. The long neck of a flask has at top a funnel of 50 mm Dia in which fits a ground glass stopper. The neck has overall 11 mm I.D. upper portions graduated from 18 ml to 24 ml with 1ml graduation.

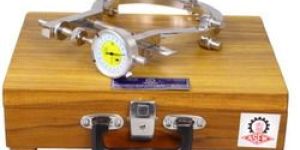

The lateral extensometer is fixed to the help of tightening screws. A Dial Gauge of 12mm or 5mm has been fitted to indicate the lateral extension. The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact readings.

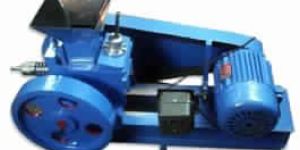

Jaw Crusher is designed to speed up the crushing of aggregate, ores, minerals, coal, cock, chemicals and other similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operations. Two Jaws of manganese steel are provided in the jaw crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward and strokes with a rocking action exerts pressure on the jaws. A hopper is provided at the top for feeding materials. The smooth jaws ensure a uniform product and easy cleaning is possible. complete with 3 Hp, 440V, 3Phase, 50Hz Electric Motor, Starter, Triple 'V' belt pulley drive and mounting frame.

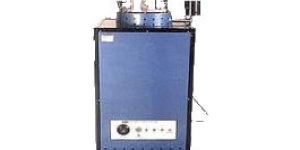

The autoclave is suitable for conducting accelerated soundness test on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure.It is consists of a stainless steel cylinder with a welded heat insulated voer, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, Power switches and pilot lights for controlling the electric heating units.

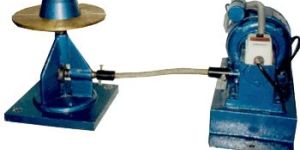

This flow table is used in making flow tests for consistency of mortars in tests of hydraulic cements and pozzolanic materials. The Flow Table Consists of a Brass Table Top 250mm ± 2.5mm Dia mounted on a rigid stand. The tabletop is re-enforced with equally disposes ribs and allowed to drop through 12mm by a ground and hardened cam. Complete with mould 100mm base Dia, 70mm top Dia and 50mm High.

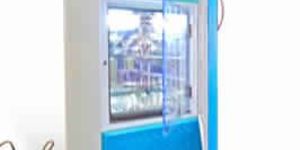

Construction : Double walled. Inside Chamber made of Stainless Steel, Outer Body made of CRC/G.I. Powder Coated. Inner water tank made of stainless steel with ball cock valve. Front door has a full view glass observation window Cooling System :Consist of high efficiency Kirlosker / Equivalent Make Compressor with relevant accessories. Humidity Controlled By : Dual Display Microprocessor Based Digital Temperature cum Humidity Controller.

Humidity range : From atmospheric humidity to 95% RH.

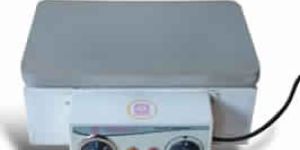

Construction : Rectangular Top Plate made of Cast Iron and body made of thick PCRC duly POWDER COATED

Carries up to 7 sieves of 200mm Diameter. The shaker is driven by ¼ HP motor through a reduction gear immersed in oil. The sieve table does not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in clockwise direction. If the stop pin below the table is removed, the shaker can have rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilised. A pair of rods and a holder is supplied.
