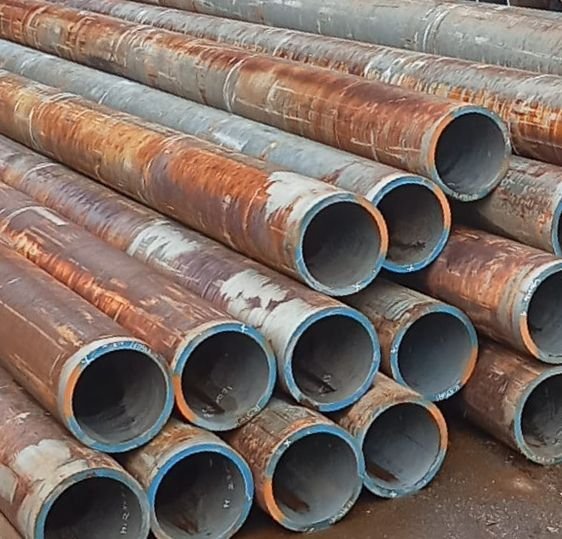

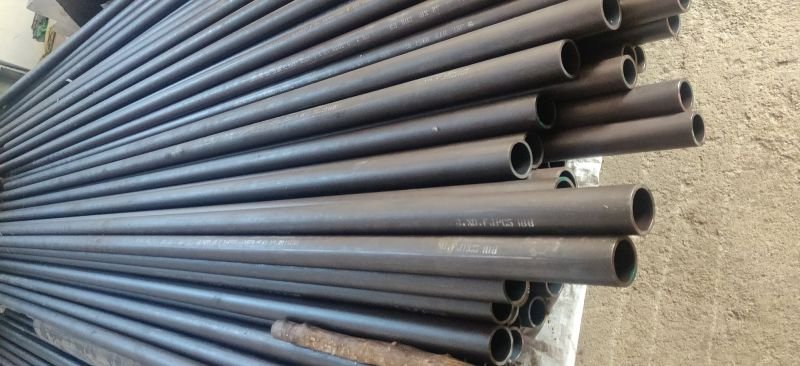

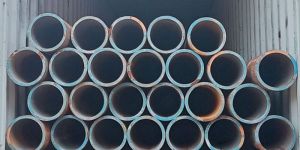

Alloy Steel Pipe
Get Price Quote
Alloy Pipe Impex, we carry a full inventory of alloy steel pipes Seamless Pipes and Tube Products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. alloy steel pipes Seamless Pipe alloy Steel Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We Supply alloy steel pipes in ASTM A106 Grade B, ASTM A106 Grade C, ASTM A53 Grade B, ASTM A333 Grade 3, ASTM A333 Grade 6, ASTM A334 Grade 1, ASTM A334 Grade 6, ASTM A179, ASTM A192, ASTM A210 A1, ASTM A210 C.The grade indicates the testing methods required for a given application. It is critical that structural grades of alloy Steel Pipe not be used for Pressure or Fluid applications
Alloy Pipe Impex specializes in alloy steel pipes and Tube with years of Experience in Manufacturing alloy steel pipes Seamless Pipes and Tube. we offer high quality, lower cost but the best service.
astm a106 alloy steel pipes seamless pipes and tubes
Standard Specification for Seamless alloy steel pipes for High-Temperature Service
ASTM A106 pipe (also covered in ASME specifications as S/A 106) is the standard specification for seamless alloy steel pipes for high-temperature service. Most common uses are in refineries and plants when gasses or fluids are transported at high temperatures and pressures. Federal Steel Supply is a world leader in the supply of A106 / SA 106 pipe and stocks a full range of grades B/C in a size rage of NPS 1/8″ to NPS 48″, with nominal (average) wall thickness as given in ANSI B36.10. Pipe having other dimensions may be furnished provided such pipe complies with all other requirements of this specification*. Pipe ordered under this specification shall be suitable for bending, for flanging, for welding, and for similar forming operations. A full range of A106 stock is available in Schedules 10 through 160, STD, XS, XXS. Unscheduled wall thicknesses available up to 4 inches.
A106 PIPE SPECIFICATIONSA/SA106NPS 1/4″- 30″Schedules 10 through 160, STD, XH and XXH
Scope
ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.NPS 1-1/2″ and under may be either hot finished or cold drawn. NPS 2″ and larger shall be hot finished unless otherwise specified.
Process
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.Steel cast in ingots or strand cast is permissible.Hot-finished pipe need not be heat treated.Cold-drawn pipe shall be heat treated after the final cold draw pass.
ASTM A53 GRADE B SEAMLESS PIPES
Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
This specification covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8 to NPS 26. The steel categorized in this standard must be open-hearth, basic-oxygen or electric-furnace processed and must have the following chemical requirements: carbon, manganese, phosphorus, sulfur, copper, nickel, chromium, molybdenum, and vanadium. The tubing shall undergo a seamless or welding process. Tension, bend, and flattening tests shall be performed to make sure that it must adhere to the mechanical properties of the standard. The hydrostatic test shall be applied, without leakage through the weld seam or the pipe body. Nondestructive electric test shall be made to make sure that the full volume of the pipe must be in accordance with the standard. The purchaser shall have the right to perform any of the inspections and tests set forth in this specification where deemed necessary to ensure that the pipe conforms to the specified requirements..
A53 PIPE SPECIFICATIONSA/SA 53NPS 1/4″- 30″Schedules 10 through 160, STD, XH and XXH
Scope
ASTM A53 pipe covers Seamless and Welded, Black and Hot-Dipped Galvanized nominal (average) wall pipe for coiling, bending, flanging and other special purposes and is suitable for welding. Continuous-Welded pipe is not intended for flanging. Purpose for which pipe is intended should be stated on order.
ASTM A333 GRADE 6 SEAMLESS PIPES
Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness
ASTM A333 (ASME S/A-333) Pipe grades permit low temperature service. This specification covers nominal (average) walled pipe almost exclusively in seamless. Several grades of ferritic steel are included. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse effect on low-temperature impact properties. A333 pipe is furnished to nine different grades designated by numbers 1, 3, 4, 6, 7, 8, 9, 10, & 11. Discussed herein are Grades 1, 3 and 6.
A333 PIPE SPECIFICATIONSA/SA 333NPS 1/4″- 30″Schedules 10 through 160, STD, XH and XXH
Scope
ASTM A333 covers nominal (average) wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. Several grades of ferritic steel are included. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
ASTM A333 GRADE 1 SEAMLESS PIPES
Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness
This guide covers standard specification for several grades of minimum-wall-thickness, seamless and welded, carbon and alloy-steel tubes intended for use at low temperatures. The steel shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, copper, cobalt, and molybdenum. The number of tubes in a heat-treatment lot shall be determined from the size of the tubes. The tubes shall have a hardness number that does not exceed the prescribed Rockwell and Brinell hardness values. Several grades of steel shall conform to the following tensile properties: tensile strength, yield strength, and elongation. For Grades 1, 3, 6, 7, and 9, the notch-bar impact properties of each set of three impact specimens, including specimens for the welded joint in welded pipe, shall not be less than the prescribed values. Several mechanical tests shall be conducted, namely: flattening test; flare test (seamless tubes); flange test (welded tubes); reverse flattening test; hardness test; and impact tests. Hydrostatic or nondestructive electric test shall also be performed. Materials shall be tested for impact resistance at the prescribed temperature for the respective grades. Impact temperature reduction values shall be by any amount equal to the difference between the temperature reduction corresponding to the actual material thickness and the temperature reduction corresponding to Charpy specimen width actually tested.
A334 PIPE SPECIFICATIONSA/SA 334NPS 1/4″- 2″Thickness 01 mm to 08 mm.
Scope
This specification covers several grades of minimum-wall-thickness, seamless and welded, carbon and alloy-steel tubes intended for use at low temperatures. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse affect on low-temperature impact properties.
ASTM A179 SEAMLESS TUBES
Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
This specification covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.
A179 PIPE SPECIFICATIONSA/SA 179NPS 1/8″- 3″Thickness 1.2 mm to 08 mm.
Scope
This specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.This specification covers tubes 1/8 to 3 in. [3.2 to 76.2 mm], inclusive, in outside diameter.
Note 1—Tubing smaller in outside diameter and having a thinner wall than indicated in this specification is available. Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in outside diameter or with a wall thickness under 0.015 in. [0.4 mm].
The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
ASTM A192 SEAMLESS TUBES
Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
This specification covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.
A192 PIPE SPECIFICATIONSA/SA 192NPS 1/8″- 3″Thickness 1.2 mm to 08 mm.
Scope
This specification covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.The tubing sizes and thicknesses usually furnished to this specification are 1/2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
ASTM A210 SEAMLESS TUBES
Standard Specification for Seamless Medium-Carbon Steel Boiler and Superheater Tubes
This specification covers seamless medium-carbon steel boiler and superheater tubes. The specification also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. The specification provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.
A210 PIPE SPECIFICATIONSA/SA 210NPS 1/4″- 2″Thickness 01 mm to 08 mm.
