Condensate Pot Dealers in Mumbai

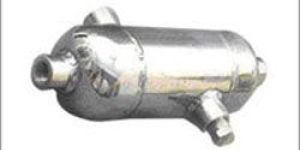

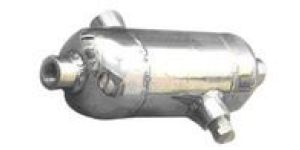

Manufactured with premium quality raw materials, our range of condensate pot is widely used in processing industry and is available at highly competitive prices. Condensate POT / Seal POT is a section of pipe (4inch in diameter) installed horizontally at the orifice flange union to provide a large - area surge surface for movement of the impulse line fluid with instrument element position change. It is used to reduce measurement error for hydrostatic head difference in the impulse lines.

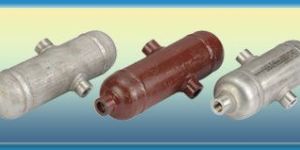

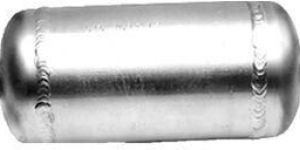

We have specialized in the manufacturing of quality range of condensate pots, which is made from superior quality materials. Condensate pots offered by us, are available in various dimensions, grades and other specifications to choose from. These condensate pots are widely used in various industrial applications.

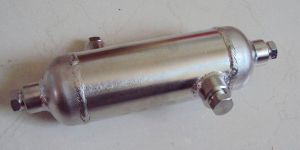

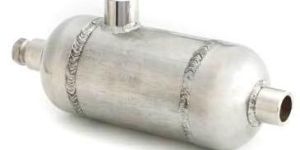

We are offering stainless steel condensate pot. Fav high pressure condensate pot acts a barrier between the main line and the secondary instruments in the measurement of steam or other vapors which condensate to a liquid state insuring compatability with the secondary instruments.

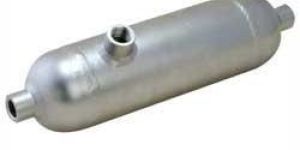

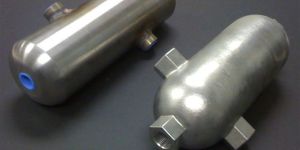

Shakti Forge Condensate Pots are fabricated in accordance with ASME Code or Built to customer design in Carbon Steel, Stainless Steel & Alloy steels for shell and end cap.   Sizes: Standard 3” & 4”  Custom Built Pots as per Customer Requirement

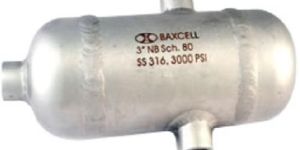

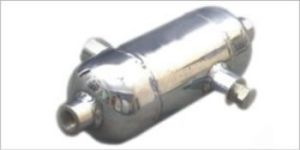

condensate pots : wesmec brand condensate pots are specially designed to catch hold condensate and foreign material. Thus, preventing damage to the metering systems and manifolds. These are custom manufactured as per client’s and project applications. Condensate pots are available in a variety of materials and finishes. Standard pipe sizes are 2” to 4” and a variety of fittings and connections can be provided.   features: • condensate pots are used in the measurement of steam and other vapors which condensate to liquid state at ambient temperature. • condensate pots are available in a range of materials and are designed in accordance to asme sec viii div. I. • welding as per asme sec ix. • various types of coating used to avoid corrosion. • pipe length up to 10 inch, more length is available on request. • hydraulic test pressure: up to 150 kg/cm².> • pneumatic test pressure: up to 40 kg/cm². • non destructive test (ndt) available on request. • standards followed: asme b36.10/ 36.19/b16.9/b16.11, ce marking. • marking and identification as per mss-sp-25.

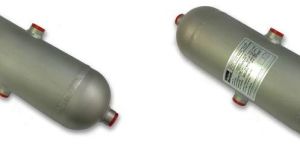

FAV range of Condensate Pot is designed to drain out foreign material from the pipeline thereby guarding critical components of instrumentation system. Generally Steam is passed through Condensation Pots. They are also known as Condensate Chambers, Seal Pots or Condensing Pots. We are reputed manufacturers of Condensate Pots with excellent track record.Do contact us for details. FAV Condensate Pot, Seal Pot is available in Stainless Steel 316, 304, Carbon Steel, Monel. High Pressure Rating upto 10,000 psi. SIzes from 2″ OD to 6″ OD Condensate Pot Sizing, Installation & Design FAV Condensate Pot connection ensures isolation of foreign material. The condensate residue is drained from the bottom valve connection. These valve can be purchased at FAV. Installation can be either vertical or horizontal lines depending on the system requirement. Also condensate pot is used before the pressure transmitters line because temperature of steam is very high so this high temp. Steam directly may damage diaphragm of the pressure transmitter so we use Steam Condensate pots. Correct Condensate Pots Sizing, Condensate pots Installation & Condensate Pot Design is very critical for perfect functioning. Condensate Pot use in Pressure Transmitter, Drum Level transmitter, Boilers. Materials We manufacture and export Condensate Pot in widest range possible .It is available in Stainless Steel 316, Stainless Steel 304, Carbon Steel ASTM A106, Carbon Steel ASTM A105, Alloy Steel ASTM A335 P11, Alloy Steel ASTM A335 P22, Monel 400 ,ASTM A335 P91

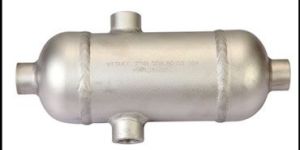

The main purpose of condensate pot is to catch and hold condensate and foreign material. This prevents damage to the metering system and/or manifold. The condensate may be drained from the bottom valve connection. OS&Y gate or ball valves to be used as the drain port.Condensate chambers are used as a barrier between the main line and the secondary instruments in the measurement of steam or other vapors which condense to a liquid state insuring compatibility with the secondary instruments. They can also be used to cool down very high temperature liquids. Seal pots are installed where the line fluid is corrosive or viscous to the extent where it cannot be permitted to contact the secondary instrument. (transmitter or gauge) thereby acting as a liquid barrier between the line fluid and the condensate.       Seal pots/Condensate chambers are available in carbon steel to ASTM  A 106 with Zinga coating equivalent  to hot dip galvanized, Epoxy, Silver Coat etc.  Stainless Steel to ASTM A 312 Piping code, P22 and other alloy steel fabricated from Seamless pipe with inside cleaned and checked to assure desired volume. Standard pipe sizes are 2" to 6". Connection fittings are NPT or welded socket adaptors, Butt Weld etc. The half coupling connections are jig welded inside and out at  90 degrees to assure safety, provide proper alignment and ease the task of installing.

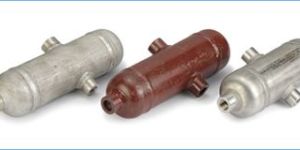

We are the manufacturers and exporters of a wide ranges of condensate pots. It would be made using superior quality raw materials like stainless steel, alloy steel pipes and weld caps that ensures optimum quality and durability.

we manufacture & supply condenser condensate pots for different processing units. These are fabricated as per customer's design and in accordance with ASME codes. Use of carbon steel, stainless steel and alloy steel makes these sturdy and safe. The condensate pots are available in pipe threads types and the connections are 3000# to 6000#. Extra connections can be furnished, if required by the client.

Condensate Pot finds wide usage in processing industry. We are a Maharashtra-based company, engaged in manufacturing, supplying and exporting Condensate Pot. To endure thermal stress, our Condensate Pot is manufactured using high thermal conductivity materials. Our Condensate Pot is marketed with the model no. 3"NB X SCH80-SW.

We manufacture complete range of condensate pots which requires in many process industries condensate pots are generally used for measurement of steam vapor which condense to liquid state at the ambient temperature. These are also used to cool down very high temperature liquids and to maintain a constant liquid head above the instrument. These can be installed in both horizontal & vertical position. We manufacture these condensate pots as per customer's requirement and design in various sizes 2”, 3” and 4” etc. Condensate pots are manufactured in various grades of Carbon steel, Alloy steel & stainless steel. IBR Form IIIC certificate can be provided for condensate pots.

Condensate pots are produced in Carbon Steel, Alloy Steel & Stainless Steel. These pots are largely used in metering lines to cool & condense steam & to maintain a constant liquid heat above instruments. All chambers are equipped with top venting entrapped air & can be furnished with a plug .They are also recommended for liquid service when flowing temperature is above 150°C.

Virgin Engineers makes condensate pots which are built as per customer’s design in accordance with ASME codes. These pots are available in pipe threads, connections are 3000# to 6000#, half coupling / socket weld connection mounted on 90 ° angles ( Extra connections can be furnished on customers requirement ) Virgin condensate pots are made from seamless C.S. / Stainless Steel / Alloy Steel pipes and weld caps. Available with electro polished, Zinc platted or special paint finish can be provided.

Seal Pot are designed to maintain the pressure with the gas holder. The shell drain allows condensate within the gas holder to drain away in seal potand to prevent air flow through the system. Hastelloy Seal Pot Stockist, Stainless Steel Seal Pot, Titanium Seal Pot, Monel Seal Pot, Tantalum Seal Pot, Inconel Seal Pot, Alloy 904L Seal Pot, Nickel Seal Pot Manufacturer in India.

Grade: F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201),Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601),Titanium (Grade I & II).

We are entrusted with the task of making available the best-in-class Condensate Pots, which we procure from leading brands. We are one of the agile Manufacturers, Exporters and Suppliers of Condensate Pots in Mumbai, Maharashtra. We take care to conquer the quality aspect by passing the Pots through various inspection stages and that too in the care of our hawk-eyed quality controllers. Buy them at nominal prices from us!

We are offering condensate pots. These condensate pots are used as part of instrumentation piping in all those applications where a direct contact of the sensing elements with process media is not recommended.

CONDENSATE POTS are used to catch and hold condensate and foreign material. This helps keep manifold orifices clean and free of foreign material. They are located upstream of the instrument and have a bottom drain so that they may be cleaned. Installation can be either vertical or horizontal lines between primary (Flow Meter) and the secondary (transmitter/ gauge) to act as a barrier to the line fluid permitting direct sensing of the flow conditions. Units should be mounted at the same level minimizing possible error that could arise due to unequal head of fluid in the connecting pressure lines. SEAL POTS (sometimes called condensate pots) are used to allow a liquid seal between the instrument and flowing gases such as steam. Their function is to keep the liquid level constant in the impulse tubes. For example, in boiler liquid level applications the high pressure (HP) side of a differential pressure transmitter is connected to the vapor space on top of the steam drum. Steam condenses in the chamber or seal pot and fills the impulse line with condensate. The seal pot is located to allow the condensate to drain back to the source thus keeping the liquid level constant.

Body Materials: SS 316, A106 Carbon Steel, User Specification Maximum Pressure Rating: Up to 9000psig (633 bar). Size: 3″ NB to 6″ NB. Pipe Schedule: 40, 80, 160, XXS. End Connection: NPTF/SW/BSPT/User Specification. Standard: ASME/ NACE.

The main purpose of condensate pot is to catch and hold condensate and foreign material. This prevents damage to the metering system andor manifold. The condensate may be drained from the bottom valve connection. OS&Y gate or ball valves to be used as the drain port. Condensate chambers are used as a barrier between the main line and the secondary instruments in the measurement of steam or other vapors which condense to a liquid state insuring compatibility with the secondary instruments. They can also be used to cool down very high temperature liquids. Seal pots are installed where the line fluid is corrosive or viscous to the extent where it cannot be permitted to contact the secondary instrument. (transmitter or gauge) thereby acting as a liquid barrier between the line fluid and the condensate.
