Frigmaires Engineers Lower Parel, Mumbai, Maharashtra

Used for smooth and gentle blending of dense powders and abrasive material. This machine can handle large volumes and is easily cleaned. Separately driven internal lump breakers can be provided for braking of lumps and agglomerates. The unit consists of two cylindrical cones welded together and fitted with shaft mounted on bearings. The blender is rotated at slow RPM because of which the entire mass is tumbled along the angle of the cone resulting in cris crossing of the material to produce a uniform mix. Baffles are provided inside the cone for throughout mixing.

Wall plaster spraying machine is engineered by FRIGMAIRES in collaboration with BAUMANN, Germany. These are TuV, CE, GS and ISO 9001 certified and acclaimed for longer service life. These are engineered using best available techniques and following international industrial standard. These are admired for unique design, compact size and high functional efficiency.   FRIGMAIRES iM4 is a very compact, flexible and efficient mixing pump. FRIGMAIRES iM4 Buddy is designed to process almost all pumpable pre-mixed dry mortars of grain size Up to 4 mm diameter. Fully equipped with a reliable compressor and a high performance water pump. Easy to disassemble and easy to transport. FRIGMAIRES iM4 your best Buddy in every job site Unique Design, Powerful, Reliable iM4 Buddy is the all-rounder amongst plastering machines, well known in many markets. With a 200 l/min air compressor and powerful 5,5W pump drive it can handle most pumpable dry mixed mortars   Transportation Working the FRIGMAIRES iM4 Buddy is easy. The logic design of the machine makes it easy to operate Even for workers who never used a mixing pump before. Water flow control ... on the iM4 it is all at the right place, easy to understand and easy to operate. Anytime and anywhere   Operation: MOC: SS304 with MS component plate Controller: Solid state electronic controller with photoelectric sensor Changing rotor/stator? Even this maintenance task is easy and can be done in a few minutes. With a fold-up mixing tube, the integrated mounting aid, the iM4 Buddy is great Buddy and a great assistant.   Accessories Included: Remote Control Mortar Hose Spray Gun Operation Manual Sponge Balls   Applications perfect for the FRIGMAIRES iM4 Buddy: Interior Plaster Lime Cement Render Cement Sand Render Gypsum Plaster Skim Coat Fire Proofing Mortars Reinforcement Mortars Adhesive Mortars Self Levelling Mortars A reliable Buddy for every application with an output ranging between 5 and 40 l/min (depending on rotor / stator used) and operating pressure of up to 40 bar. Technical Data: Pump type: D5, 2.5 B Power Theor delivery rate: 25 l/min Delivery pressure: 40 bar Delivery distance: Up to 40 m horizontally, 15 m high Air compressor: 0.55 kW/ 200 l/min Drive pump: 400 V / 50 Hz / 5.5 kW, 392 rpm Drive hopper: 1.1 kW at 23 rpm Tank capacity: 1151 Water pump: 0.78 kW at 3.4 m /h Weight: 240 kg Length: 1,324 mm Width: 728 mm Height: 1,443 mm Filling height: 984 mm Discharge connection: M 35 Maximum grain size: 4 mm Part No: B99 253 0001 The delivery rate depends on the rotor/stator and pump speed (rpm). Depending on the speed, the delivery rate may be higher or lower.

Driven Type : Electric

Automatic Grade : Semi Automatic

Country of Origin : India

Type : Wall Plastering Machine

Volume Dosing is engineered from first grade components and following international industrial standard. These are available in different range as per the products to be packaged. These are ideal to use for various products including sand, gravel, compost and many others and a chamber-dosing device is used for cat liner and granules etc. these are available with the combinations of RODOMATIC Tube-on-a-Reel system.

A portable versatile screening machine useful for screening a wide range of solids or liquids used in the chemical, pharmaceuticals, food, paint & mineral industries. The machine is driven by a vibratory motor with unbalanced weights. The frequency of vibrations are controllable to vary the output. All parts are easily removable and replaceable for maintenance. The machine is provided with wheels & towing handle for mobility.

Valve Type Double Spout Auto Packing Machine is engineered under the firm direction of experienced quality controllers. These are straightened with pneumatic type feeding, pneumatic type bag clamp and many other allied parts to ensure effective usage. These are admired for its consistent performance and high efficiency. These devices are extensively recommended by clients owing to its longer service life and effective usage. Specifications: Pneumatic Type feeding Automatic Overfill compensation Adjustable coarse and fine feed rate and quality Micro computer controlled Pneumatic type bag Clamp Maximum output 400 bags per hour Filling capacity 10/50 KG (rated for 25 and 50 kg bags only) For Smaller Bags Output Will Reduce Grain Size Composition: Max size of in-feed material graduated send size’s from 5mm, 3mm, 2mm. Minimum bag mouth opening size to be 65mm. Model: Model PF02E Packing Capacity: 400 bags per hour Machine will be complete in all respects, factory assembled and ready for installation under feed hopper. Grain Size Composition: Max size of in-feed material graduated send size’s from 5mm, 3mm, 2mm. Minimum bag mouth opening size to be 65mm. Filling assembly mounted on structure Electronic weighing system Control board Compressed air requirement is 500 LPM at 7 kg/cm and is to be arranged by customer. Technical Specification for Stationery Packer: Equipment: stationery packer Material handled: dry mortars Bulk density of material: 0.8 - 1.2 T/m Max grain size: 5 mm max (samples will be sent to you 100 gms each) Filling capacity/unit bag: 25 kg/50 kg Filing range: 10-50 Kgs. Min. Nozzle size for bag will be 65mm Output per hour: 400 kgs/hour (only 25 and 50 kgs bags) Provided size of bag is uniform & big enough & operator is efficient & trained Weighing system: electronic load cell Accuracy: After starting the Packer, Electronic Indicator automatically adjust itself within 5 to 7 Bags then accuracy will be 50 kg +/- 250 grams for an average of 20 consecutive weighments, provided bag size is as per ISI & uniform with sufficient perforations & proper valve size. Temperature of product: 50 to 60 C Power requirement: 440 V A.C. three phase @50 Hz Air requirement: 400 lpm at 7 kg/cm (single spout) Scope Of Supply: Stationery Packer: Main Frame Assembly Suspension frame with 2 filling spouts Filling assembly with casting and belt Electronic load cell arrangement Electrical panel box Pneumatic panel box Air cylinders FRL, pressure regulators & pressure gauge Pneumatically controlled slide gate x 2 Nos, with 3 positions air cylinder Adjustable bag rest Solenoid valves & fittings (janatics make) Bag holders with air cylinder Major Electrical Components Stationery Packer: Electronic microprocessor based control unit Electronic microprocessor based control unit Push button station Load Cell of 110 / 225 kg capacity Indicator Lamps S.M.P.S. (regulated power supply) for each electric panel MCB, electrical contactors, MPCB etc Microprocessor paper type

Mainly used by the rubber & plastic industry for mixing and dispersing chemical additives into highly viscous materials. The mill consists of two parallel rolls mounted in a heavy frame with provision for accurately regulating the pressure & distance between the rolls. The rolls can be independently heated or cooled. The material passing between the rolls is returned to the feed point by the rotation of the rolls. The material is fed between the rolls until the desired consistency is obtained.

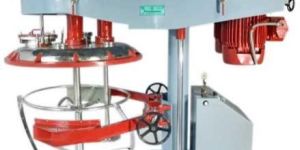

The twin shaft mixer we manufacture and export is fit for mixing of ointments, inks, sauces, pastes, foam, that are used in the pharmaceutical, food, chemical and allied industries. The mixing blades revolve in opposite direction to sweep the entire circumference of the vessel as well as rotate around its own axis. Intimate mixing is achieved in short intervals. Mixing elements can be cleared entirely with vessel being detached or by rotating the blades in the vessel loaded with solvent. A high speed emulsifier is provided in the centre of the twin shaft mixer for thorough mixing of the mass. Technical specifications modeltank in ltrs.working cap. Min/max in ltrs.hp/kw high/low fmd-1250100/17510/5fmd-2500200/35015/7.5fmd-31000300/70050/20fmd-42000750/150075/30.

RODOMATIC - tube-on-a-reel system is ergonomically engineered from first grade components. These are straightened with P.E. plastic sacks which are formed from the tube for automatic filling spout. These are extensively used for the packaging of various raw products. These have a smooth operation of automatic sack length detection of print registered film, which make these extensively useful and effective. Specifications: Suitable for flat or gusseted tubular film. Provides fast change of sack width to reduce changeover time. Provides with lifting mechanism for the reel to eliminate manual handling problems. Simple adjustment of the sack length via the touch screen interface for continuous printed film. Automatic sack length detection of print registered film. Possibility to apply corner seals. Possibility to apply a hand-grip with a carrying load up to 25 kg depending on the design. Space in the system to build in labelling and printing devices. Possibly to incorporate a sack-placing device to enable the handling of pre-made sacks as those made from the reel.

Electrically / Steam operated Tray Drier is fabricated out of M.S. Angle 2.5" x ¼" thick with double walled panel body of 16 gauge thick Sheet with 2" thick Glass Wool Insulation throughout the chamber fitted with 2 Ph electric motor TEFC 1440 RPM 50 Cycles 440 V complete with blower fan with Pillow Block ball bearing fitted with Air Heaters with Contactor, Pilot lamps, Push Button starter with Thermometer, Thermostat having Aluminium Trays of Size 32" x 16" x 1.5" Deep made of 18 gauge thick. The oven inside is painted with Aluminium Heat Resistance Paint and Outside with Enamel Light Gray Paint. The tray Drier will have a Temperature ranging from 50° to 150° C.

We manufacture soap making machine, toilet soap & bar soap making palnt in India. We offer the complete Plant on turnkey basis along with the Know-How to make the soap either from Soap Noodles, Palm Oil, Fatty Acid etc.Hence, there is no delay in commissioning of plants & machinery manufactured by us. We guarantee 100% hassle free production, from day one of commissioning.

We manufacture premium quality toilet soap finish line that is durable and offers consistent performance for longer time period. The toilet soap finish line, served by us is in huge demand in national and overseas markets. specification : capacity : 50 kgs to 2000 kgs per hour

Used for grinding & dispersing of inks, paints, chocolates carbon pastes, polymers, rubber, coatings etc. The machine consists of three rollers operating at different speeds. The material is fed between the fist two rolls and is discharged from the final roll by a scrapper blade. The paste passing between the rolls is subjected to high stress & frictional forces resulting in the breaking up & separation of the particle to produce a finely dispersed film. The gap adjustment between the rolls can be done manually or hydraulically. Rollers are independently cooled by a water circulating facility. Rolls are available in S. S. 304 or Chilled Cast Iron construction.

Thermoplastic Road Marking Paint is the best marking system and is premixed with glass beads evidently visible and reflective throughout day and night. The paint is offered in both yellow and white colors with exceptional shine and whiteness. Our paint is examined and approved by quality auditors and are made available as per the requirements of our clients and can be offered at industry leading prices. Further, this paint is environmentally friendlier with no carcinogenic solvents used. Features Color stability Superior weathering resistance Long lasting retro reflectivity Excellent wear resistance

These mills are used for processing of inks, paints & coatings etc etc where a high level of size reduction & dispersing is required. Grinding & dispersing takes place in a pressurized chamber. A shaft fitted with wear resistant impeller discs agitates the grinding media.. Particle size reduction in sub micron size is possible in a single pass. Mills are equipped with a cooling chamber as a standard feature.   Cartridge mechanical seal and water cooled pressure reservoir with level switch and thermometer. Tangential product inlet optimizes product flow and facilitates clean-up. Abrasion resistant 420 stainless steel grinding chamber with dual zone water jacket. Center media fill and drain ports ease media loading and removal for rapid product cleanup and changeover Interchangeable disc and spacer configurations permit optimization for diverse product types. Front end product separator screen provides easy access. Self-contained and telescoping carriage system for easy removal of chamber and access to chamber components. Unique, ergonomically designed frame provides easy access to mechanical drive and internal components.

The super mill is used for processing of inks, paints & coatings etc where a high level of size reduction & dispersing is required. A shaft fitted with wear resistant impeller discs agitates the grinding media. Super mills are equipped with a cooling chamber as a standard feature. We bring for our patrons super mill of superior quality at rock bottom prices.
 capacity range from 5 kgs to 200 kgs.

Portable stirrers are versatile mixers used for mixing of small quantities of liquid at slow speed. Any 1 fixed speed is provided. The units are available with various different types of impellers to choose from.   OPTIONAL Portable Stand Blades Variable Speeds

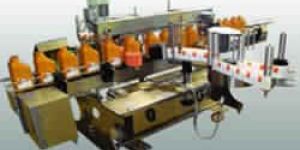

Our sticker labeling machine SBSL is widely used for two sides labeling applications. This sticker labeling machine SBSL is used on flat surfaces of different containers. This user friendly range of machines is capable of work at very high speed as it can label up to 60 containers per minute. But it speed varies with product and label size. This sticker labeling machine SBSL is a fully automatic machine which is equipped with belt spacing device which means it requires no change of parts. Furthermore, it incorporates with latest technology, fiber optic container and label sensing system and micro processor controlled stepper motor drive. Operation: The belt spacing device is used for curate spacing and flat container positioning between two containers. The belt drive mechanism is used to hold the container from the top and help in two sides labeling process. Then electronic product sensor is integrated to sense the container and put the label from self adhesive label roll. Suppose, if the machine is equipped with batch printing device them that device prints batch number and other matters on labels remains stationary, which means the time between sensing of two labels remain stationary. Afterwards the labeled container moves forward through stationary rubber pad and rubber pressing belt to make sure it is perfectly and neatly labeled. Technical Specifications: Model No: SBSL-120D Direction of movement: left to right Output / min: up to 60 label/min (depending on the size of the bottle or the label length) Electrical Motor: 0.25 HP / 1400 RPM for conveyor drive 0.25 HP / 1400 RPM for pressing device drive 6 VDC X 2 no’s stepper motor Power characteristics: 230 volts AC 50 Hz

What is Resin ? Resins are film forming materials used in the production of paints and coatings. It binds the pigment particles into a coherent film that adheres to the substrate. The quality of the resin used in the production of paints and coating decides the durability of the paint. Resins are used depending upon the functional properties of the paint.   Functions of Resin: To provide gloss and elasticity. For the suspension of pigments. To provide resistance to water, chemicals and abrasion. Makes coating adhere to the surface. Acts as a dispersant. For drying properties.   Alkyd resins from the largest group of synthetic resins are used in paint industry. Most air drying enamels are based on long or medium oil alkyd resins. These resins dry at room temperature and have excellent flow and leveling properties, good exterior durability and can be thinned with mineral turpentine. Oils used for producing alkyd resins are linseed oil, soybean oil and Dehydrated Castor Oil (DCO).   Plant Operations: Frigmaires solvent based plant produces paints, coatings, stains, and surface treating products at a rate of about 1.1 million gal/yr. This paint manufacturing plants operations primarily involve blending and mixing of raw materials, product testing and packaging and cleaning of vessels and lines. Color separation of the product is done to befit customer specifications. Water-based and solvent-based paints are mixed in different tanks from 200- to 1000-gal capacity. The material used in water-based paints include water, latex, resins, extenders, and dispersed pigments. For solvent-based paints, the materials are generally similar in type, but solvent replaces water and latex. Other ingredients used in this base include plasticizers, tints, and thinners. After batches are made up, they are transferred to the let-down tanks. Additional water (or solvent), resins, preservatives, anti-foaming agents, thinners, and bactericides are added thereafter in the tanks. Batch testing encompasses checking color, viscosity and gloss. The material are then filtered and charged to cans for labeling, packaging, and shipping.   Waste Generation: The principal waste streams are the result of equipment cleaning, especially from water-based paints. For example, rinsing the let-down tanks ordinarily requires about 35 gal of rinse water, but that amount increases to 53 gal if light paint is to be blended after dark paint. The hazardous nature of water rinses results from the mercury used as a bactericide in the paint. The rinses are separated from the paints according to the color intensity. Waste rinses that are not reused are piped to holding and flocculation tanks, after that alum is added to lower the pH and flocculent is added to precipitate some solids. Finally, the supernatant liquid is removed for reuse in other paint formulations. The tanks are rinsed with mineral spirits at a rate of about 5 gal/400-gal tank. There after, the washings are sent off-site for recovery, followed by recycling or sale as fuel.   Waste Minimization; In addition to reusing rinse water and recovering solvent, following measures to reduce waste generation are specified below :   Cleaning of the equipment before paint dries and hardens. Eliminating hazardous materials. Avoiding hazardous container waste by collecting the bactericide in water-soluble bags. Scheduling batch formulations so that light colored paints precede dark ones. Reducing the inventory of raw materials to avoid degradation and spoilage and to ensure a high-quality product. Using bag filters for collecting dust.

We manufacture soap making machine, toilet soap & bar soap making palnt in India. We offer the complete Plant on turnkey basis along with the Know-How to make the soap either from Soap Noodles, Palm Oil, Fatty Acid etc.   1. Sigma Mixer 2. Pelletizer 3. 3 Roll Mill 4. 3 Roll Mill Straight 5. Conveyor 6. Duplex Plodder 7. Disc Cutter 8. Reciprocating Cutting Machine   Quality Assurace   Plants and machines manufactured by us are based on proven technologies presently operating successfully, in India and Overseas. Hence, there is no delay in commissioning of plants & machinery manufactured by us. We guarantee 100% hassle free production, from day one of commissioning.

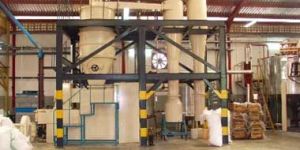

We Manufacture Soap Dryer Plants for Specific Applications Which have Superior Performance Along with Lasting Power. We Manufacture Soap Dryer Plant for Toilet Soap, Detergent Bar Soap, Laundry Soap, Detergent Powder, Hotel Soaps Etc. We Offer the Complete Plant On Turn Key Basis Along with the Know- How to Make the Soap Either from Soap Noodles, Palm Oils, Fatty Acid Etc. Plants and Machines Manufactured By Us are Based On Proven Technologies Presently Operating Successfully, in India and Overseas. hence, There is No Delay in Commissioning of Plants & Machinery Manufactured By Us. We Guarantee 100% Hassle Free Production, from Day One of Commissioning. the Machines Used for the Purpose Are soap Boiling Tanks.soap Transfer Pumpssoap Jacketed Crutchersoap Filter Pumpssoap Filter Strainersoap Feed Tanksoap Feed Pumpheat Exchangervacuum Spray Chambersilicate Dosing Systemcomplete with Pumps/ Tanksduplex Vacuum Plodderpreliminary/ Secondary Recuperatorboostercondenser & Moisture Separator & Vacuum Pump Hot Well Chilling Plant/ Chilled Water/ Hot Watertank Chilled Waterhot Water Pump Roller Printer Bar Cutting Piping Insulation

Excellent for kneading and mixing of highly viscous materials like dough, putty, rubber solutions, adhesives, polymers etc. The mixing action is a combination of smearing, stretching, folding, dividing and recombining as the material is processed between the sigma blades and the container walls. Jacket arrangement is provided for heating or cooling application. In bigger models the container is tilted by a hydraulic cylinder to ensure complete discharge of mass.

  Excellent for kneading and mixing of highly viscous materials like dough, putty, rubber solutions, adhesives, polymers etc. The mixing action is a combination of smearing, stretching, folding, dividing and recombining as the material is processed between the sigma blades and the container walls. Jacket arrangement is provided for heating or cooling application. In bigger models the container is tilted by a hydraulic cylinder to ensure complete discharge of mass.

Highly efficient mixer for super fast mixing of powders, granules with or without addition of liquids and pastes of low viscosities. Used in Chemical, Pharmaceutical, Food and Coating Industries. The mixer consist of a cylindrical shell fitted with ploughs. The mixer creates a hurling and whirling three dimensional effect. Lump breakers are installed at the bottom of the cylinder for breaking of lumps and agglomerates.

This semi auto ROPP cap sealing machine is extensively used in different industrial applications for cap sealing purposes. This semi auto ROPP cap sealing machine can seal about 20 to 25 bottles per minute with high accuracy. It is highly appreciated amongst customers for its trouble free performance and less maintenance requirement. This semi auto ROPP cap sealing machine has strong body and requires very low electricity for running. Specifications: Output: 20 to 25 bottles / min. (depends upon bottle size) Power Characteristics: 415 Volts, 3 Phase (4 Wire System), 50 Hhz Machine direction: left to right Input specifications: Container die: 22 to 65 mm Container height: 38 to 120 mm Cap die: 22 mm, 25 mm, 28 mm and 38 mm or as per your requirements. (with the help of change parts)
