Jeysons Industies Nalasopara East, Mumbai, Maharashtra

Jeysons TC Series tooth clutches are available in air actuated & spring released and also spring engaged & air released models and have the following characteristics. Torque range from 3 to 6779 Nm (20 - 60,000 in. lbs.) . Bore Size from 13 - 100mm (0.625 to 3.938 inches) . Air engaged spring released models. Single or Multi-position models. Fast response time. Inch and Metric models available. Varialble mounting options on either the motor or driven shaft with a pulley, sprocket or flexible coupling on the pilot.

Feature : High Torque and No slip, Transmitted Torque is Almost Constant

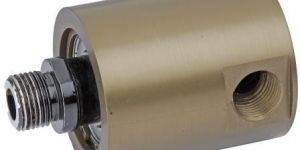

We pioneered the field of Mechnical Sealing Technology way back in 1973. This product is already developed and under rigirous testing. Rotary Unions will be available soon.

Jeysons MOC Series One Way clutch have long product life and outstanding reliability combined with maintenance free operation. These clutches are highly reliable, durable and trouble free one-way clutches designed to improve the productivity and safety of a wide range of industrial machineries.

Feature : • Maintenance free operation,Maximum torque in minimum space

Jeysons MDC Series multi disc clutches are available in air actuated & spring released and also spring engaged & air released mozdels and have the following characteristics. Torque range from 3 to 6779 Nm (20 - 60,000 in. lbs.) . Bore Size from 13 - 100mm (0.625 to 3.938 inches) . Air engaged spring released models. Single or Multi-position models. Fast response time. Inch and Metric models available. Varialble mounting options on either the motor or driven shaft with a pulley, sprocket or flexible coupling on the pilot.

Feature : High Torque and No slip, Transmitted Torque is Almost Constant

Jeysons FC series clutches are engaged by air pressure and disengaged by return spring. Disc moves axially and contact with friction facing. Disc and friction facing are mounted on to integrate into one-piece structure. A friction facing is disassembled by removing a adjusting nut and replaced with ease Micro Air Clutches are compact, easy to mount, easy to use and easy to maintain.

Feature : Compact Size, Light Weight and Wide Range of Torque , High Reliability

Price starts at US$125 Mechanical Safety Chucks Download PDF Jeysons MSCF and MSCP lines of rugged safety chucks provide roll shaft support and torque transmission at a low cost. The maintenance-free design ensures optimal performance throughout the life of each safety chuck. Jeyson's units safe-guard your equipment securing the roll shaft in place during any wind unwind operation. Our safety chucks will only open with the socket in the upright position. Available in either foot or flange mounting, these safety chucks complement Jeysons dependable line of tension control brakes and clutches, offering you a complete package with seamless installation and operation.

Jeysons FC series clutches are engaged by air pressure and disengaged by return spring. Disc moves axially and contact with friction facing. Disc and friction facing are mounted on to integrate into one-piece structure. A friction facing is disassembled by removing a adjusting nut and replaced with ease Air Clutches are compact, easy to mount, easy to use and easy to maintain.

Jeysons FCB series Clutch-Brakes are units combining a clutch with a brake and suitable to mount on an intermediate shaft. Air pressure actuates clutches and brakes independently. When air is exhausted, return spring disengage clutches and brakes independently. The Drive disc becomes input and the shaft output. At the clutch side, air is fed to air chamber and the disc of clutch moves axially, being pushed by air pressure, contacts with friction facing. At brake side, the piston with friction facing contacts with the disc of brake alike the clutch side. Air Clutches are compact, easy to mount, easy to use and easy to maintain.

Feature : Most Suitable to Mount to Intermediate Shaft, Excellent Heat Dissipation

Jeyson's FB Series Friction brakes are air actuated, spring released and spring engaged, air released models . Inch and Metric models available Self-adjusting for friction facing wear High friction work capacity Split friction facing for fast replacement without removing the brake from machine.
