Neutronics Manufacturing Company Andheri East, Mumbai, Maharashtra

We are offering transformer winding resistance meter. The nmc 'tdr' is a high precision, new generation, light weight large output current and micro-processor controlled tester. This replaces old dc wheat stone bridge and double arm bridge for measurement of dc resistance. 'tdr' adopts new advanced test current power supply technology,four terminal measurement, digital display of resistance value and test current. 'tdr' ispowered by 220v ac mains single phase supply. The measurements are accurate as the test current is highly stable. High automation is achieved with automatic discharge warning. principle: the constant current generated is fed to the resistance under test through the current terminals and the voltage drop across the resistance under test is measured and displayed in ohms. A true four terminal measurement is used to eliminate the need for lead resistance compensation. features : >> constant current source>> saves 255 test results in memory>> built-in printer description: nmc 'tdr' is a new generation, digital resistance meter using 4 terminal measurement technique. Built in printer for printing results. The entire test is done quickly. 'tdr' generates constant current, powers up the test current, takes the readings, and displays the results on the lcd screen. The 'tdr' is encased in an aluminum alloy cabinet. 3 models available : tdr-10 , tdr-20 , tdr-40.

Brand Name : NMC

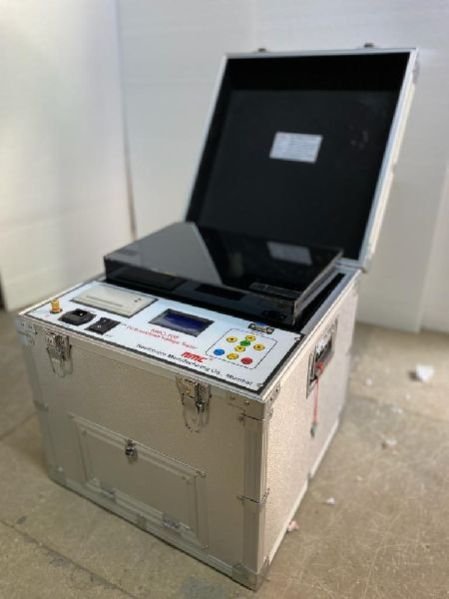

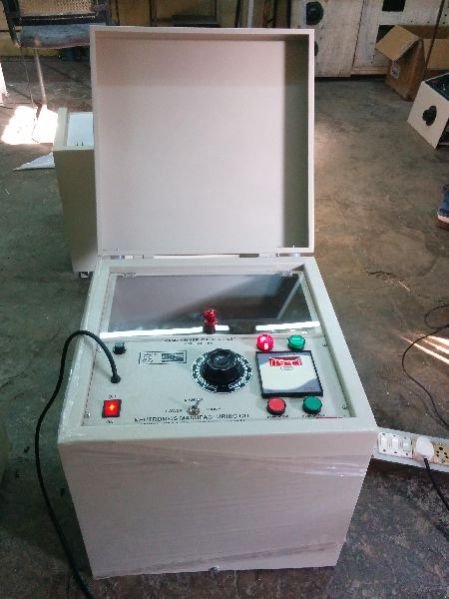

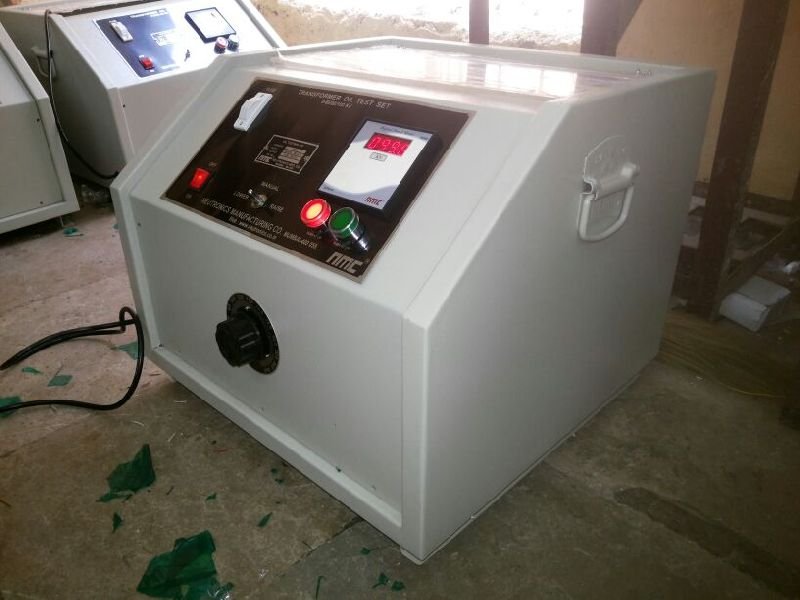

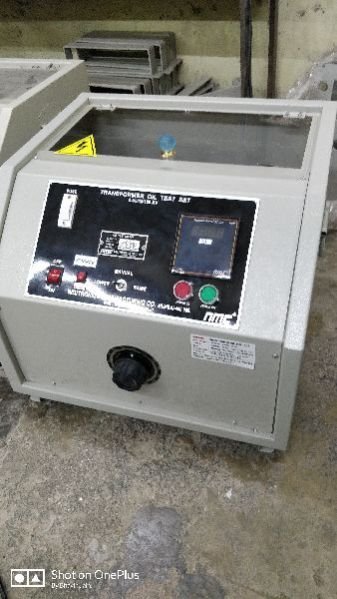

We are offering transformer oil testing kit. nmc's transformer oil bdv test set is ideal for speedy and accurate testing of di-i-electric strength of transformer and circuit breaker oil under test room condition in accordance with is:6792-1992 for oil testing input : 230 volts, single phase, 50 hz, ac. output : continuously variable from 0 to 60 kv or 0 to 80 kv, or 0 to 100 kv, capacity: 1000 va(1kva ) nature of cooling: the transformer will be epoxy resin cast type air-cooled type duty: the oil test set will be designed for"intermittent" rating general arrangement: the set will be comprising of the h.t. Transformer, control circuity test cell with electrode & gauge and will be supplied in portable air cooled sheet metal casing with powder coating of control cubical & h.t. Transformer one continuously variable auto-transformer for smooth variation of out put voltage beside the onoff switch, fast acting automatic tripping mechanism for protection of h.t transformer gains to overloading on flash over one zero start inter locking device two pilot lamps to indicate mains 'on' & h.t. Circuit 'on' one input supply cable with 3- pin plug one memory effect volt meter show the break down voltage even after the high voltage circuit stripped off mode of operation: sets are available either in manual or in motor; operated mode. Besides, motorized auto-transformer regulator can be operated in manual through switch test vessel: the test vessel (oil cell)fitted with two brass spheres of diameter between12.7 to 13mm, placed at a distance of 4 mm or 2.5mm on sides of test vessel made from non-absorbent insulating material cover: sets will be provided with transfer and high impact acrylic sheet cover for covering the h.t. Side with suitable inter-locking device

Brand Name : NMC

Condition : Brand New

Power : 230VAC

Application : To test transformer oil

Number Of Flower : Oil Testing Kits

Total Carbohydrate : 1 Yr

After-Sales Service Provided : Yes.

Country of Origin : India

Sample Type : Oil

Testing Type : Oil Testing

Tap position indicator Digital Tap Position Indicator Digital Winding Temperature Indicator Digital Oil Temperature Indicator Also available with 4-20 mA for SCDA System

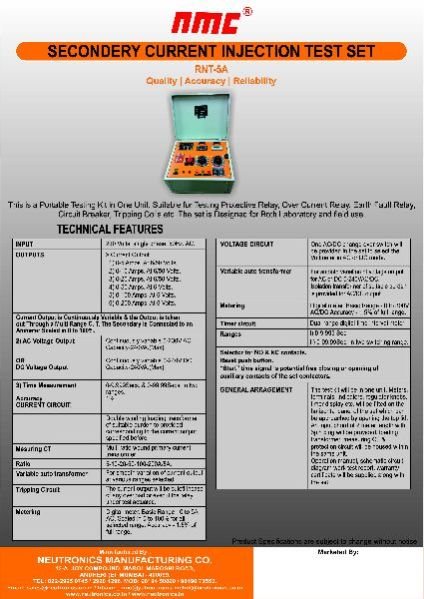

we are offering relay test set, this is a portable testing kit in one unit, suitable for testing protective relay, over current relay, earth fault relay, protective device, circuit breaker, tripping coils etc.the set is designed for both laboratory and field use. technical features: input : 230 volts, single phase, 50hz. ac. outputs : : 1) current output: a) 0- 1amp. at 414volts. b) 0- 2amp. at 414 volts. c) 0- 5 amps. at 414 volts. d) 0- 10 amps. at 414 volts. e) 0- 20 amps.at 414 volts. f) 0- 50 amps. at 4volts. g) 0-100 amps. at 4 volts. h) 0-200 amps at 4volts. current output is continuously variable and the output is taken out through a multi range c.t. the secondary is connected to an ammeter scaled in 0 to 100% or 2) ac voltage output: continuously variable 0 -230v ac. capacity- 460va(max). 3) fixd ac voltage 50v &110v. 4) time measurement: 0-9.999secs. & 0-99.99secs. in two ranges. accuracy : 1% current circuit: loading transformer: double winding loading transformer of suitable burden to provided corresponding current output specified before. measuring ct: multi ratio wound primary current transformer ratio : 1-2-5-10-20-50-100-200a5a. variable auto transformer: for smooth variation of current output at various ranges selected. meatering: digital meter. basic range - 0 to 5a ac. scaled in 0 to 100% for all selected range. accuracy – 1.5% of full range. voltage circuit one ac volt. meter provided for measure the variable output ac voltage. timer circuit : dual range digital time interval meter ranges: i) 0-9.999 sec. ii) 0-99.99sec. in two switahing range. selector for no & nc contacts. reset push button. “start” timer signal is potential free closing or opening of auxiliary contacts of the set contactors.

Number Of Flower : Relay Test Kit

Application : Industrial Use

Feature : High Accuracy

Country of Origin : 220V, Relay Test KitV

Condition : New

Packaging Type : Catron

Total Carbohydrate : 1yrs

Certificate : SELF CALIBRATED

Country of Origin : India

Brand Name : NMC

Power : 230VAC

Relay testing Kit in one unit, is suitable to test different types of Relays like over current, over voltage,under voltage,earth fault etc. The Test Kit will be in one unit. Meters, Terminals ,Indicators, Regulator Knob,Timer Display etc.will be fitted on the horizontal panel of the cabinet which can be approached by opening the top hinged lid. An input chord of 2 meters length with 3 pin plug will be provided. Loading transformer,Measuring CT & protection circuit will also be housed with in the same unit

Number Of Flower : High Voltage Testers

Brand Name : NMC

Certification : NABL

Application : Voltage Testing

Feature : Easy To Use,Proper Working

Condition : New

Frequency : 50Hz

Power Source : Electric

Total Carbohydrate : 1yr

Country of Origin : India

Operating Current : Single Phase

Automation Grade : Semi Automatic

Temperature Capacity : Medium Temperature

Puncture Voltage : 11000V,220V,25000V,33000V,440V,580V

Power : 230VAC

Phase : SINGLE

Item : NMC HIGH VOLTAGE TEST SET

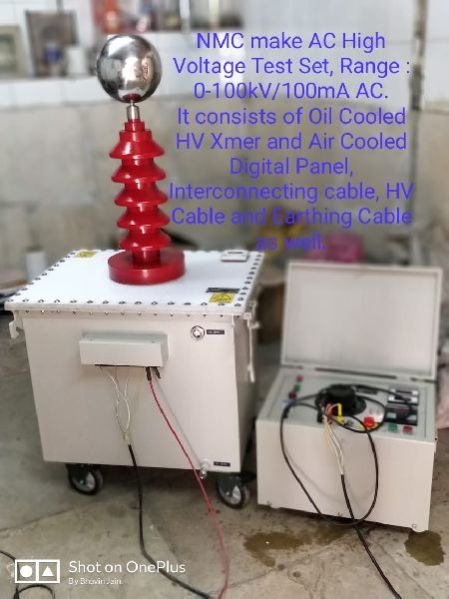

The ac dc high voltage test set that we offer to our clients is widely used at electrical maintenance departments and workshops. It is chiefly used to perform routine maintenance of numerous electrical devices and equipment. Apart from that, this product is used to check the quality of insulation provided in any electrical device. the technical specifications of these products are as follows: capacity : 102550100150200m250 ma spelnput : 230v 1ph. 50hz. Ac output: 0-3510255075100 kv one end earthed indication: main"on" & h.t."on" indicating lamps protection: electronic fast acting over current tripping device, sensing h.t. Current directly safety features: zero interlocking is provided for all units metering : 7296 sq. Mm size, voltmetermill ammeter with linear scale to monitor output voltagecurrent.

Brand Name : NMC

Number Of Flower : Oil Breakdown Voltage Test Set

Certification : NABL

Feature : Easy To Install, Electrical Porcelain, Four Times Stronger, Proper Working, Sturdy Construction, Superior Finish

Condition : New

Frequency : 0-50Hz

Tensile Strength : ..

Cooling System : Air Cooling

Current Type : Single Phase

Warrenty : 1yr, LIFE LONG SERVICE SUPPORT

Automation Grade : Automatic, Semi Automatic

Production Power : ..

Country of Origin : India

Number Of Flower : MANUAL/MOTORIZED/AUTOMATIC

We are offering fully automatic relay test set, tri-phase current, quad-phase voltage output, classic windows operating system, friendly interface, easy and fast operation · 8.4” lcd display screen provides visual status, next step information · ultra thin 101 standard keyboard and optical mouse amd external usb interface · generates accurate signal of pure sine wave · directly outputs: ac voltage, ac current, dc voltage, dc current, variable amplitude, phase, frequency, 2-20 times harmonic waveform. · carry out complex verification works. Real time test data storage, display the vector and print the reports etc. · well designed cabinet, small size, fault diagnosis and automatic locking function introduction: model ‘dy-1200 ’ is an ideal, newly developed multifunction relay tester adopting monolithic computer technology. It is composed of auto synchronized digital millisecond timer, logic controlling unit, multifunction digital display, high precision digit collection and processing unit, current-voltage output unit, overload and over range protection unit. Test process is automatic for improved efficiency. supply voltage : 180 to 250v ac 5060 hz, single phase. ac current source : ac amplitude: 0-40aphase ; 3-phase parallel: 0-120a accuracy: =0.5% response time: =200μs. dc current source : dc amplitude: -10a to +10a phase accuracy: =0.5%. ac voltage source : ac amplitude: 0-120vphase accuracy: =0.5% response time: =120μs dc voltage source : dc amplitude: -150v to +150v phase accuracy: =0.5% phase : 0-360º accuracy: 0.5% frequency : 1-1000 hz accuracy: for 50 hz = 0.005hz. An arbitrary superposition of harmonic amplitude overlapped by 2- 20 times. input : 8-channel, automatic identification of the polarity of active contacts. Accuracy: =1ms. output : 4 pairs 250v dc, 0.5a250v ac, 0.5a gps: =50μs.

Brand Name : NMC

Display : LCD

Brand Name : NMC

Display : LCD

We are the leading exporter and supplier of this products.

Number Of Flower : Earth Testers

Condition : New, Used

Application : Industrial Use

Frequency : 45Hz, 66Hz

Power Source : Battery, Electric

Feature : Easy To Use, Electrical Porcelain

Total Carbohydrate : 1year, 2years

Operating Current : Double Phase, Single Phase, Triple Phase

Number Of Flower : DIGITAL TAPE POSITION INDICATOR

Feature : Durable, Easy to maintenance, Robust design

Nmc's latest offering, digital tap position indicator with 4-20 ma, type tx-205, is a micro controller based instrument used to indicate the tap position of the oltc along with it transmits 4-20 ma analog singledual output. It is a field adjustable instrument. Size : 96*96*85 mm. Aux. Supply : 85 v-265 v ac-dc.

Brand Name : NMC

Nmc,s tap position indicator, type : tx-201, is a microprocessor based specially designed instrument used to indicate the tap position of the power transformer with on load tap changer.

Brand Name : NMC

Nmc's latest offering digital tap position indicator with voltage and counter display, type tx-204, is a fully micro controller based instrument used to indicate the tap position of the power transformer with on load tap changers and also indicating the voltage and counter indications simultaneously at a same time.

Brand Name : NMC

NMC's Digital Tap Position indicator with Voltage Display is used to indicate the Tap Position of the Power Transformer with On Load Tap Changer as well as also indicates the voltage.

Brand Name : NMC

We are offering digital tap position indicator with counter indication. Our digital tap position indicator with counter display is used to indicate the tap position of the power transformer with on load tap changer as well as also indicates the counts of the tap changer.

Brand Name : NMC

Introduced in 2000. the instruments are used for variety of control, alarm and tripping applications.The instruments serve to replce other more expensive equipments.These meters are exclusively developed at NMC for utter reliability under Industrial Conditions.The KW (&MW) and Kvar (&Mvar) meters employ a true 4-quadrant multiplier exclusively developed at NMC for accurate true RMS measrement.This instruments are fully solid state, field proven reliability, microcontrol design, low power consumption and avalable for LT & HT application.Features:Available for current AC & DC, Voltage AC & DC, Frequency Process signals 4 20 mA & 0-5 V DC,KW (MW) for single, double & triple element single and three phase and Kvar (Mvar) for double element three phase.MRD-A : Used for over current under current protection.MRD-V : Used for over Voltage, under Voltage protection.MRD-F : Used for over Frequency under Frequency.MRD-PV :Used for over Process applicationin conjunction with process               transducers.MRD-W: Used for Over load underload alarm & trip..MRD-W: Used for Demand Monitoring- alarm and trip.MRD-W: Used for economical running of star-delta amotors.MRD-var:Used for Single Step Kvar control for HT or LT application.MRD-W+ MRD-var: Used for Import / Export of power.DimensionS: 96mmX96mmX100mm
