TECHNOMECH INTERNATIONAL Oshiwara, Mumbai, Maharashtra

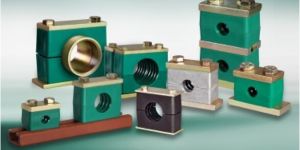

Heavy duty pipe clamps, standard duty pipe clamps with various clamping assembly tmi multi-level clamps permit easy mounting of several tubes or pipes of the same group. This is also possible in the event of varying size diameters. The clamps are connected by intermediate bolts and plates. Available in both standard and heavy duty series also in kit form to convert a single clamp using into a dual or multiple one. Various sizes of pipe clamps can be provided on a single weld plate where there is continuous demand. Twin pipe clamp assemblt is popular for clamping two pipes on a single weld plate. Such installations provide inter-pipe rigidity. Horizontal back-to-back assembly permits use of single heavy duty pipe clamp assemblies in locations of extreme vibration and heavy loads where two or more assemblies are mounted on single weld plate

different designs and specifivations as per the required applications. being made in italy these products are highly effiecient and meets the international quality ad safety standards. which helps the consumers with complete reliablility on our products without any hesitation.

30,000 psi needle valves: max working pressure : 30,000 psi (2069 kgcm2) @ 25ºc (77ºf) max. Temperature : 210ºc (410ºf) testing pressure : hydrostatic body - 45,000 psi (3103 kgcm2) hydrostatic seat - 30,000 psi (2069 kgcm2) pneumatic seat - 569 psi (40 kgcm2) service medium : liquid gas or vapours service types of valves : needle valve - straight type, angle type (90º) two way & three way two piece, nonrotating stem tip two piece, nonrotating stem tip connection size : 14” , 38” , 916” orifice size : 2.4 mm (0.093”) gland seal (packing) : glass filled ptfe: temperature min. -73ºc (-99.4ºf) to max. 210º (410ºf) material : ss 304, ss 316, ss 304l, ss 316 l with nace mr-01-75 & nace mr-01-03 (for sour gas service) material certificate according to en 102043.1b body - cold worked stainless steel handle - stainless steel bar stock finish : ss natural mounting arrangement : needle valves - integral through-holes for bracket mounting panel mounting option is also available. Standard followed : ansi b 16.34 gland seal : ptfe(standard) : for temperature range -73ºc (-99.4ºf) to 210ºc (410ºf) graphoil : for temperature range 180ºc (356ºf) to 540ºc (1004ºf) material : carbon steel, ss 304, ss 316, ss 316 l, monel 400 nace mr-01-75 & nace mr-01-03 (for sour gas service) can also be provide material certificate according to en 102043.1b finish : carbon steel - zinc plated & dichromated, ss natural mounting arrangement : needle valves - panel mounting design standard : ansi b 16.34

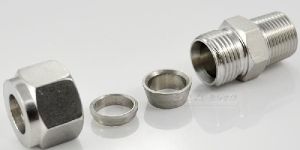

We manufacture following instrumentaion fittings hydraulic fittings •24 ° compression fittings  iso 8434-1 •37 ° flared fittings  iso 8434-2 •o-ring face seal fittings iso 8434-3 •24 ° cone connectors with o-ring weld-on nipples •37 ° flared hydraulic tube fittings •flareless tube fittings sae j514 •o-ring plugs sae j1926 •hydraulic pipe fittings sae j1926 •adapter union sae j516 •o-ring face seal fittings sae j1453 •automotive tube fittings sae j512  custom designed fittings tmi also manufactures custom designed fittings to suit requirement hydraulic adapters •butt weld & socket weld •o-ring straight thread per sae j1926 •o-ring face seal thread per sae j1453 •metric o-ring straight thread per iso 6149 •nptf, bsp, bspt, threads.

We are authorised representative of stucchi italy in india. iso 7241-a and b series, iso 16028 bir, firg, irbo, irbx series available threads: bsp npt bspt sae available in steel-zinc plated and ss. poppet type (standard) flat-face type (non-spill) sizes: from 14'' to 2'' delivery: ex-stock

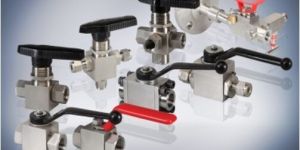

Gemels – industrial ball valve size range: 14'' to 10'' available is ss and cs for low and high pressure 2way 3way 4way ball valves pressure classes ansi 150 to 1500 and api 3000 to 5000, flanged to ansi, uni, and din standards. Fire safe valves

Both ends are tube and the assembly is with ferruleweld nipple. The joint is made by assembly of fittings with ferrule. A weld nipple can be used instead of a ferrule when it is required to join two pipes of an equal size. Tube to tube (equal fittings) : these fittings are generally known as “stud” couplings. Tube to threads (malefemale) : during installation, when a swiwelend is needed to fit with a fixed line, a special swiwel nut is provided which can revolve around the body but will not disengage. Swiwel connections are also available. Tube to swivel : these are used for high pressure applications an provide a 360º rotation facility. These fittings are mainly used for positioning the tube fitting line. The perforated hollow shaped bolts directly on the end pass through the spherical union body for fluid transfer. Banjo fittings : used to connect fittings with instruments. Tmi has a wide range of adaptors with different threads - metric, bsp, bspt, npt. Adaptors : port reducers, closing plugs, ferrules, nuts, o rings, u rings, elastomeric rings. Tmi fittings are available in light series: 4mm-8mm, medium 6mm-42mm and heavy series:6mm-38mm depending on the pipe size. Fittings with weld nipples are available only in heavy series.

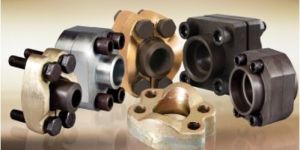

Flange assembly with butt weld end connections sae 3000# and 6000# series sizes 12" to 5" part & its material 1) sleeve with groove : is 2062 2) sleeve without groove :is 2062 3) flange : a 105 4) split flange (set of 2) :a 105 5) '0' ring : nitrile rubber 6) spring washer : is 3063 7) hex. Bolt : is 1364 1983 8) hex. Nut : is 1364 1983 flange assembly with butt weld end connections sae 3000# and 6000# series (two piece system) sizes: 12" to 5" butt weld end elbow flange connections sae 3000# and 6000# series sizes: 12" to 4" socket weld end elbow flange connections sae 3000# and 6000# series" sizes: 12" to 4" flange assembly with butt weld end connections pn 160, pn 250 $ pn 315 sizes: 12" to 6" flange assembly with butt weld end connections flanges : pn - 250 static & pn - 160 dynamic pn - 400 static & pn - 315 dynamic sizes: 12" to 4" square flange assembly with socket weld end connections pn 100, pn 160 & pn 250 sizes: 12" to 3"

We are ranked amongst the foremost firms that are engaged in trading, exporting and supplying a wide range of bulk head male connector in mumbai, maharashtra, india. Offered products are manufactured by our vendors' experts using premium quality raw material and progressive technology. Our offered products are available in various sizes and dimensions to meet the variegated demands of the clients. Furthermore, we perform a series of quality tests on the entire assortment to make a flawless dispatch from our end.

Face to face dimensions : as per asme b16.10 pressure & temperature rating : asme b16.34 ends connections : as per asme b16.5 (flanged end), asme b16.11 as per asme b16.5 (flanged end), asme b16.11.

Material : SS,MS, CS
