Tray Dryer Dealers in Mumbai

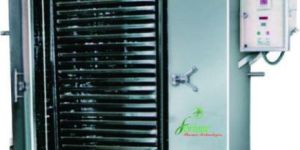

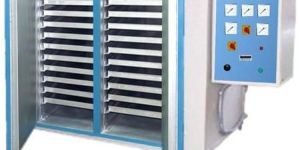

  Double Walled Construction- Exterior made of mild steel powder coated (STD Model) & Interior made of stainless steel 304. Heating: Three sides uniform heating through forced air heaters made up of High grade. Air Circulation: Fan arrangement for uniform air circulation. Temp. Range: 5ºC above ambient to 250°C Resolution : ± 2°C Temperature Controller: Digital temperature controller. High grade glass wool insulation Aluminum Trays. A cabinet tray dryer is an enclosed insulated chamber in which trays are placed on top of each other in trolleys. Tray Dryer are used where heating and drying are essential parts of manufacturing process in industries such as Chemicals, Dye stuff, Pharmaceutical, Food Products, Colors etc.

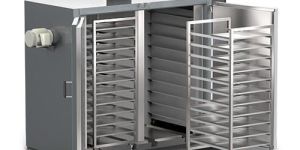

Drying oven is fabricated of rigid angle/square pipe frame with double walled panels insulated with best quality compressed fibre glass. It is provided with a rigid door fitted with strong hinges and best choosen locking arrangement. A control panel is fixed in front of the oven to facilitate its operation. It has a large working space and is available in good matt surface finishing (in synthetic / enamel colours for non gmp). Inner walls are SS-304 / 316 as required.The Drying ovens are electrically heated and thermostatically controlled. It can be fitted with timer to facilitate working day and night. Dryers are well accepted for fast & economical drying of powders, bottles & other materials.   Optional : Available in STD/GMP models Construction SS 304 / 316 / 316L Flame proof motor & panel Intrinsically safe earthing system Chart Recorder device for temperature Control Panel with PLC control

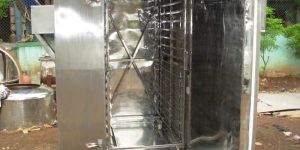

Tray Dryer or Compartment Dryer is an enclosed insulated chamber inside which the trays are placed on top of each other in the trolleys. The materials, either wet or dry, are placed on the top of these trays for the purpose of drying. Further, heat transfer is done by the circulation of hot air using electric heaters or steam in radiator coils. Blower fans are also installed in the Tray Dryer so as to ensure proper circulation and transfer of heat. A control panel is provided to control or adjust the temperature and other parameters of the dryer. We provide Tray Dryer in mild steel, stainless steel or AL construction. It is used for drying of food, electrodes, bakery, chemicals, pigments and plastic powders.

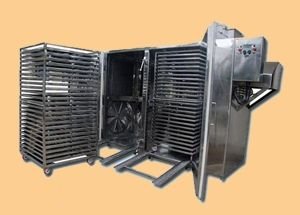

We believe that quality keeps us ahead and we are committed to provide highest satisfaction to our customers by providing them quality products at reasonable prices &timely delivery. Our range of products is encompassing of tray dryer, pharmaceutical tray dryer and electric tray dryer. If we talk about its salient features it carries the best features like the fan is dynamically balanced with specially sealed bearing to withstand the high temperature. The try size of tray dryer is 16 x 32 x 1.25 (h) inches and the tray size has a capacity of 6 up to 192 trays. For heating arrangements it has an electrical / steam heating and heaters are accessible and replaceable from outside the dryer. Further the front doors are explosion proof and are locked with the help of spring loaded ball latches with suitable pressure. Lastly we are the chief electric tray dryer manufacturer, exporters from India. Product Code : 08 Features Fan is dynamically balanced with specially sealed bearing to withstand the high temperatureHeating Arrangement - Electrical / Steam heatingDesigned for uniform circulation of hot air in the drying chamberTunnel type dryers wherein trolleys are placed one behind the other and double door loadingElectric heater terminals situated outside the hot zone in case of electrically heated dryers.Heaters are accessible and replaceable from outside the dryerThe front doors are explosion proof and are locked with the help of spring loaded ball latches with suitable pressureTray size is 16 x 32 x 1.25 (h) inchesCapacity : 6 upto 192 trays

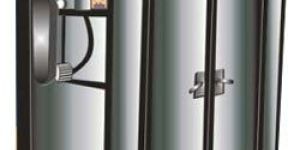

  High Efficiency Axial Flow Fans mounted at most appropriated places in the dryer plays an important part in faster drying and provides uniform air circulation withinthe dryer. Axial flow fans are mounted externally on ball bearing pedestals and each fan is driven by independent1 HP TEFC motor. Air inlet and exhaust outlet dampers are provided on the top roof of the dryer.Insulation :The cavity formed in between double wall is heavily insulated with glass wool on all the sides to prevent heat losses from the Dryer.Control Panel : Pre-wired control panel consists of digital temperature controller, over current relays, fuses, indicating lamps, push buttons, main isolator switch etc.

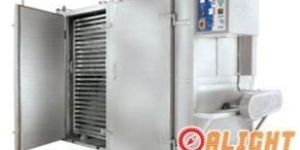

Tray Dryers are ideally suitable for drying chilies, spices, papads, potato chips, onions, fish, garlic, grapes, cashew nuts, confectionery, macaroni, wood etc. It is also for used for drying pharmaceuticals, chemicals, powders, granules, plastic granules etc. Heating is either by electric or steam or both combined. Various models are listed in this leaflet to suit customer requirements. Custom-built models can be quoted on request.Adjustable exhaust Damper with an arrangement for pre-filtration, in the air inlet.

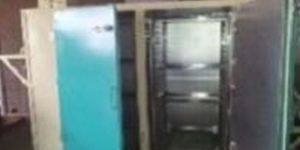

We offer the tray dryer as below tray dryer the main dryer body is placed inside the production room and is fabricated out of ss 304 material from outside and ss 316 material from inside. The dryer body is designed to accommodate no. Of trays in one trolley. The dryer body is insulated from five sides to prevent heat loss. The dryer has one door and is interlocked with the blower motor. the control panel made of ms with epoxy coated is placed on the service floor. The operating panel is made in ss body and is placed in the production area. The operating panel is consisting pid controller, push button for blower motor start stop and selector switch for heating on off. the design of tray dryer will be based on technical specifications derived from user requirement specification, c-gmp requirements, performance requirements and control logics as approved by the client in the design qualification. for more details please contact us

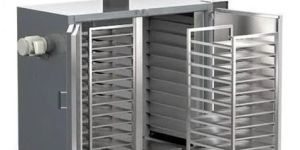

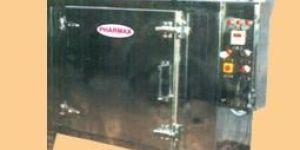

Tray Dryer is used for the best drying results in conventional process. It is a double walled cabinet with one or two doors. The gap between two walls is filled with high density fibre glass wool insulation material to avoid heat transfer. Doors are provided with gaskets. Stainless steel trays are placed on the movable trolleys. Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process. Machine is provided with control panel board with process timer. Digital temperature controller cum indicator etc. CAPACITY 6, 12, 24, 48, 96, 192 trays. Standard & GMP models available with SS 304/SS 316/MS internals & externals. Stainless steel tray in S.S. 304/S.S. 316 quality.

Tray Dryer is conventional drying equipment effective for drying wet powders, sticky/ non sticky powder suitable for further processing into API Processing Powder. Other uses include tablet drying and curing. These Tray Dryers are of high quality and efficiency, in compliance with cGMP norms, built in stainless steel construction of 316/ 316L grade contact parts. The non contact parts / external surfaces of the Dryers are manufactured from stainless steel of 304 grade l This Tray Dryer find application for drying powders, granular crystalline, coarse or similar material in pharmaceuticals, fine chemicals, dyes, food and allied products. The Dryers are available in a range of sizes from 12 Trays to 192 Trays per batch capacity & can be customized to suit production requirements to accommodate multiple Trolleys till 12 trolleys to match individual requirements. Each Trolley can accommodate 48 Trays  Special Characteristics of our Tray Dryer: In Compliance with cGMP Norms/ guidelines. Aseptic, hygienic system designs In Compliance with FDA regulations. Rounded Internals / corners and angles of Dryer Rounded Internals / corners of Rectangular Tray as per cGMP Norms having no dead end Even temperature distribution within dryer internals All product process area of the equipment is in AISI 316/ 316L stainless steel, mirror polish. Pre air filtration module having 20 micron filters and secondary by 5 micron. Excess Pressure control through Dampers to adjust air flow pressure Heating options available are electrical/Steam/Thermic Fluid/LPG gas fired hot air heating system, Microprocessor based control panels Kilolab Model to Production Models Validation documents provided like DQ, IQ/OQ, FAT/ SAT Optional Features of our Tray Dryer: HEPA (0.3 micron)/Absolute inlet air filter system. Variable Frequency Drive (VFD) based air flow for efficient & accurate speed Control PLC based automation of process batch control, with printable option Certified Flameproof Control/ Operating Panel & Flameproof Motor for inflammable /solvent etc. CIP/ SIP System can be provided Air filter assembly along with Heating system & Blower Unit can be mounted in remote area Capacities Kilolab Model : 4 Trays, 6 Trays & 12 Trays Capacity per Dryer Production Model : 24 Trays, 48 Trays, 96 Trays, 192 Trays   & Multiple of 48 Trays/ 1 Trolley   (Note Each Trolley Has capacity of 48 Trays) Trays : Tray Size 406mm x 812mm x 32mm    Each Tray Volume is 10 Liters TECHNICAL SPECIFICATIONS  MODEL  SS-6  SS-12  SS-24  SS-48  SS-96  SS-192 Capacity in trays 6 12 24 48 96 192 No.of Motors / (H.P.) 1/ 0.5 HP 1/ 0.5 HP 1/ 1 HP 1/ 1 HP 2/ 2 HP 4/ 4 HP No. of Doors 1 1 1 1 2 2 No. of Trolleys Nil Nil Nil 1 2 4 Heating load (KW)             100oC 1.5 3 6 9 18 36 200oC 4.5 6 9 15 24 42 150oC 3 4.5 7.5 12 21 39 250oC 6 7.5 10.5 18 27 45 300oC 7.5 9 12 21 30 48         Back...                   Home | Company | Products | Product Support | News & Events | Career | Contact us | Sitemap Copyright © 2012 | ShivShakti Process Equipment Pvt. Ltd. Mumbai. All Rights Reserved Design by Vision Websters Pvt.Ltd.

Features :Covered drivesTwo tier trolly with S. S. rollersSuperior controls Improved design- double door provisionEnhanced performance by total insulationInlet air - Hepa filteredGMP features:Rounded corners and anglesEasy accessibility of Impellers for Hygienic cleaning.Even thermal distribution internally all over the chamber.Capacity offered:1.6 Trays. : Single Door2. 12Trays. : Single Door3.24Trays. : Single/Double Door 4.48Trays. : Single/Double Door 5.96Trays. : Single/Double Door

We have a team of efficient personnel who sternly check the raw materials before final procurement. Thus, we ensure a qualitative array of products at customer's end. Customers should not worry about the security of their payments with us as we follow secured Online and Offline Payment Processing.

Tray Dryer is used for the best drying results in conventional process.It is a double walled cabinet with one or two doors.The gap between two walls is filled with high density fibre glass wool insulation material to avoid heat transfer.Door are provided with gaskets.Stainless steel trays are placed are placed on the movable trolleys. Dynamically balanced axial flow type blower fans are provided air circulation in the drying chamber during process.Machine is provided with control panel board with process timer.Digital temperature controller cum indicator etc. Capacity 6,12,24,48,96 192 trays. Satndard & GMP models anailable SS 304/SS316/MS internal & externals. Stainless steel tray in S.S. 304/S.S. 316 Quality. SALIENT FEATURES : All stainless steel 304/316/316L construction for pharmaceutical application or external mild steel with SS internal parts. Electric /Steam / Thermic Fluid heating Control panel board with process timer.(Circular chart recorder can be provided on demand at extra cost.) Sturdy trolleys with castor wheels. Air filter at inlet. (Hepe filter can be provided on demand a extra cost). Easy accessibility of impellers for cleaning. The exhaust duct,blower & air inlet filters can be custom built to keep out the production area with suitable ducting.
