Chemical Pumps Dealers in Nashik

Thermoseals Technologies firm is accomplished to present Industrial Chemical Process Pumps in diverse structures. Moreover, professionals also check these products on diverse industry parameters.     Thermoseals Technologies firm is accomplished to present Industrial Chemical Process Pumps in diverse structures. Moreover, professionals also check these products on diverse industry parameters. Features: Durable nature Perfect finish Flawless designs Sturdy built Less maintenance Sturdy construction

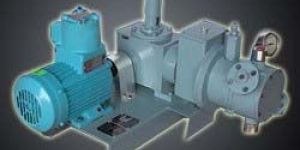

We bring forth technically advanced Hydraulic Actuated Diaphragm Jacketed Head Type Pump for our valued clients. Hydraulic Actuated Diaphragm Jacketed Head Type Pump is gland less pump, ensuring leak free operation. Our Hydraulic Actuated Diaphragm Jacketed Head Type Pump is known for its longer service life, non-corrosive housing, excellent performance and engineering.  Features:• High discharge pressures of 180 Kg/sq. cm• Steady State metering accuracy of + -1% of pump output, at single setting of stroke from 10% -100% Reproducibility (Repeatability) better than +/- 1.5% of set point.• Inbuilt pressure relief & vacuum valve on the hydraulic side to safeguard system• Simplex and Multiplex arrangements of pumps available for universal use• Heating or cooling jackets for liquid head is also available• Pump Model MM-V• Capacity: 0 TO 9600• Pressure Max 400(Kg. / Sq. Cm.) Liquid Contact Materials (Wetted Parts)• PTFE Diaphragm• Standards, AISI 304 and AISI 316• Easily handles viscous fluids.• They are compatible with most of fluids• Raw material: Monel and Alloy 20

Modular Configurations: Simplex, Duplex, Triplex and Quadriplex,Flows up to 7,000 lph on single head,Sandwich diaphragm pressure leak detection,Manual stroke length control standard (optional VFD),Two diaphragms are in close proximity with each other with practically no pressure in the intermediate gap. On diaphragm rupture. process or hydraulic fluid enters into the gap between the diaphragms. Pressure which can be sensed either by Pressure Gauge or by means of Electric Pressure Sensor with contacts. This replaces conventional Double Diaphragm liquid Heads.

Offering quick installation, these Precision Air Sampling Pumps are presented in market in many sizes. Light in weight, these sampling pumps widely demanded in heavy working areas. Engineers make sampling pumps very precisely using best components that are safe to use for years. Moreover to this, we ensure best working of this pumping unit. Features Leak proof Optimal finish Small size

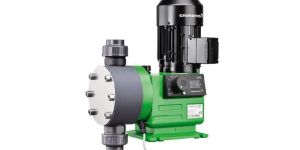

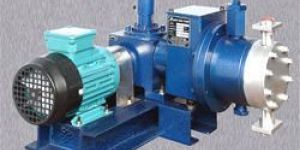

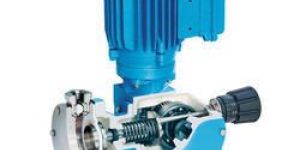

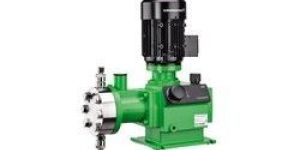

According to the demands and requirements of our clients, we are offering a wide range of Diaphragm Metering Pump. Diaphragm Metering Pump are the sturdily constructed Dosing Pumps widely used in various industries. These are leak proof and widely used for highly aggressive or toxic media. Besides, these medium sides of this diaphragm are coated with PTFE to ensure safe usage. Multiple head with identical or different outputs for each head using single drive.   Focal points : Flow Rates of 0 to 3000 lph. High Discharge Pressures of 250 kg/cm2. Suitable to handle most Corrosive fluids. Leak Proof Operation. PTFE coated Diaphragm is supported by a Steel core & temperature resistant material simplex. Duplex, and Multiplex arrangements of pumps available for universal use Steady state accuracy up to + 3 %. Integrated Pressure relief valve. Diaphragm is always balanced between the pressure exerted by the hydraulic oil and liquid to be dosed. Longer diaphragm life. Manual stroke adjustment by eccentric.

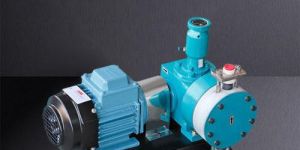

We Offer a Wide Range of diaphragm Pumps to Our Esteemed Clients. the Diaphragm Pumps Provided By Us are Ideally Designed for the Use as Feed Pump for Filter Presses. the Positive Displacement Characteristic of Our Diaphragm Pumps is Coupled with the Special Hydraulic Pressure Control Arrangement Making Them Superior to other Type of Pumps for Filter Press Application. We also Offer Various Options of Diaphragm Pumps with Respect to Material of Construction of Slurry Contact Parts. Our Diaphragm Pumps Are, Therefore, Suitable to Be Used as the Transfer Pumps for Thick, Abrasive Slurries with High Solid Contents and Size. product Range 3 M3/hr Diaphragm Pump6 M3/hr Diaphragm Pump applications metallurgypharmaceuticalswaste Waterchemicalceramicsfoodpapersynthetic Fibers working the Diaphragm Pumps are Typically Driven By Geared Motors or Motor Gear Box Systems. the Drive is Transmitted to Hardened Reciprocating Pistons Through Oil Submerged Eccentric Ram Mechanism. the Piston Action is in Turn Transmitted to the Diaphragms By Means of Hydraulic Fluid, Thereby Providing for Efficient Pressure Control Through Hydraulic Relief and Pre-fill Valves. Additional Pressure Control (if Desired) is Provided in the Form of An Electrical Contact Manometer Arrangement Which Automatically Stops and Starts the Motor On Preset Maximum and Minimum Pressure Values. the Air Vessel On the Delivery Manifold and the Oversized Section of the Suction Line Serve to Prevent Pressure Surges.

High flow rates of 6000 litershr & high pressures of 400 Kgsq. cm. can be achieved,Steady State metering accuracy of + - 1 % of pump output, at single setting of stroke from 10% - 100% (Turn down ratio 10:1),Positive return of plunger and variable stroke mechanism allows linear relationship between control stroke settings and stroke length.

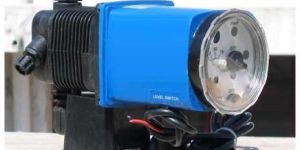

Electronic Dosing Pump, Electronically operated mechanically actuated Diaphragm, Adjustable injection frequency (15 to 100 SPM ), Compact size, light weight, more robust structure, Unique double ball check. NRVs for better dosing accuracy, Solenoid drive with minimum moving parts.

Hydraulic Diaphragm Pump, Dosing Systems, Dosing Pumps, Hydraulic Pump
