OHM Meters Dealers in Nashik (9 products available)

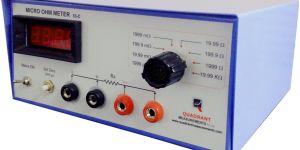

We offer Micro Ohm Meter. Features True Four Terminal Measurement Regulated and Highly stable 1 Amp Current Source 3 ½ Digital LED Display 1uOhm resolution on 2000 uOhm range Stable and fast measurement Technical Specifications Range : 1 uOhm - 19.99 KOhm Accuracy : +0.5% of reading Display : 3 ½ Digit LED Display Power Supply : 230V AC, 50Hz, 1 Phase Standard Accessories One set of Test leads (1 meters) with Crocodile clips Mains Cord User Manual

• range: 1 m ohm on 2 ohm

LR 201 - Low Resistance Safety Ohm Meter With Low Current Injection For Hazardous area like fuse in detonators where current should not exceed 10mA, 4 wire measurement to avoid lead resistance. 312 Digit LCD Display. Resolution 1 m ohm on 2 ohm range. Battery operated.Ratiometric Measurements. Gold plated terminals for low thermal effect. Fully protected against reversal of battery polarity and over loads. 'PUSH TO READ' Switch for additional safety.

• Model LS3A: 100V, 250V 500V 1KV & 2.5KV ± 2%
• Model LS3B: 63V, 100V & 500V ± 2%
• Dimensions: 435 x 345 x 192mm

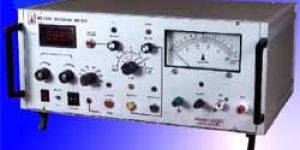

This series of Million Megohm Meters are designed to test electronic components such as paper Capacitors, Plastic Capacitors, Ceramic Capacitors, Insulators, Semi Conductors, Switches, Connectors, transformers, Motors etc. as per I. S. I. recommendations.The instruments have facility for checking insulation resistance in the range of 1 meg ohm to 10 million meg ohm after one minute of charging. Ultra stabilized power supply (.001% short term drift) permits measurements of intrinsic value of insulation resistance if required, even with capacitive loads. Separate push button controls and visual indicators for "Charge", and "Discharge" function are ideally suited for rapid and safe testing of components in a factory. Maximum output current has been limited to safe value to eliminate the risk of serious shock to operators. The instruments are available in five models as per specifications given overleaf.

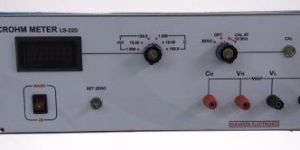

• Model Number: LS-22D
• Brand Name: SIVA
• Country of Origin: Made in India
• Power Supply: 230VAC,+-15%, 50Hz(+-5%)
• Resolution: 0.1micro Ohm
• Usage: Industrial, Laboratory

The continuity testers from Metrel are portable, low resistance ohmmeters based on four wires Kelvin method used to measure low contact resistances of breakers and switches, busbars joints, motor & generator windings, power transformers and others where measurements are performed with a test current from 1 mA to 100 A.

High Voltage Capacitor, Oil Test system, oil bdv tester, resistivity tester

10 Amp Digital Low Resistance Ohm Meter, Light Intensity Measuring Instrument

Million Mega Ohm Meter, Dielectric Analyzer, Abb Switchgears
