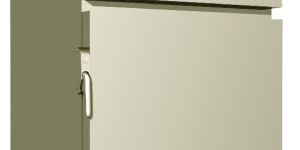

Photostability Chamber Dealers in Nashik (9 products available)

Automatic Grade : Automatic

Power : 1-3kw

Model : CBp1.25

Temperature Range : 20 to 60 Degree C

Accuracy : ± 0.2 Degree C

Uniformity : ± 1 Degree C

Equipment : PLC based Photostability chamber (Also available in controller based ) Control system : Allen Bradley PLC controlling temperature. Also connected to IOT device to access chamber via mobile Refrigeration system : An eco-friendly refrigerant (R-134) is used in a compressor which satisfies the requirement of CFC free cooling system. Copeland (Emerson) make compressor will be hermetically sealed and coupled with evaporation coil& condenser Air circulation : To get an uniform temperature a centrifugal blower connected to a motor will blow the air from up to down, controlled by PLC Heating system : SS. U shaped nichrome wire Insulation : 80 mm sheet of PUF (Poly Urethane Foam) Trays : Stainless steel perforated or wire mesh as per the requirement. Trays will be adjustable as per sample size Illumination : LED light is provided for bright illumination and low power consumption Fault Indications : Audio visual indication is provided for all types of fault occur in the chamber Validation port : A 60 mm port hole sealed with silicon rubber is provided on the side wall of chamber for validation purpose Sensors : PT 100 sensor to sense temperature Software : CDAQ complying 21 CFR part 11   Optional features : To avoid critical conditions and for ease of operation Standby refrigeration system Hooter GSM technology Extra trays Extra sensor   Certification : ISO 9001:2015 New Feature : A direct access to chamber is possible via mobile using IOT device Illumination for photo : Fluorescent tubes for day light effect and U.V. tubes for ultra-violet rays  Stability test : in accordance to ICH guidelines requirement of lightning Energy Wireless access : A direct access to chamber is possible via mobile using IOT device

Warranty : 1 Year

Brand Name : Mack

Temperature Range : 20°C - 50°C

Accuracy : + 0.2 °C

Uniformity : + 1.0°C

Use in : Laboratory

Optional Features GSM TECHNOLOGY HOOTER SYSTEM  Features UV lights get switched off automatically once the door is opened. You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously. Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies. Lights automatically shut off after a specified exposure level or time duration. 21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.

For confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours / square meter to allow direct comparison to be made between drug substance & drug product.MACK PHARMATECH’s Photostability Chambers are designed specifically to meet ICH & FDA requirements for Photostability testing. Near UV & visible light testing is Approved Approved performed simultaneously according to ICH Q1B option 2.Optional FeaturesGSM TECHNOLOGYHOOTER SYSTEM    Features: UV lights get switched off automatically once the door is opened. You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously. Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies. Lights automatically shut off after a specified exposure level or time duration.   21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records &E-signatures, Graphical analysis & Data acquisition.

Temperature Range : 20° C - 50 °C

Accuracy : ±0.2 °C

Uniformity : ±1.0 °C

For Confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours / square meter to allow direct comparison to be made between drug substance & drug product.MACK PHARMATECH’s Stability Chambers are designed specifically to meet ICH & FDA requirements for Photostability testing. Near UV & visible light testing is performed simultaneously according to ICH Q1B option 2.Optional Features :GSM TECHNOLOGYHOOTER SYSTEM    FEATURES: » UV lights get switched off automatically once the door is opened. » You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously. » Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies. » Lights automatically shut off after a specified exposure level or time duration.   21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records &E-signatures, Graphical analysis & Data acquisition.

We are offering photostability chamber. Technical specification temperature range: 20ã�â°c - 50ã�â°c accuracy: + 0.2 ã�â°c uniformity: + 1.0ã�â°c for confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours square meter to allow direct comparison to be made between drug substance & drug product.

For confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours / square meter to allow direct comparison to be made between drug substance & drug product. MACK PHARMATECH’s Photostability Chambers are designed specifically to meet ICH & FDA requirements for Photostability testing. Near UV & visible light testing is Approved Approved performed simultaneously according to ICH Q1B option 2. Optional Features GSM TECHNOLOGY HOOTER SYSTEM Features UV lights get switched off automatically once the door is opened. You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously. Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies. Lights automatically shut off after a specified exposure level or time duration.   21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.

Power Supply : Single Phase, 230V 50Hz

Accuracy : + 0.2 °C

Temperature Range : 20°C - 50°C

Photostability chamber For confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours square meter to allow direct comparison to be made between drug substance & drug product. UV lights get switched off automatically once the door is opened. You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously. Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies. Lights automatically shut off after a specified exposure level or time duration.
