Electronet Equipment Pvt. Ltd. Kondhwa, Pune, Maharashtra

ULT 2008 – Battery Operated Ultrasonic Level Transmitter Features Non-contact type measurement Compact design & easy maintenance Battery operated Minimizes process downtime Automatic temperature compensation LCD display Password protection Software calibration Easy installation & configuration Narrow beam technology Measures liquid height, distance to liquid, volume or flow in open channels Description Electronet series ULT 2008 is a battery-operated ultrasonic level transmitter designed for non-contact level measurement. It works on Ultrasonic Time-of-Flight technology, which calculates the time taken by ultrasonic pulses to travel from the sensor to the liquid surface and back. This technology is ideal for: Slurries Corrosive liquids Wastewater applications Open channels Tanks without obstacles in the ultrasonic beam path The transmitter provides local indication through an LCD display and supports measuring ranges up to 12 meters. Technical Specifications Measurement Measurement Principle: Ultrasonic (Time of Flight) Measuring Range: Up to 12 meters Dead Band: < 300 mm Beam Angle: < 7° Measuring Frequency: 25 KHz Temperature Coefficient: ±0.01% per °C Performance Accuracy: ±0.25% of F.S. Linearity: ±0.1% Repeatability: ±0.1% Stability: ±0.05% Power & Output Communication Output: GSM, GPRS Power Supply: Battery Operated Battery Life: 2–10 years (depending on sampling time) Power Consumption: < 500 mW Display Type: LCD Operating Conditions Process Temperature: 0 to 85°C Operating Pressure: Atmospheric Ambient Temperature: 0 to 85°C Ambient Humidity: 5–95% RH (non-condensing at 25°C)   Mechanical Details Electronic Protection Class Flameproof (CMRI 1A 11B Certified) Weatherproof IP-67 MOC – Electronics Enclosure Die-cast aluminium (PU painted) SS316 ABS Plastic Process Connection 2” BSP (up to 8 meters) 2.5” BSP (8–10 meters) 3” BSP (10–15 meters) 4” BSP (15–20 meters) Mounting Vertical – Top of the tank MOC – Probe   PVDF

Accuracy : ±0.25% Of F.S.

Beam Angle : < 7°

Type : Ultrasonic Level Transmitter

ULT-200 Ultrasonic Level Transmitter Features Non-contact level measurement Compact size with easy maintenance 2-wire loop-powered operation Minimizes process downtime Automatic temperature compensation LCD display for local indication Password protection for secure access Software-based calibration Easy to install and configure Narrow beam technology for precise detection Measures liquid height, distance to liquid, volume, or open-channel flow   Description Electronet ULT-200 is a compact 2-wire ultrasonic level transmitter designed for non-contact level measurement using transit-time technology. It measures the time taken for ultrasonic pulses to travel to the liquid surface and return, ensuring reliable performance in slurries, corrosive liquids, and wastewater applications. The transmitter provides a 4–20 mA output with LCD indication, offering an effective measuring range of up to 12 meters. Technical Specifications Performance Measurement Principle: Ultrasonic (Time of Flight) Measuring Range: Up to 12 meters Accuracy: ±0.25% F.S. Linearity: ±0.1% Repeatability: ±0.1% Stability: ±0.05% Dead Band: <300 mm Beam Angle: <7° Measuring Frequency: 25 kHz Process Temperature: 0°C to 85°C max Operating Pressure: Atmospheric Temperature Coefficient: ±0.01% per °C Electronics Electronic Location: Integral (Local) Output: 4–20 mA DC 4–20 mA with HART (Optional) Power Supply: 24 V DC, 2-wire loop powered Power Consumption: <500 mW Display: LCD Protection & Housing Electronic Protection: Weatherproof IP-67 Flameproof (CMRI IIA/IIB Certified) Enclosure Material: Die-cast Aluminum (PU painted) SS-316 Process Interface Process Connection: 2" BSP (up to 8 m) 2.5" BSP (8–10 m) 3" BSP (10–15 m) 4" BSP (15–20 m) Mounting: Vertical – Top of tank Probe Material: PVDF Ambient Conditions Ambient Temperature: 0°C to 75°C Humidity: 5% to 95% RH, non-condensing Optional   Communication: HART protocol

Output : 4–20 MA DC, 4–20 MA With HART (Optional)

Accuracy : ±0.25% F.S.

Type : Ultrasonic Level Transmitter

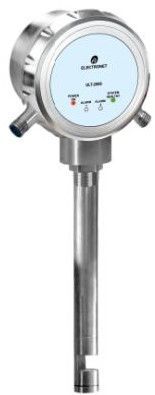

ULS-200S – Ultrasonic Contact Type Level Switch (Contact Ultrasonic Level Detection for Liquids & Oils) Description Electronet Series ULS-200S is a contact-type ultrasonic level switch designed to detect the presence or absence of liquid when in direct contact with the sensor. The sensor sends a current signal to the converter, which then generates a potential-free relay output. The output can be configured by the user to indicate either liquid presence or absence. ULS-200S is suitable for a wide range of liquids and oils and provides fast, accurate, and maintenance-free operation.   Technical Specifications Primary Sensor Type: Ultrasonic Contact Type Actuation Length / Switching Level: As per requirement Output Signal: 8 mA (Normal Condition) 16 mA (Alarm Condition) Actuation Time: < 0.5 sec Power Supply: 24 V DC Switching Accuracy: ±2 mm Probe Material (MOC): SS-316L Enclosure Protection: IP-65 (as per IEC-60529) Mounting Accessories: Provided   Secondary Converter   Indications: LED indication for switch health / failure Power ON / OFF status Contact Output: 2 × SPDT Relay Outputs Contact Ratings: 220 V / 5A 24 V / 1A Power Supply: 220 V AC, 50 Hz Power Consumption: < 15 VA Insulation Resistance: > 100 MΩ (power supply terminals) Housing Material: SS-316 Enclosure Protection: IP-65 (as per IEC-60529) Gasket: EPDM / Neoprene / other materials suitable for environmental conditions

Usage : Level Detection For Liquids & Oils

Type : Ultrasonic Contact Type Level Switch

Suitable For : Wide Range Of Liquids And Oils

output signal : 8 MA (Normal), 16 MA (Alarm)

Actuation Time : < 0.5 Sec

Power Supply : 24 V DC

Switching Accuracy : +/-2 Mm

Probe Material : SS-316L

Enclosure Protection : IP-65

Contact Output : 2 X SPDT Relay Outputs

Power Consumption : < 15 VA

Insulation Resistance : > 100 MOhm

Housing Material : SS-316

Gasket : EPDM/Neoprene/Other Materials Suitable

UAC 100 – Universal Analyzer Controller Description Electronet Series UAC 100 is a versatile dual-input Universal Analyzer Controller designed for multi-parameter measurement in industrial applications. It supports single or dual sensor input and accepts pH, ORP, Conductivity, and Dissolved Oxygen (DO) electrodes in any combination. The high-contrast backlit LCD provides live measurement readouts with large digits while displaying up to four additional process variables. The analyzer includes two isolated 4–20 mA outputs, programmable alarms/relays, user-friendly software calibration, and inbuilt data logging. Output damping can also be programmed from 0 to 50 seconds to ensure stable readings.   Features Single / Dual channel sensor input Backlit LCD display Dual 4–20 mA current output Inbuilt memory for data logging Auto / Manual temperature compensation Programmable alarms / relays Software calibration Accepts input from pH / ORP / Conductivity / DO electrodes   Technical Specifications General Number of Channels: Single / Dual Input Source: From pH, ORP, Conductivity, or DO Electrode (Compatible with any make of industrial electrode) Display Type: LCD Display Measured Parameters: pH: 0 to 14 pH ORP: –2000 to +2000 mV Temperature: 0 to 150°C DO: 0 to 20.9 ppm Conductivity: 0.01 µS/cm to 10 mS/cm Accuracy pH: ±0.02 pH ORP: ±2 mV DO: ±0.25% of F.S. Conductivity: ±0.25% of F.S. Temperature: ±0.25% of F.S. Power Supply Options: 24V DC (±10%) 90 to 250V AC, 50 Hz Enclosure Type: Weatherproof IP-65 Material: Die-cast Aluminium Outputs Analog Output: 4–20 mA DC 4–20 mA DC with HART (Optional for one channel only) Relay Outputs: 1 Relay or 2 Relays (Programmable) Communication: RS-485 Serial Communication Electrical & Performance Power Consumption: < 10 VA Temperature Compensation: Through RTD PT-100 Temperature Coefficient: 0.01% per °C Response Time: pH: 5 sec (to 100% of reading) ORP: 5 sec Conductivity: 3 sec DO: 6 sec Isolation: 1.4 kV between input, output & power supply Mechanical Dimensions: 155 mm (H) × 155 mm (W) × 126 mm (D) Cutout Size: 144 mm (H) × 144 mm (W) Mounting: Panel / Pipe Mounting Weight: Approx. 1.5 kg Environmental Conditions   Operating Temperature: –20°C to 55°C Humidity: 5% to 95% RH (non-condensing)

Type : Universal Analyzer Controller

Supported Sensors : PH, ORP, Conductivity, DO Electrodes

Display Type : LCD Display

Analog Output : 4-20 MA DC

Relay Outputs : 1 Relay Or 2 Relays (Programmable)

Communication : RS-485 Serial Communication

Power supply options : 24V DC, 90-250V AC, 50 Hz

Enclosure Type : Weatherproof IP-65

Enclosure material : Die-cast Aluminium

Electrical Power Consumption : < 10 VA

Temperature Compensation : Through RTD PT-100

Temperature Coefficient : 0.01% Per °C

Dimensions : 155 Mm (H) X 155 Mm (W) X 126 Mm (D)

Weight : Approx. 1.5 Kg

Operating Temperature : -20°C To 55°C

Humidity : 5% To 95% RH (non-condensing)

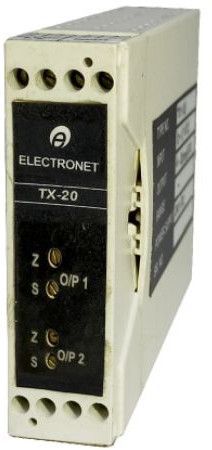

Signal Isolator — Model TX-20 Features Single input with dual isolated outputs Signal conversion with complete electrical isolation Dedicated input type High accuracy: better than ±0.25% F.S. Operates on 24V DC supply Compact and maintenance-friendly design DIN rail mounting Reliable and cost-effective solution for industrial signal conditioning   Description Electronet Series TX-20 signal isolators are designed for applications requiring a single input and dual isolated outputs. They accept dedicated current or voltage inputs and deliver isolated analog outputs in either current or voltage form. Its compact ABS enclosure ensures efficient use of panel space, while providing superior performance and electrical isolation.   Technical Specifications General No. of Inputs: 1 No. of Outputs: 2 Input Type (Dedicated) Current: 4–20 mA Voltage: 0–5 V / 1–5 V Output Type (Dedicated) Isolated Current: 4–20 mA Isolated Voltage: 0–5 V DC Accuracy ±0.25% of Full Scale Isolation 1.5 kV between input, output & power supply Power Supply 24 V DC Power Consumption < 4 VA Response Time < 50 ms Temperature Coefficient ±0.01% per °C   Mechanical Enclosure: ABS Plastic Dimensions: 75 mm (H) × 22 mm (W) × 110 mm (D) Mounting: DIN Rail Weight: Approx. 250 g   Operating Conditions   Temperature: –20°C to 55°C Humidity: 5% to 95% RH (non-condensing)

Type : Signal Isolators

Dimension : 75 Mm (H) × 22 Mm (W) × 110 Mm (D)

Operating Temperature : -20°C To 55°C

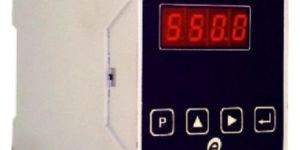

Trip Amplifier — Model TX-100 Features Single input with dual output Signal conversion with galvanic isolation Universal input (RTD / Thermocouple / mA / Voltage) Potential-free relay outputs (2 Nos.) Operates on 24V DC Compact, reliable & cost-effective design Easy maintenance with DIN rail mounting   Description Electronet Series TX-100 Trip Amplifiers are designed for industrial applications requiring signal conversion, isolation, and dual trip output. They support universal inputs such as RTD, Thermocouples, Current, and Voltage, and provide isolated analog outputs. The compact ABS enclosure ensures optimal panel space utilization and long-term reliability.   Technical Specifications General No. of Inputs: 1 No. of Outputs: 2 Input Type (Universal) RTD: PT-100 / PT-200 / CU-53 (2 or 3 wire) Thermocouple: J, K, R, S, T, E, B types Current: 0–20 mA / 4–20 mA Voltage: 0–5 V DC / 0–10 V DC / 1–5 V DC Output Type Isolated 4–20 mA / 0–5 V Trip Output Potential-free relay contacts, 1 c/o, 1A @ 230V AC Display 4 × 1 digit, 0.3” Red LED (7-segment) Isolation 1.5 kV between input, output & power supply Power Supply 24 V DC (External) Accuracy Better than ±0.25% F.S. Power Consumption < 15 VA Response Time < 100 ms Temperature Coefficient ±0.01% F.S. / °C   Mechanical Enclosure: ABS Plastic Dimensions: 75 mm (H) × 55 mm (W) × 110 mm (D) Mounting: DIN Rail Weight: Approx. 500 g   Operating Conditions Temperature: –20°C to 55°C Humidity: 5% to 95% RH (non-condensing)   Range Programmable: –999 to +9999 (for mA & Voltage inputs) Fixed ranges for RTD & Thermocouple inputs Optional  Isolated Retransmission Output: 4–20 mA / 0–5 V RS-485 Communication (MODBUS RTU)

Type : Signal Trip Amplifier

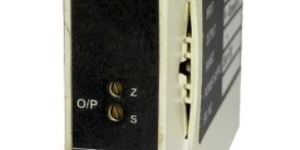

Signal Isolator — Model TX-10 Features Single input, single output Signal conversion with electrical isolation Dedicated input type High accuracy: better than ±0.25% F.S. Operates on 24V DC supply Compact size for easy installation & maintenance DIN rail mounting Reliable and cost-effective design Description Electronet Series TX-10 are high-performance signal isolators designed for industrial applications requiring isolated signal transmission. They support dedicated inputs such as current and voltage and provide isolated output in the form of current or voltage. Its compact enclosure ensures minimal panel space usage while delivering reliable performance. Technical Specifications General No. of Inputs: 1 No. of Outputs: 1 Input Type (Dedicated) Current: 4–20 mA Voltage: 0–5 V / 1–5 V Output Type (Dedicated) Isolated Current: 4–20 mA Isolated Voltage: 0–5 V DC Accuracy ±0.25% of Full Scale Isolation 1.5 kV between input, output & power supply Power Supply 24 V DC Power Consumption < 4 VA Response Time < 50 ms Temperature Coefficient ±0.01% per °C Mechanical Enclosure: ABS Plastic Dimensions: 75 mm (H) × 22 mm (W) × 110 mm (D) Mounting: DIN Rail Weight: Approx. 250 g Operating Conditions   Temperature: –20°C to 55°C Humidity: 5% to 95% RH (non-condensing)

Type : Signal Isolators

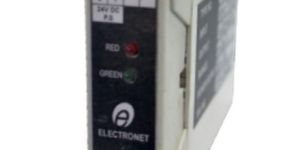

Loop Powered Isolator — Model TX-00 Features Loop powered isolator Dedicated input type High accuracy: ±0.25% F.S. DIN rail mounting Reliable and cost-effective Compact design for easy installation and maintenance Signal conversion with isolation Description Electronet Series TX-00 are loop-powered isolators designed for industrial applications where reliable signal conversion and electrical isolation are required. They support inputs such as RTD, Thermocouple, and Current signals, and provide an isolated 4–20 mA output. Its compact construction ensures an elegant appearance while optimizing panel space. Technical Specifications General Number of Inputs: 01 Number of Outputs: 01 Input Types (Dedicated) RTD: PT-100 / PT-200 / Cu-53 (2 or 3 wire) Thermocouples (various types) Current: 0–20 mA / 4–20 mA Voltage inputs (as specified) Output Isolated 4–20 mA DC Accuracy ±0.5% of F.S. for R, S & B type thermocouples ±0.25% of F.S. for all other inputs Isolation 1.4 kV between input & loop Power Supply 24 V DC loop powered Response Time < 500 ms Temperature Coefficient ±0.01% per °C Mechanical Enclosure: ABS, Plastic Dimensions: 75 mm (H) × 23 mm (W) × 110 mm (D) Mounting: DIN rail type Weight: Approx. 250 g Operating Conditions   Temperature: –20°C to 55°C Humidity: 5% to 95% RH (non-condensing)

Type : Loop Powered Signal Isolator

Material : Plastic

Usage : Industrial Applications

Accuracy : @ 0.25%F. S.

Isolation : 1.4 KV Between Input & Loop

Power Supply : 24V DC

Response Time : <500 MSec

Temperature Coefficient : +0.01% Per °C

Dimensions : 75mm(H) X 23mm(W) X 110mm (D)

Mounting : Din Rail Type

Weight : 250 Gms

Operating Conditions : -20 To 55°C / Humidity 5 To 95% Non Condensing

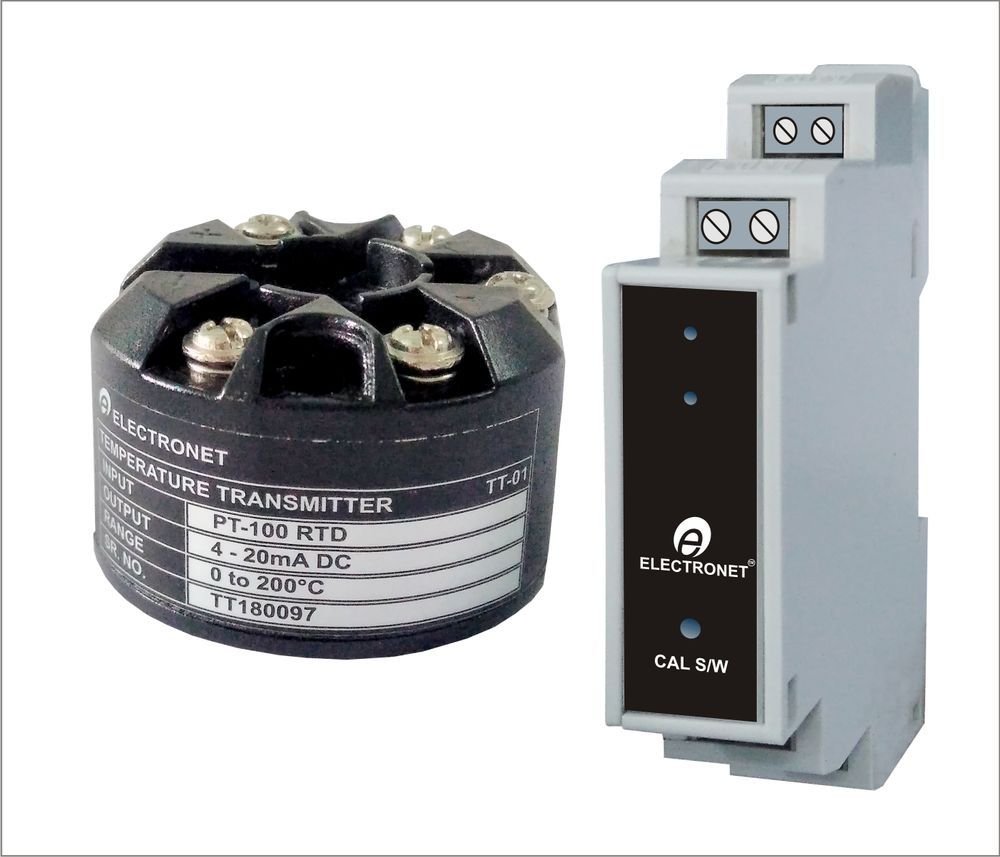

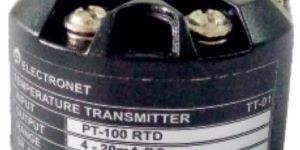

Head Mount Temperature Transmitter (TT-01)  Key Features Accurate on-line temperature measurement 2-wire system for easy installation Standard 4–20 mA DC output Head-mount transmitter design Compatible with RTD and Thermocouple sensors Accessible Span/Zero adjustment Suitable for any make of temperature sensor   Product Description Electronet TT-01 Series are head-mounted temperature transmitters designed for reliable and accurate measurements in industrial environments. They accept inputs from RTD (PT-100 / PT-200) and Thermocouples (J & K type), converting the temperature signal into a 4–20 mA DC output. With easily accessible zero and span adjustments, the TT-01 transmitter provides flexibility and long-term stability for diverse applications.   Technical Specifications Performance Characteristics Input Types: RTD (PT-100 / PT-200), 2 or 3 Wire Thermocouple J / K Type Resistance mV (0 to 100 mV) Cold Junction Compensation: Provided for thermocouple input Calibration Range: Factory calibrated Accuracy: ±0.25% of F.S. Response Time: <500 mSec Power Consumption: <40 mW Temperature Coefficient: ±0.01% per °C Electrical Specifications Power Supply: 24V DC Output: 4–20 mA DC (2-wire non-isolated) Construction & Mounting Electronics Enclosure Material: ABS Plastic Mounting Options: DIN Rail / Head Mount Dimensions: DIN Rail: 86 mm (H) × 20 mm (W) × 58 mm (D) Head Mount: 30 mm (H) × 45 mm (Dia) Weight: 250 gms Environmental Conditions   Ambient Temperature: -20°C to 55°C Humidity: 5% to 95% RH (non-condensing) Certification: 43 (as per manufacturer data)

Accuracy : +/-0.25% Of F. S.

Type : Temperature Transmitter

Input Type : RTD, Thermocouple, Resistance, Millivolt

Power Supply : 24V DC

Output : 4-20 MA DC

Calibration Range : Factory Calibrated

Power Consumption : <40 MW

Response Time : <500 MSec

Temperature Coefficient : +/-0.01% Per °C

Material of Construction : ABS Plastic

Weight : 250 Gms

Ambient Conditions : Temperature -20 To 55°C, Humidity 5 To 95% Non Condensing

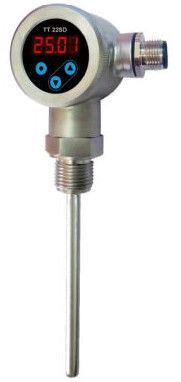

Temperature Transmitter (TT-22SD) Key Features Wide measuring range: –50°C to 150°C Compact and robust construction Programmable switching output and analog output Suitable for liquids and gases High accuracy: ±0.3°C + (±0.1% of measured value) Fast response time: <1 second Clear 4-digit, 7-segment LED display for on-line temperature indication Product Description Electronet TT-22SD Series temperature transmitters are designed for reliable temperature measurement in industrial environments. They accept input from RTD PT-100 sensors and convert the temperature reading into a standard 4–20 mA output. The device includes a programmable switching output, high accuracy, and a bright LED display for real-time indication. Built for both liquid and gas applications, it offers excellent durability with SS316 construction options.   Technical Specifications Performance Characteristics Sensor Type: RTD PT100 Probe Length Options: Up to 25 mm Up to 100 mm Up to 300 mm Up to 1000 mm Media Compatibility: Liquids, Gases Medium Temperature: –50°C to 150°C Pressure Rating: 300 Bar Switch Point Accuracy: 0.3°C + (0.1% of M.V.) Analog Output Accuracy: ≤0.3°C + (0.1% of M.V.) Display Accuracy: ≤0.3°C + (0.1% of M.V.) Response Time: <1 second Display Resolution: 0.1°C Display Type: 4-digit, 7-segment LED display Electrical Specifications Power Supply: 18–32 V DC Input: RTD PT100 Output 1: PNP Alarm Output (Max load 100 mA) Output 2: 4–20 mA DC (Max load 600 Ω) Insulation Resistance: >100 MΩ at 100 VDC Span/Zero Adjustments: Programmable software calibration Environmental Conditions Ambient Temperature: –20°C to 75°C Humidity: 5% to 95% RH (non-condensing) Storage Temperature: –20°C to 75°C Mechanical & Construction   Process Connections: 1/4” NPT (Threaded) 1/2” NPT (Threaded) 1/4” BSP (Threaded) 1/2” BSP (Threaded) Electrical Connection: 4-pin M12 Male Pin 1: +VDC Pin 2: Output 2 Pin 3: 0VDC Pin 4: Output 1 Mounting: Direct line mount (Vertical) Material of Construction: Wetted parts: SS316 Enclosure: SS316 / ABS Plastic / Die-Cast Aluminium Ingress Protection: IP67 Area Classification: Field-mount, weatherproof Weight: Approx. 0.6 kg

Power Supply : 18–32 V DC

Accuracy : ±0.3°C + (±0.1% Of Measured Value)

Type : Temperature Transmitter

Output : 4–20 MA

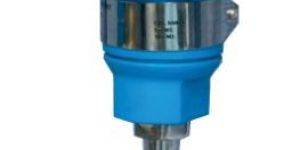

Temperature Transmitter (TT-04H)  Key Features HART compatible with 4–20 mA current output Accepts RTD and all thermocouple input types Supports single & dual sensor inputs Backlit LCD with local operator interface Built-in sensor redundancy for reliability Peak value measurement & AT measurement options ATEX (Ex d) certified for hazardous area applications   Product Description Electronet TT-04H Series Temperature Transmitters are designed for precise and reliable temperature measurement across various industrial applications. They support RTD inputs, all major thermocouple types, and mV inputs, converting temperature signals into a standard 4–20 mA HART output. A bright LCD display provides easy on-site monitoring, and the unit allows convenient Zero/Span adjustments. Its rugged construction and ATEX certification make it ideal for hazardous environments.   Technical Specifications Performance Characteristics Type of Input: RTD (PT-100 / PT-200) Thermocouples (B, E, J, K, R, S, T) Resistance mV (0 to 100 mV) Output: 4–20 mA with HART Display: LCD Display Isolation: 1 kV between Input, Output & Power Supply Accuracy: ±0.1% F.S Repeatability: ±0.1% Linearity: ±0.05% of Full Scale Stability: ±0.2% URL per year Response Time: <300 mSec Turn-On Time: <5 seconds Temperature Coefficient: ±0.01% per °C Power Supply Effect: < ±0.005% of span per volt Electrical & Power Power Supply: 24V DC (Two-wire loop powered) Power Consumption: <50 mW Reverse Polarity Protection: Provided Surge Protection: In-built EMC Compliance: IEC-61000-4-3 & IEC-61000-4-6 Construction & Protection Material (MOC): Die-Cast Aluminum / SS316 Electrical Connection: ½" NPT (F) M20 × 1.5 (F) DIN 43650 Connector Mounting Options: DIN Rail, Direct Line Mount, Pipe Mount Calibration: Software calibration Environmental Conditions Ambient Temperature: -20°C to 55°C Humidity: 5% to 95% RH (non-condensing) Self Diagnosis: Sensor open indicator Certification   CE & ATEX Certified ATEX Marking: II 2 GD Ex d IIC T6 Gb -20°C ≤ Ta ≤ +60°C

Power Supply : 24V DC (Two-wire Loop Powered)

Accuracy : ±0.1% F.S

Input Type : RTD (PT-100 / PT-200),Thermocouples (B, E, J, K, R, S, T),Resistance,mV (0 To 100 MV)

Type : Temperature Transmitter

Output : 4–20 MA With HART

We offer the TT 01 Rail Mount Temperature Transmitter, a high-quality product designed for precise temperature monitoring. This temperature transmitter operates on a 24V DC power supply, ensuring reliable performance. With an impressive accuracy of +/-0.25% of F.S., it provides accurate temperature readings. The output range of 4-20 MA DC allows for seamless integration into existing systems. Factory calibrated calibration range, low power consumption (

Type : Temperature Transmitter

Power Supply : 24V DC

Accuracy : +/-0.25% Of F. S.

Output : 4-20 MA DC

Calibration Range : Factory Calibrated

Power Consumption : <40 MW

Response Time : <500 MSec

Temperature Coefficient : +/-0.01% Per °C

Material of Construction : ABS Plastic

Weight : 250 Gms

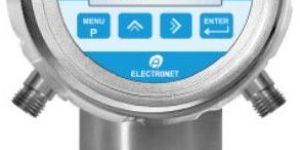

Ultrasonic Level Transmitter Features Non-contact level measurement Automatic temperature compensation Measures liquid height, distance to liquid, volume, and open-channel flow Backlit LCD display for clear visibility Narrow beam technology for precise targeting SS-316 enclosure for superior corrosion resistance IP-68 protection for reliable operation in harsh and wet environments Technical Specifications Performance Characteristics Measurement Principle: Ultrasonic (Time of Flight) Measuring Range: Up to 12 meters Power Supply: 18–36 VDC Power Consumption:

Accuracy : ±0.25% F.S.

Type : Ultrasonic Level Transmitter

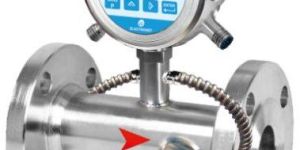

Features Ultrasonic measurement using Transit Time Technology Full-bore construction Empty pipe indication Backlit LCD display Durable SS-316 enclosure for superior corrosion resistance IP-68 protection for reliable operation in harsh and wet environments   Technical Specifications Performance Characteristics Measuring Principle: Ultrasonic flow measurement Media: Liquids Line Size: 15 NB to 300 NB Number of Paths: Single Electronics: Integral (Local) / Remote Remote Cable Length: 5 meters Outputs Output 1: 4–20 mA Output 2: Pulse – Open Collector (Optional) Alarm / Relay Output: 1 Relay Output (Optional) Communication Output: RS-485 (MODBUS RTU) (Optional) Display & Performance Display: Backlit LCD (6-digit Flow Rate, 8-digit Totalizer) Accuracy: < ±0.5% of M.V. (Velocity range: 0.3 m/s to 6 or 12 m/s) Linearity: ±0.5% of M.V. Repeatability: ±0.2% of M.V. Temperature Coefficient: ±0.05% per °C Process Conditions Process Temperature: Up to 200°C Process Pressure: Up to 16 kg/cm² Process Connections: ASA 150 Flanged (As per table) Material of Construction Flow Tube: SS-316 Electronics Enclosure: SS-316 Sensor: SS-316 / PVC Electrical Power Supply: 24V DC Response Time: 1 second Electrical Connection: M12 Connector Protection Electronic Protection: Weatherproof IP-68 Sensor / Flow Tube Protection: Weatherproof IP-68 Ambient Conditions   Ambient Temperature: –20°C to 75°C Humidity: 5% to 95% (Non-condensing)

Type : Ultrasonic Flow Meter With Switch

Line Size : 15 NB To 300 NB

Accuracy : < +0.5% Of M.V. For Velocity Range 0.3 M/s To 6 Or 12 M/s

Repeatability : +0.2% Of M.V.

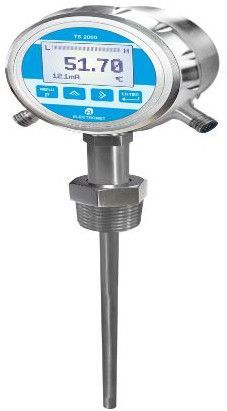

Industrial Temperature Transmitter Key Features Single sensor input for flexible measurement applications Durable SS-316 enclosure for superior corrosion resistance IP-68 protection for reliable performance in harsh and wet environments Switch functionality for versatile control and monitoring Optional RS-485 (MODBUS RTU) communication for seamless system integration and remote access   Technical Specifications Performance Characteristics Type of Input: RTD (PT-100 / PT-200) Type of Output: 4–20 mA Alarm / Relay Output: 1 Relay Output (Optional) Communication: RS-485 MODBUS RTU (Optional) Display: Backlight LCD Isolation: 1.4 kV between Input, Output & Power Supply Accuracy: ±0.1% FS Repeatability: ±0.1% Linearity: ±0.05% of Full Scale Stability: ±0.2% of URL per year Response Time: 1 second Temperature Coefficient: ±0.01% per °C Power Supply Effect: < ±0.005% of Span Electrical & Power Power Supply: 18–36 V DC Power Consumption: <5 W Reverse Polarity Protection: Provided Surge Protection: In-built Construction & Protection Material (MOC): SS-316 Electronics Enclosure: SS-316 Protection Class: Weatherproof IP-68 Electrical Connection: M12 Connector Calibration & Diagnostics Calibration: Software-based calibration Self-Diagnosis: Sensor open indicator Isolation: 1.4 kV input/output/power isolation Environmental Conditions Ambient Temperature: -20°C to 75°C Ambient Humidity: 5% to 95% RH (non-condensing) Mounting & Weight   Mounting Options: Pipe mount / Wall mount Weight: Less than 3 kg

Usage : Control And Monitoring

Material : SS-316

Type : Temperature Transmitter Switch

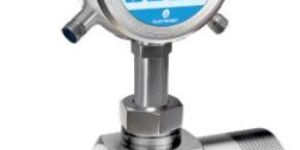

Features Backlit LCD display Suitable for conductive and non-conductive liquids SS-316 enclosure with high corrosion resistance IP-68 protection for harsh environments RS-485 (MODBUS RTU) communication Technical Specifications Performance Characteristics Measuring Principle: Turbine flow measurement Media: Liquid Viscosity: Up to 100 cp Line Size: 15 NB to 200 NB Mounting Type: Inline (Horizontal / Vertical) Linearity: ±0.5% of F.S Repeatability: ±0.5% of F.S Response Time: 1 sec Accuracy: ±0.5% of F.S + 5 mm/sec (Velocity range: 0.3 m/s to 6 or 12 m/s) Display: Backlit LCD — 6-digit flow rate & 8-digit totalizer Process Conditions Process Temperature: Up to 200°C Process Pressure: Up to 16 kg/cm² Process Connection: Flanged (15 to 200 NB) Threaded (15 to 50 NB) SS Tri-Clover (15 to 100 NB) SMS Union (25 to 100 NB) Electrical Specifications Power Supply: 24V DC Power Consumption: <5W Output 1: 4–20 mA Output 2: Pulse (Open Collector – Optional) Alarm/Relay Output: 1 Relay (Optional) Communication: RS-485 MODBUS RTU (Optional) Enclosure & Construction Electronic Protection: Weatherproof IP-68 Electronics Location: Integral / Remote Remote Cable Length: 5 meters Flow Tube Protection: Weatherproof IP-68 Connector: M12 Material of Construction Bearings: Tungsten Carbide Sleeve / V-Jewel Rotor: SS 410 / 17.4 PH / Plastoferrite Shaft: Tungsten Carbide Body / Support / Flange: Stainless Steel Electronics Enclosure: SS-316 Environmental Conditions   Ambient Temperature: –20°C to 75°C Ambient Humidity: 5–95% RH (non-condensing) Temperature Coefficient: ±0.01% per °C

Type : Turbine Flow Meter

Material : Stainless Steel

Display : Backlit LCD - 6-digit Flow Rate & 8-digit Totalizer

Line Size : 15 NB To 200 NB

Accuracy : +/-0.5% Of F.S + 5 Mm/sec (Velocity Range: 0.3 M/s To 6 Or 12 M/s)

Pressure Transmitter  Key Features Piezo Resistive Sensor for precise pressure measurement Durable SS-316 enclosure for superior corrosion resistance IP-68 protection for reliable performance in harsh and wet environments Backlit LCD display for clear visibility Switch functionality for flexible control and monitoring RS-485 (MODBUS RTU) communication for easy integration (optional) Technical Specifications Performance Characteristics Sensor Type: Piezo Resistive Pressure Range: AP URL: 100 kPa to 600 kPa GP URL: 70 kPa to 100000 kPa Measuring Units: bar / kPa / Pascal / mmWc / kg/cm² Accuracy: ±0.25% MV Non-Linearity: 0.2% of Span Repeatability: <0.1% of Span Response Time: 1 second Overpressure Safety: 1.5× max pressure range Burst Pressure: 3× max pressure range Electrical Specifications Power Supply: 18–36 V DC Display: Backlit LCD Output: 4–20 mA Relay Output: 1 Relay (Optional) Communication: RS-485 MODBUS RTU (Optional) Insulation Resistance: >100 MΩ at 100 VDC Temperature & Environment Process Temperature: Up to 120°C Ambient Temperature: -20°C to 75°C Humidity: 5 to 95% RH (non-condensing) Protection Class: IP-68 (Weatherproof) Material of Construction Wetted Parts: SS-316 Enclosure: SS-316 Electronics Housing: SS-316 Electrical Connection: M12 Connector Mechanical Specifications   Process Connection: Refer ordering information Mounting Options: Direct line mount (vertical) / 2" pipe mount Weight: <3 kg

Power Supply : 18-36 V DC

Type : Pressure Transmitter Switch

Accuracy : +0.25% MV

Output : 4 To 20 MA

Process Temperature : 120°C Max

Digital Pressure Transmitter – Piezo Resistive Type Features Piezo Resistive Sensor Measuring Range: 0.35 to 25 Bar Rugged SS-316 enclosure for excellent corrosion resistance IP-68 protection for reliable operation in harsh and wet environments Backlit LCD display for clear visibility Switch functionality for flexible control and monitoring RS-485 (MODBUS RTU) communication for seamless system integration Suitable for liquids, gases, and industrial pressure monitoring applications

Power Supply : 18-36 VDC

Type : Pressure Transmitter Switch

Accuracy : ±0.25% MV

  Capacitive Pressure Transmitter   Features   Capacitive Pressure Sensor Measuring Range: 0.015 Bar to 200 Bar Robust SS-316 enclosure for superior corrosion resistance IP68 protection for reliable performance in harsh and wet environments Backlit LCD display for easy visibility Switch functionality for flexible control and monitoring RS-485 (MODBUS RTU) communication for seamless system integration and remote access

Type : Pressure Transmitter Switch

Ambient Temperature : -20°C To 75°C

Process Temperature : Up To 120°C

Electrical Connection : M12 Connector

Sensor Type : Capacitive Sensor

Measuring Range : 0.015 Bar To 200 Bar

Material - Electronics MOC : SS-316

Enclosure material : Weatherproof, IP-68

Pressure Limits - Overpressure Safety : 2 X Maximum Pressure Range

Pressure Limits - Burst Pressure : 3 X Maximum Pressure Range

Communication Output : RS-485 (MODBUS RTU) (Optional)

Humidity : 5% To 95% RH (Non-condensing)

Insulation Resistance : >100 MΩ At 100 V DC

Weight : < 3 Kg

Features Wetted parts made from corrosion-resistant stainless steel Suitable for a wide range of homogeneous process media, including low-conductivity liquids (>5 µS/cm) SS-316 enclosure ensures excellent durability and corrosion resistance IP-68 protection for reliable performance in harsh and wet environments Backlit LCD display for clear visibility Switch functionality for flexible control and monitoring RS-485 (MODBUS RTU) communication for seamless integration and remote monitoring   Technical Specifications Performance Characteristics Measuring Principle: Potentiometric level measurement Measuring Range: 200 to 3000 mm Conductivity Requirement: >5 µS/cm Response Time: 1 sec Accuracy: ±0.25% F.S. Repeatability: ±0.1% Process Temperature: Up to 200°C Process Pressure: 16 kg/cm² max Process Interface Process Connection: 1" BSP (Male Threading) Mounting: Bottom mounted / Top mounted Environmental Conditions Ambient Temperature: –20°C to 75°C Ambient Humidity: 5% to 95% RH, non-condensing Outputs Analog Output: 4–20 mA Relay Output: 1 Relay (Optional) Communication Output: RS-485 MODBUS RTU (Optional) Construction Wetted Parts: SS-316 Electronics Enclosure: SS-316 Protection Class: IP-68 Electrical Connection: M12 Connector Power & Display   Power Supply: 18–36 VDC Display: Backlit LCD

Application : Level Measurement In Process Industries

Material : Stainless Steel (SS-316)

Type : Potentiometric Level Sensor Switch

TS 2000 LMT – Magnetic Float Level Transmitter Features Simple, low-cost, and highly reliable Suitable for conductive and non-conductive liquids and slurries Continuous 4–20 mA DC output Weatherproof IP-67 protection Flameproof CMRI IIA IIB certified (optional) Non-contact magnetic operation ensures long life and low maintenance Description Electronet series TS 2000 LMT are magnetic float-operated level transmitters designed for continuous and accurate level measurement. The system consists of a non-magnetic guide tube and a float containing a magnetic assembly. As the level changes, the float moves and actuates hermetically sealed reed switches inside the guide tube. This movement generates a proportional 4–20 mA DC output, providing a reliable and noise-free continuous level signal. The rugged construction ensures dependable performance for liquids, chemicals, and slurries across various industrial applications. Technical Specifications Measurement Probe Length: As required (max. 2 meters) Probe Type: Single Rod (up to 2000 mm) Accuracy: ±10 mm Linearity: ±0.5% for 3 m probe length Response Time:

Output : 4-20 MA DC

Usage : Level Measurement Of Conductive / Non-conductive Liquids And Slurries

Type : Magnetic Float Level Transmitter Switch

Accuracy : +/-0.5%

Process Temperature : Up To 55°C

Process Pressure : Up To 10 Kg/cm2

Power Supply : 24V DC

Power Consumption : <6VA

Response Time : <1000 MSec

Ambient Conditions : Temperature 0 To -C, Humidity 5 To 95% Non-condensing At 25°C

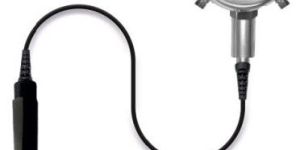

TS2000 pH – pH Transmitter Switch Features SS-316 enclosure with high corrosion resistance IP-68 protection for harsh industrial environments RS-485 (MODBUS RTU) communication (Optional) 4–20 mA analog output Backlit LCD display Easy to install Suitable for industrial online pH measurement   Technical Specifications Performance Characteristics Input Type of Input: pH Electrode Output Analog Output: 4–20 mA Alarm / Relay Output: 1 Relay (Optional) Communication Output: RS-485 MODBUS RTU (Optional) Display Type: Backlit LCD Calibration Range: 0 to 14 pH Calibration Method: 3-Point Buffer Temperature Compensation Sensor: RTD PT-100 Accuracy & Response Transmitter Accuracy: ±0.05 pH at 25°C Repeatability: ±0.05% of Span Response Time: 1 sec Temperature Coefficient: ±0.05% per °C   Electrical Electrical Connections: M12 Connector Power Supply: 18–36 VDC Power Consumption: < 5W Isolation: 1.4 kV between input, output & power   Mechanical & Environmental   Electronic Enclosure: SS-316 Protection Class: Weatherproof IP-68 Sensor Connection: BNC Connector Mounting: Pipe Mounting / Wall Mounting Weight: < 3 kg Ambient Temperature: –20°C to 75°C Ambient Humidity: 5% to 95% RH (Non-condensing) Flow-Through Assembly (Optional): SS-316 / PP

Type : PH Transmitter

Material : SS-316

Display Type : Backlit LCD

Power Supply : 18–36 VDC

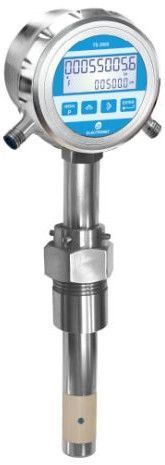

Features Compact insertion-type flow meter Suitable for conductive liquids No pipe cutting or system shutdown required Supports line sizes from DN 40 to DN 300 Typical accuracy ±0.5% of F.S. Protection Class: IP-68 Local LCD display for real-time flow rate and totalizer Rugged SS-316 construction for long-term reliability and corrosion resistance   Technical Specifications Performance Characteristics Measuring Principle: Electromagnetic flow measurement Media: Conductive liquids Conductivity: > 5 µS/cm Viscosity: up to 200 cP Line Size: 40 NB to 300 NB Accuracy: ±0.5% of F.S. Response Time: 1 second Display: Backlit LCD (6-digit flow rate, 8-digit totalizer)   Process Conditions Process Temperature: up to 200°C Process Pressure: up to 16 kg/cm² Mounting Type: Insertion type Process Connection: 1" BSP threaded   Ambient Conditions Ambient Temperature: –20°C to +75°C Humidity: 5% to 95% RH (non-condensing)   Output Signals Analog Output: 4–20 mA Pulse Output: Open Collector (Optional) Relay Output: 1 Relay (Optional) Communication: RS-485 MODBUS RTU (Optional)   Protection Class Electronic Protection: Weatherproof IP-68 Sensor / Flow Tube Protection: Weatherproof IP-68   Electrical Connection Connector: M12 Connector   Power Supply Voltage Range: 18–30 VDC Power Consumption: < 5 VA   Material of Construction   Electrode Materials: SS-316L Retractable Assembly: SS-316 Wetted Parts: SS-316 Sensor Rod: SS-316 Electronics Enclosure: SS-316

Type : Electromagnetic Flow Meter Switch

Material : Stainless Steel

Line Size : DN 40 To DN 300

Accuracy : ±0.5% Of F.S.

Display : Backlit LCD

Analog Output : 4–20 MA

Voltage : 18–30 VDC

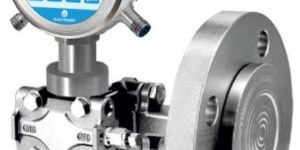

Hydrostatic Level Transmitter Features Hydrostatic pressure–based level measurement for accurate and continuous monitoring Backlit LCD display for clear visibility in low-light environments SS-316 stainless steel housing ensures excellent corrosion resistance and long-term durability IP-68 protection suitable for submersible and harsh industrial environments Switch functionality for versatile process control and monitoring Technical Specifications Performance Characteristics Maximum Pressure Range: 2 kg/cm² Measuring Range: Up to 20 meters Power Supply: 18–36 VDC Display: Backlit LCD Accuracy: ±0.25% F.S. Non-Linearity: 0.2% of Span Non-Repeatability: <0.1% of Span Response Time: 1 sec Overpressure Safety: 1.5× max pressure range Burst Pressure: 3× max pressure range Outputs Analog Output: 4–20 mA Relay Output: 1 Relay (Optional) Communication Output: RS-485 MODBUS RTU (Optional) Output Lower Limit: 3.7 mA Output Upper Limit: 23 mA Electrical & Enclosure Electrical Connection: M12 Connector Enclosure: Weatherproof IP-68 Electronics Enclosure Material: SS-316 Insulation Resistance: >100 MΩ at 100 VDC Process & Environmental Conditions Process Temperature: Up to 120°C Ambient Conditions: Temperature: –20°C to specified upper limit Humidity: 5% to 95% non-condensing Mechanical Details   Process Connection: As per ordering information Mounting: Direct line mount Wetted Parts: SS-316 Electronics Enclosure & Rating: SS-316, IP-68 Weight: Less than 5 kg

Material : SS-316 Stainless Steel

Measuring Range : Up To 20 Meters

Process Temperature : Up To 120°C

Our Pressure Calibration Services provide the utmost precision and reliability for your pressure measurement instruments. With a team of skilled technicians and cutting-edge equipment, we offer both on-site and laboratory calibration solutions to meet your specific needs. Whether it's gauges, transducers, or controllers, we ensure they are calibrated to industry standards, guaranteeing accurate and consistent pressure readings. By choosing our services, you can enhance the performance of your equipment, maintain compliance, and improve the safety of your operations. Trust us for comprehensive pressure calibration solutions that optimize your processes and reduce uncertainties.

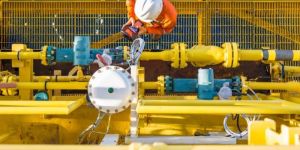

Our Flow Meter Calibration Service is your trusted partner in ensuring the accuracy and reliability of your flow measurement instruments. Our experienced technicians use state-of-the-art equipment and industry best practices to calibrate your flow meters, guaranteeing precise and consistent results. We offer on-site and laboratory calibration services, accommodating a wide range of flow meter types and sizes. With a commitment to quality and compliance, our service ensures optimal performance, reduces downtime, and enhances the efficiency of your processes. Choose us for dependable flow meter calibration to maintain the highest standards of measurement accuracy.
