ForTest Pune City Old, Maharashtra

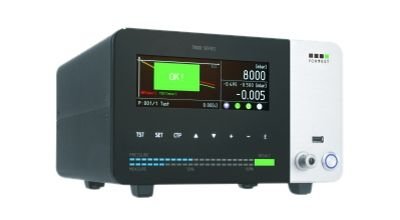

The new T8990 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.

Driven Type : Pneumatic, Electric

Automatic Grade : Semi Automatic, Manual, Fully Automatic, Automatic

Country of Origin : 220V, 24V

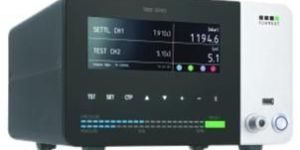

Two channel leak tester. T8890 is the new two channel equipment by ForTest enclosed in the same casing as the single channel T8990, making it the most compact in its category. It is available with 3 types of pressure adjustment: single manual regulator, double manual regulator and single automatic electronic regulator. Ideal to test pairs of lights or parts with double compartments. It can half test times, however maintaining the flexibility and reliability of the T8990. Parameter programming is much faster thanks to the new numerical keyboard integrated in the menus, and the big display makes viewing even clearer of the test cycle. The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu and locking/unlocking using a password.         6.2” colour split screen Full area touch screen Extended programming keyboard   Limitless connectivity. The new T8890 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.           Usb key High power outputs RS232, RS485, Can Ethernet and auxiliary connector Always better measurements. The test cycle was further accelerated thanks to processor and coprocessor interaction, maintaining the reliability that has always made ForTest unique. We can say with certainty that T8890 avails of the most advanced measurement section in the world, thanks to the centring technology in windows and the double Faraday optical-isolated cage, which reduces the settling times under 18 ms. This gives a real measurement resolution of 0.1 Pa at 1 bar (0.5 Pa at 6 bar), stable and noise-free.         Built-in processor and coprocessor Centring technology in windows Resolution from 0.1 Pa Optimised pneumatic section. Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. This equipment do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.         Filling speed +30% High strength against humidity No periodic maintenance Innovative design. What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the equipment as simple as possible. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8890 suitable for use in the laboratory and on the production line. The extensive internal menus are easy to understand and the graphic interface was designed to only display important information. Everything is exactly where it should be.       User-friendly interface Easy to clean Use in sectors at 360°

Brand Name : ForTest

Condition : New

Application : Detecting Air Leakage

Country of Origin : 110V,220V,

Display Type : LCD

Number Of Flower : Air Leak Tester

Total Carbohydrate : 2years

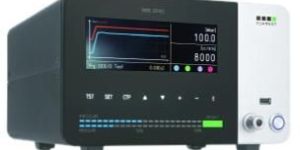

Flow measurement with solid-state sensor T8730 was designed for the precise task of measuring flows on parts such as filters (medicinal, diesel or petrol), tubes, nozzles, openings and valves. Other than the classic flow measurement, the instrument also has other ways of making it as versatile as possible in its category: ascent and descent ramps, opening tests and burst testing. Another separate function is the "continuous measurement", i.e. a test with infinite times allowing adjustment of the taps and part repairs in real time. The tool also avails of an intelligent pressure adjustment, which uses the automatic pressure regulator to continuously adjust the test pressure based on the variation in load loss, to ensure the reading is as stable and repetitive as possible.         Solid-state sensor Multiple operating modes Intelligent pressure adjustment   Limitless connectivity. The new T8730 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.           Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector Top category technology. We decided not to make compromises when equipping the T8730, assembling the best components currently on the market, such as the piezoelectric electronic regulator which guarantees stable and repetitive adjustment, or the solid-state sensor with a vast reading range, or the specific valves for this model, with a life estimated in tens of millions of cycles. All these advantages give never before seen precision performance, stability and accuracy. Measurement resolution starts with 0.1 cc/min based at the bottom of the scale, varying from 1,000 to 20,000 cc/min, with maximum pressure of 2 bar.         Automatic pressure regulator Measurement up to 20,000 cc/min Resolution starting from 0.1 cc/min Made to measure pneumatic section. To avoid overheating due to long activation times of the filling circuit, we have designed particular, high capacity pneumatic valves, which not only work in hot temperatures, but also quickly fill the piece being tested, making the T8730 also suitable for testing on parts with significant volumes. All of the above, while maintaining ForTest's historic reliability.         Heat-proof pneumatic valves High filling speed No periodic maintenance Innovative design. What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the equipment as simple as possible. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8730 suitable for use in the laboratory and on the production line. The extensive internal menus are easy to understand and the graphic interface was designed to only display important information. Everything is exactly where it should be.         User-friendly interface Easy to clean Use in sectors at 360°

Automatic Grade : Automatic

Condition : New

Power Source : Electric

Certification : ISO 9001:2008 Certified

Feature : Easy To Use

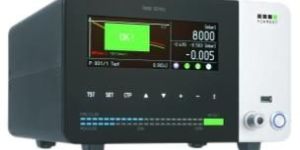

The Dual Absolute. The new Dual Absolute technology makes it possible to eliminate the disadvantages of a classic differential system, improve its advantages and renew an industry that has been standing still for decades. Thanks to the new Dual Absolute technology, ForTest has combined the simplicity of a classic absolute decay system with the precision and sensitivity of a differential system, bringing leak testing instruments to a level never seen before. The new algorithms and measurement hardware eliminate typical defects in a differential system, such as differences in stabilization between the test part and the reference sample. The new range of instruments is able to work in 3 different ways: Pure Differential, Dual Absolute and Central Zero. The new Dual Absolute technology is so powerful and reliable that ForTest has decided to stop developing the classic differential system.           Sampling programmable Sensitive as a differential Dual Safe© Solid state measure         Double productivity No periodic maintenance High pressure test Measurement width   A touch of innovation. The video controller “ForTest MMI” brought a superior level of human-machine interaction, thanks to an innovative capacitive panel in tempered glass, around a splendid 6.2” colour display. Parameter programming is much faster thanks to the new numerical keyboard integrated in the menus, and the big display makes clearer the view of the test cycle. The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu and locking/unlocking using a password.           6.2” colour display Test graphic Full area touch screen Extended programming keyboard   Limitless connectivity. The new T8090 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.           USB key High power outputs RS232, RS485, Profinet , EtherNet IP Ethernet and auxiliary connector

Brand Name : ForTest

Driven Type : Electric

Application : Detecting Air Leakage

Certification : ISO 9001:2008

Country of Origin : 110V, 220V

Number Of Flower : Air Leak Tester

Total Carbohydrate : 2years

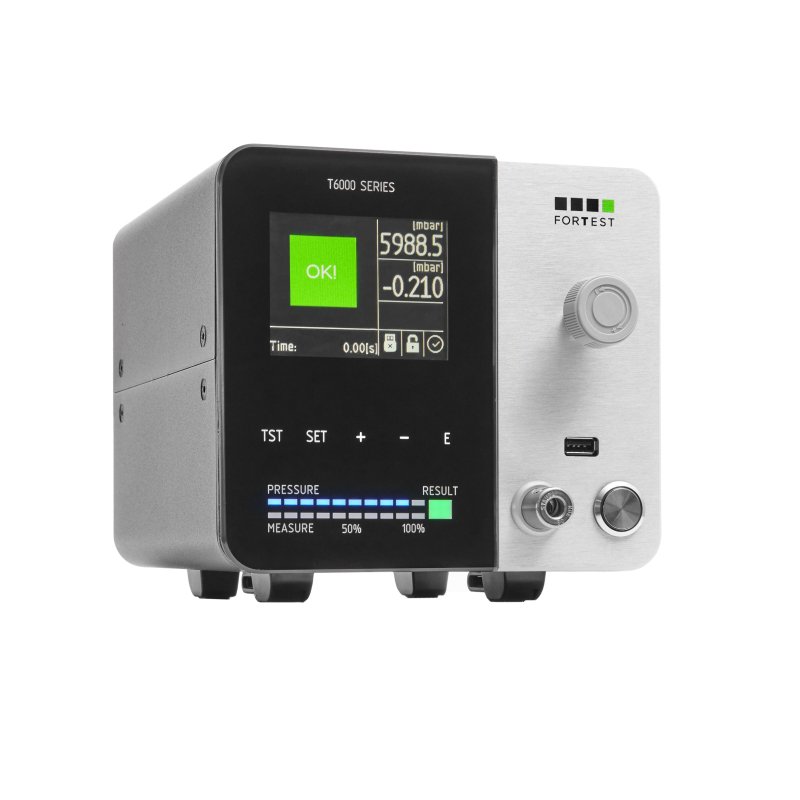

So small, yet so powerful. T6060 can count on a measurement resolution of 0.1 Pa to 1 bar (0.5 Pa to 6 bar) stable and noise-free, sharing a part of the measurement section implemented on the higher series T8000 and T9000. Despite being designed as an entry-level equipment, the measurement performance is absolutely comparable to those of the rest of the ForTest range.         Advanced measurement performance Resolution from 0.1 Pa All the connections you need. T6060 has a more limited port supply than high-level range, but is equally complete: a USB slave port, RS232, RS485. The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.         Usb key High power outputs RS232, RS485 Everything is where it should be. Despite the compact dimensions which made use of more simplified menus necessary, the T6060 user interface was however designed to facilitate programming of the test parameters. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T6060 suitable for use in the laboratory and on the production line. The extensive internal menus are easy to understand and the graphic interface was designed to only display important information. Everything is exactly where it should be.         User-friendly interface Easy to clean 360° use

Form : Small

Usage/Application : Leak Detection

Brand : ForTest

Flow measurement with solid-state sensor T8730 was designed for the precise task of measuring flows on parts such as filters (medicinal, diesel or petrol), tubes, nozzles, openings and valves. Other than the classic flow measurement, the instrument also has other ways of making it as versatile as possible in its category: ascent and descent ramps, opening tests and burst testing. Another separate function is the "continuous measurement", i.e. a test with infinite times allowing adjustment of the taps and part repairs in real time. The tool also avails of an intelligent pressure adjustment, which uses the automatic pressure regulator to continuously adjust the test pressure based on the variation in load loss, to ensure the reading is as stable and repetitive as possible.         Solid-state sensor Multiple operating modes Intelligent pressure adjustment   Limitless connectivity. The new T8730 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.           Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector Top category technology. We decided not to make compromises when equipping the T8730, assembling the best components currently on the market, such as the piezoelectric electronic regulator which guarantees stable and repetitive adjustment, or the solid-state sensor with a vast reading range, or the specific valves for this model, with a life estimated in tens of millions of cycles. All these advantages give never before seen precision performance, stability and accuracy. Measurement resolution starts with 0.1 cc/min based at the bottom of the scale, varying from 1,000 to 20,000 cc/min, with maximum pressure of 2 bar.         Automatic pressure regulator Measurement up to 20,000 cc/min Resolution starting from 0.1 cc/min Made to measure pneumatic section. To avoid overheating due to long activation times of the filling circuit, we have designed particular, high capacity pneumatic valves, which not only work in hot temperatures, but also quickly fill the piece being tested, making the T8730 also suitable for testing on parts with significant volumes. All of the above, while maintaining ForTest's historic reliability.         Heat-proof pneumatic valves High filling speed No periodic maintenance Innovative design. What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the equipment as simple as possible. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8730 suitable for use in the laboratory and on the production line. The extensive internal menus are easy to understand and the graphic interface was designed to only display important information. Everything is exactly where it should be.         User-friendly interface Easy to clean Use in sectors at 360°

Driven Type : Electric

Condition : New

Certification : CE Certified, ISO 9001:2008

Country of Origin : 220V

Number Of Flower : Air Leak Tester

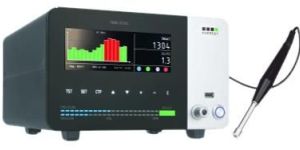

T8999   Hydrogen leak detectors     Easy and clean leak identification. T8999 is an equipment designed to meet the increasing need for easy and clean identification of the position of the leak on a piece being tested, therefore eliminating the need for methods such as water tank immersion or use of leak detecting sprays, which are harmful for the pieces which could develop rust or pieces that are difficult to accurately clean. The probe, with a 30° arm, enables approach to the most critical leak points, and signals its position and size, helping the operator with the indication led and warning buzzer. The mix of hydrogen used is 5%, therefore not explosive or dangerous for the work environments or the operators.         Aluminium probe with 30% joint Warning led and buzzer Non-explosive, 5% hydrogen mix Limitless connectivity. The new T8999 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.           Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector Double use method. T8999 has a dual use, integrating both the classic absolute decay leak test method and that of leak identification. The test parameters allow automatic start-up of the leak identification cycle in the event of a rejected piece, making the process semi-automatic. The sensitivity of the leak detection probe is 1 cc/h, independent of the pressure and the volume being tested.       1 cc/h sensitivity Semi-automatic programming cycle Optimised pneumatic section. Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. This instrument do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.         Filling speed +30% High strength against humidity No periodic maintenance Innovative design. What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding as simple as possible. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8999 suitable for use in the laboratory and on the production line.       User-friendly interface Easy to clean Use in sectors at 360°

Material : Stainless Steel

Power Source : 220 VDC

Application : Gas Detecting, Gas Leakage Detecting, Industrial Use

Certification : CE Certified

Feature : Alarm System, Easy To Use, Rechargeable

Display Type : Digital

Gas Type : Hydrogen Gas

Number Of Flower : Hydrogen Gas Leak Detector

Total Carbohydrate : 3Year

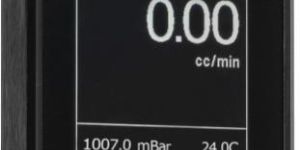

T2710 T2710 is the new digital portable calibrator of ForTest T Series     T2710 is the digital portable calibrator for micro flow of ForTest® T-Series.  Enclosed in a container of anodized aluminium with shatterproof plexiglass front, we find a completely new circuit board and a mass flow meter sensor, for direct measurement of leaks. Coupled to the micrometer nozzle supplied, they are designed to simulate the desired leakage, facilitating the procedure for programming and verification of leak test instruments. T2710 Standard version has got a lithium ion battery rechargeable that gives it an incredible autonomy and a USB port for PC connection in order to download and manage the taken measures. T2710 uses a mass flow sensor and can detect flow rates up to 200 cc/min  with precision and reliability. This portable instrument, of compact dimensions and simple use is essential to check the calibration and the repeatability of measure instruments and of nozzle sample. Applications Fields Calibration control for ForTest® leak test and flow test equipment Calibration control for others leak test and flow test equipment Leak test control of masking system Detection of leakage entity Nozzle control Direct control of correspondence to rules

Driven Type : Battery

Power : 12 To 24 VDC Or VAC

Always easier. T6990, recalculating the success of its predecessor M6990, an obviously enhanced user interface, thanks to an innovative tempered glass panel with built-in capacitive keyboard, around a 3.5” colour display. The new, high resolution display makes it even easier to view the test cycle and the programming menus, and the capacitive keyboard allows fast parameter entry.        3,5” colour display Touch screen capacitive keyboard All the connections you need. T6990 has a more limited port supply than high level range, but is equally complete: a USB slave port, RS232, RS485 and Can bus. The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.         Usb key High power outputs RS232, RS485, Can So small, yet so powerful. T6990 can count on a measurement resolution of 0.1 Pa to 1 bar (0.5 Pa to 6 bar) stable and noise-free, sharing a part of the measurement section implemented on the higher series T8000 and T9000. Despite being designed as an entry-level tool, the measurement performance is absolutely comparable to those of the rest of the ForTest range.         Advanced measurement performance Resolution from 0.1 Pa Ultra compact pneumatics. T6990, to keep dimensions as compact as possible, assembles a pneumatic unit with standard valves, ideal to test volumes up to 5 litres. The robustness of these valves means no scheduled maintenance of any kind is necessary, therefore guaranteeing         Ideal for volumes up to 5 litres High strength against humidity No periodic maintenance Everything is where it should be. Despite the compact dimensions which made use of more simplified menus necessary, the T6990 user interface was however designed to facilitate programming of the test parameters. The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T6990 suitable for use in the laboratory and on the production line. The extensive internal menus are easy to understand and the graphic interface was designed to only display important information. Everything is exactly where it should be.         User-friendly interface Easy to clean 360° use

Brand Name : Fortest

Material : Metal

Driven Type : Electric

Power Source : 24VDC

Model Number : T6990

Country of Origin : 24V

Number Of Flower : Air Leak Tester

Total Carbohydrate : 3

Interface : Serial RS232/RS485, USB, EtherNet/IP, Ethernet TCP/IP, Profinet, EtherCAT, USB as flash drive for mass storage
