Testing Machines Dealers in Pune

Elongation Tester is ideally used for determining the level of annealing of the wire under test.The fixed length of wire is tied between the two ends and the wire is elongated at the specified rate. The instrument stops automatically when the break in the wire occurs. The percentage elongation is recorded on the LCD screen of the instrument. When started after failure the instrument returns to its initial position and need no additional controls. We are one of the leading Manufacturers, Exporters and Suppliers of Elongation Tester from Maharashtra, India. The Elongation Tester that we provide is manufactured in compliance with Indian and IEC standards. Our Elongation Tester is manufactured using high grade material and is known for its excellent performance.

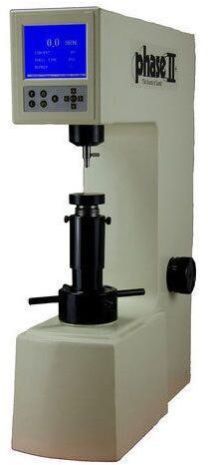

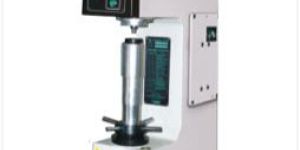

Principal : Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.RASNE series machines are suitable for Rockwell, Rockwell superficial & Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement.   Operation : Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high/low limits, dwell time, auto / manual start, printer selection, scale selection etc. All set data can be verified edited by pressing SCL key one after another.Machine operation is very simple. The normal mode is a bar followed by "SET" indication. Raise elevating screw slowly through bar indication till "SET" position which will show "PRESS START" indication. Now press "START" button. Loading/unloading cycle will be completed and hardness is shown on LCD display with High / Good / Low indication. Lower down elevating screw. Panel will show normal mode for next test. Also when required 'AUTO START' on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till "SET" position then it will starts loading / unloading cycle automatically & hardness is shown on LCD Display with High / Good / Low indication.   'RASNE' series of Hardness Testing Machines come with much improved design & look with following major design changes. This is motorized machine having automatic loading/unloading cycle suitable for production testing.   The machine body is having a taper front look and a large size read-out in the front. The machine is powder coated for better look. The paint shade do not fade and machine  looks like new over year. The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accessory is retained for years together due to hardened bush.  A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy. An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia. These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy. IS:1586:2000 for Rockwell and superficial test. IS:2281:2005 for Brinell Hardness Test.   Note : For Brinell scale - manually select (187.5 or 250 kgf) with respected ball indentor. At that time take reference of set point only. Apply the load, then measure the impression dia by Brinell microscope only. (No Brinell scale display on screen).   Optional Accessories : • Steel ball indentor 1/8", 1/4", 1/2". • Testing Table 20mm dia. • Testing Table 70mm dia. with 'V' groove for round jobs 10 to 80mm dia. • Vari-rest to support add shaped jobs. • Jominy test fixture for end quench test. • Gooseneck Adoptor No.1. • Special diamond indentor suitable for Gooseneck Adoptor No.1. • Short nib diamond indentor suitable for Goodseneck Adoptor No.1. • Gooseneck Adoptor No.2.  • Special diamond indentor suitable for Goodseneck Adoptor No.2.• Gooseneck Adoptor No.3. • Raised center testing table 15mm dia. • Diamond Spot Anvil. • Cylindron anvil for testing big jobs above 20mm dia. • Eyeball anvil with 25.4mm dia. or 38mm dia. ball. • Gooseneck anvil for pipes 5 to 25mm ID with 5mm step inserts. • Jack rest for long and heavy jobs.

Model - UNITEK - 97050   Front panel touchscreen system. Online graph of load vs Displacement directly on screen. Precision AC stepper motor & drive with ball lead screw. PLC & HMI based systems. Provision for load cell interchangeability. Facility for mounting different load cells. Built-in USB interface.

Our Impact Testing Machine is designed for conducting Izod & Charpy tests. We are a reputed Manufacturer and Supplier of Impact Testing Machines which are known for their reliability as well as efficiency. We provide Impact Testing Machines which are easy to operate and are available at market leading prices. Working Mechanism of Impact Testing Machine (Model IT-300 E) There are two starting positions in the Impact Testing Machine, one for Izod testing and one for Charpy tests. The material specimen to be tested is broken with the aid of a pendulum which is mounted on anti friction bearings. The energy absorbed is measured. Features Braking controls provided for stopping the pendulumSimple operationInterchangeable Stricker�s for IZod and Charpy positionSafety guards for operator safety

We are the leading Manufacturers and Suppliers of Computerised Universal Testing Machine in Maharashtra, India. We manufacture them in accordance with the set industrial standards and norms. Our diligent professionals engineer it with a high level of precision by adopting the pioneering techniques.Features : Completely PC Controlled. Electronic outside PC cabinet. Only one RS 232C Serial on PC is required free for the interface. It is loaded with various attributes like Ease of Commissioning, Maintenance, Calibration, Troubleshooting etc. Neither any specification requirements of PC cabinet size nor any ISA or PCI free slot required. Reduced PC related problems, failures etc. Auto communication port detection on PC. Any latest PC with windows 98/XP installed can be used

GMJ Systems & Automations Pvt. Ltd. offering to our clients, leak test machines which have the ability of testing minutest leakages with utmost accuracy with pressure drop & vacuum method. The machine is widely trusted as it gives accurate results and certifies the product to be the leakage free. These leak testing machines are widely finds its applications in various industrial sectors. We provide solutions for leak testing of any casting, molding, assembly components of automobile, pharmaceutical, packaging industries to suit various leak testing applications in production testing, quality control and R & D applications. This is high pressure air leak test through microprocessor based pressure drop method with highest resolution to meet international standards. Special Purspose Leak Testing Machine for Auto Components and Assemblies   Cylinder Block LTM  Cylinder Head  Pumps  Rear Axle  Cylinder Head Water Jacket  Cylinder Head Valve Sheet  Transaxle Housing  Clutch Housing  LPG, CNG Manifolds  High Pressure Gas Cylinder  Wheel Rim   Clutch Cover  Cylinder Head Cover  4 - Speed Housing  Assembled Valve Seat  Assembled Enigne  Power Piston Assembly of Brakes  Assembled Batteries  Assembled Transmmision  Power Steering AssembliesGMJ Systems & Automations Pvt. Ltd. design & manufacture air leak test machines with dry as well as dry & water immersion method to check the porosity of Cylinder Block, Cylinder Head, Gear Housing, Clutch Housing, Transaxle Housing, Oil Coolers, High Pressure Gas Cylinder, Iintake / Exhaust Manifold, Engine Assembly, Transmission Assembly, Rear Axle Assembly, Fuel Tank or any Pressurised / Fluid Reservoirs etc. with high pressure air leak test through microprocessor based pressure drop method with highest resolution to meet international standards. Water dip machine has built in facility of water immersion for further analysis of leakage area which can be observed In illuminated water tank.The procedure is to load the component on fixture, clamp and plug the component in position. Air will be pressurised in to the component till the pressure reaches a preset value, stabilise the air inside the component and checked for leakage through a pressure drop/flow sensor and the result is displayed on leak testing instrument. If the component is rejected, it is immersed into the emulsion tank where the area of leakage is observed visually. In case of OK component punching will be done & depressurization, de-plugging followed by de-clamping take place.All clamping, locating and plugging will be done by hydraulic / pneumatic cylinders automatically, hence the process time and labor required is greatly saved. The operator only has to load the component & then press cycle start push button.Total operation is automatic without operator interference. Machine is fully automatic & controlled through PLC. The system is configured to operate in auto / manual mode.

The Buckling Testing Machine for Educational Training for Structural Lab has garnered acclaim for its design, quick functionality, less maintenance requirement and long service life. We manage a stock of the Buckling Tester in our spacious warehouse to address the buyer’s bulk demands. We are a preeminent Manufacturer & Exporter from Maharashtra, India and guarantee timely delivery of the Buckling Tester across the world.  We are also manufacturing other STRUCTURAL LAB APPRATUS.

We have leakage testing machines. Leakage testing machine is used to trace the escape of vacuum, gases or liquids from the sealed systems. Several processes are used to check the leakage and depending upon them different types of machineries are available. We offer premium quality leakage testing machines for various industrial uses. These are made using the latest sophisticated technology which ensures better performance. Each component of these machines is manufactured taking special care so as to ensure flawless service. These are highly accepted in different industries for the quality standard. Consequently, we are regarded among the renowned pressure leakage testing equipment suppliers in india.

Backed by the support of our talented and knowledgeable experts, we are providing a quality range of air type leak testing machine to our esteemed customers. Our offered array is accessible at pocket friendly rates and in predefined time period. We have experience of supplying a range of leak measurement instruments from different suppliers. Leak measurement may be made down to a resolution of 1 atm.mm3sec. All test parameters may be programmed into the instruments, and the result data is available for subsequent spc analysis. Product details: accurately designed sturdy construction corrosion resistant easy installation easy maintenance easy operation

TOPICS Tool frame located inside a standard chamber Three positions are fixed with quick clamps One connection move at the test sequence automatical without venting the chamber Special metallic seal inside two seal heads which will eliminate the Helium contamination from the cyle before Frist leak rate which is checked is the internal leak and after this the sealing head will close the connection to the internl side of the tube and the leak rate will go down and we can check the fine leak from the first circuit to outside After this the pressure comes to the other circuit and we measure that leak rate

Focus Controls is offering a wide range of Spring Testing Machine. This Spring Testing Machine is made up of premium quality raw materials which is responsible for quality of our range.

This versatile Jig can be used to test various types of Dot matrix Print heads. The features of the Jig is as given below.Can be used to test the continuity of the all the coils and print head cables simultaneouslyCan be used to check the resistance of each coil of the print head. Can be used to check the firing of individual pins of any print head. CONTINUITY TESTING To test the continuity place the toggle switch on the top of the Unit to the Continuity position. This Jig provides a universal 26-pin male berg connector to which a female berg cable can be connected. Any number of cables can be configured so as to match you print head requirement. The configuration of the Berg connector is 1 to 1 that means pin number 1 of the berg connector represents Pin 1 of print head and LED 1 on the Test Jig. Different cables can be made as per the printer head connector to directly connect the print head to this cable. Once the cable is connected and the Unit is Switched on, all the LEDs on the top of the Unit will light up corresponding to all the coils that are showing continuity. That means if it is a nine pin head then the first nine LEDs will light up, if the head is a 18 pin the first 18 LEDs will light up, if the 24 pin then all the 24 LEDs will light up. NOTE the LED only shows the continuity of the coils not whether the coil impedance is correct, that means even if the coil is electrically short then the LED will light up. For this you have to check the impedance using the digital resistance meter provided. RESISTANCE TESTING To test the Resistance place the toggle switch on the top of the Unit to the Resistance position. Now with the print head connected to the cable depress each micro toggle switch momentarily to display the resistance of that coil. That means if you want to measure the resistance of coil 1 then depress the micro toggle corresponding to 1, this will cause the display meter to display the resistance of that coil. FIRING TESTING To test the Firing place the toggle switch on the top of the Unit to the Continuity position. Now with the print head connected to the cable depress each micro toggle switch momentarily to activate the corresponding PIN. That means if you want to check the firing of PIN 1 then depress the micro toggle corresponding to 1, if you want to check the firing of Pin 2 then depress micro switch no 2 and so on.

R. V. Industries is instrumental in manufacturing and supplying our clients a comprehensive range of automobile parts testing machines.
