Testing Machines Dealers in Bhosari, Pune

We are offering test rig machine as custom built to check various parameters of components / subassemblies. Various examples are listed below. 1 centrifuge test machines for acceleration up to 5000 g 2 centrifuge for biochemistry laboratories. 3 drop testing machine to check the packaging strength. 4 pull of test machine to test adhesion strength 5 high speed spin testing machine for speed up to 60,000 rpm for performance testing of products. 6 endurance test rig for fatigue testing of automobile components.

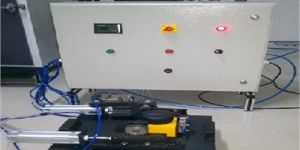

4m Automation offered Performance Test Machines or Endurance Test Machines. Testing of Physical, Electrical parameters Machines for checking product Life cycle test or 100% on-line checking Fully automatic PLC based control, HMI for parameter settings & Display

To maintain our kindness in customers concern, we are offering an exclusive array of Water Deep Type Leak Testing Machine (Water Leak Testing Machine). Customers can avail this offered array at cost effective rates that comes with diverse specifications such as low maintenance and high tensile strength. For larger leaks and larger internal test volumes one can use a flow testing instrument. These instruments maintain an accurate test pressure whilst recording the gas flow with a flow meter. Depending up to the test volume this tends to be a technique for checking larger leaks. Product Details: High tensile strength High working capacity Longer functionality Compact design Minimal maintenance Durability

  • Feature : Pattern Size 800*800 mm• Stroke : 500mm• Tilting 0-90 Degree• PLC Control With HMI

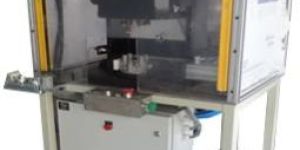

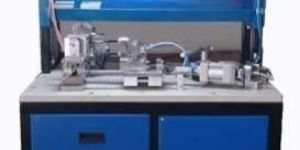

We are presenting a finest quality assortment of Leak Testing Machine. Our entire range is manufactured using high quality raw material and advance technology procured from the reliable and authentic vendors of the market. The offered product is known for its corrosion resistant nature, durability and robust construction. Our offered product is tested stringently under various quality checks before final dispatch. Moreover, our products are available in the market at industry leading price. Features : Rust resistance Highly durable Low maintenance

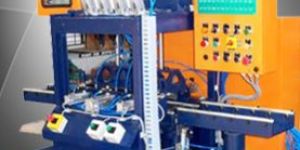

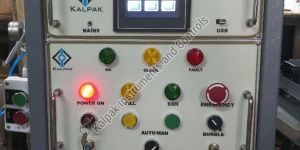

The Dry Leak testing machines are used to leak test components for porosity or leakage due to any damage. The medium for the test is air.The testing is done using a pressure decay method with a specified test pressure and an allowable leak rate. The interfacing of the machine and controls is done with an imported indigenous leak detection instrument, The photograph shows a dry leak testing machine for a four cylinder head. Cylinder blocks, brake system components, or any similar components can be checked using this method.

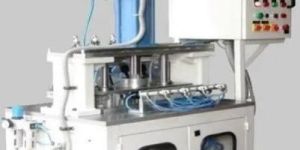

• High Pressure Leak Testing Machine Upto 200 Bar• Low Pressure Leak Testing Machine Upto 6 Bar• Hydro Leak Testing Machine

We are offering compression testing machine. Compression tests are used to determine how a product or material reacts when it is compressed, squashed, crushed or flattened by measuring fundamental parameters that determine the specimen behavior under a compressive load. These include the elastic limit, which for "hookean" materials is approximately equal to the proportional limit, and also known as yield point or yield strength, young's modulus (these, although mostly associated with tensile testing, may have compressive analogs) and compressive strength.

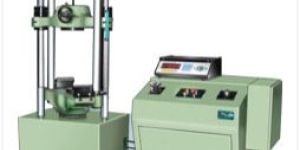

• Loading accuracy as high as + 1%.• Suitable at variable speeds to suit a wide range of materials• Continuous roll autographic recorder supplied as standard to enable study of the behavior  of materials • Motor driven threaded columns for quick effortless adjustment of middle crosshead to facilitate   rapid fixing of test specimen.• High reading accuracy due to large size and design of dial• Wide range of standard and special accessories, including load stabilizer.• Easy change from plain to threaded and screwed specimens.• Large effective clearance between columns enables testing of standard specimens as well as    structures.• Simple controls for easy of operation.• Robust straining frame of an extremely rigid construction.• Safe operation ensured be means of safety devices.      Application : Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also conducted.    Principal of Operation : Operation of the machine is by hydraulic transmission of load from the test specimen through pressure transducer to a separately house load indicator. The system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autograpic recorder. the deflection of the pendulum represents the absolute load applied on the test specimen Return movement of the penulum is effectively damped to absorb energy in the event of sudden breakage of a specimen    Machine consists of Straining Unit :   This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper crosshead is rigidly fixed to the table by two straight columns.The lower cross head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured by relieving the cylinder and ram of any possible side loading by the provision of ball seating.An enlogation scale with a minimum graduation of 1mm, is provided to measure the deformation of the specimen.Tension test is conducted by gripping the test specimen between the upper and lower cross-heads and the table.The lower cross-head can be raised or lowered rapidly by operating the screwed columns, thus facilitating ease of fixing of the test specimen.    Control Panel : The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer, a load indicator system and an autographic recorder    Power Pack : The power pack generates the maximum pressure of 200 kgf/cm2. The hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.    Hydraulic Controls : Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable. Incorporated in the hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken.    Load indicator System : This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the rangee selection knob. An overload trip switch is incorporated which, automatically cuts out the pump motor when the load range in use is exceeded.   Pendulum Dynamometer : This unit permits selection of favourable hydraulic ratios producing relatively small frictional forces. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The Piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliabilty of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator    Accuracy and Calibration : All Electronic Universal Testing Machines are closely controlled for sensitivity, accuracy and calibartion during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British standards. 1610 : Part1 : 1992 and IS : 1828 : Part1 : 1991.Electronic Universal Testing Machine comply with Grade "A" of BS : 1610 : Part1 : 1992 and class 1 of IS-1828-Part-1:1991. An accuracy of +1% is guaranted from 2% to 100% of the capacity of the machine. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.    Autographic Continuous Roll Load-Elongation Recorder: This unit is of the pen and drum type and is supplied as standard. The horizontal motion of the pen products the ordinate of the diagram and the drum rotation products the extension ordinates, in the ratio of either 1:5 or 1:10 A continuous roll of graph paper is stored inside the drum and is easily replaced

Acme make Universal Testing Machine UNITEST Series are screw driven with precision Ball Screw with Zero Backlash with variable speed drive. Computerized Universal Testing Machine is suitable for studying mechanical behavior of various materials like polymers, metals, rubber, plastic, etc. Universal Testing Machines are easy to operate & they offer excellent performance & flexibility to meet the needs of modern testing equipments. & confirm to IS/BS/ASTM Standards. Moreover, Universal Testing Machines are available with options depending upon test requirements & Control mechanism. We are a renowned Manufacturer and Supplier of Electronic Universal Testing Machine from India. Features : Precision Servo Drive Motor with Zero Backlash Ball Screw given an advanced drive system with wide range of speed range.Provision for load cell interchange & automatic selection of load full scale & Units (Kn or N)Speed selection through data entryFacility for mounting different load cells & clamping devices to suit different testsSafety Interlock for overload & limit switch to ensure protection during testUniversal Application in R & D, Quality control, & Production for tests like Tensile, Compression, Bending, Peel, Flexure, Pullout, Tear, Shear, etc.Window based software for control of machine On line data acquisition to PC as well as data analysisEmergency Button StopLoading Accuracy : +/- 1.0 % of readingLoading Frame : Powder CoatedDisplay : LCD Monitor Software Features : On line data acquisition to PC as well as data analysisReal Time display of data, Tests, & curves & ZoomingOn line / off line generation of graph of load v/s length, load v/s displacement, load v/s elongation, Etc.Software password protectionAutomatic calculation of parameters like % of elongation, peak load, breaking load, displacement, peak elongation, tensile strength, proof stress, yield stress, Young�s Modulus, etc.Printer Port for Printer InterfaceGraph & result PrintoutTest certificate print out Load Cells : We offer strain gauge type load cell in different capacities in th following ranges : 50N, 100N, 200N, 300N, 500N, 1Kn, 2Kn, 5Kn, 10Kn, 25Kn, 50Kn, 100Kn. Grips & Clamping Device : Different Types of Grips available as per requirement. Wedge type grips for flat & round specimensVise type gripsCompression platesBending FixturesShearing attachmentPullout testExtensometer

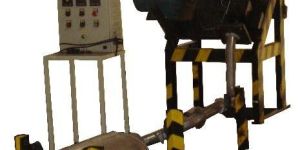

JERK TESTING MACHINE, Chain Driven Roller Conveyors, Ball Transfer Tabl

Bubble Leak Test Machine, Bush Pressing Machine, Driller, Greasing Machine

Leak Testing Machines, Hydraulic Machines, Jig

We are a prevalent Manufacturer and Supplier of Hydro Testing Machine in Maharashtra, India. The testing capability of our machine is enhanced by our experience in automated production line equipment and process automation, resulting in a complete service to the industry. Neptune Systems has the knowledge and expertise to assist the customers. Different forms of leakage testing equipment are available with us including manually loaded test benches to fully automatic leakage testing machines for 100% testing. Test methods include pneumatic leakage testing to hydro testing.    Features :  Quantifiable  Fast clean & Dry Easily incorporated into automatic or Manual Line Automatic Pass / Fail limit Automatic Pass / Fail Mark Data Outputs for SPC analysis  Areas of Application: Auto Parts Engineering, Pharma, and Food Processing Industries

A hydraulic press is used for lifting or compressing large items. Hydraulic mechanism is used to generate the force which increase the power of a standard mechanical level. Hydraulic presses are widely used in a manufacturing environment. We offer Hydraulic Press-C-frame, H-Frame -4-Pillar,2 piller which have precision grounding base plate with diagonal T-slots. Developed in compliance with international quality standards, the heavy-duty H-frame of the press enables high force applications. Due to re-tooling time, the hydro pneumatic becomes flexible and delivers consistent performance in given environment. We also offer customization on our range as per the specifications of clients.

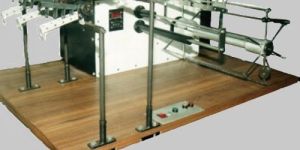

DC Motor driven electrically controlled winding unit. Supported with digital revolution unit counter for checking denier.
