Gas Measurement Instruments Dealers in Alandi, Pune

(13 products available)
Alandi Bhosari Chikhali
  • LPG Flow Meter

    LPG Flow Meter

    Get Price Quote

    • MOQ1 Piece
    • ConditionGood
    • BrandMass Flow
    • Country of OriginPune, Maharasthra
    • Nameplate DetailMeasurement systems group
    • Item NameLpg Flow Meter
    • Lubrication systemWithout bearings.
    • Regular lubricationWithout bearings.
    • We have come up with reliable LPG Flow Meters. The LPG Flow Meters that we offer are manufactured with the use of best quality components that impart strength and endurance. Our LPG Flow Meters provide accurate readings of the flow with an absolute ease. Our LPG Flow Meters are sophisticated and work with utmost precision.  The LPG Flow Meter Systems RS-485 to USB is a USB to RS485 converter. It allows easy serial port expansion without requiring IRQ, DMA, or I/O port resources. The converter allows the user to easily and economically connect RS485 devices to a host using USB. The RS485 communications standard is used by Measurement Systems Pickoff Sensor based data acquisition modules and many industrial control devices.The LPG Flow Meter is based on a single chip USB UART for transferring serial data over the Universal Serial Bus without the need for card-slots. The converter has an internal 128 byte transmit buffer and a 384 byte receive buffer. It supports baud rates of up to 230K. External power is not required since takes its power from the bus. Connection to USB is via a 3-foot detachable cable. Connection to RS485 is thru the converters DB-9 male connector. The converter is housed in a plastic enclosure designed for rugged applications.The converter can interface RS485 modules to a host using a USB connection, when using the Measurement Systems RS-485 to USB with a module or any RS485 device that requires wiring, recommends its’ CA-3 cable. The CA-3 is a 3-foot serial cable with a female DB-9 connector and tinned wires ready for connection to RS485. We Have Recently Developed a Portable Flow meter. The Portable Flow meter Works on the Inbuilt Battery of the Totalizer. Principle of Operation LPG Flow Meters -     The operation of the International Gas Turbine Meter is based on the measurement of the velocity of gas.     The flowing gas is accelerated and conditioned by the meter´s straightening section. The straightening vanes prepare the gas flow profile by removing undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel.     The Dynamic Forces of the Flowing Fluid/Gas cause the rotor to rotate. The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings.     The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.     The rotating turbine wheel drives the index head with the eight digit mechanical counter via shafts and gears.     The volume and flow rate can also be indicated electronically. A proximity probe generates a signal at each passing blade of the turbine wheel. With the device-specific K-factor and the number of pulses, the passed volume can be calculated. With the measured frequency the flow rate can be determined.     The rotating turbine wheel can also generate pulses directly by proximity sensors that create a pulse for each passing turbine blade. By accumulating the pulses the total passed volume and gas flow rate can be calculated.  General -     This is a highly accurate flow meter, approved for custody transfer measurement, equipped with electronic pulse outputs and a mechanical counter. This document explains the dimensions, ranges, performance, calibration and outputs of the instrument. It details the installation, safety requirements and material specifications.     These limits are valid for the meter performance in ambient air. Usually, the performance is better at high-pressure applications. On request we can offer meters according to your accuracy specification. The repeatability of the LPG Flow Meters is better than 0.1%   Principle of Operation - As Above.     Nameplate Detail - Measurement systems group.     Index head and pulse transmitters - stainless steel measurement systems group make. Fully intrinsic free hazardous free, potential free     Maximum operating pressure - manufactured as per requirement     Required upstream and downstream length - as required.     Lubrication system - Without bearings.     Lubrication before start-up - Without bearings.     Regular lubrication - Without bearings.     Volume conversion - Mass flow meter direct calibration on appl.gas.     Flow direction and orientation - as indicated on flow meter.     Connection pressure transmitter - NA for volumetric/mass flow meter ss316 l pressure transmitter. Pressure compensated.     Temperature Measurement - Temperature compensated.
    ...more
  • Diaphragm Gas Meter

    Diaphragm Gas Meter

    Get Price Quote

    • MOQ1 Piece(s)
    • Steel1",2",3",1/2",1/4",4",6"
    • Steel1",2",3",1/2",1/4",4",6"
    • We have Diaphragm Gas Meter within the working range of the meter the rotor spins proportional to the actual velocity of gaseous material flowing. A pick-up sensor produces an electrical signal as each blade crosses through its low magnetic or rf field. This signal is amplified and conditioned by a transmitter or fed directly into a rate/totalizer, and represents the actual cubic feet per minute (acfm) flowing through the meter. The k-factor is stenciled on the meter body in pulses per actual cubic feet (p/acf). Because gases are compressible, most people desire to measure the equivalent amount of gas corrected for the line pressure and temperature to standard cubic feet per minute (scfm at 60â°f, 14.69 psia). If the flow temperature and pressure are relatively constant, then a simple correction can be calculated to shift the k-factor from p/acf to p/scf and a simple totalizer (measurement systems india make ) may be used. When flow temperature and pressure are not constant, a flow computer. specifications linearity 1 â±1.0%/0.5% repeatability 1 â±0.25% maximum over-range 125% of flow rate for intermittent periods frequency output 0 to 1,100 hz voltage output approximately 100 mv@ 100 hz to 1.5 v (rms)@ 1,000 hz. Pressure drop 0.5 psi at 100% of flow range pressure rating we manufacture flowmeters for most pressures. installation vertical or horizontal (any direction). Materials of construction body: 316 l stainless steel. Flanges: 316 stainless steel rotor: 431 stainless steel. Rotor shaft/bearings: standard: tungsten carbide v-cup cartridge frame retainer: 302 stainless steel cartridge frame: 316 l stainless steel. Temperature range:meter with bearing structure of: standard: tungsten carbide: -40â°f to 300â°f (-40â°c to 149â°c). For other temperatures consult factory.
    ...more

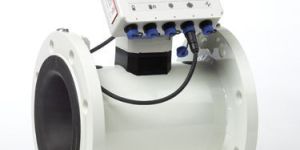

  • LPG Gas Meter

    LPG Gas Meter

    Get Price Quote

    • MOQ1 Piece(s)
    • Steel1",2",3",1/2",1/4",4",6"
    • Steel1",2",3",1/2",1/4",4",6"
    • within the working range of the meter the rotor spins proportional the actual velocity of gaseous material flowing. a pick-up sensor produces an electrical signal as each blade crosses through its low magnetic or rf field. this signal is amplified and conditioned by a transmitter or fed directly into a ratetotalizer, and represents the actual cubic feet per minute (acfm) flowing through the meter. the k-factor is stenciled on the meter body in pulses per actual cubic feet (pacf). because gases are compressible, most people desire to measure the equivalent amount of gas corrected for the line pressure and temperature to standard cubic feet per minute (scfm at 60ã�â°f, 14.69 psia). if the flow temperature and pressure are relatively constant, then a simple correction can be calculated to shift the k-factor from pacf to pscf and a simple totalizer (measurement systems india make ) may be used. when flow temperature and pressure are not constant, a flow computer. specifications linearity 1 ã�â±1.0%0.5% repeatability 1 ã�â±0.25% maximum over-range 125% of flow rate for intermittent periods frequency output 0 to 1,100 hz voltage output approximately 100 mv@ 100 hz to 1.5 v (rms)@ 1,000 hz. pressure drop 0.5 psi at 100% of flow range pressure rating we manufacture flowmeters for most pressures. installation vertical or horizontal (any direction). materials of construction body: 316 l stainless steel. flanges: 316 stainless steel rotor: 431 stainless steel. rotor shaftbearings: standard: tungsten carbide v-cup cartridge frame retainer: 302 stainless steel cartridge frame: 316 l stainless steel. temperature range:meter with bearing structure of: standard: tungsten carbide: -40ã�â°f to 300ã�â°f (-40ã�â°c to 149ã�â°c). for other temperatures consult factory.
    ...more
  • Gas Flow Meter

    Gas Flow Meter

    Get Price Quote

    These meters are based on the principal of differential pressure generated by Orifice element. Designed as per ISO5167BS1042. On line density compensation delivers very accurate results. Various Types of IBRNon IBR valves for isolation and drain. Various Sizes of Orifice Assemblies with or without IBR Certificate. Complete System is Engineered to suite your requirements. Highly Reliable and Repeatable System; No Moving Parts. Easy for Calibration.
    ...more
  • Gas Flow Meter

    Gas Flow Meter

    19,000 - 54,960 / piece

    • MOQ1 Piece
    • ApplicationIndustrial
    • MaterialStainless Steel
    • FinishingPolished
    • Driven TypeElectric
    • ApplicationIndustrial
    • Country of Origin220V
    • CertificateCE Certified
    • Warrenty1 Year
    • CORI MASS INDIA Make special Mass flow meters for BIOGAS flow Measurement give accuracy of 1 % FS and are truly Mass Flow meters calibrated in Kg. The unloading of the Liquid BIOGAS in tanks and then measuring the consumption can be measured/matched / verified / logged using the accurate mass flow meters.
    ...more
  • Gas Flow Meter

    Gas Flow Meter

    Get Price Quote

    • BlueWhite
    • These meters are based on the principal of differential pressure generated by Orifice element. Designed as per ISO5167/BS1042. On line density compensation delivers very accurate results. Various Types of IBR/Non IBR valves for isolation and drain. Various Sizes of Orifice Assemblies with or without IBR Certificate. Complete System is Engineered to suite your requirements. Highly Reliable and Repeatable System; No Moving Parts. Easy for Calibration.
    ...more

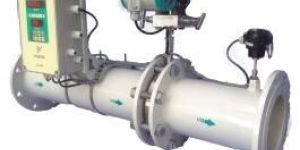

  • Compact Gas Flow Meter

    Compact Gas Flow Meter

    Get Price Quote

    • Size1 inch to 8 inch
    • The GFMc-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability and ruggedness are of prime concerns.
    ...more
  • Oxygen Flowmeter with Metal Body

    Oxygen Flowmeter with Metal Body

    Get Price Quote

    • Number Of FlowerAdjustment Oxygen Flowmeter Valve With Regulator
    • UsageICU Wards For Safe And Reliable Oxygen Delivery In Emergency
    • NameOxygen Flowmeter With Metal Body
    • Buy Adjustment Oxygen Flowmeter Valve with Regulator at Best Price Procare’s Oxygen Flowmeter with a metal body is the essential device for ICU wards for safe and reliable oxygen delivery in emergency. this oxygen flowmeter with metal body is designed for B Type and D Type oxygen Cylinders, and comes with the MCP Oxygen Regulator, Humidifier Bottle and operational Key. Features of the Oxygen Flowmeter Constant Flow Rate This flowmeter helps to maintain the steady flow rate of the oxygen once set, to ensure accurate oxygen delivery. Safety Mechanism To improve patient safety the built-in safety valve is provided, it prevents excessive pressure build-up if the oxygen line becomes blocked. These features protect patients as well as equipment.
    ...more
  • Gas Flow Meters

    Gas Flow Meters

    Get Price Quote

    • Accuracy±2.5% of actual reading
    • ServiceBio Gas, LPG, Natural Gas, CNG & Compressed air in closed Pipes.
    • Size1” to 8”
    • Type of flow elementDifferential flow element.
    • MOC of flow elementSS 316
    • End Connection SORF flange
    • MOC of flangesM.S/C.S/S.S
    • Flange RatingClass 150 (OTHER ON REQUEST)
    • DPTWith Display
    • Data logging4900 readings or 9800 readings (optional).
    • Comm. PortRS485, RS232 (optional).
    • Comm. ProtocolMODBUS , RTU
    • Design StandardBS: 1042/ ISO : 5167
    • Typical turndown10:3, 10:1 (optional )
    • Density compensationOnline monitoring and compensation of density
    • Gas TemperatureUp to 70°C
    • Power Supply85 to 265 VAC @ 50Hz
    • The GFMc-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability and ruggedness are of prime concerns.In conventional system of measurement, the differential pressure generated by orifice plate is measured by DP transmitter. The output from DP transmitter after square rooting is accepted as proportional to flow rate. This assumption is true only when the density is constant.Unfortunately density of compressible fluid is never constant. The density of compressible fluid changes with line pressure and line temperature. Thus, introducing errors in flow rate measurement.• Mass flow measurement of Bio Gas, LPG, Natural Gas, CNG, Compressed air & other compressed gases in closed conduits.  • Available in sizes from 1" to 8" • On – line density compensation.• Easy Installation and commissioning       PRINCIPAL ADVANTAGES : : 1. Online density compensation possible because of the online pressure and temperature measurement.2. Various sizes of orifice assemblies available with accurate design calculations.3. Online display of compensated mass flow rate, density, temperature & output of DP transmitter is offered.4. Disconnection of DPT, PT and Temperature sensor is indicated by error message.5. Complete system engineered to suit your requirement.6. Standard System and highly reliable.7. Calibration of RTD, DP transmitter, pressure transmitter is easy and inexpensive.8. No moving Parts.9. No wiring connections are required during installation.10. Installation is easy and suitable.       APPLICATIONS : Compact GFM is most suitable for measuring compressed air consumption, Biogas and LPG consumption in various industries.Following are some of the application areas of the meter: • Automotive Industry • Textile industry • Steel Industry • Environmental Industry • Industries consuming LPG or CNG • Industries consuming Nitrogen, Oxygen Or CO2
    ...more
  • Premium
    Gas Flow Meter

    Gas Flow Meter

    Get Price Quote

    • Accuracy±2.5% Of Actual Reading
    • Brand Namemanas microsystems
    • Size1 inch to 8 inch
    • MountingWall/Panel
    • Max depth185mm
    • Data loggingApprox readings: 3000 for normal logging &Approx 5500 readings for extended logging
    • Power supply85 to 265V AC,50Hz, single phase
    • Pressure range1 to 50 kg/cm2 (g) or Bar (g) max.-programmable
    • Flow typeCompensated/Uncompensated programmable
    • EnclosureAl Diecast/ABS Plastic
    • Comm. PortRS485 std., RS232 (Optional)
    • Density CompensationOnline monitoring and compensation of density
    • Dimensions WM Type310 (L) x 160 (W) x 105 (D)
    • Dimension PM TypeBezel-144mm (H) x 72mm (W) cutout-138mm (H) x 68mm (W)
    ...more
    www
  • Gas Meter

    Gas Meter

    Get Price Quote

    Gas Meter, Air Flow Sensor, Flow Meter
  • Industrial Oxygen Flow Meter

    Industrial Oxygen Flow Meter

    Get Price Quote

    Industrial Oxygen Flow Meter, Air / Gas Flow Meter, Digital Flow Mete
  • Gas Flow Meter

    Gas Flow Meter

    Get Price Quote

    Gas Flow Mete
