Indelcon Systems Shivane, Pune, Maharashtra

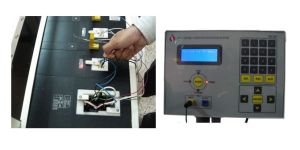

This system is very useful to wiring harness manufacturers.Generally the procedure of the assembly of a harness requires that the following checks, Our system is microcontroller based & is presently for 6 to 8 connectors. However, the system is devised in such a way that it can be expanded to more number of connectors. The operator data can be fed if desired.

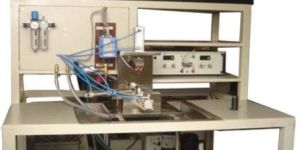

This is complete system to test the production of washer pump of an automobile. The salient features of the system are as follows, The system is based on PLC. Runs in manual & auto mode. It measures the pressure of the water delivered by the pump & current drawn at different loads on the pump. The user can program the pass / fail criteria & the system will prompt the user whether the job under test has passed or failed.

This is complete system to test the production of washer pump of an automobile. The system is based on PLC. Runs in manual & auto mode.It measures the pressure of the water delivered by the pump & current drawn at different loads on the pump.

This system is very useful to wiring harness manufacturers.Generally the procedure of the assembly of a harness requires that the following checks Proper wire pulled Wire assembled to proper connector Wire properly locked in the connector Assembly of other end of the wire to other proper connector Continuity check of the wire Complete harness continuity check Pass / Fail criteria Total number of jobs completed with time Our system is microcontroller based & is presently for 6 to 8 connectors. However, the system is devised in such a way that it can be expanded to more number of connectors. The operator data can be fed if desired. It has PC connectivity to upload & download relevant data & PC software to store & properly present the data to the user.

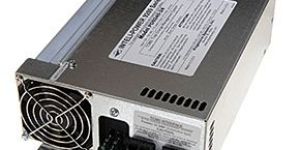

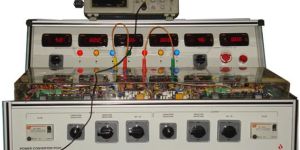

Power Converters are modular converters which can be used for AC - DC - AC conversion. Typically they are configurable for the following, 3 phase AC – DC Converter 1 phase AC – DC Converter 3 phase DC - AC Converter 1 phase DC – AC Converter 1 phase input - 3 phase output 3 phase input - 1 phase output Other salient features are User controlled IGBT drivers All signals isolated Input 3 voltages, Input 3 Currents, DC Voltage & Current, Output 3 voltages & currents All signals processed & offered at TTL level & DSP levels Protections offered for over current, over voltage & single phasing All indications True RMS The system is ideal for industry for new product development, for educating students or employees, etc.

Power Converters are modular converters which can be used for AC - DC - AC conversion. User controlled IGBT drivers All signals isolated Input 3 voltages, Input 3 Currents, DC Voltage & Current, Output 3 voltages & currents All signals processed & offered at TTL level & DSP levels Protections offered for over current, over voltage & single phasing All indications True RMS.

Feature : User controlled IGBT drivers.

Power Converters are modular converters which can be used for AC - DC - AC conversion. Input 3 voltages, Input 3 Currents, DC Voltage & Current, Output 3 voltages & currents,Protections offered for over current, over voltage & single phasing, The system is ideal for industry for new product development, for educating students or employees, etc.

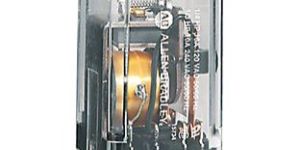

Permanent Magnet Relay or PMR is a vital component in the ELCB & RCCB. It actuates & trips the circuit breaker on detection of leakage current in the mains. This relay is different than normal relays in a way that it has built in Permanent Magnet.

Permanent Magnet Relay or PMR is a vital component in the ELCB & RCCB. It actuates & trips the circuit breaker on detection of leakage current in the mains. This relay is different than normal relays in a way that it has built in Permanent Magnet. The Rig measures the following parameters of the PMR,The system is PC based & all the cycle data is stored in the database on PC.

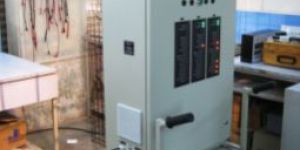

Integrated Electronic Control Unit ( IECU) Endurance test rig Model ITR01 is designed for carrying out Functional and Endurance testing of Integrated ECU for Tata Motors Commercial Vehicles. This Rig is capable of handling three IECUs at a time. In either Functional or Endurance mode of operation, the unit performs a pre programmed sequence of test operations and displays the real time test status on a graphical HMI (Human Machine Interface) Unit and LED Indicator banks mounted on front panel.     Respective actual loads are connected or simulated loads are connected to the IECU. As required there are cycle counters, error codes, diagnostic help, and validation of all functions of IECU. The Rig is movable on wheels so that customer can take it to any location.

This is a modular system which can be configured by the user to use for DC constant current loads up to 200 Amps at voltages up to 60 V. There are 2 modules of 10 Amp & 20 Amp each. Each one has a Potentiometer & an ammeter to set the load current. All of them can be cascaded to achieve the required load OR all can work independent. There is digital input to each load which will put ON or OFF the load. A PLC can be used ( which we can provide ) to program a ON / OFF cycle & a cycle count to ensure that the load current is ON & OFF for a given time & programmed number of cycles.   Typical application includes wiring harness testing for the automobiles, educational training, etc.We can also provide suitable Power source for your load. This together can make a complete system. All the products are industrial grade.

This is a modular system which can be configured by the user to use for DC constant current loads up to 200 Amps at voltages up to 60 V. There are 2 modules of 10 Amp & 20 Amp each. Each one has a Potentiometer & an ammeter to set the load current. All of them can be cascaded to achieve the required load OR all can work independent. There is digital input to each load which will put ON or OFF the load. A PLC can be used ( which we can provide ) to program a ON OFF cycle & a cycle count to ensure that the load current is ON & OFF for a given time & programmed number of cycles.

The Cutting machine in a printing industry is a vital machine. The matter printed on various sizes of paper is later on separated by cutting the paper in required sizes by cutting machine. This cutting is done manually as well as automatically by a ‘Cutting machine Controller’ or ‘Backgage Controller’ or ‘Cutting Program’ as is referred to by the printing industry.The ‘Cutting Program’ enhances the through put of the machine three folds.The Cutting Program’ has following salient features, 99 Programs with 99 steps or cuts each Alphanumeric LCD display Bright 7 segment LED display for Position value Various LED indicators like Cut ready, False clamp, etc. Sealed keyboard for easier operation Cross wise & length wise cut corrections Push out & Air ON functions Rugged metallic enclosure for panel & base mounting
