Industrial Dryers Dealers in Pune

Spin Flash dryer are designed for continuous drying of pastes and filter cakes. The main components of our spin flash dryers are a feed system, the patented drying chambers, and the bag filters. This system consist of feed vat and screw feeding system which is used to deliver or feed the material into the spin Bowl OR drying chamber where the product is buffered and fragmented by an agitator prior to continuous drying. A variable speed is kept of feed screw to control the discharge of feed. The rotor of the drying chamber fluidizes product particles in a drying efficient hot air flow patterns in which any wet lumps are rapidly disintegrated. Hot air comes from temperature controlled air heater, entering the drying chambers at a tangent in order to establish a turbulent, whirling air flow. Powder from the drying chamber is controlled in bag filter or cyclone Seperator while the outlet air leaves the system at the top suction fan, called I.D. fan. Advantage same as flash dryer.

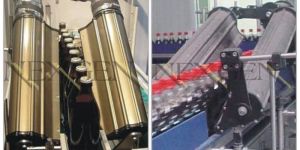

Up to 90% possible when compared to compressed air costs. The use of compressed air for blow-off nozzles is the most inefficient process. Up to 90 % Pressure loss occurs when compressed air is supplied to blow off nozzles, which means that there is a huge energy loss A high volume production line using 40 Hp worth of compressed air for water blow-off can be replaced by a 10 Hp drying system with better drying quality. This 30 Hp of energy savings is exclusive of the cost to run the refrigerated air dryers, oil separators and maintenance of the entire compressed air system

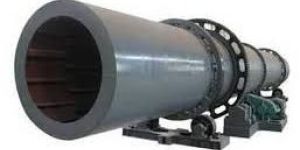

Rotary dryer are widely used for drying wet powder and cakes,which are eassily breakable and dispersible.A revolving drum and purposefully placed flights combine to elevate and shower product uniformy through the air steam. Thermostatically handled discharge air temperature gurantees accurate final moisture and great sensitivity to changing product conditions. Features p>Efficient Drying with high moisture contents.   High temperature drying. Handled wide range of size material.

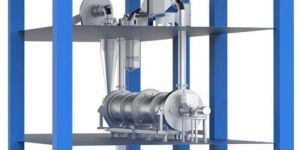

Counter current type of rotary dryer is an ideal solution for materials that must be dried to contain very low level of moisture. Here warm air is introduced at the discharge point of the Dryer. The material comes in contact with the warm air first at its lowest temperature, which goes on increasing as the material travels further. The material which is at its final stage comes in contact of airgas at its highest temperature thus maintaining very low level of moisture content.

We are one of leading manufacturer of ddgs dryer (dry distillers grain soluble dryers). We have achieved the level of design for bellow 10% product moisture and higher syrup (dwgs) addition.our design is very different from rotary tube bundle dryer which lead more moisture contains. drying process: what is leftover in the distillation process is a nutritious mash or distiller’s grains, a very popular livestock fee.it passes trough decanter to separate fibers and thin slope, fibers directly transfer to dryer and thin slope transfer to evaporator to increase concentration up to 45% and then it transfer to drying process, mixture of decanter wet cake and evaporators thin slope (syrup) fed to our specially design dryer to get minimum moisture (bellow 10%) up to as per requirement.specifications:

Spin flash dryer Blessed and supported by the team of adroit professionals, our company is considered as one of the eminent manufacturers and suppliers of Spin Flash Dryers which are widely used for drying of wet cakes and pastes which are sensitive to heat. It consists of a horizontal agitator, which disperses the materials while it comes in contact with the hot air and gets dried.

Based in Maharashtra(India), we are listed amidst the most celebrated names offering a spectrum of products. Buyers can order our products in bulk, as we maintain year around availability. In addition, we have reliable transportation system to make timely delivery.
