Level Controllers Dealers

We are offering powder level controller. find application in food , packaging , cement, steel & power generation industries for monitoring level of free flowing products like ore, fertilizer, food grains, coal, sand, chips, granules etc. Ideal for products that do not have heavy build-up on fork. Can sense dense materials like cement. It also senses extremely light products like styrene. Not recommended for mud, slurry, sticky material or water with high turbidity. operating principle: vibrating fork level switch contain piezo-electric crystal in the probe, which causes the fork to vibrate at a frequency of 125 hz. It detects the presence or absence of material and actuates a relay. It gives point output, indicating high & low level alarm. It is having compact and robust design, suitable for side & top mounting. The constant vibration of the fork provides self-cleaning characteristics. The change in vibration is detected by circuit which causes the relay to change state after few seconds delay ( about 2-3 seconds). When fork is free from material relay reverts to its normal condition

DPC 965M is 7 segment LED, 5 digit process value with 1/2 inch Display Size.It is intended to be used for indication and control application. Digital Indicator Controller accepts commonly used signal in process industry or 0 to 10VDC or RTD Pt100. In case of other inputs we can provide appropriate converters. Serial port RS 485 with MODBUS RTU protocol gives the user facility to connect the unit on all standard SCADA and DCS. 4-20mA Retransmission output for remote display or PLC can be provided for 4-20mA input type. 2 / 4 relays outputs are available. Ideal for SCADA applications.

Power:- 0.2kw Voltage:- 230 Volt Phase:- Single Phase Additional Information : Port of Dispatch: COURIER

Specifications:- Input:- RTD (Pt-100), Thermocouples (Fe-con ‘J’Cr-al ‘K’ Pt-Pt-Rh 10% ‘S’ Pt-Pt-Rh 13% ‘R’) etc. Range:-As per application. Indication:- Seven Segment LED 3.5 Digit ½” Size. Accuracy of Indication:- ± 0.5% of FSD ± 1 Digit Operating Temperature:- 0ºC to 50ºC Supply Voltage:- 230VAC ± 10%

The pneumatic massecuite thickness controller developed by us is an innovative design, which offers many advantages over the conventional design currently available in the market. The system designed by us is unique sturdy design following the simple principle of mechanical displacement when it touches the rotating massecuite level. The system is pneumatically operated so that there is very less wear and tear as well as electrical hazards. The level adjustment is on the topside of monitor case only; such that it can be adjusted when machine is running.   Features PNEUMATIC ACTUATION HENCE NO ELECTRICAL HAZARDS COMPACT AND VERY STURDY DESIGN. VERY POSITIVE SENSING. SELF LUBRICATING PTFE BUSH GIVES LESS MAITENANCE STURDY SENSING ARM DOESNOT GET DAMAGES BY ANY MASSECUITE CONDITION. BROAD SENSOR CAN EASILY SENSE ANY TYPE OF MASSECUITE. LEVEL ADJUSTMENT IS FROM TOP. BROAD SENSOR REQUIRES VERY LESS PUSHING FORCE, HENCE FAST SENSING.

We are offering amf controller. - mini-amf controller option available - automatic and manual start-stop of the genset - voltage, current, kwh, pf, frequency measurement - engine and genset protections - analog inputs available

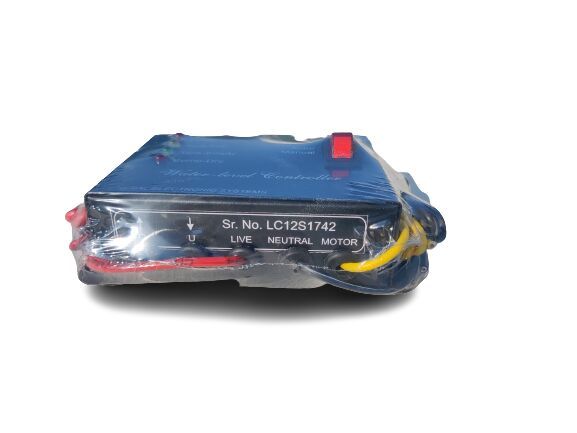

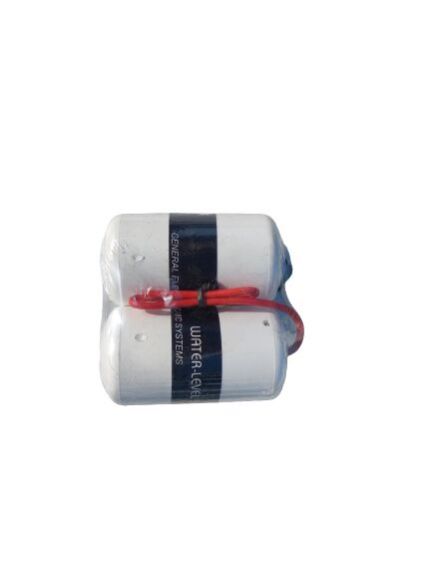

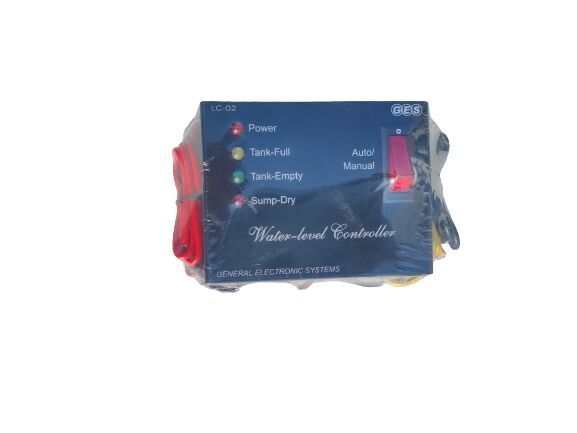

Backed by an extensive supply network, our organization is grouped among preeminent Suppliers of Automatic Water Level Controller. Our organization is highly concerned towards providing excellent quality products to the customers and thus check them at all stages.   Features & Benefits : No Moving parts (No mechanical relay), hence no noise, corrosion free Metal Enclosure, Easy installation, No maintenance Two float type level sensors. Dry Run protection Supports Single phase Lamp indications for power on, upper Tank Full, Lower Tank Full Manual mode and Auto mode Switch Applications : Suitable for Sump to Tank set up (Underground or ground level tank to overhead tank set up).   More About Automatic water level controller does not need operator for performing start and stop operations. Fully automatic water level controller switches ON the motor when the water level in the tank becomes low (desired prefixed lower limit) making sure that water is present in the sump. It switches OFF the motor once the tank becomes full (prefixed higher limit) and also when the sump (lower tank) is empty.

MCOM water level indicator is equipped with best quality material & latest technology. It shows 3 levels of tank (Full, ½, 10%) through high glow LED lights. We use long life molded sensors built with high grade stainless steel.

We feel immensely pleased to offer an exclusive gamut of PID Controller. Our offered product is manufactured by utilizing top ranked raw-materials and advanced advance technology by our well educated professionals. In order to ensure quality, this controller is rigorously tested on various parameters. In tune with international standard, we provide this product in various sizes and designs, as per the ever-evolving requirement of our clients.Features: Easy operation High functionality Compact design

With support of our excellent team workers, we have been delivering the best quality range of CNC Machine Controller. Our offered controller is used for controlling motion of work piece or tool in various machines. This controller finds its application in industrial machines such as lathe, drilling, tube bending, sheet metal pressing, laser, etc. Our offered controller is made available in different technical specifications with user-friendly interface for our clients.Features :High accuracySave timeReduce human error
