Power Transformers Dealers

Driven by the passion to provide nothing but the best, we have risen as trusted suppliers of Power Stabilizer Transformer in the market. With the best in class raw material comes a remarkable finished product, thus we keep a stern check on the material used. Our quality auditors ensure that the products are up to the mark.

A toroidal transformer has ring type core made from cold rolled grain oriented ( CRGO ) Silicon steel strip without any joints and annealed for stress relief after being wound. These wound cores are then suitably insulated by class B insulation and the winding of copper wire is usually done by winding machines.The core being continuous, without any air gap and the path of flux being along the direction of grain orientation, gives an opportunity for optimum use of flux density, besides very low iron loss and exciting current. The primary and secondary windings are closely linked magnetically. Therefore the leakage fluxes and reactance are negligible. A toroidal transformer has its winding spread over the entire periphery of the core. This results in largcr area for dissipating the heat. Till recently all such small low voltage type transformers needs were met almost universally by traditional or conventional El transformers. Now materials are easily available, so it has been possible to develop 'LOW VOLTAGE TOROIDAL TRANSFORMER' giving a whole set of advantages and wide range of applications in place of conventional transformers.

Manisha engineers pvt. Ltd has brought forward one of the most exclusive ranges of power distribution transformers. We are in the line of manufacturing, exporting and importing a vast range of distribution transformers.

We are listed at the apex amidst the list of leading power transformer manufacturers and suppliers based in india. These power transformers perform efficiently upto 50 mva and 132/220 kv ranging applications. Designed and made by experts using high grade material, our power transformers comply with the international industrial standards.

No Load losses minimized by using CRGO steel.The Core assembly of step lap construction has minimum losses.Core is tightly pressed and bound by glass reinforced resin tapes. Used In : Steel industriesSugar FactoriesAuto IndustriesMilitary engineering services

Our products have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

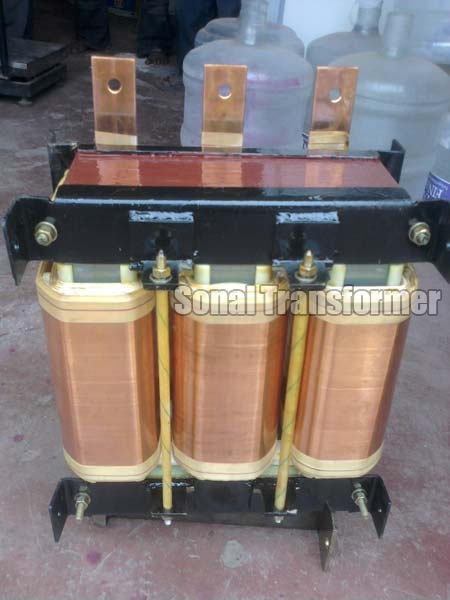

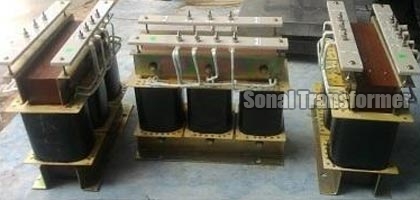

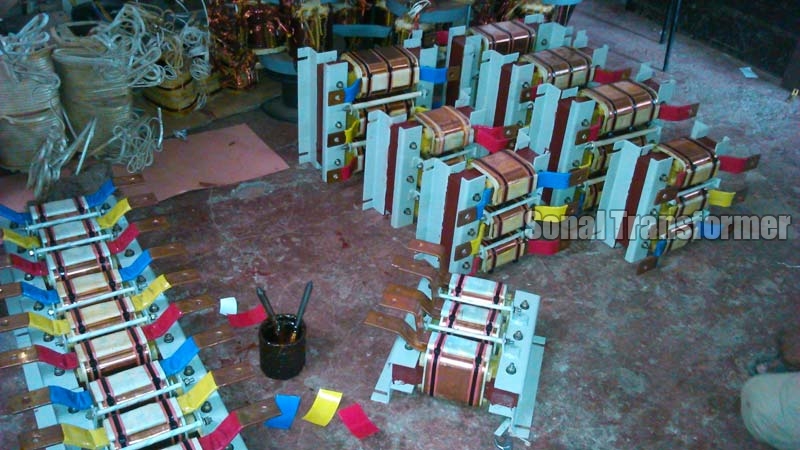

With our advanced unit in Pune, Maharashtra, and our highly efficient team of experts and supervisors, we have achieved excellence in the quality of our products and services. Thus, we have been placed among the prime manufacturers and suppliers of Three Phase Power Transformers that are credited by our clients for its flawless design, great performance, excellent resistance to electric and voltage fluctuations and functional accuracy. To be in sync with incoming power supply, our product is linked in exact sequence.   Features: Best grade material High performance Free from flaws

Our Oil Filled Transformers are manufactured in accordance with the most demanding industry and international standards using premium quality CRGO or CRNGO ( if needed ) Steel Core. Transformers can be used for indoor or outdoor applications and can be provided with off-load tap changers. ADVANTAGES Can be used Outdoors Low power loss and low noise Designed for trouble free performance Designed to withstand Electrical Impulses & Thermal Stresses SPECIFICATIONS Type Oil Cooled Transformer Capacities From 5 KVA to 1000 KVA Voltage Class Up to 6.6 KV Phases Three Phase & Single Phase Frequency 50 Hz / 60 Hz. Typical Voltage Configurations in Three Phase: (Other Voltage configurations available as per customer requirements) 6.6 V / 433 V; 6.6 V / 415 V; 6.6 V / 230 V; 433 V / 6.6 V; 433 V / 433 V; 433 V / 415 V; 433 / 230 V; 415 V / 6.6 V ; 415 V / 415 V; 415 V / 230 V. Insulation Class A Winding Material Copper Magnetic Core Prime Grade Virgin C.R.G.O FEATURES Service Designed for long life and trouble free performance Losses Designed for lower losses and greater efficiencies Test Standards Designed for IS 2026 / 11171 & I.E.C 60076. Value Designed for cost effectiveness and high reliability

These transformers provide low current and low voltage. They have been procured from well known vendors in the market and offer a high functioning to the customers on time. These products are high on demand in the market and they have been priced at very cost effective rates in the market. Our company also provides installation and maintenance of these oil immersed transformers.

Lamco Transformers Pvt. Ltd. is engaged in manufacturing and supplying of power transformers in Pune. Power transformers are used in transmission network so they do not directly connect to the consumers, so load fluctuations are very less. Power transformers are manufactured by us using qualitative material and tested on various parameters for efficient working life. We also provide power transformers installation services to our clients as per their requirements. Clients can avail power transformers from us at the leading market prices.

 No Load losses minimized by using CRGO steel. The Core assembly of step lap construction has minimum losses. Core is tightly pressed and bound by glass reinforced resin tapes. Proper insulation is provided between clamping channels and the entire assembly is insulated from tank by insulating packing. Prime CRGO lamination is used. Cut and assembled to achieve a near perfect-circle core cross section, resulting in the efficient use of materials plus a lighter, more compact, high performance transformer Welding process produces deep penetration welds, virtually eliminating leakage from welded tank joints. Inside tank surfaces are sand blasted and painted with heat resistant paint. Transformer exterior coated to a minimum thickness of 3 mils; this coating has superior endurance characteristics. Detachable radiators with/without fansPressed and vacuum treated coils. Welding process produces deep penetration welds, virtually eliminating leakage from welded tank joints. Inside tank surfaces are sand blasted and painted with heat resistant paint. Transformer exterior coated to a minimum thickness of 3 mils; this coating has superior endurance characteristics. Detachable radiators with/without fansPressed and vacuum treated coils of prime quality are used and duly pressure tested. OLTCs and OCTCs are of Easun MR/CTR. Recently for an export order, dry type OLTCs were used.the right of this text. Key Customers • Steel industries• Sugar Factories• Auto Industries•  Military engineering services• All HV & EHV consumers• State electricity boards• Co-genertion plants

1)recommended for loads likes cnc machine ,medical,photo,lab equipments and compunters to have a completey isolated supply 2) total protection for your sensitve loads from spikes,line voltage transients and common mode noise 3)optimum transformer design to have better load regulation 4)available in both aircooled and oil cooled.

(for Power applications except Distribution Transformers):-HIGH VOLTAGE transformers used in equipment's requiring very high secondary power rating of upto 10 KV​​   Designs can be customized upto 300 kVA (Standard designs available in 25, 50, 100, 200 KVA)    Copper or Aluminum winding    Rectangular or step core designs

These are Core Type Transformers with rectangular or step core using CRGO lamination rating up 1000 KVA.
