Features   DIN rail or panel mounted compact Converter   Port powered or external powered design   Isolation of power and communication ports   Automatic detection of communication baud rate   Automatic control of transreceiver direction   Easy to use plug and play device (no configuration software required)   CE / UL certification

Mounting : DIN rail or back panel mounting

 Features All features of Prizm Touch Screen Operator Interfaces Integrated Digital Inputs and Outputs with optional Analog I/O Digital Inputs and Outputs rated for 24 V DC Analog Inputs for RTD, mV and mA. Analog Outputs are 4-20 mA / 0-10 VDC Inputs connectable to PLC or used for internal program Support for Ladder Logic and Analog control High Speed Counters and Timers Two Communication Ports: Universal serial ports to connect PLC / Printer / Programming Port Data Logging, Trending (Real Time & Historical), Alarms (Real Time & Historical) Built-in PID, PWM functionality Multilanguage (Unicode) support with true type Windows® fonts IP65 design. CE and UL certified     Basic HIO Operations The HIO units possess both Prizm (Operator interface) as well as programmable logic features. The user can implement logic, specific to application using standard Ladder programming. The HIO unit has four 32-bit High Speed Counters (Normal and Quadrature Mode), Rate measurement capability (max. up to 25kHz), Timers and Counters, Internal Coils, retentive and non-retentive memory and PID functionality. A PLC logic task can be programmed for continuous scanning, or only when a specific screen is showing. The HIO operator interface functions revolve around Screens and Tasks that can be assigned to screens and application. The HIO can also display an Alarm conditions.  Supported Tasks are listed below: • Go to Screen • Go to Next Screen • Go to Previous Screen • Write value to Tag • Add a constant value to Tag • Subtract a constant value form Tag • Add Tag B to Tag A • Subtract Tag B to Tag A • Turn Bit On • Turn Bit Off • Toggle Bit  • Copy Tag B to Tag A • Swap Tag A and Tag B  • Print Data• Set RTC• Copy Tag to STR• Copy Tag to LED• Delay• Wait• Copy Prizm block to Prizm / PLC block• Copy Prizm/PLC block to Prizm block• Copy RTC to PLC block• Execute PLC Logic block  Digital I/OHIO Touch Screens can have up to 28 digital inputs and 16 digital outputs on the unit. Digital inputs are high impedance 24 VDC and outputs are relay (NO), transistor outputs or a combination of both. The Digital I/O capability of HIO units can be expanded using external add on I/O Modules.Analog I/OThe HIO controllers can have up to 4 universal analog inputs and 2 analog outputs. Analog inputs are mA, mV and RTD. The Analog outputs are 4-20 mA or 0-10 VDC. Analog I/O capability of HIO units can be expanded using external add on I/O Modules.PIDThe built-in PID controller can process 12 independent inputs in addition to the Analog inputs of the unit. The input to the PID controller is a data register, which can hold an analog input or any other value. High Speed CountersHIO Touch Screens support High Speed Counter inputs. These High Speed Counter inputs can be used for applications such as Rate Measurement, Speed Measurement, Totalizer, etc. The user can define upto 4 High Speed inputs. HIO units also support Quadrature Pulse input. PWMHIO Touch Screens support Pulse Width Modulation output. PWM is used for applications such as Motion Control. The user can control the fixed number of Pulses that are to be sent to drives. Touch Keys TaskTouch Keys in HIO units can be assigned Tasks for three instances: when the key is pressed , while the key is pressed and when the key is released. Multiple tasks can be assigned to a key. In addition to above, tasks for data entry, alarm management etc. can be defined. These definitions allow complete flexibility in cursor control and key operations when changing data.Alarms Real time and historical alarms can be defined in HIO Touch Screens. User-friendly alarm object can be defined on the display. Alarms can be real time or historical. Keys can be assigned to acknowledge alarm, view and scroll.Screens Up to 65535 screens can be defined in HIO Touch Screens. Screen Tasks can be assigned before showing a screen, while showing a screen and after hiding a screen. Various types of objects such as plain text objects, Data display (coil status, register value, register dependent text), Data entry objects and Alarm objects etc can be defined. Data entry objects can have limits and math associated. Floating point data entry is supported. Multilanguage / Unicode Support All the languages are supported in the HIO Touch Screens. The user can now display messages, alarms in any regional language. All Windows® fonts can also be used in an application. Communication Ports: RS232 - RS422 / RS485 / CMOS Ports: HIO Touch Screens have two serial communication ports. Both the ports can be used for programming of HIO unit, printing screens, connecting to third party serial devices (barcode readers, printers etc.) or to connect to a PLC or drive. User can connect two masters simultaneously on these ports.Configuration SoftwarePrizm Setup Software is a compact, Windows® based software to configure the HIO Series Interfaces. Prizm configuration tools and easy approach, can help you create your applications quickly and easily. Whether you need a small application to monitor data or a bigger application for both monitoring and control, Prizm Setup Software has it all.To get started with HIO you need:1. HIO unit 2. Prizm Setup Software3. IBM Cable (Part codes: IBM 0909-1-00 or IBM 0925-1-00) System requirements for Prizm Setup Software are:   Windows Version :       Microsoft Windows® 2000 or aboveProcessor :                 266 MHz PENTIUM or higherMouse :                      RequiredRAM :                         64 MB or moreDisplay resolution :     800 x 600 (VGA) or betterDisplay colors :           256 colors or moreSerial Port :                1 serial port for HIO programming  Keyboard :                 Required

Features  3” to 12.1” Graphical Touchscreen Multicolor / TFT Color Display  Floating point support, Bar graph, Built-in RTC  Ladder editor with powerful instruction set   Support for Recipes and 32K color Bitmaps for color LCD Models  Communication Ports: One / Two serial ports to connect PLC at RS232 / 422 / 485 levels / Printer / Programming Port One USB (device) port as Programming Port One USB (host) port to connect USB memory drive# One optional Ethernet port to connect PLC / Programming Port / Remote monitoring#  Dual Port communication supported for units with two serial ports  User defined Function keys to support various tasks  Data Logging, Transfer logged data on USB memory drive#  Trending (Real Time & Historical#)  Alarms (Real Time & Historical)  Multilanguage (Unicode) support with true type Windows® fonts  IP66 design. CE, UL approved. RoHS compliant  Common Programming software for the entire FlexiPanels® family.........FREE!!   The FlexiPanels® support Operator interface features. The user can also implement logic, specific to application using standard Ladder programming. A PLC logic block can be executed at power up, during every scan or upon a timer interrupt. The FlexiPanels® operator interface functions revolve around Screens and Tasks that can be assigned to screens and application. Function KeysFlexiPanels® HMIs are also available with Touch Screen and Function keys. The Function keys also have built-in LEDs. The function keys are independent of Touch Screen. These function keys are screen dependent Function Keys. User can assign any application related task / actions to these function keys. Touch Keys TaskTouch Keys in FlexiPanels® can be assigned Tasks for three instances: when the screen is touched, while the screen is touched and when the screen is released. Multiple tasks can be assigned to a touch key. In addition to above, tasks for data entry, alarm management etc. can be defined. These definitions allow Complete flexibility in cursor control and key operations when changing data. AlarmsReal time and historical Alarms can be defined in FlexiPanels®. User-friendly Alarm object can be defined on the display. Alarms can be real time or historical. Keys can be assigned to acknowledge Alarm, view and scroll. Recipes Recipes data is stored in the FlexiPanels® memory. With one button stroke, a set of data can be downloaded to the PLC. Once in the local memory, the recipes data can be edited using simple data entry objects. Bitmaps / WizardsDifferent bitmaps can be embedded on the FlexiPanels® screen. Transparent buttons can be used for data entry and set points on bitmap images. Bitmaps can be imported into the application and displayed on the FlexiPanels® screens. In addition, several wizards are supported to create commonly used objects such as Analog meters, Lamps, Buttons and Bar graphs. 32K colors are supported for bitmaps.Easy events logging and trend trackingTouch Screen based FlexiPanels® models support data logging feature. A part of FlexiPanels®memory can be allotted for data logging. Real time as well as Historical Trending is also supported. The user can also display multiple trends with different pen color on one screen. Ladder SupportFlexiPanels® support ladder functionality. User can define logic in the unit using FlexiSoft® software. The execution of ladder could be through communication port or through I/O. Only HMI version of FlexiPanels® also support ladder functionality. It is used for critical applications where data is processed before sending it to controller. The execution of ladder logic is in microseconds. Ladder monitoring for debugging is also supported in FlexiPanels® configuration software. Multilanguage / Unicode SupportAll the languages are supported in the FlexiPanels®. The user can now display messages, alarms in any regional / local language. All Windows® fonts can also be used for text in an application. Communication PortsFlexiPanels® have upto two serial communication ports. Both the ports can be used for programming of FlexiPanels®, printing screens (alphanumeric data), connecting to third party serial devices (barcode readers, temp scanners etc.) or to connect to a PLC or drive. Dual port feature is supported for FlexiPanels® models having 2 serial ports. User can configure these serial ports to connect 2 different devices supporting different protocols, such as PLC / Drives / DCS / SCADA etc. Ethernet PortFlexiPanels® support optional Ethernet port (Modbus TCP/IP). It can be used to connect to a PLC and monitor machine / process status from remote location. The Ethernet port can also be used for remote Program upload / download in FlexiPanels®. Configuration SoftwareFlexiSoft® is a compact, Windows® based software to configure the FlexiPanels® units. User friendly configuration tools and easy approach, helps user create applications quickly and easily.

Features DIN rail or panel mounted compact Repeater External powered design Isolation of power and communication ports Automatic detection of communication baud rate Automatic control of transreceiver direction Easy to use plug and play device (no configuration software required) CE / UL certification   RS485 communication levels can physically support 32 nodes up-to a maximum distance of 1200 mtrs. CNV-03-B is a RS422 / RS485 repeater. CNV-03-B unit is used where more than 32 nodes are to be connected in the RS485 network or the distance between two nodes is more than 1200 mtrs. It increases number of nodes connected in RS485 network. One CNV-03-B can increase maximum 32 nodes in the network. Multiple CNV-03-B units can be used to support maximum 255 nodes in one network.CNV-03-B has 2 communication ports. Both the communication ports are screw type easy to use connectors. Communication ports as well as power port are isolated. CNV-03-B supports both 2 wire / 4 wire RS485 and RS422 configuration. It has switch settings to select 2 wire / 4 wire communication on each COM port.wCNV-03-B operates on 24 VDC external supply.

Mounting : DIN rail or back panel mounting

 Features DIN rail or panel mounted compact Digital I/O module Direct connection to PLC programming port Direct connection as Modbus Slave on RS485 network or RS232 link Up-to 32 digital inputs and 32 digital outputs Dual serial ports for connection of programming terminal / Operator Interface or SCADA LED indication for each I/O Diagnostic indication for communication and power Common programming software for the entire RDIO family.........FREE!! CE marked with optional UL certification Basic RDIO Operations FunctionThe RDIO series products add digital capability to your PLC / SCADA. Models are available that offer upto 32 digital inputs and upto 32 digital outputs to the PLC / SCADA. The configurationis done using the setup software.The digital inputs and outputs are isolated from the host device. RDIO has two communication ports. One port is used to connect to the PLC and second port can be used to connect an Operator Interface such as one of the Prizm series products or an IBM PC to configure the RDIO. The communication between the RDIO and PLC is optimized for speed to allow fastdata transfer.PLC CommunicationThe setup software defines the block of PLC registers used for communication. Register words are used for tracking inputs and outputs. Data is either sent to the specified register in the PLC or received from the register designated as Output register.The unit scans PLC registers continuously and evaluates the outputs.RTU ModeThe RDIO can also be configured as Modbus RTU useful for data acquisition. The Modbus protocol allows the user to use off the shelf SCADA software such as ASTRA and other host devices. The unit offers RS232 as well as RS485 hardware layers.Digital I/OsThe I/Os are isolated and in case of outputs separate ground can be made available for each output. The Unit has LED indication for each I/O. The unit is configured using the Windows based setup software. This will define the desired parameters for the unit like the inputs and outputs to be used, PLC registers, etc.

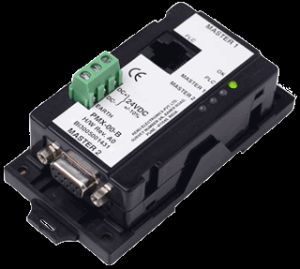

Features   DIN Rail or Panel Mounted compact Port Multiplexer   Hardware with three communication ports   RS232 support for Master Ports. PLC port with RS232 / RS422 / 2 or 4 wire RS485 / CMOS   Connect Two Master devices to any serial device (e.g. PLC, Drive) on same protocol   Ideal for PLCs / Drives which have only one communication port   Same model can be configured for different supported protocols   Free Programming software for Port Multiplexer!!   CE marked with optional UL certification   Basic Port Multiplexer Operations Port Multiplexer is a Port Switch for devices like PLCs, Inverters, Controllers etc. Port Multiplexer has three serial ports that connect with three different devices that support same protocol. Port Multiplexer communicates with the PLC to get the information required by two master devices.Windows® based configuration software, Port Multiplexer Setup, helps the user to configure Port Multiplexer unit. After the Application is defined in Setup Software the configuration is downloaded in the Port Multiplexer.The Unit can now communicate with the connected devices and transfer data between them.System requirements for Port Multiplexer Setup Software are:Windows Version : Microsoft Windows 9x/NT/2000/XPProcessor : PENTIUM or higherHard disk Space : 5 MB or moreMouse : RequiredRAM : 16 MB or moreDisplay resolution : 800 X 600 (VGA) or betterDisplay colors : 16 bit colorOther Items required for Port Multiplexer configuration:1. Port Multiplexer unit2. Port Multiplexer Configuration Cable3. Port Multiplexer Setup SoftwareCommunication Ports:Port Multiplexer has two identical communication ports Master1 and Master2 and third port to connect a PLC. Master ports arecompatible to RS232 signal levels and PLC port supports RS232 / RS422 / 2 or 4 wire RS485 / CMOS signal levels.

Availability : 125 gm approx.

10.1” WSVGA TFT LED Panel with Resistive Touchscreen Embedded Intel® Atom™ E3845 Processor, Quad-core, 1.91 Ghz Supports one internal SATA 2.5” SSD/HDD and 1 mSATA port System memory up to 8 GB DDR3L 1066/1333 SDRAM Fanless design RS-232/422/485 selectable through BIOS Windows 7/8/10 support

Features Compact 1 / 8 DIN size case Two pulse and three control inputs 2 relays (NO) of 5 A and 250 V OR 2 Open Collector Outputs; 100 mA maximum One 4-20 mA analog output RS232 / RS485 port for serial communication and printing Password security for function keys +24 VDC unregulated O/P for AC powered unit NVRAM to retain data on power failure Both inputs can have up-to 16 points linearizing K factor

    Part Number  Description   Datasheet                 Prizm-10   PZM-10-5-B      16 X 2 Display, 6 Function Keys,      Printer Port, 5 V DC PLC Powered,      Black Case, 24K memory        PZM-10-5-Y-B      16 X 2 Display, 6 Function Keys,      Printer Port, 5 V DC PLC Powered,     RTC, Black Case, 24K memory     PZM-10-24-B      16 X 2 Display, 6 Function Keys,      Printer Port, 24 V DC Power Supply,      Black Case, 24K memory     PZM-10-24-Y-B      16 X 2 Display, 6 Function Keys,      Printer Port, 24 V DC Power Supply,      RTC, Black Case, 24K memory Supported tasks     Go to Screen    Go to Next Screen     Go to Previous Screen    Write Value to a Tag     Add a constant to tag    Subtract a Constant from Tag     Add Tag B to Tag A    Subtract Tag B from Tag A     Turn Bit On    Turn Bit Off     Toggle Bit    Copy Tag B to Tag A     Swap Tag A and Tag B    Print Data     Set RTC    Copy Tag to STR      Copy Tag to LED    Delay     Wait    Copy Recipe Block to PLC Block     Copy PLC Block to Recipe Block    Execute PLC Logic Block.   Prizm screens can be triggered by the PLC or by the tasks supported in Prizm32 Software. Various text or graphic objects can be placed on the screen to allow the operator to monitor the machine. Keys are used to navigate through screens or to edit data. A tag database defines the PLC bits / registers used for monitoring or controlling. Bits and registers internal to the unit itself can also be used. Tasks:The unit can be configured to execute various tasks at power up and in every scan or when a particular screen is active. Different set of tasks can also be defined when a key is pressed, while it is held down and when a key is released. The list of possible tasks contains powerful commands to navigate through screens; monitor, control and manipulate tags as well.Alarms:Upto 256 alarms (16 for text models) can be defined. As the alarms are triggered they are placed in an “alarm container” and can be displayed on the screen. Keys can be defined to acknowledge the alarms and to navigate through alarm list. An acknowledged inactive alarm is taken out of the “alarm container”.Screens:Screen Tasks can be defined to be executed before showing a screen, while showing a screen and after hiding a screen. Objects such as plain text objects, Data display (coil status, register value, register dependent text), Data entry objects, Alarm objects etc. can be defined on the screen.Configuration Software:Prizm units are configured using the Prizm32 software. With the Prizm32 software, the user can configure Prizm settings (for example keypad queue size, float data format, printer port, number oflanguages supported etc.), Nodes (PLC’s to be connected to the unit and the communication settings for the port), Tag database (Prizm local memory tags as well as the PLC bits and registers to be used by the application), Alarms (the registers used to trigger alarms, text for alarms and other alarm settings), Keys (the tasks to be performed when a key is pressed or released) and the Tasks to be performed when the unit powers up as well as global tasks.Screens are configured as per the desired user interface. Here, the screen objects (text and graphic objects), wizards, reassigning tasks to keys for that particular screen, tasks to be performed when the screen is triggered, while the screen is displayed and when it is replaced with another screen are defined.After configuring, the application can be saved for future use. This application is then downloaded to the Prizm unit.

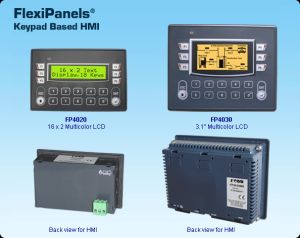

Features  16 x 2 Text and 3.1” Graphical / Multicolor Backlight LCD Display  Floating point support, Bar graph, Built-in RTC  Integrated / Pluggable Digital and Analog Inputs and Outputs  Digital Outputs - OC / Relays  Analog Inputs for RTD, mV, mA, Thermocouple, 0 to 5 VDC, 0 to 10 VDC, -10 to +10VDC  Analog Outputs are 4-20 mA / 0-10 VDC  High Speed Counters and Timers  Support for Quadrature inputs and PWM output  Ladder editor with powerful instruction set   Support for Recipes  Communication Ports: One serial port to connect PLC at RS232 / 422 / 485 levels / Printer / Progamming Port One USB (device) port as Programming Port  User defined Function keys to support various tasks  Alarms (Real Time & Historical)  Multilanguage (Unicode) support with true type Windows® fonts for graphical model  IP66 design. CE, UL approved. RoHS compliant Operations The FlexiPanels® support Operator interface features. The user can also implement logic, specific to application using standard Ladder programming. A PLC logic block can be executed at power up, during every scan or upon a timer interrupt. The FlexiPanels® operator interface functions revolve around Screens and Tasks that can be assigned to screens and application. Integrated Digital I/OFP4030MR-L1208R model can have up-to 12 digital Inputs integrated to the unit. Digital inputs are high impedance 24 VDC. The unit can also have up-to 08 digital outputs. Outputs are 06 relays + 02 transistor outputs (NPN). Pluggable I/O (Digital)FlexiPanels® have facility to support I/O using pluggable I/O modules. The I/O modules can be selected based on the application requirement. Each high speed I/O module can support 4 nos. of high speed inputs of 25KHz. Quadrature input of up-to 20KHz is also supported. Each high speed I/O Module can support 1 quadrature input of 20KHz or 2 quadrature inputs of 5KHz. Each high speed I/O Module can support up-to 2 PWM outputs of 10KHz. Up-to 3 I/O modules can be connected to FP4030MR-E model. Analog I/OFP4030MR-E supports pluggable Analog I/O Modules. FlexiPanels® can have up-to 24 Analog inputs and / or 6 Analog outputs. The Analog inputs are 0-5 VDC, 0-10 VDC,4-20 mA, mV, TC, RTD, - 10 to + 10 VDC and Analog outputs are 4-20mA / 0-10VDC. User can Plug only Analog I/O modules or use them in combination with Digital I/O. Function KeysFlexiPanels HMIs are available with function keys and Numerical keypad for easy data entry. The Function keys also have built-in LEDs. These function keys are screen dependent Function Keys. User can assign any application related task / actions to these function keys.AlarmsReal time and historical Alarms can be defined in FlexiPanels®. User-friendly Alarm object can be defined on the display. Alarms can be real time or historical. Keys can be assigned to acknowledge Alarm, view and scroll. Recipes Recipes data is stored in the FlexiPanels® memory. With one button stroke, a set of data can be downloaded to the PLC. Once in the local memory, the recipes data can be edited using simple data entry objects. Bitmaps / WizardsDifferent bitmaps can be embedded on the FlexiPanels® screen (Graphical Model). Bitmaps can be imported into the application and displayed on the FlexiPanels® screens. In addition, several wizards are supported to create commonly used objects such as Analog meters, Lamps, Buttons and Bar graphs. Ladder SupportFlexiPanels® support ladder functionality. User can define logic in the unit using FlexiSoft® software. The execution of ladder could be through communication port or through I/O. Only HMI version of FlexiPanels® also support ladder functionality. It is used for critical applications where data is processed before sending it to controller. The FlexiLogics® support following different types of instructions :   The execution of ladder logic is in microseconds. Ladder monitoring for debuggingis also supported in FlexiPanels® configuration software. Multilanguage / Unicode SupportAll the languages are supported in the FlexiPanels® (Graphical Model). The user can now display messages, alarms in any regional / local language. All Windows® fonts can also be used for text in an application. Communication PortsFunction Keys based FlexiPanels® have one serial communication port. The serial port can be used for programming of FlexiPanels®, printing screens (alphanumeric data), connecting to third party serial devices (barcode readers, temp scanners etc.) or to connect to a PLC or drive. User can configure serial port for RS232 or RS485 communication. Configuration SoftwareFlexiSoft® is a compact, Windows® based software to configure the FlexiPanels® units. User friendly configuration tools and easy approach, helps user create applications quickly and easily.

 16 x 2 Text and 3.1” Graphical / Multicolor Backlight LCD Display  Floating point support, Bar graph, Built-in RTC  Ladder editor with powerful instruction set   Support for Recipes  Communication Ports: One serial port to connect PLC at RS232 / 422 / 485 levels / Printer / Progamming Port One USB (device) port as Programming Port  User defined Function keys to support various tasks  Alarms (Real Time & Historical)  Multilanguage (Unicode) support with true type Windows® fonts for graphical model  IP66 design. CE, UL approved. RoHS compliant  Common Programming software for the entire FlexiPanels® family.........FREE!! The FlexiPanels® support Operator interface features. The user can also implement logic, specific to application using standard Ladder programming. A PLC logic block can be executed at power up, during every scan or upon a timer interrupt. The FlexiPanels® operator interface functions revolve around Screens and Tasks that can be assigned to screens and application. Function KeysFlexiPanels® HMIs are available with function keys and Numerical keypad for easy data entry. The Function keys also have built-in LEDs. These function keys are screen dependent Function Keys. User can assign any application related task / actions to these function keys.AlarmsReal time and historical Alarms can be defined in FlexiPanels®. User-friendly Alarm object can be defined on the display. Alarms can be real time or historical. Keys can be assigned to acknowledge Alarm, view and scroll. Recipes Recipes data is stored in the FlexiPanels® memory. With one button stroke, a set of data can be downloaded to the PLC. Once in the local memory, the recipes data can be edited using simple data entry objects. Bitmaps / WizardsDifferent bitmaps can be embedded on the FlexiPanels® screen (Graphical Model). Bitmaps can be imported into the application and displayed on the FlexiPanels® screens. In addition, several wizards are supported to create commonly used objects such as Analog meters, Lamps, Buttons and Bar graphs. Ladder SupportFlexiPanels® support ladder functionality. User can define logic in the unit using FlexiSoft® software. The execution of ladder could be through communication port or through I/O. Only HMI version of FlexiPanels® also support ladder functionality. It is used for critical applications where data is processed before sending it to controller. The execution of ladder logic is in microseconds. Ladder monitoring for debugging is also supported in FlexiPanels® configuration software. Multilanguage / Unicode SupportAll the languages are supported in the FlexiPanels® (Graphical Model). The user can now display messages, alarms in any regional / local language. All Windows® fonts can also be used for text in an application. Communication PortsFunction Keys based FlexiPanels® have one serial communication port. The serial port can be used for programming of FlexiPanels®, printing screens (alphanumeric data), connecting to third party serial devices (barcode readers, temp scanners etc.) or to connect to a PLC or drive. User can configure serial port for Rs232 or RS485 communication.Configuration SoftwareFlexiSoft® is a compact, Windows® based software to configure the FlexiPanels® units. User friendly configuration tools and easy approach, helps user create applications quickly and easily.

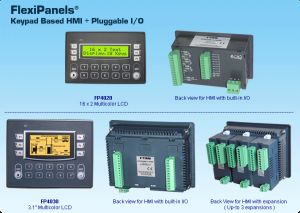

Features All features of Prizm LCD Operator Interfaces Integrated Digital Inputs and Outputs with optional Analog I/O Digital Inputs and Outputs rated for 24 V DC Analog Inputs for RTD, mV and mA. Analog Output is 4-20 mA Inputs connectable to PLC or used for internal program Support for Ladder logic and Analog control High Speed Counters and Timers  Dual Port Support for connecting to a PLC / Printer / SCADA / Drive Common Programming software for the entire HIO family.........FREE!! IP65 design. CE and UL certified   Basic HIO OperationsThe HIO unit has Prizm (Operator interface) as well as programmable logic features. The user can implement logic, specific to application using standard Ladder programming. The HIO unit has four 32-bit High Speed Counters(Normal and Quadrature Mode), Rate measurement capability (max. up to 25kHz), Timers and Counters, Internal Coils, retentive and non-retentive memory and PID functionality. A PLC logic task can be programmed for continuous scanning, or only when a specific screen is showing. The user can also include a Programmable logic task in power on as well as Global task. The HIO operator interface functions revolve around Screens and Tasks that can be assigned to keys, screens and application. The HIO can also display an Alarm conditions.Supported Tasks are listed below:  • Go to Screen • Go to Next Screen • Go to Previous Screen • Write value to Tag • Add a constant value to Tag • Subtract a constant value form Tag • Add Tag B to Tag A • Subtract Tag B to Tag A • Turn Bit On • Turn Bit Off • Toggle Bit  • Copy Tag B to Tag A • Swap Tag A and Tag B  • Print Data• Set RTC• Copy Tag to STR• Copy Tag to LED• Delay• Wait• Copy Prizm block to Prizm / PLC block• Copy Prizm/PLC block to Prizm block• Copy RTC to PLC block• Execute PLC Logic block  Digital I/OThe HIO Keypad series can have up to 16 digital inputs and 12 digital outputs on the unit. Digital inputs are high impedance 24 V DC and outputs are either relay (NO), open collector or a combination of both. The Digital I/O capability of HIO units can be expanded using external add on I/O Modules.Analog I/OThe HIO controllers can have up to 4 analog inputs and 2 analog outputs. Analog inputs are mA, mV and RTD. Analog outputs are 4-20 mA. The Analog I/O capability of HIO units can be expanded using external add on I/O Modules.PID The built-in PID controller can process 12 independent inputs in addition to the Analog inputs of the unit. The input to the PID Controller is a data register, which can hold an analog input or any other value.Keys TaskKeys in HIO can be assigned Tasks for three instances: when the key is pressed , while the key is pressed and when the key is released. Multiple tasks can be assigned to a key. Also different screens can have different key definitions. In addition to above-mentioned tasks, Key’s specific tasks can be defined for keys. These include tasks for data entry, alarm management etc. These definitions allow complete flexibility in cursor control and key operations when changing data.ScreensUp to 65535 screens can be defined in HIO. Screen Tasks can be assigned before showing a screen, while showing a screen and after hiding a screen. Various types of objects such as plain text objects, Data display (coil status, register value, register dependent text), Data entry objects and Alarm objects can be defined on screen. Two screens can be associated to avoid duplication of screens and objects.Data entry objects can have limits and math associated. Various types of data formats are available which help the user to edit data easily. Floating Point data entry is supported.AlarmsAlarms can be defined in HIO. Alarms can either be consecutive or discrete. User-friendly alarm object can be defined on the display. Alarms can be real time or historical. Keys can be assigned to acknowledge alarm, view and scroll.Dual Port SupportHIO units (except HIO010) have two communication ports. Both ports can be configured as RS232, CMOS, RS485 / RS422 programming port or to connect a Printer / PLC / SCADA / Drive etc. Drivers can be downloaded in HIO units for Dual Port applicationConfiguration SoftwarePrizm Setup Software is a compact, Windows® based software to configure the HIO Series Interfaces. Prizm configuration tools and easy approach can help you create your applications quickly and easily. By using Prizm Setup Software features, you can be more effective in presenting your application. Whether you need a small application to monitor data or a bigger application for both monitoring and control, Prizm Setup Software has it all.To get started with HIO you need:1. HIO unit 2. Prizm Setup Software3. IBM Cable (Part codes: IBM 0909-1-00 or IBM 0925-1-00)System requirements for Prizm Setup Software are:     Windows Version :       Microsoft Windows® 2000 or aboveProcessor :                 266 MHz PENTIUM II or higherMouse :                      RequiredRAM :                         64 MB or moreDisplay resolution :      800 x 600 (VGA) or betterDisplay colors :           256 colors minimumSerial Port :                1 serial port for HIO programming      Keyboard :                 Required

Features DIN Rail or Panel Mounted compact Protocol Converter DB9 Serial ports in any combination of RS232 / RS422 / 2 or 4 wire RS485 / CMOS Connects PLC to PLC or PLC to a Modbus Network (as a Master or Slave) Allows data sharing between PLC, Invertors, Controllers and other network devices Common model for connecting different devices. Several PLC and Invertors supported Direct connection to the Programming terminal saves additional hardware Low power consumption of only 2.5 Watts Common Programming software for the entire Gateway family.........FREE!! CE with UL certification

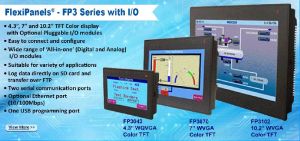

 Features 4.3”, 7” and 10.2” TFT Color display with Optional Pluggable I/O modules Easy to connect and configure Wide range of ‘All-in-one’ (Digital and Analog) I/O modules One USB Host port One Ethernet port with multiple protocol support and FTP One SD card slot for programming or data logging Supports Horizontal and Vertical display orientation High quality color display Front Panel mounting with IP66 rating Multilanguage support with true type Windows fonts CE, UL Class I Div 2, RoHS

 4.3” to 10.2” TFT Color display with touch screen  Two serial communication interfaces (One RS232 and One RS232/RS485)  One USB programming port   One USB Host port  One Ethernet port  One SD card slot  Supports Horizontal and Vertical display orientation  High quality color display  Front Panel mounting with IP66 rating  Multilanguage support with true type Windows fonts  CE, UL Class I Div 2, RoHS

 Features Low cost compact Digital I/O modules with DIN rail mounting 2 wire RS 485 port provided on pluggable terminal block User definable Address, Baud rate and Parity through DIP Switch High Speed Modbus RTU (Slave) communication LED indication for each Input and Output , COM Port and Power ON  No configuration software required Relay and Transistor outputs available CE marked with optional UL certification Basic FIOD Operations FunctionThe FIOD series products add digital capability to PLC / SCADA. Models are available that offer upto 16 digital inputs and upto 16 digital outputs. The digital inputs and outputs are isolated from the host device. FIOD has one RS 485 (2 Wire) communication port to connect to host device. Communication settings like baud rate, parity and station ID can be set by DIP Switch.Communication with HostFIOD module supports Modbus RTU (Slave) Protocol. The communication can be done with Host through 2 wire RS 485 Network.In case of communication failure with Host, all the outputs are switched OFF.Modbus Registers MappingThere are 128 Modbus registers supported in FIOD. Out of which, 64 are input registers (1 to 64) which are mapped to input coils 1 to 1024. FIOD has 64 output registers (65 to 128) which are mapped to output coils 1025 to 2048. First 16 coils from 1 to 16 are assigned for FIOD inputs (1 to 16). Coils from 1025 to 1040 are assigned for FIOD outputs (1 to 16). Modbus Mapping of Registers and Coils are mentioned below :Sr.     Register          Range             Modbus                Modbus No.    /Coil                                       Mapping               Tag Length 1.     Input Register      1-64                40001-40064         2 -bytes2.     Output Register    65-128             40065-40128         2 -bytes3.     Input Coil            1-1024             00001-01024         1-bit4.     Output Coil          1025-2048        01025-02048         1-bit

 Features Low cost compact 3 phase Energy measurement module 3 phase voltage input up to 300 Vrms (Line-Neutral) and current input up to 5 A can be measured Measures Voltage, Current, Frequency, Active Power, Reactive Power, True Power, Average Power and Power Factor Facility for 4 bi-directional digital inputs and 4 digital NPN outputs (open collector) High Speed Modbus RTU (Slave) communication 2 wire RS-485 Communication port (isolated) on pluggable terminal block User definable Address, Baud rate and Parity through convenient DIP Switches LED indication for each Input and Output, COM port and Power ON No configuration software required FunctionFIOD-EN-0404-C measures 3 phase Energy and adds digital capability to a PLC / SCADA system.The module has 3 phase isolated Voltage and Current inputs . It also has 4 digital inputs and 4 digital outputs that can be read and controlled by the Modbus master. The digital inputs and outputs are isolated from the host device. The module has one RS485 (2 wire) communication port to connect to the host device. Communication settings like baud rate, parity and station ID can be set by DIP switches. Communication with HostThe module supports Modbus RTU (Slave) Protocol. It communicates with the Host through 2 wire RS 485 Network. In case of communication failure with Host, the user can configure watchdog time-out and failure mode for the outputs.

Features Low cost compact Analog I/O modules with DIN rail mounting Programmable inputs allow same modules to accept RTD, Thermocouple, mA, mV and Volts 12 bit resolution 4 universal analog inputs and 2 analog outputs High Speed Modbus RTU (Slave) communication User definable Address, Baud rate and Parity through Software Configuration 2 wire RS485 port provided on pluggable terminal block Can be multi dropped as Modbus Slave on RS485 Network Indication for Diagnostics, Power and Communication Programming through standard Prizm software .........FREE!! CE marked with optional UL certification        Specifications For mVolt inputs :Uses 0-100 mV input range resolved in 12 bits.Total error : ± 0.2% of scale ±1 bit.For Current inputs :Uses 0-20mA input range with 4.7W precision shunt resolved in 12 bits.Total error : ± 0.2% of scale ±1 bit.For Volt inputs :Uses 0-10V, 1-5V input range resolved in 12 bits.Total error : ± 0.2% of scale ± 1 bit.For RTD input :Uses 3 wire compensation technique. Excitation Current is 0.5mA.Power dissipated in RTD is 0.025mW @ 100 W.Range supported : -200 to 850oC.For Thermocouple Input :Uses 0-100mV input range resolved into 12 bits.Cold junction error is 1o maximum and 0.5o typical.Total error                 : 0.5% of scale ± 1 bit + CJC errorResponse Time          : Worst case 25mSec approx.Temperature Drift (for Digital Count)      : 60 PPMNormalization Factor   : 0-99 (Software configurable)   Basic FIOA Operations FIOA 0402 U is Analog Input Output Model having 4 Universal Analog inputs and 2 Analog outputs. The Analog inputs can be Voltage (0-10V, 1-5V), Current (0–20 mA, 4–20 mA), mV (0–100 mV, 0–50 mV), RTD ( PT 100 Alpha1 and Alpha2 constant ), Thermocouple ( B,R,S,E,J,K,N,T ).Each input channel can be configured independently to work as any of the above type as per configuration made in the PRIZM software. The Analog outputs can be Voltage (0–10 V) or Current (4–20 mA). Output channels also are software configurable to current or voltage. Unit supports standard Modbus RTU (slave) protocol for communicating with master device.Analog inputs and outputs are isolated from the communication port . The power supply is isolated from all internal circuitry. Input and Output channels of the FIOA are user configurable and any combination of input types is possible. Prizm Setup Software helps the user to configure the FIOA units and use them as per his requirements.

Power :  + 24V DC ± 10%, 4W maximum

 Features DIN Rail or Panel mounted compact I/O modules Indication for Diagnostics, Power and Communication Adds I/O capability to your PLC, SCADA and Modbus networked devices Programmable inputs allow same modules to accept RTD, mA, mV 12 bit 8 universal analog inputs or with 4 Universal Analog inputs and 04 analog outputs Direct connection to PLC programming terminal with support for most PLCs Can be multidropped as Modbus Slave on RS485 Network Common Programming software for the entire Eagle family.........FREE!! CE marked Specifications For Voltage inputs  Uses 0-100 mV input range resolved in 12 bit. For higher input ranges, use externally calibrated shunt or contact factoryTotal error: ± 0.1% of scale ± 1 bit. For Current inputs Uses 0-20 mA input range with 5 ohms precision shunt resolved in 12 bit. Total error: ± 0.1% of scale ± 1 bit. For RTD inputUses 3 wire compensation technique. Current sense is 0.5mA Max. Power dissipated in RTD is 0.025 mV @ 100 ohms. Range supported: -200 to 850ºC For Thermocouple inputUses 0-100 mV input range resolved in to 12 bit for positive input and resolvedin 11 bit for negative inputs. Cold junction error is + 1º maximum and 0.5º typical. Total error: ± 0.5% of scale ± 1 bit + CJC error  Basic Eagle Operations Eagle units accept universal field inputs (such as RTD, T/C, mA, and mV) and convert them to actual field values like temperature, pressure etc. before sending them to the PLC. Similarly it can also read values in PLC registers and scale the 4-20mA output accordingly.Input and Output channels of Eagle are user configurable and any combination of input types is possible. Eagle Setup Software helps the user to configure the Eagle units and use them as per his requirements.Linearisation: 16 point linearisation is provided for mV and mA inputs, which helps the user to convert non-linear segments into required engineering value.Eagle units have two Communication Ports. Port1 (RS232/485) is connected to PLC and Port2 acts as Programming or Slave Port. Any Prizm model can be connected on Port 2 as a HMI.   Items required for Eagle configuration: Eagle unit + 24V DC regulated power supply IBM Cable (Part codes: IBM 0909-1 or IBM 0925-1) Eagle Setup Software Eagle to Device cable  System requirements for Eagle Setup Software are: Window version -  Microsoft Windows 3.1 or higher Processor -  386 or higher Hard Disk Space -  3 MB or more Mouse -  Required RAM -  2 MB or Higher Display Resolution -  640 x 480 (VGA) or better Display colors -  16 colors or more

Power : + 24V DC ± 5%, 3.5W maximum

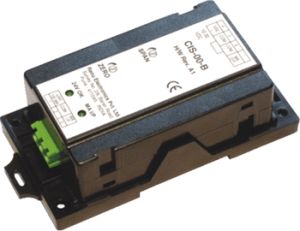

Features DIN Rail or Panel Mounted compact Current Isolator Isolated Input, Output and Power Supply (3 Port Isolation) 4-20 mA Input 4-20 mA isolated output Output zero and span set by use of potentiometer Additional isolated + 24V DC power source for loop powering

Low cost compact Analog IO modules with DIN rail mounting Programmable inputs allow same modules to accept RTD, Thermocouple, mA, mV and Volts 12 bit resolution 4 universal analog inputs and 2 analog outputs High Speed Modbus RTU (Slave) communication
