Sawing Machines Dealers in Pune

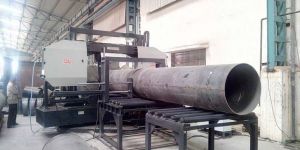

The Individual 520.360 DGANC 2300 machine is the automatic band saw of two-column design with CNC control providing possibility of automatic double angular cutting. Saw swivelling is smooth within range -60 and +60°. It is possible to clamp a cut either single pieces, or complete bunch of the material at a time by means of the hydraulic bunching machine (optional accessories). Maximal length of one feed is 2300 mm, but is individually adaptable to the customer needs between 2300mm-6000mm. The machine is equipped as standard with automatic control of band pressure to depth providing precise and straight cut beside the 34 mm saw band. The saw can be operated simply via the control panel attached to the machine base.

In a bandsaw, workpieces are fed into the cutting edge of the machine. The bandsaw machine cuts by drawing a continuous metal band across the workpiece. The bandsaw blade is supported and driven by a drive wheel and an idler wheel. Because each tooth is a precision cutting tool, accuracy can be held to close tolerances. This eliminates or minimizes many secondary machining operations. In addition, chip removal is very fast. When the bandsaw is turned on, the operator raises the saw and makes the blade descend on the clamped material, cutting it as the band blade moves. After the cutting is completed, the bandsaw switches off automatically.

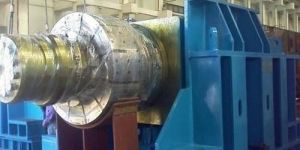

The equipment used for offline welding of SAW pipes. Pipe dimensions   Diameter - 16" to 100"   Length - upto 12500 mm The spiral movement of pipe perfectly synchronised for welding application.

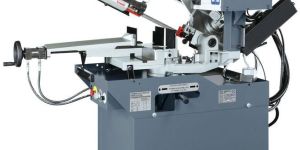

We are offering saw machine special purpose band saw machine with miter cutting facility to cut material in specific angle like 30,45,60 degree.suitable for fabricators, steel traders, tool rooms and forging industries.

Fully automatic Numerical Controlled Metal Cutting Circular Saw Machine Our own is a famous association, occupied with assembling and providing Fully Automatic Numerical controlled Circular Saw Machine, which is structured utilizing Servo and PLC controlled automation system  • Cuts 50 Sec. Operations Down to 10 Sec.• Eliminates Secondary Operations• Surface Finish from 40 – 80 RMS• Reliable 24/7 Operation• 45° Slant Bed Approach of Saw HeadRigid Construction and Long Service Life• Saw Head Travels on Hardened and Ground Linear Rails• Linear Rails Automatically Lubricated for Long Service Life• Saw Blade Housing Mounted to Massive Saw Head• Saw Blade Guided into the Workpiece by Carbide Guides• Guides Provide 4 Point Contact, Eliminating Blade Wobble or Deflection

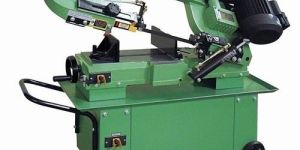

We are offering horizontal metal cutting band saw machine l -170 mm. with our expertise in this domain, we are able to offer horizontal metal cutting band saw machine - l 170 mm, which is ideal for large diameters and all type of sawing processes. Designed with the aid of latest technology, these sturdy machines provide less vibration operations and trouble free performance. Technical specifications: technical features model dia. 170 mm electric motor 1 h. P. 3 phase / single phase coolant pump 1/8 h. P. , 3 phase/single phase machine size length -1610 mm width - 700 mm height - 940 mm weight – 295 kgs. Cutting range maximum bar dia. 170 mm maximum flat 200 mm x 165 mm blade length bi-metallic 27mmx0.9mm x 3000mtr.

A slotted table enables the operator to position the sample in both the axis. This model is an inexpensive alternative to the Model 3242 however offers the same degree of precision cutting. Limitations include only being able to use the outer radius of the loop; therefore the sample is mounted outside the loop and all cutting is carried out by moving the outer radius of the wire towards the sample.

FEATURES For pipe or cap seal orthogonal or slanting opening or groove beveling, which is also suitable for pipe flange intersection line cutting. Round hole diameter: ɸ60~1600mm; Pipe diameter: ɸ500~6000m; Flame cutting max. thickness:200mm; Saddle drop height, torch lift stroke: 0~450mm; Torch angle: groove angle: 0°~60°; Cutting groove type: V, Y, X, K; Flange joint type: butt joint, insert, mount type.

CIRCULAR SAW MACHINEIt is recommended for Non-Ferrous metals with high speed steel saw blade 125-140 teeth with coolant supply at 1400 RPM.

djust the length of the material in indicator. An auto switch is to be pressed in auto mode of machine. Machine automatically clamps the job. Swiveling arm starts running down on gravitational force for cutting operation. After cutting arm automatically goes up. Machine automatically declamps the job. Indexing automatically feeds the job into the machine as per the length set in the indicator. The cycle repeats on. Feeding knob is given to get required feed of the arm coming down. Get the required

The Band Saw Machines are manufactured by Sumake by using high grade equipment's which fall under OEM standards. The robust design increases it?s work efficiency and longevity.

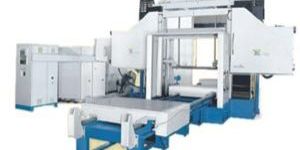

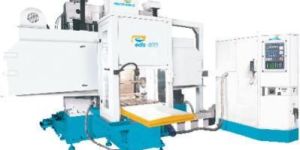

EDS 200, EDS 400, EDS 600 & EDS 1000 After extensive R & D for the past 30 years in the field of Electric Discharge Machining, now Electronica is introducing High-Speed Sawing Machines using the Electric Discharge principle for cutting all metals, including exotic ones.Ideal for Aeronautical Engineering, Metallurgical and Research laboratories, Defence workshops.How it worksAn endless Mild Steel belt is used as an electrode to cut the workpiece. This Mild Steel belt rotates continuously over the two pulleys under tension. The thickness of this Mild Steel belt ranges between 0.5 and 0.9 mm and has the width between 19 and 40 mm and the length approximately 7500 mm.This electrode is fed to the workpiece with the help of Servo system. Water-based diluted Silicic acid soda (Sodium Silicate) solution or distilled water is used as dielectric. Performance Maximum cutting speed : 10 to 30 cm The cutting speed is calculated considering the cross section the workpiece that is to be cut. For example, to cut a slice out of square bar of 10 cm x 10 cm it will require roughly 10Depth of the heat-affected zone on the sawing surface : < 0.5 mm Applications Sawing of hard metals & exotic metals such as Titanium, Stainless Steel, Super Alloy, Inconel, Cast Steel etc. Sawing of fragile or soft materials, honeycomb, thin pipes etc. Works on all types of metals used in Aeronautical Engineering Most suitable for sawing materials such as, Tool Steel, Super Heat-resistant Alloy, Stainless Steel, Cast Iron and Cast Steel Advantages It can cut any electrically conductive material irrespective of its hardness. Sawing of spherical or slanting surface. Faster than band saw in case of hard materials. Minimum loss of material, as the cutting width is less than 1.5 mm. No deformation of the workpiece. Good sawing efficiency irrespective of the hardness and resistance strength. Only a small zone gets affected due to heat generation. Easy clamping due to very small sawing resistance which is 300 to 500 gm per sawing width of 10 mm. Very low running expenses. Operational Features Automatic belt tension adjusting system with a sensor in case of belt elongation. It is interlocked with the process to ensure cutting with higher efficiency. Pneumatic job-clamping system (optional) This clamping system is separate from the worktable. Hence, a continuous cutting and feeding is ensured without loss of time in clamping the workpiece. Motorised trolley / roller conveyor (optional) for continuous feeding of the workpiece for cutting Motorised Y axis movement (optional) with position feedback, allows precise positioning of the workpiece Y axis movement is disabled during the cutting operation, ensuring trouble-free cutting Separate strip butt welding system with built-in grinder, allows instant welding of electrodes Water cycle exclusively for aluminium cutting Safety FeaturesEnclosed work area with interlocked doors ensures higher operator safety Enclosed belt wheels with interlocked covers to ensure safe replacement of the belt Built-in fume extractor with coolant separating facility for fume-free work environment, without loss of the coolant Easy maintenanceSeparate automatic wash cycle for cleaning the work area automatically with a single-key operation Easily replaceable ceramic guides and carbon brushes allow easy maintenanceDielectric Pump unitSodium Silicate capacity : 285 Litres Water tank capacity : 285 Litres Standard accessoriesStrip butt welder Fume extractors Centralised lubrication system Automatic servo-controlled voltage stabiliser Manual Clamping set Optional accessoriesMotorised trolley / roller conveyor Pneumatic clamping system Types of controlFunctional control : Micro-controller based Servo control : PWM DC Servo Data input and outputSpecial-function sealed keyboard Hand-held remote Operating aidsAudiovisual alarm for fault indication Manual Up / Down switch Auto-positioning Gap control DRO for Z axis and optional Y axis
