Animal Feed Making Machine Dealers in Rajkot

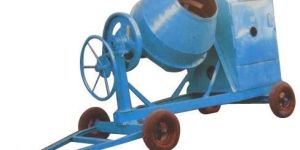

We are offering concrete mixer machine without loading hopper, easy to maintain and operate, mixing drum cone is made of 4.06 mm (8 swg) thick steel sheet, bottom base of the drum and yoke is casted (it gives the drum a very long life compared to drum's made entirely of ms sheet), high quality and standard bearings are used to transmit power for drum rotation to reduce power loss and increase reliability, available with electric motor or diesel engine.

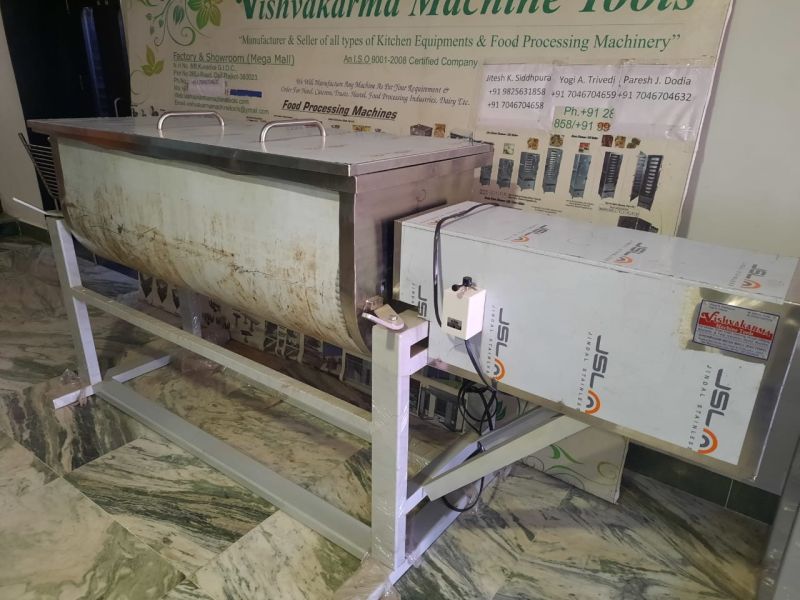

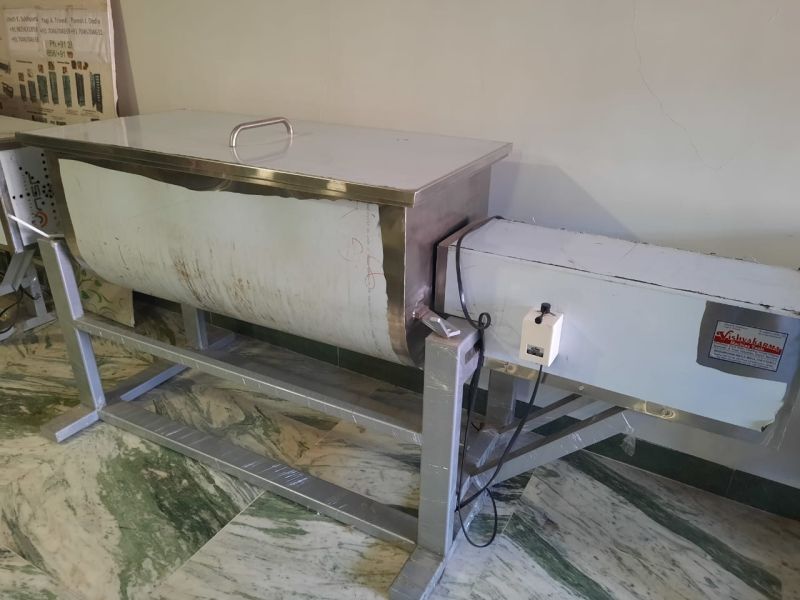

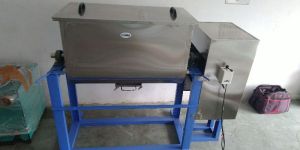

We offer our clients with the best MS Ribbon Blender available in the industry which have been tested to provide long service life. Our MS Ribbon Blender are designed to cater to the various needs of our clients and are designed to deliver to the utmost. We ensure that this product exhibits durability and the overall robust make ensures a long-lasting quality. We offer this product at leading industrial prices which are highly affordable in nature. Features: Lightweight High mechanical strength High tensile strength

  Pellet Mill has a higher output per capital cost than any other pelleting machine on the market Pellet Mill has easy maintenance Pellet Mill is designed for silent smooth running Pellet Mill is meticulously engineered Long accumulated experience has gone into the Trumatic which is built to suit Dairy, Poultry Feed, Hog Feed, Oil Seed, Corn Wet Milling, Fish standard for continuous operation. This can be installed in an existing plant. The capacity depends on hole diameter of die, pellet thickness, speed of rotation. It's incorporate refinements are not found in any other pellet mill. Consists: Variable feeder, feed conditioner, permanent magnet, adjustable pellet cutter, oven loading mechanical fuse, easily operatable guard, big fly wheel, die holder assly., roll assly.

Majorly used for shredding materials into fine particles, our Disintegrators is widely demanded by the cement industry. We are the major Disintegrators Manufacturer and Supplier in India. We use quality stainless steel and mild steel components for fabricating our Hammer Mill, to ensure its consistent performance. Working Consist of a steel drum containing a vertical or horizontal cross-shaped rotor on which pivoting hammers are mounted. The hammers are free to swing on the ends of the cross. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammers on the ends of the rotating cross and thereby is shredded and expelled through screens in the drum.

We manufacture different capacity of animal feed machinery. Animal Feed machinery for producing Pellet type animal feed. Machinery is simple and easy to operate. Almost maintenance free machinery. Strong and robustly constructed. High flexibility of the machinery.

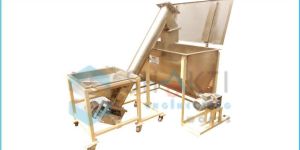

We are manufacturer of entire kind of auger screw feeder for filling of verialbe products such as lime powered, granules, and entire kinds of free powder. We are popular as the top famous enterprises in this sector, providing an outstanding quality of the screw feeder which is superior quality precise in the volumetric proportioning. Our provided screw feeder is perfect for elevating greatly abrasive materials without causing any harm. We offered screw feeder is utilized to collect, feed, and transfer as well as distribute the raw materials. The customer can avail this screw feeder in vast features as according their needs. Feature :-   Storage powder & feeding as required, Easy Cleaning, No noise & No vibration Dust Free Operation, Low Power Consumption, Easy Maintenance   Application :- Guar Gum, Agro Chemical, Pigments, Pharmaceutical, Nutraceuticals, Ayurvedic & Herbals, Detergent, Paint, Bakery & Biscuits, Food Salt & Dairy, Cosmetics & etc. Machine size is available :- 4” NB To 12” NB Pipe Diameter with 200 ltrs to 10,000 ltrs storage tank capacity

Hammer Mill is utilized for convert uniform Sizing raw material / Bio-mass. Some agricultural stalk like cotton stalk. Sugarcane leaves, Soybean stalk, wood thin waste, veneer waste are available in big size, so it is not feed able for Briquetting machine.It's require to cut below 10 mm to 15mm. Hammer mill is the best solution to sizing any kind of Biomass as per required size. Bottom screen can be change as per desired output size. Screw conveyor feed input raw material to Hammering chamber, where nos. of hammer rods are moving and hammering to biomass till convert in screening size Blower and Cyclone is for handling discharge output material.Application : Biomass Hammer Mill is for converting long and uneven size of Biomass into uniform small size biomass raw material. After hammering raw material gives better result in Briquetting machine. Production Capacity of Hammer Mill : Output Production Capacity - 1500 Kg/Hr. Input Raw material ( Biomass) Specifications : Size of Raw Material- Length/Dia - Max. 100mm / 20mm) Moisture contain - Max. 8 %. Output Raw material ( Biomass) Specification : Size - 10mm -15mm Form - Uniform Semi powdery / Powdery Output Production Capacity - 1500 Kg/Hr. * Production Capacity :Output capacity is depends on the bulk density and type of Raw Material. So it will vary with different type and size of input raw material. If the raw material is bigger like stalk then Shredder / Cutter is required additionally. It will be 1000 Kg to 1500 Kg/HrElectricity / Power : Total Connected power Load - Approx. 41.5 HP Practical used Amp. Load - Approx. 35 - 50 Amp Power consumption - AApprox. 20 - 25 Unit/MT Individual Electric data : Briquetting Main Ele.Motor - 30 HP Blower Motor - 7.5 HP Screw Conveyor Ele. Motor - 3 HP Rotary Air Lock - 1 HP Silent Futures of Radhe Engineering Co. - Hammer Mill : Standard Heavy duty applicable MOC Due to atomization, whenever hammer mill main motor take more load feeding will stop and restart automatically. Separate big stone. Dust collector to prevent dust pollution after cyclone. Different capacity model available.

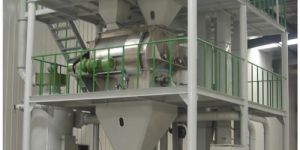

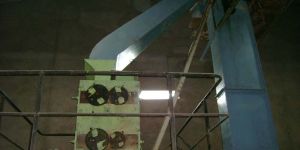

Animal Feed Plant produces pellet type nutritious feed for poultry animals, fishes etc. For producing of the best quality of feed, any types of agricultural items are used as the raw materials, which are easily available. Animal Feed Plant that we offer is fabricated for grinding, mixing and palletizing of raw material in order to produce the best quality food for animals. We construct Animal Feed Plant on the sites mentioned by the clients.

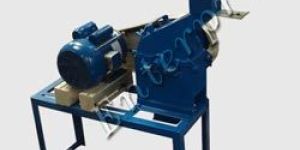

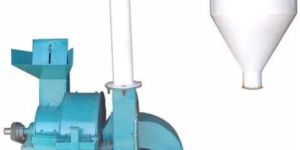

We offer hammermill. Specification: crushtech hammer crushing mill the material from fine to course in bulk, these machines can be provided with cyclone, dust collector for avoiding pollution, easy collection at discharge end & avoid wastage of materials. The grinding chamber of hammer mill is lined with heavy steel liners, which protects the body from wear and tear. A balanced rotor in hammer mill with a set of swing hammers accelerates the grinding process. Working principle: material is feed into the hammer mill from the top and falls into the grinding chamber. The material is contacted by a series of hardened steel hammers rotating at high speed. The material is ground by repeated contact with these hammers, contact with the walls of the grinding chamber, and particle to particle contact. The material remains in the hammer mill grinding chamber until particles become small enough to pass through the perforated screen that covers the bottom half of the grinding chamber. Advantage: • interchangeable screens in numerous sizes to produce the exact & different particle size as desired • easy to change screens in a variety of sizes • cold, dust free & silent running. • low specific power consumption, increased production leading to faster return on the investments. • durable long life • low temperature rise for heat sensitive materials • pollution free working due to properly designed cyclone. • no rcc foundation is required if fixed on a specially designed avm pad frame. application: crushtech hammer mills are used for a wide range of application e.g. Chemicals, stones, minerals, poultry feeds, food products, spices, molding powders, dry soap, charcoal, tea, coffee, etc. Outstanding features include improved grinding efficiency, accurate and consistent product grinding, low specific power consumption, low temperature rise for heat sensitive materials

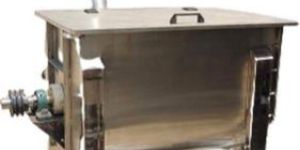

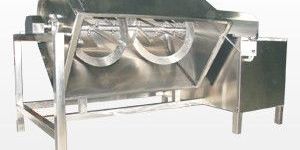

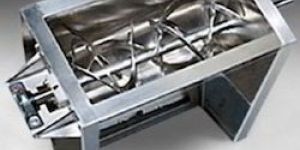

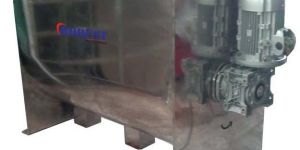

We are offering ribbon blender. ribbon blender comprises of a u-shaped horizontal trough and a specially designed double helical ribbon agitator rotating within. Ribbon blenders are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge. an alternate design is the paddle agitator. The paddles are positioned to move the material in opposing lateral directions as well as radially. The paddle design is generally employed where friable materials are being blended, and when batches as small as 15% of the total capacity are going to be mixed in the blender. design highlights •the outer ribbon displaces the material from the ends to the center while the inner ribbon moves the material from the center to the ends. This counter-current action results in homogenous blending. •the ribbons rotate at approximately 70 - 100 meters per minute and move the material both radially and laterally to ensure thorough blends in short cycle times. triple mixing action - the key to fast, efficient blending •as the agitator rotates, the material is tumbled and carried radially around the inside of the blender. •the pitch of the outer ribbon moves the material toward the discharge opening. •the inner ribbon which has an opposing pitch moves the material away from the discharge opening. Litres. 10/50/75/150/250/450/600/1100/1500/. Litres.
