Dynamic Autolooms India Pvt. Ltd. GIDC, Rajkot, Gujarat

We are offering rapier loom. machine type : an economic rapier loom loom width : 55” – 66” – 75” – 90” (inches) working width : 52” – 64” – 72” – 88” (inches) width reduction : standard – 16” (less than 16” optional) weft insertion rate: up to 460 mtrs / min (r.p.m. 200) weft colors : 2, 4, 6, 8 colors operated by microprocessor based controller (optional) for mechanical jacquard up to 8 color mechanical selector weft control : piezo electronic warp control : 6 row electrical, infrared (optional) shedding motion : cam suitable for plain, twill, drill and satin weave. dobby / 20 shaft card type or electronic (optional) electronic or mechanical jacquard (optional) let-off : semi positive attached / separate type (warp beam 600 mm dia.) take-up : seven wheel cloth roll : up to 400 mm dia applicable yarns : natural, synthetic, blended, and polyester lubrication : standard, centralized optional. installed power : 1.1 k.w. -1.5 k.w. special attachment : leno gauze fabric space required per machine: 140 cm: 351 l x 178 w x 183 h (cm) 170 cm: 386 l x 178 w x 183 h (cm) 190 cm: 427 l x 178 w x 183 h (cm) 230 cm: 516 l x 178 w x 183 h (cm)

We are offering semi automatic shuttle loom.

Brand Name : SPEED - OVER PICK LOOM

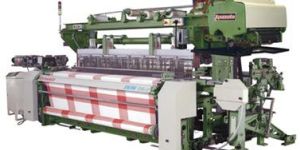

We are offering rapier loom shiva dr ii plus. machine type : heavy duty rapier loom loom width : 170, 190, 230, 280, 330 (cm) working width : 50mm less than loom width width reduction : up to 400 mm (300mm for 1900mm) weft insertion rate: up to 525 mtrs / min (170cm loom -225r.p.m.330cm–160r.p.m.) weft colors : 2, 4, 6, 8 colors operated by microprocessor based controller for mechanical jacquard up to 8 color mechanical selector weft control : piezo electronic (piano type – optional) warp control : 6 row electrical, infrared (optional) shedding motion : cam suitable for plain, twill, drill and satin weave. dobby / 20 shaft card type or electronic (optional) electronic or mechanical jacquard (optional) let-off : standard positive up to 700 mm dia warp beam. Separate let-off take-up : seven wheels cloth roll : up to 400 mm dia applicable yarns : blended cotton: 2’s-100’s, filament filament: 20 dn – 2000 dn pure silk: 20 dn – 500 dn lubrication : standard / automatic lubrication system (optional) installed power : 1.5 k.w. -2.2 k.w. special attachment : double beam attachment, cramming device, suction device (optional) thermal cutter for boarder weaving. space required per machine: 170 cm: 449 l x 200 w x 186 h (cm) 190 cm: 467 l x 200 w x 186 h (cm) 230 cm: 516 l x 200 w x 186 h (cm) 280 cm: 579 l x 200 w x 186 h (cm) 330 cm: 640 l x 200 w x 186 h (cm)

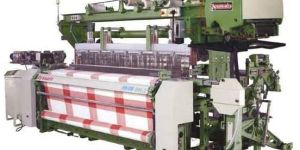

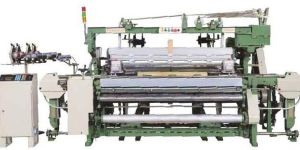

We are offering rapier weaving machine. heavy duty flexible rapier loom

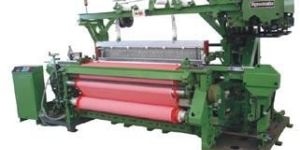

We are offering rapier weaving machine. trendy rapier weaving machine

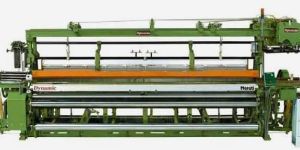

We are offering maruti - auto stop high speed shuttle loom.

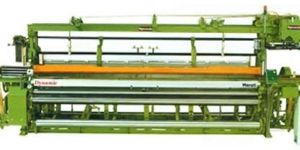

We are offering shuttle loom - maruti. technical specifications machine drive : push button system with electromagnetic brake motor of 0.75/1.0 kw. take-up motion : pickle's 7 gear mechanism. picking under pick motion with "u" buffer & leather buffer on single shuttle side. "c" buffer & auxiliary picking stick on multi shuttle side, heavy duty hydro pneumatic "zama" buffer on both the sides. shedding motion : cam shedding/dobby/jacquard reed space : 60" to 132" warp stop motion: electric (6 row) weft stop : electro-michanical weft feeler : optical shuttle size : up to 29 x 39 x 395 (mm) shuttle box : 1x1, 2x1, 4x1,4x4 beating motion : fast reed system

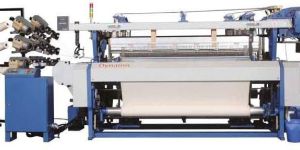

We are offering high speed rapier loom.

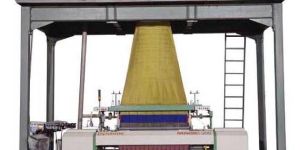

We are offering high speed rapier loom.

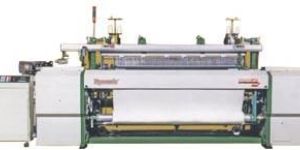

We are offering rapier loom magic 300. model : magic-300 or bvm-250 machine type : high speed rapier loom drive : four link drive loom width : 170, 190, 280 cm working width : 50 mm less than loom width width reduction : up to 400 mm weft insertion rate: 425-575 mtrs / min (r.p.m. 250) weft colors : 2, 4, 6 colors operated by microprocessor based controller for mechanical jacquard up to 8 color weft control : piezo electronic (piano type – optional) warp control : 6 row electrical or infrared optional shedding motion : cam suitable for plain, twill, drill and satin weave. electronic / mechanical jacquard let-off : negative / semi positive / electronic (warp beam up to 800 mm dia.) take-up : continuous, pick density 10-128 picks per inch, 20-250 picks (optional) cloth roll : up to 400 mm dia applicable yarns : natural, synthetic, blended, filament, pure silk lubrication : semi centralized greasing installed power : 1.5 k.w. / 2.2 k.w. special attachment : cramming device (optional) thermal cutters for tape weaving space required per machine: 170 cm: 381 l x 170 w x 183 h (cm) 190 cm: 419 l x 170 w x 183 h (cm) 230 cm: 434 l x 170 w x 183 h (cm)

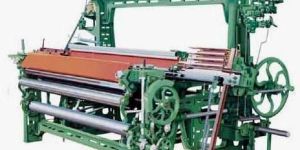

We are offering semi automatic drop box shuttle looms.

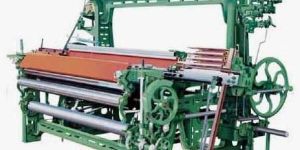

We are offering semi automatic drop box shuttle looms. pick n pick: semi automatic drop box shuttle looms

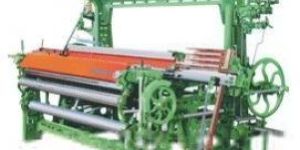

We are offering shuttle looms - ganesha. technical specifications machine type : semi automatic drop box looms reed space : 45", 52", 56", 60", 64", 68", 72", 80" shuttle box : 4x4,2x2,4x1,2x1,1x1 reed : fast reed let off : semi-posetive (attached or separate beam type) take up : pickle's seven wheel take-up mechanism shedding : tappet, dobby, jacquard picking : under-pick motion speed : 100-150 r.p.m. (depends on yarn type and quality) drive : 0.5 hp / 1 hp loom motor lubrication : centralized lubrication system (optional) warp stop : electrical or mechanical warp stop (optional) weft stop : weft fork system or electronic infra-red filler system (optional)
