Batching Plants Dealers in Satara

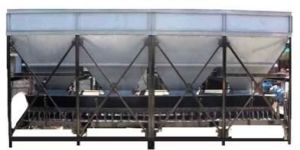

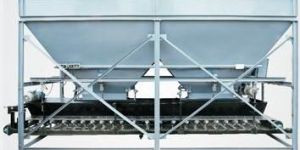

We are Manufacturer, Exporter, Supplier of our product range and our setup is situated in Satara, Maharashtra, India. This is heavy duty equipment made for storage of basic raw material. Sand aggregate, Fly ash etc. It is manufactured in following models.  4 bin x 10/5 Ton Cap 3 bin x 10/5 Ton Cap 2 bin x 10/5 Ton Cap Material is stored in bins and taken out as per designed batch. Its taken on conveyor below the bins in sequence and then feed to the mixer. All process is fully automatic.It has Following Advantages : Ease of material loading to mixer. Normally it is done manually which require large manpower. Also there is no precision in quantity, when taken manually. Since every batch is same in weight, as designed, the quality of product is consistence. A lot of time is saved to take each batch, which will increase the production. It is also supported by cement screw conveyor with batching arrangement. Cement is stored in bottom hopper and it is used as per requirement in batches. It will control the exact dosing of cement. Which is the most costly item, As well as it governs the quality of product. Silo can also be installed to save on loading cost. Main Features : Heavy duty storage bins made of 5 mm ms sheet Pneumatic operated discharge doors. Two models available. Robust panel board including load indicating meters, with synchronizing of cement screw conveyor, water dosing system Printing reports. Auto and manual operations

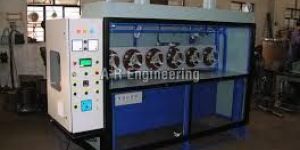

Trickle Varnish Impregnating Machine is suitable for pre-heating, trickling and post heating of stators. The machine is simple and compact in design. It is easy for operation and maintenance. It is ideally suitable for batch type production of stators. The machine is suitable for carrying out following automatic cycle. 1. Load stators on spindles, connect winding wires, close the front door and start cycle with push button.2. Spindles start rotating and get pre-heated to predetermined temperature.3. Temperature of stator is sensed by non Contact-Us TIC.4. Spindle holding plate is tilted up and varnish pipes are tilted down to adjust the place of trickling.5. Varnish pump starts and pre determined varnish is trickled on stators / rotors and pump stops. Trickle Temperature is      maintained with the non Contact-Us TIC6. Spindle holding plate is tilted down and varnish pipes are tilted up and post heating starts.7. After completing the post heating spindles, stop.8. Open the door & remove wire connections and Un-load the ready stators. Trickle varnishing Machine consists of following major components : 1. Rotation System : Spindles for holding job fixtures are mounted on swiveling L-plate. Spindles are mounted on pillow blocks and provided with slip rings for passing current through winding during preheating and curing. Electric connection pins are provided on the faceplates for quick terminal connections. Suitable job holding arrangement is provided to hold & locate the stators. Spindles are rotated by geared motor, chain, sprockets mounted on L-plate. 2. Job tilting and Varnish tubes Positioning System : L-plate is tilted by 10 to 15° to ensure varnish reaching the other end & metered varnish is trickled on the job. Job is made horizontal after varnish trickling i.e. while curing for uniform distribution of varnish. Pneumatic job tilting & pipe positioning arrangement is provided to ensure the place of varnish trickling on the job. 3. Varnish Feeding System : arnish is fed by peristaltic tube pumps driven by D.C. motors with variable speed control to control varnish quantity according to the models. Varnish quantity is varied & controlled by setting pump speed and trickle time. 4. Heating System : Jobs are heated by passing pre determined current for pre determined time through job windings. The current passing through the jobs is controlled by step-less variable voltage D.C. power source. Pre heating, Trickle and curing temperatures are controlled with non Contact-Us thermo sensor. 5. Centralized control panel : PLC Control with easy setting and control of process parameters such as preheating, trickling and curing time and temperature, varnish Quantity, etc. 6. Fumes Extraction System : One exhaust fan with ducting is provided on the top of the machine for varnish fumes extraction.

Main Features : •  Heavy duty storage bins made of 5 mm ms sheet.• Pneumatic operated discharge doors.• Two models available.• Robust panel board including load indicating meters,with synchronizing of cement screw conveyor, water dosing system• Printing reports.• Auto and manual operations

Keeping up with the latest demands of customers, we, as a trusted supplier strive to provide quality batching plants. We promise to deliver the orders within the postulated time frame as we are backed by excellent logistics facility.
