Relays Dealers in Secunderabad

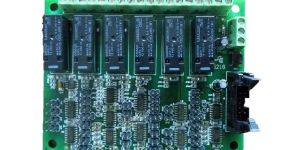

This is a 6-Channel Programmable Timer with Latch Relay. Each channel can be set for time Delays of 10,20 Or 30 seconds and can be latched. This can be used for generating potential free contact after the fault occurred. Features: 1) Works on 12v24v DC power supply 2) Time delay programming for individual channel @ 10,20,30 seconds 3) Relay can be latched after the selected time delay 4) Latch resetting through inbuiltexternal push button 5) 510 Amps NO,NC contacts 6) 5v,12v digital input either low to high or high to low fault condition

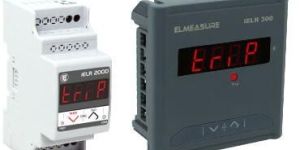

Salient Features  Inverse curve - Trip time to accomplish faster trip time for a higher leakage current.  High accuracy Earth Leakage Relay of class 2.0FS in industry  Programmable Earth Leakage Trip time from 100ms - 30s with password protection.  Continuous Display of Trip Leakage current (Programmable)  Wide selectable range of Earth leakage current from 30 mA – 30 A  Monitors and protects power systems from Earth Leakage Current Applications  Protects life and property against overflow of leakage current  Protects motors / transformers / feeders / DG etc.,ensures reliable measurement and maximum safety  Complete protection for oil refineries, pulp industries, mining industry, electrical distribution & control engineering  Protects control panels and switch boards from earth leakage current

HBL's ELM in DC power systems enables quick detection of earth faults to prompt for corrective action. It works on the principle of residual or differential magnetising current induced in a current transformer.

AP Explosives manufactures cord relays. Cord relays provide accurate delay between blast holes in a row or cross in a multiple row blast. Cord relays are of 2ms delay detonators of the same delay timing placed in opposite direction specifically designed plastic component. Cord relays are bi-directional. The plastic component has a provision for hooking of detonating cord at either ends. The delay timings are printed on the plastic component. Application These are used in conjunction with detonating cord trunk lines in open casts, coal mines, quarrying, civil construction, underground metal mines. Advantages 1. Being non-electrical, they are immune to electricity sources such as stray current, static electricity and radio frequency energies.2. They are simple to use and bi-directional3. The hook for the detonating cord provides two to three surface detonating patches, thus reducing the misfire risk.4. Initiation is sequential reducing the problem of overlap5. Since each delay can be controlled by using different delay intervals, there is lesser vibration Cord Relays are available in intervals of 17 ms, 25 ms, 42 ms, 50 ms, 65 ms, 100 ms, etc.

We are instrumental in offering the best quality Super Relay in numerous specifications. The Super Relay is a non – electric surface delay equipment to provide delay between the holes and rows in detonating fuse initiated blast patterns. Our Super Relay features two holes on either end of the component to insert and tie the detonating fuse. This relay is bi-directional. Every Super Relay consists of two delay devices assembled in a plastic component. It is ideal for use in the blast for safe and reliable multi-directional blast designs. Super Relay can be used to provide delay initiation patters such as row delay, diagonal pattern, V-pattern etc.   Usage and Handling : Detonating fuse should be laid between the holes without much stackness. Cut the detonating fuse and insert the end into the hole provided for this purpose in the connector. Insert the other end of detonating fuse into the hole of the new super relay. Make sure that the detonating fuse ends do not fall on the middle of the relay. Make sure that the ends of the detonating fuse will not get wet once laid on the ground. Keep the relay close to the ground and to the hole as much as possible. The Circuit should be looped for dual advantage of blasting   Shipping Information : As per IMDG (International manitine dangeraus goods) classifications Class : 1, Division : 1.1, Group : B, un No. : 0029, Page No. : 1259, Storage category : II Type C As per Peso (Petroleum and explosives safety organiszation) Classifications ID No. 720, Class : 6, Division : 3, Category : ZZ

Protective Relays, Gem Switchgea

Starter Relay, Air Circuit Breakers, Contactor Relay

Automotive Relays, Flashers, Sensors, Solenoids, Timers, Buzzer

Monitoring & Timer Relay, CPU, Zener Diodes, Transistors, Schottky Diode

Reed Relays, Relays, Rotary Switches, Electrical Switche

Field Failure Protection, Static Delay ON / OFF Time Rela

Relays, Electrical Control Panels, Vacuum Testers, Vacuum Contactor

Differential Protection Relay, Short Circuit Protection Rela

Check Synchronising Relay, Field Failure Protection, Retrofittin

Relays, Switch Boards, Tubes, Wir

Relays, Connectors, Diodes, Thyristor

Relays, Electronic Testing Equipment, Digital Lcr Meter

Voltage Phasing Preventer, Three Phase Control Panel, DOL AUTO SWITC

Flame Proof Switches, Electrical Instruments, Switch Board
