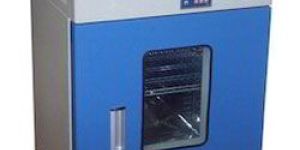

The Bacteriological Incubator (ESTI-101), which we offer, is based on the latest technology and complies with the Industrial Standard. These Bacteriological Incubators that we make available are used for diverse purposes. We are counted among the reliable Manufacturers, Suppliers and Exporters of Bacteriological Incubator (ESTI-101) from Baddi (Himachal Pradesh). Complies with Industrial Standard : IS 3118 Uses :
Paraffin embedding
Drying of slides
Tissue culture work
Excellent for Microbiological determinations
Incubation of antibody test
Crystallization studies and Incubation of hydroxy steroids
Construction : Incubators are sturdy, with double walled construction with complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, finished with powder coated paint. 75 mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves. SHELVES are made of fully Anodized Aluminium Sheet or Polished Stainless Steel Sheet as per chamber. Door is insulated & fitted with heavy hinges. Door has Double glass window which facilitate inspection of samples without opening the door. Heating elements, made of high grade imported nichrome wire are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space. Temperature Control : Temperature is controlled by imported capillary type thermostat from ambient to 80oC. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state. An L-shaped prismatic glass Thermometer is fitted on top of the Incubator for reading the chamber temperature. Ventilation : Air ventilators are provided on both sides at top to flue away any gas or fumes. Control Panel : The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and two pilot lamps. Power Requirement : Supplied with cord and plug suitable to operate on 220 V single phase, 50 Hz, AC supply. Optional Accessories :
Timer
Air Circulating Fan
Digital Indicator in lieu of L-shaped thermometer
Digital Indicator - cum - Controller Electronic in lieu of
L-shaped thermometer & thermostat
Micro processor based PID Temp. controller-cu-indicator in lieu of Thermostat & L-shaped thermometer
National Incubator is a perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraf in embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determination etc.Construction : National Incubators are sturdy, double walled construction with complete inner chamber made of Highly Polished Stainless Steel 304. Outer chamber is made of SS 304 or Mild Steel Sheet, duly pretreated and finished with durable. The 65mm gap between the walls is illed with special grade insulation material for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 4 removable shelves. Shelves are made of SS 304 Perporated. Chamber Door of S.S. 304 Sheet with glass window .It has two doors. The outer door is insulated and is fitted with heavy hinges. Inner door is made of glass panel or acrylic sheet mounted in a SS frame to facilitate inspection of samples, without disturbing the chamber temperature.Heating Elements : Heating elements, made of high grade imported nichrome wire are insulated inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.Temperature Control : To provide digital temperature control display and Temperature is controlled by imported capillary type thermostat from 5°C above ambient to 80°C ±0.5°C. Temperature control ON/OFF switch or digital temperature controller and indicating light.Optional Accessories :
HMI With Plc Controller Fully Automatic Process with Printer Facility.
Air Circulating Fan.
Digital Display Temperature controller and Indicator.
Digital Display Temp. Controller-Cum-Indicator in lieu of thermostat.
Micro Processor based PID temperature controller-cum-indicator in lieu of thermostat.
Timer/ hour's meter.
