Textile Machine Dealers in Palsana, Surat

  "U" Type Tube Fabric Dyeing Machines Feature Machine body and parts wetted dye liquid made 316 / 316 L highly corrosion resistant stainless steel. Heavy duty stainless steel centrifugal pump for fast dye liquor circulation. Lifter reel driven by frequency inverter controlled motor for speed up to 400-450 m / min. Service tank with injector and valve systems. Highly efficient heat exchanger for fast heating and cooling Take-off-roller (Platter) made stainless steel 304 quality

1) specially developed single tube double nozzle model in 400kgs 2) all pressure part will be made bt ss316316l as per din standard 3)specially developed heat exchanger design for quick heating and cooling 4)heavy duty low rpm pump which consume low power and high discharge of liquor 5)semi and fully automatic version with plc system 6)out finish shot blasted 7) all valves made by investment casting and ss316.

We are leading manufacturers, exporters and suppliers of Piece Dyeing Machine in India. Our latest design required slop on rear construction improves smother fabric transportation and stable loading condition. Our range of these fabrics dyeing machine are widely preferred for its stability and long lasting services. These are offered at competitive rates to our clients.   Exclusive Features CAPACITY: 300 - 400 Kg. (Single Tube) LIQUOR RATIO - 1:1 (Wet Fabric) Dye - 30 To 450 Grms. /Mtr. Sq. Fabrics (Polyester, Polyester blends, Woven & Knitted Fabrics) HIGH TEMP. - UP TO 140.° C. FABRIC SPEED - 300 Mtrs./ Min. LOOP LENGTH - UP TO 3000 MTRS. IN POLYESTER FABRIC       Fully Automatics PLC base automation with graphical display and PID control Moderate and auto control liquor ratio. Digital level controlling system for accurate control dozing

Our company is a reputed manufacturer, exporter and supplier of soft flow dyeing machine terry towel. The offered device is manufactured in our state of the art production plant, using modern equipment and tools as per defined standards. This machine is made up of superior quality raw elements, purchased from reliable vendors of the market. Our soft flow dyeing machine terry towel has a fabric drive reel along with a frequency regulator. Moreover, it is admired for excellent efficiency and especially developed filtration system.

We are offering two for one yarn twisting machine, two for one twisting machine for spun yarn with cradle lifting attachment modle prt s123 features :- tfo twister takes up less space thanks to double deck, reduced spindle gauge & machine width is narrowest. Lowests spindle height is adopted to greatly reduce the balloon size & low energy consumption. Sturdy frame structure of sheet metals provide vibration free smooth running at higher spindle speed. Spindle with aluminum anodized pot with long lasting low abrasive surface gives gentle touch to yarn. Extremely low cv% because of drum apron, cradle pressure & belt pressure pulleys. Auto cradle lifting arrangements prevents damages to the wound yarn surface, & keep the original quality of package thoroughly. Auto cradle lifting attachment helps to increase productivity. Cradle pressure is designed to decrease in proportion to increase in the package dia, & weight results uniform density of package. Internationally accepted adjustable capsule type tensioner. Pre take-up cover provided for safety of operator. Take up package up to 2.5 kgs. Helps to increase productivity. Traverse gearbox with pattern breaking device offered uniform density & unwinding of package. Maximum life of traverse gearbox & twist change gearbox with help of oil circulating system (oil-bath). Rail guided operating trolley provide for easy operation of machine. Live display of tpi, yarn speed in mpm & spindle speed in rpm.

GENERAL DESCRIPTION AND MAIN FEATURES : Loading capacity 300Kgs./(Single Tube Double Nozzle). Pressure vessel and all wet part of machine made of stainless steel AISI 316/316 L, highly corrosive resistance. The fully folded nozzle and nozzle diameter up to 83 to 110 mm. for manmade fabric. Newly developed high flow nozzle for light % heavy fabric. High fabric speed up to 300 m /min. Lifter reel driven by frequency inverter control motor, for fabric speed up to 200/300 meters, subject quality of material. Liquor Ratio 1 : 5 to 1 : 6. Dye - 30 to 450 grams / Mtr. Sq. Fabric (polyester, polyester blend, woven & knitted fabric). Specially designed the heat exchanger for quick heating and cooling. Maximum working temperature 135°C. All safety device required for a pressure vessel are incorporated with machine. Take off reel with direct couple geared motor and stainless steel structure. Heavy duty low rpm pump which consume low power & high discharge of liquor. Magnetic water level indicator with duly calibrated in terms of liter. All valves are made of investment casting and stainless steel 316. Semi and fully automatic version with advanced microprocessor control. Out finish shot blasted. Note: Especially those material sensitive to create mark such as polyester and micro fibre etc.

Due to our enormous understanding and massive knowledge of this business, we are involved in the manufacturing of Stenter Machine. Offered machine or apparatus is used for stretching or stentering fabrics. The purpose of this machine is to bringing the length and width to predetermined dimensions and also for heat setting and it is used for applying finishing chemicals and also shade variation is adjusted. The main function of the stenter is to stretch the fabric widthwise and to recover the uniform width. This machine also has the capacity to controls the Shrinkage property of the fabric in an efficient manner.

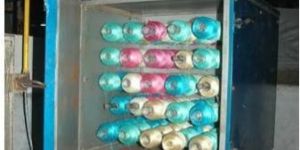

Our clients can avail from us Yarns Cops Dryers that are designed to suit the varied needs of our clients. Manufactured using quality proven material, these are designed to dry dyed polyester yarn cops. Designed as per the latest market norms, these dryers are widely appreciated among our clients for the technical features like: -Drying of yarn cops takes place from inner & outer surfaces of cops. -Hot air circulating fan which distributes air in the whole chamber -Timer to set batch timing

This is another low cost cold bleaching process after caustic boil, which save time, labor, water and power. This is suitable for delicate and low GSM fabrics.Grey fabric after mercerizing and caustic boiling will take it to continuous rope bleaching range for cold process.After boiling the fabric, it get washes in rope form in two or three washing compartment and then to saturator for bleaching solution which is made out of special material and then store for one hour in J-Box for complete reaction. This process is done in two stages, after this neutralize and wash properly to get neutral Ph.This is a tailor made machine, can be added compartment according to production capacity required. After this process fabric is ready for Dyeing and Printing Optional Features: Machine can be attached with Rope Opener Machine can be attached with Drying Range after Rope Opener Machine can be supply in PLC Control System Ph. Controller

covering machine the fully ceramic pre-take-up roller, which is designed specially for elastic yarns, ensures optimum reduction of the take-up yarn tension in the traversing triangle. double deck machines for covering of elastic yars/glass fiber yarn the machines, built to fit hollowed spindles, are equipped with a high sophisticated traverse, tapering device & lip motion device, such to take-up even packages to be used directly in hosiery without prior rewinding. the take-up cradle is of the "open arm" type, with centering running on ball bearings. different types of control can be equipped the machines from fully mechanical to full electronic system. .

We are well known for manufacturing and supplying of Fabric Dyeing Machine.

Boiling Machine, Marathon Electric Motors, Crompton Greaves Electric Motor

Textile Processing Machin

Hot Air Stenter Machine, Textile Machinery, TUMBLER DRYER FOR TERRY TOWEL

Jet Dyeing Machine, Dyeing Machinery, Textile Dying Machin

Jet Dyeing Machine, Drum Washer, Fabric Dyeing Machine, Hot Air Drye

Textile Processing Machinery, Textile Weaving Machine

Power Looms, Textil

Textile Testing Machines, Compact Textile Testing Machine

Textile Stenter Machines, Textile Machine, Stenter Machine
