Nose PieceReverse Angle Quadruple Nosepiece On Ball Bearing
Brand NameRadicon
Trinocular Observation HeadSiedentopf Observation head inclined at 300 rotatable at 3600 Vertical phototube for digital camera. Diopter adjustment ring on ocular tube (+5). Interpupillary distance from 50mm to 75mm.
Eye Piece (Anti Fungus)Extra wide field 10x (paired) F.O.V. 22mm
Mechanical Stage: Mechanical stage size 150mm x 140mm. Moving range 80mm x 50mm. The mechanical stage has low positioned co-axial controls on ball bearing guide ways.
Focussing System:
Co-axial focusing system with large knobs. PRE – FOCUSING LEVER & TENSION ADJUSTMENT RING.
Fine focusing scale value 0.002mm.
Key Features:
3.5X-90X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 0.5X and 2X Barlow lenses.
The microscope provides up to 6.5" (165mm) of working distance.
A highly-versatile stereo microscope on a heavy-duty, multi-pivot boom-stand which allows the microscope to easily swing into place when needed, and away when not.
Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
A trinocular photo-port provides a dedicated mount for adding a camera.
This microscope is ideal for laboratories, repair shops, and engravers.
Monitor and capture photos and videos with the included 16MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
The 144-LED ring-light uses a power module with four subdivisions to produce either directional light or an encompassing ring of light.

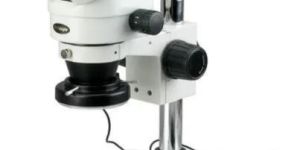

The SM-4T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to it ease-of-use and reliability. With its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab.
Optics:The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. 0.5X and 2X Barlow lenses are included, which can be alternated to either halve or double the magnification range, expanding the possible magnifications to 3.5X-90X. Ocular Adjustment:
Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
Trinocular Port:
The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.
Double-arm Boom-Stand: The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearing provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.
