ObjectivesSemi plan Achromatic SP objectives 4X, 10X, 40X, 100X
Eyepiese:
HWF 10x (FN 18 mm) paired eyepiece with eyeguards . The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer.
Observation Head:
Binocular head (45 degree inclined ), 360 degree rotatable, with diopter adjustment on the left . Interpupillary distance 53 -75mm
Trinocular head (45 degree inclined ), 360 degree rotatable, with diopter adjustment on the left. Interpupillary distance 53 -75mm.
Monocular Head (45 degree inclined ), 360 degree rotatable.
Power Supply:
Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-240V AC 50/60Hz single phase
3W LED light soure high brightness, longlife (30,000hrs)
LED light soure (with battery back-up) high brightness, longlife (30,000hrs). Battery back-up in-built NiMH rechargeable batteries"
Nose Piece:
Quadruple revolving outward nosepiece based on precision ball-bearing mechanism with positive click stop.
Body:
Aluminium die- cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipuation
Mechanical Stage:
Co-axial low drive mechanical stage 125 mm x 145 mm with traverse area of 76 mm x 30 mm with single slide holder.
Focusing System:
Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.2mm

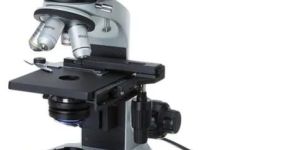

Product Details:The MLXplus microscope is the latest innovation from Magnus. It is a versatile microscope at an economical price featuring Semi plan Objectives and Eyepieces of field number 18. Suitable for educational & pathological markets. The design allows easy access for lamp replacement from the front of the microscope. Compatible with add-on Phase Contrast attachments. Different light sources Halogen lamp / LED lamp/ battery backup.

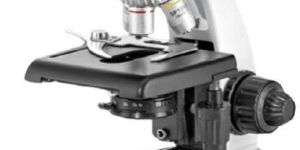

Radicon- Binocular Co-axial Research Microscope (Premium-RBM-403 Star)
Get Price Quote
Brand NameRadicon
Magnification40x to 1000x
Eye Pieces( Anti fungus coated ) 10x (paired) F.O. V 18mm
Objectives(Anti Mold and Anti fungal coated). Plan DIN 4x, 10x, 40x (S.L.) & 100x Oil (S.L.)
Substage CondenserAbbe Condenser N.A. 1.25 with adjustable iris diaphragm
Illumination SystemThe illuminator incorporated 3W LED lamp and has adjustable brightness
ModelRBM-403(STAR)
Observation Head: Sliding Binocular Head inclined 30˚ rotatable at 360˚ and diopter adjustment ring on ocular tube (+/-5) with interpupillary distance from 48mm to 75mm.
Mechanical Body
Co–axial Focusing System. Pre Focusing Lever & Tension Adjustment Ring.
Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm.Cross travel 78mm X 54mm.
