Binocular Microscope Dealers

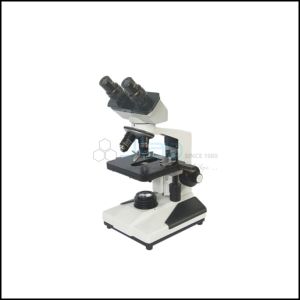

Body : Nicely designed, die casted body, sophisticated enough to fulfill your microscopy needs. The incomparable collection of features includes seperate fine and coarse control. Binocular Head inclined at 45o and rotatable through 360o with very fine antifungal prisms. Quadruple nose-piece with click stop for perfect optical alignment. Double lens bright field ABBE condenser NA 1.25 with iris diaphragm and swing out filter holder moveable by rack & pinion. Illumination by 6V 20Watts Halogen lamp operated through built in solid state transformer with electronic regulator. Illumination by 6V 20Watts Halogen lamp operated through built in solid state transformer with electronic regulator. Optical combination. Antifungal Objectives : 5x, 10x, 45x (SL), 100x (SL) oil immersion. Eye pieces : 10x WF pair.

You can contact us to avail the excellent and qualitative array of student binocular stereoscopic microscope; we are a leading name in the market. Placed in Haryana(India), we are an entity acknowledged for our superior products and matchless services.

We are listed at the apex in the list of the most reputable Binocular Microscope Exporters from India. The array includes Digital Binocular Microscope to meet the varied requisites of the clients and applications. Additionally, the Stereo Binocular Microscope and Zoom Stereo Binocular Microscope is available with us in the below mentioned specifications. Stereo Binocular Microscope Stand : Available in different configuration for specific application with dual illumination for surface and transmitted illumination, versatile stand can be used for specimen up to 60mm thickness.Focusing : Vertical movement controlled by coarse focusing large sized knobs.Eyepieces : 10x paired with extra wide field.Objectives : Paired achromatic objectives 1x & 3x or 2x & 4x.Illumination : Built in illumination for incident light and sub stage light. Zoom Stereo Binocular Microscope:- Frame : All aluminium pressure die-casted body.Paint : P.U coating in light cream shade.Observation Head :45- degrees inclined binocular head is rotatable up to 360 degrees.Magnification : Standard magnification 7x to 45x (zooming ratio 1:6.4)Eye Pieces : High point wide field eye pieces 10x.Focusing : Rack and pinion focusing system single stroke up to 50mm.Illumination : Incident and transmitted illumination 20w halogen lamps (optional ring illuminator) Co-Axial Binocular Microscope :- Frame : All Aluminium Pressure Diecasted Body.Paint : P.U. Coating in Light Cream Shade.Nose Piece : Quadruple Ball Bearing Nose Piece.Observation Haed : 360̢۪ Rotatble and 45̢۪ Inclined Head with all Anti Fungus Coated Prisms.Focusing System : Co-axial Focusing System with Three Planetry Gears Assembly.Mechanical Stage : Cxl Ball Bearing Double Plate Mechanical Stage for Smooth functioning.Condenser : Bright Field Sub Stage Condenser Having 1.25 N.A.Eye Pieces : Paired Set of 10x Wide Field Objectives.Objectives : Set of 4x, 10x45x 100xIllumination : 6v/20w Halogen Lamp Needs 220v and 50 Hz Supply.

We are offering binocular microscope. A rigid and heavy stand, observation binocular head inclined at 45º and rotatable through 360º assembled from high quality prisms to ensure highly accurate collimation for stain free observation. Adjustable interpupillary and dioptric distance. Focusing system : our co-axial focusing system is based on four stage gear reduction system traveling on ball bearing guidways which provides the highest degree of sensitivity, free for any back lash in operating the fine focussing of optical system. Operating knobs are of extra large size which provides a soft & sophisticated touch of the microscope. Ball bearing quadruple nose piece with click stop. Fixed stage size 140 x 125 mm with precision co-axial mechanical stage for x and y moment of slide up to 50 x 75 mm. Optics : only best quality objectives and eye piece are supplied to provide finest performance. These are parafocalised and pre-centered with each microscope after the most stringent tests. Illumination : by 6v 20w halogen lamp operated through built in solid state transformer with electronic regulator. also provide with plano concave reflecting mirror attachment for day -light use. Condenser : abbe n.a 1.25 with iris diaphragm moving up and down by rack and pinion. Din objectives : 45x, 10x, 4045x, (sl) and 100x (sl) o.i all imported. Eye-pieces : 10x w.f and h5x or h15x (any two pairs)

Standard Accessories Best resolution optical system microscope 45° inclined comfortable viewing 360° rotatable 50-75mm interpupillary adjustments One eyepiece tube provided with diopter adjustments ring is standard feature. Eyepieces WF10x ( 1 Pair ) Parfocal Achro-Objectives 10x, 40x/45x, 100x Oil.(SL Retractable) Rack & Pinion coarse focus system with safety stopper Fine focus by slow motion mechanism graduated 1div = 0.002mm Plain stage with co-axal mechanical stage Extremely efficient NA 1.25 condenser iris diaphragm moveable up & down Built-in 6v-20w halogen bulb light & variable intensity control regulator Input 220-230v AC 50Hz. Standard AccessoriesOne spare bulb, blue filter, 2ml Imm.Oil, dust cover, Instruction manual, thermocol box packing (Wooden box and WF15x E.P. optional)

Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads.  Standardized Binocular tube, inclined at 45° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment. Anti fungus treated. Eyepiece WF 10x FN 18mm paired with eye guards.  Low friction & fully parafocal Quadruple Revolving nosepiece (Ball Bearing type). All New High Definition DIN S-plan Achromatic, anti fungus treated objectives: 4x/0.10, 10x/0.25, 40x(SL)/0.65, 100x(SL, Oil)/1.25 Double layer graduated mechanical rectangular stage  size 142 x 133mm cross travel 75 (X) x 50 (Y) mm on ball bearing co-axial controls spring clip specimen holder.  Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways.  Tension adjustment ring and Auto Focus provided. Moveable rack & pinion mounted ABBE Condenser, NA 1.25 with aspheric lens. Special day light blue filter in holder. Illumination, 6V 20W Halogen or 3W LED Lamp illumination with variable illumination control Power Input 220V, 50/60 Hz or 110v AC as per ISO 9001 & CE standards. The microscope is packed inside a STYROFOAM with Dust Cover no. user instruction manual.

Binocular tube with an inclination of 45° for greater ease of observation . Magnification 7x to 45x Microscope Zooming ratio 6.4:1 Rack-Pinion focussing stroke 50 mm. Wide field eyepiece 10x (paired). objective 0.7x to 4.5x. Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification. Field of view 28.6-4.4 mm. Interpupillary distance from 54 to 75 mm. Dioptic adjustment with a range of + 5 diopters is possible with both oculars. Binocular body can be rotated a full 360° and locked in any position desried. Once brought in focus, image remains clear and sharp throughout the whole zoom range. Dual illumination system having circular fluorescent incident light and transmitted light through solid state built-in tranformer halogen bulb 6volts 20watts. Packed in carboard box withopration manual, vinyl cover etc.

We offer Inclined Binocular Stereoscopic Microscope. It is advanced & versatile binocular stereoscopic microscope with 45º inclined head fabricated with coated prismatic system. The head is provided with interpupillary adjustment from 50 to 70mm and diopter correction arrangement in one eyepiece tube. Sturdy stand with built in illumination 6v-20w halogenauto-bulb lighting. Built in incident light 6v-20w halogenauto-bulb is also provided. Both illuminations can be used independently or simultaneously. achromatic objectives : 1x, & 3x or 2x, & 4x (revolving head)wide field eyepieces : wf 10x (paired) magnification : 10x to 30x or 20x 40xpacked in a wooden cabinet.
