Optical Microscopes Dealers in Ambala

FLUORESCENT MICROSCOPE : JS-51 Fluorescent Microscope is used for capillary examination. This technique is a new, highly sensitive rapid method of diagnosing malaria. It is also useful in the diagnosis of filariasis and leptospirosis. The principle of this method is the malaria parasite picks up fluorescent stain into their nucleus and cytoplasm, so that its morphologic characteristics can be examined by fluorescent microscopy.The nucleus appears green and the cytoplasm reddish orange, The Capillary is coated with Acridine orange on its inside. Parents Blood is loaded into this capillary and centrifuged at 12000 rpm for 5 minutes. The Blood components settle at different levels in the capillary. These different layers are displayed in the picture.Examination of the area just below granulocyte-RBC junction helps to detect the malarial parasites, as these are concentrated in this are upto 1000 times. Examination of Lymphocyte / monocyte layer using transmitted light helps to detect the schizonts, and gametocytes which gets concentrated in this layer very easily. Method of Examination:The granulocyte layer is then seen under 62x oil objective. By changing the light source to fluorescent light the parasitic forms can be seen as greenish orange stained structures. Using only transmitted light the parasitic forms are seen as block pigmented structures as shown in the preceding photomicrographs. Additional Information: Item Code: JS-51 Pay Mode Terms: T/T (Bank Transfer) Packaging Details: This microscope we prefer for the personal delivery and the demonstration but still if it is not possible then it is securely packed in two different thermocol boxes.

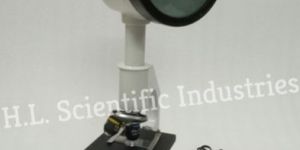

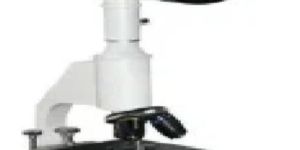

The structure of microscopic specimens becomes visible to the naked eye by taking the projection on the screen, during observation and demonstration to a group of students. The microscopes are compact in design and can easily contrast and distortion free magnified images on a fine ground glass screen. Body - Monocular Fixed Straight Tube, length 160mm. Nosepiece - Triple revolving nosepiece with accurate centering and positive click stops Stage - Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.   Illumination - 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator. Objectives - Achromatic 4X - 10X- 40XSL. Eyepieces - Huygenian 10X and 15X Screen - 150mm diameter Glass Projection Screen is provided, can be rotated over 360° on Microscope tube. Model PRM-11 - All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage. Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.

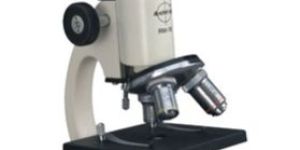

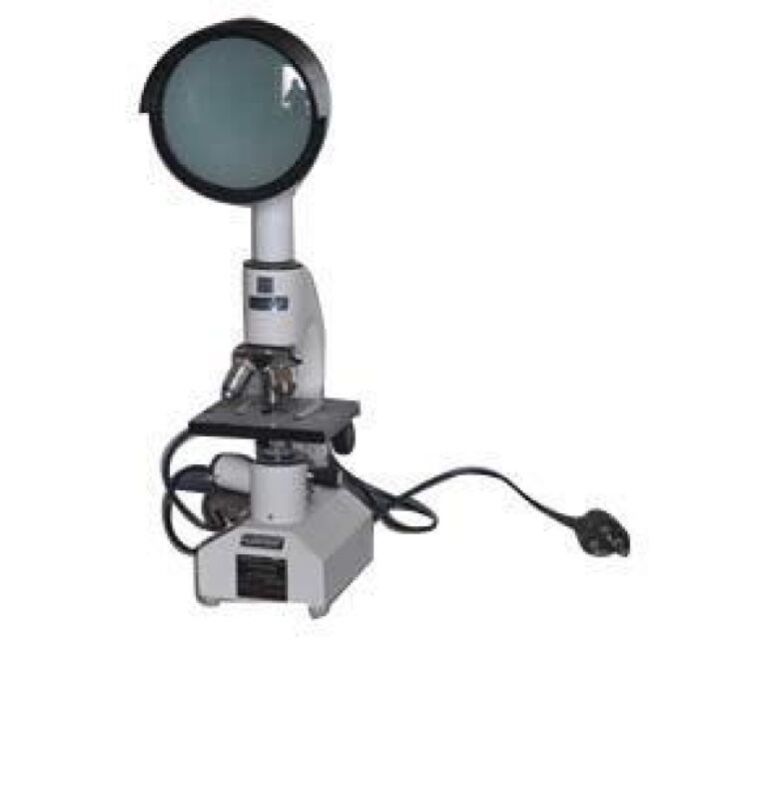

We offer Student Projection Microscope. A standard student microscope with built in transformer (solid state) base with continuously variable light control. Triple revolving nose piece to carry two achromatic objectives 10x, 45x. Two huygenian eye pieces 10x & 15x have been provided. A 100mm dia, projection screen attachment has been provided to achieve projection for group viewing of slide image. Illumination by 12v-20w halogen bulb. Packed in a card-board box.

We are offering kx 2000 binocular compound microscope. Kx 2000, c shaped sturdy stand siedentopf binocular tube, 30° inclined, 360° rotatable, ipd 48-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x18mm paired with eye guards quintuple nosepiece (ball bearing type) fp series din plan achromatic objectives 4x, 10x, 40x (spring loaded) and 100x (spring loaded, oil immersion) stage rectangular size 142 x 133mm double plate with mechanical stage cross travel 75 x 50mm on ball bearing with co-axial control, spring clip double slide holder sub-stage abbe condenser na 1.25 with aspheric lens. Iris diaphragm and special day light blue filter co-axial coarse and fine focusing mechanism with tension control illumination system 6v-20w halogen with intensity control. Power input 220v ac

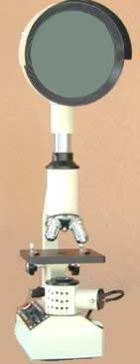

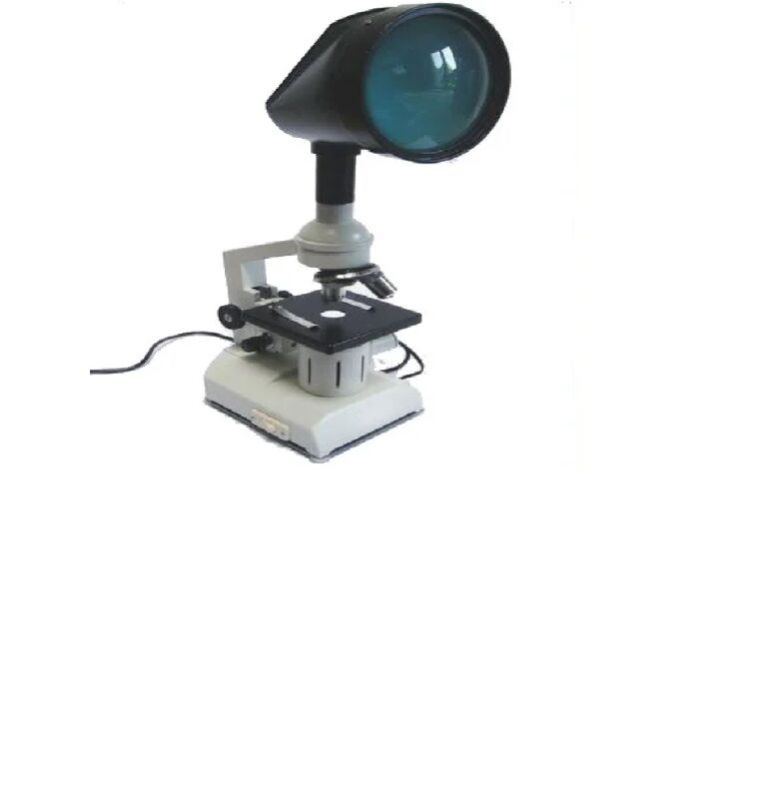

The Projection Microscopes offered by us have a Body Monocular Fixed Straight Tube of length 160mm. The Projection Microscopes are equipped with a triple revolving nosepiece with accurate centering and positive click stops. In addition, the Detachable Mechanical stage is provided for X-Y cross movement 50X75mm. A fully graduated vernier scale is also provided. Illumination 20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator. Objectives Achromatic 4X - 10X- 40XSL. Eyepieces Huygenian 10X and 15X Screen 150mm diameter Glass Projection Screen is provided, can be rotated over 360-degrees on Microscope tube. Model Only With 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage.

Monocular Fixed Straight Tube, length 160mm. Nosepiece•Triple revolving nosepiece with accurate centering and positive click stops. Stage•Mechanical stage of 120x120mm. Illumination•20W lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator. Objectives•Achromatic 10X- 45XSL. Eyepieces•Huygenian 10X Screen•150mm diameter Glass Projection Screen is provided, can be rotated over 360-degrees on Microscope tube. Included ItemsIncludes: Instruction Manual, Dust cloth, Dust cover,

A greatly enlarged image of the specimen slide is projected on the screen, providing a high contrast, sharp and distortion free image. The microscope is highly suitable for group discussions as well as for teaching purposes.

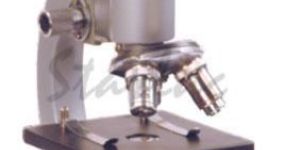

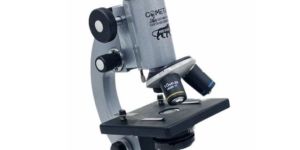

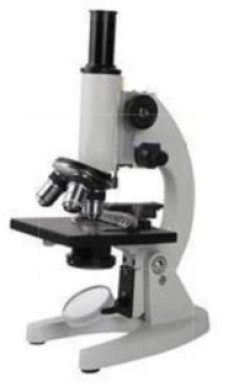

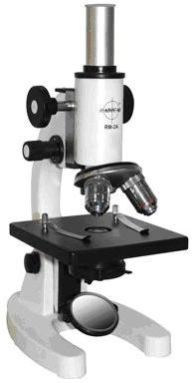

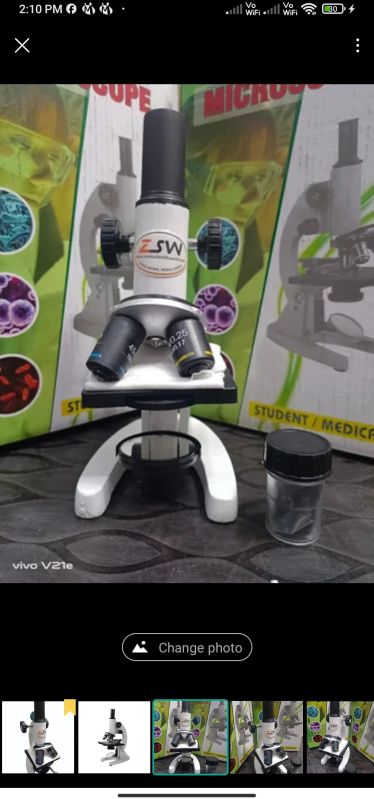

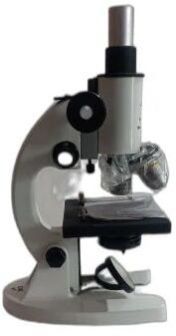

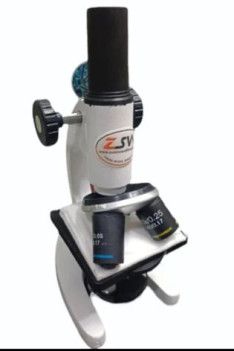

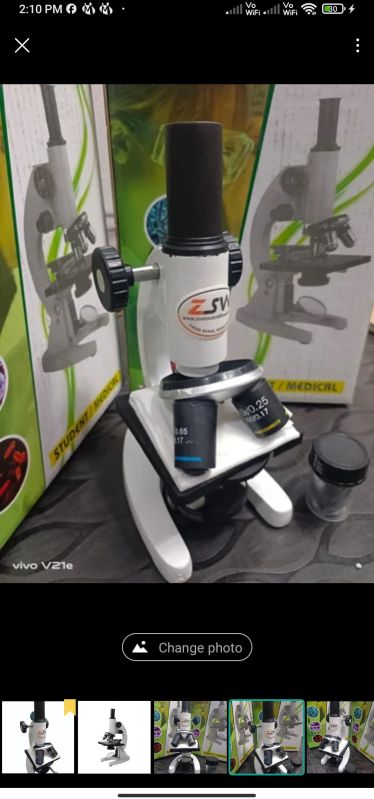

Compound Student Microscope   (MS-4505) New improved model as per ISI specifications with coarse and fine motion, triple revolving nose piece and iris diaphragm with fixed condenser N.A. 1.20 complete with optics in theremocole and wooden box. Eye Pieces : H 10x and H 15x Objectives : 10x and 45x

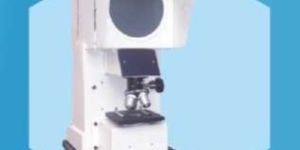

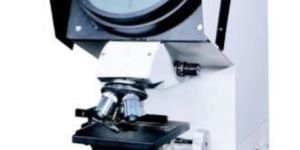

We Offer Projection Microscopes. Observation Screen 200mm Graduated Screen, Built-in Fresnel Lens, Loop and Arrow Arrangement and Coaxial Mechanical Stage. Nosepiece quadruple Revolving Nosepiece magnification provide Magnification from 125x to 1000x. Illumination halogen Lamp 12 Volts, 100 Watts, Workable On 220v Ac. Objectives 5x, 10x, 20x, 40x. Model Prm-18 latest and Most Advanced Projection Microscope with Binocular Head with Switch Over System Facilitating Observation of Specimen Through Binocular Head as Well as On the Screen. Objectives: 5x,10x,20x & 40x eyepiece: wf 10x Paired.

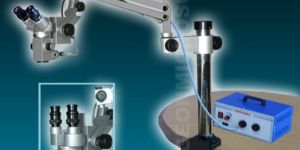

We are offering surgical operating microscope cold light provides high intensity with flexibility in operating. It is focused with built in manual 3 step changer for continuous adjustment. It is based on optical light guide system and checks the interior part of the eye. specifications microscope section binocular tube : 45° inclined eye pieces : 12.5x 10x 16mm dioptric adjustment magnification changes : built in manual 3-step changer total magnification : 7.5x, 12.5x, 20x field of view : 37.8mm, 23.5mm, 14.5mm, 9.5mm working distance : 200mm interpupillary distance adjustment : 55 mm to 75 mm illumination section type : by optical light guide system light source : 15v150 watts halogen lamp illumination control : continuous adjustment field of illumination : 70mm filter : cobalt blue, red free, heat absorbing filter stand section type : floor stand vertical range of counterbalanced arm : 400 mm general information base size : 600mm x 550mm weight: 50kg. Height : 1550 mm electrical power : ac 220v, 240v, 50 60 hz power consumption : 220 va 110v is also available optional accessories beam splitter with ccd camera attachment ccd camera table clamp attachment optional accessories are listed as separate items in "accessories" section under products, there brought separately.

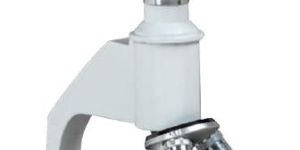

We are actively engaged in providing high quality Projection Microscope. Our Projection Microscope provides high reliability and is known for excellent durability. The Projection Microscope we provide is known for easy operation and excellent reading. The Projection Microscope is being used widely in various educational institutes, pathological and research laboratories. Projection Microscope is also being used in Textile industry by fixing micrometer eyepiece. Product Details : This microscope has a specially designed projection lamp with 6v/20 watt Halogen Bulb to give the best possible performance and brightest light. Inclined shaped attractive body with 15cms. dome (screen), detachable mechanical stage and optical combination of : One eyepiece :10x Two objectives :10x,20xThree objectives : 10x, 20x, 45x Other Optional Accessories : Micrometer Eyepiece :10xWall-Projecting Attachment : An attachment to project the image on wall- screen upto a distance of 5 feet which is useful for making drawings, thus serving the purpose of a microslide .

Medical Projection Microscope – IT is an advanced versatile projection equipment for measurement of specimen, equipped with bright halogen bulb 12 volts, 100 watts solid state variable light control arrangement workable on 200 volts AC mains inter locked with electronic fuse system, Quadruple revolving nose piece, 125mm dia graduated screen rotatable through 360o built in fresnel lens, mechanical stage. Built in adjustable compensating eye piece connected with magnification correction knob to provide magnification from 125x to 1000x with following optical combination supplied with one stage micrometer for measuring one spare fuse and cover in sturdy card board box objectives: 5x, 10x, 20x and 40x.

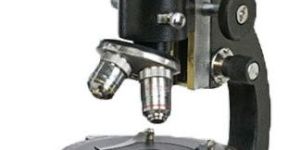

We offer Simple Polarizing Microscope. Simple Polarizing Microscope (SPM-600) Student Polarizing microscope (SPM-600) It has been designed extensive routine work of industries as well as scientific examination in Geochemistry, Mineralogy, Petrography, Metallographic, Biology, and branches of Pharmacology BODY: Economical and learning Student Polarizing Microscope comes with stable Horse-shoe type base body. OBSERVATION TUBE: Monocular fixed 90°straight tube. OR 45° Inclined monocular tube. Its tube Length 160mm. FOCUSING SYSTEM: It has separate Coarse & Fine Focusing knobs Mechanism NOSEPIECE: Triple revolving nose piece with positive click stops SPECIMEN STAGE: Round and 360 degree rotatable GYPSM plate with two stage clips for holding the specimen slides. It comes with the attachment of BERTAND LENS, ANALYZER, FULL & HALF WAVE COMPENSATOR inside the tube .
