Industrial Control System Dealers in Thane

MCC/PCC/ DB Specification : CONSTRUCTIONAL FEATURES : The Design of the PCC/MCC panel is robust and rigidly constructed to suit a wide range of industries and buildings. The supporting structures which form the framework are made up from 2.0 mm thickness steel sections, fully pressed and punched by CNC machines.The door covers, partitions and panel parts are fabricated with CNC machines for high precision and accuracy. Base degree of protection is IP42. Higher degree of protection like IP54 or more can be manufactured on request. Samcon switchboards can be supplied both with top and or bottom entry.FINISHES : Samcon pays great attention to the standard of workmanship and finishes. To ensure high quality finishing, all metal parts undergo thorough chemical treatment for anti-rust and epoxy powder adhesion. As standard, epoxy powder coating of 70 micron is applied evenly on all metal surface and oven baked at an average temperature of 150°C.BUSBARS :Non-insulated or insulated high conductivity copper/Aluminum busbars with neutral are housed at the top section of the cubicle. The main busbars are mounted and supported on SMC busbar supports. The busbar chamber is housed in a separate compartment on top of the cubicle with facilities for segregation. Maximum temperature rise is less than 70°C on an ambient of 40°C.INTERNAL SEPARATIONS OF ASSEMBLIES (FORM 1, 2, 3 AND 4) :Samcon switchboard can be provided with partitions for protected spaces according to Form 1 to Form 4. The form of separation according to the latest IEC60439-1:1999 offers an internal protection of minimum IP2X or more.WIRING :The entire wiring is done with high grade bright copper annealed standard PVC or FRLS or HR FR insulated flexible wires. Control wiring is carried with minimum 1.5 sqmm Gray wire & CT wiring is done with 2.5 sqmm Gray wires. DC wiring is done with 2.5 / 1.5 sqmm white wire. All doors are earthed with the help of 1.5 sqmm yellow green wire.. Electronic Card signal wiring is done with 1 sqmm Shielded wire.Cable Chamber : Cable Chamber of adequate size is provided on the side of Each Vertical with sufficient no of Cable Tie bars. Each Terminal block is provided with the identification markers & feeder designation sticker. Control & Power TB’s are separated from each other. Each Cable Chamber is provided with panel illumination CFL lamp with door switch & heater & Thermostats are provided optionally.Component Identification : All the base plates are neatly mounted with necessary electrical components to ease the wire routings & wherever necessary PVC Trufs are provided. The component Identification stickers are provided both on the components & base plates. Drawings :Following Drawings are provided to the customer before starting the manufacturing of PCC/MCC of the panel a) General Arrangementb) Single Line Diagramc) Bill Of Materiald) General Notes e) Control Circuits After manufacture & testing of panel as built diagram are provided.

We are a leading Manufacturer & Supplier of Control Panel such as Electric Control Panel, APFCR Control Panel, SYN Control Panel, MCC Control Panel, Plumbing Control Panel, VFD Control Panel.   Control panels of Teksan Generator contain various indicators and meters to ensure easy and safe operation of the generator sets. Special control panels are designed according to customer requests. Manual Control Panels Designed to be used when mains power is not available or when it is aimed to start/stop the generator set manually. Control and protection functions are realized with micro processor based control module. The modes of operations are selected by pushing the front panel buttons. Automatic Control Panels Provided with emergency generator sets, starts and stops the generator set automatically in case of a mains failure with complete control and protection functions. These functions are realized with micro processor based control module. The modes of operations are selected by pushing the front panel buttons. Synchronization Control Panels Synchronization control panels are built for each generator set in synchronization systems. The generator sets are started and stopped automatically by these panels depending on the load levels allowing economic use of the available sets. Features: Precisely designed Rust proof Excellent functionality

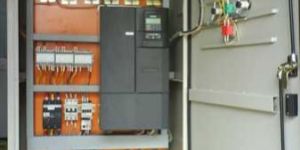

We manufacture, export and supply state-of-the-art VFD Panels. The VFD Panels are manufactured in compliance with the existing industrial standards. Fitted with top quality, damage-proof components, the Variable Frequency Drive Panels are the right choice for motor control applications. We can provide various types of VFD Panels depending on the requirements of the clients. Why Our VFD Panels? Advanced designReliable performanceLong functional lifeTotal value for money

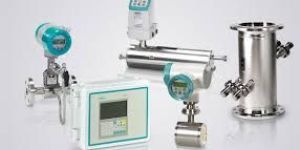

level, flow, pressure, temperature, sensing technology, man machine safety, motion controls, electrical controls and mechanical controls. our skills are perfectly complimented by the products which we source from world renowned principals like siemens and abb.

We are counted amongst the prominent Alarm System Main Panel Suppliers based in India. Alarm System Main Panel has a brain of the system with different iAlert stations. These iAlert stations provide Central Monitoring Service. A remote detection device is installed at commercial and residential sites, which transmits alarm signals through security panels and telephone lines. These Alarm System Main Panels make use of alarm receivers, telephone lines, specialized software, servers, etc. for notifying the problem to pre-designated person or any other authority. This Alarm System Main Panel ensures 24x7 monitoring of the establishment against any security breach or emergency. Main Components Of Alarm System Main Panel : Main panelKey FobMagnetic sensorMotion sensor

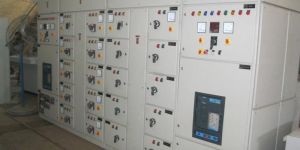

Used for power distribution, Power Control Centre Panels are required by various industries. Our company is Manufacturer, Exporter and Supplier of energy-efficient Power Control Centre Panel in Thane (Maharashtra). We offer Power Control Centre Panels in various specifications and can customize them as per requirement of customers. Buyers can order them from us at market leading prices. Our Power Control Centre Panels are the best, as they are easy to install and require low maintenance.

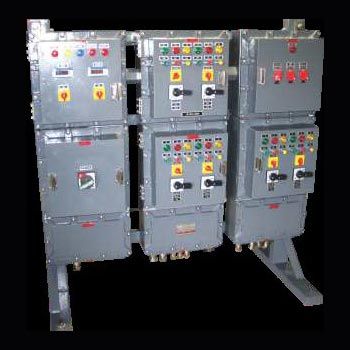

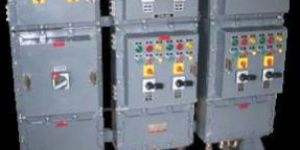

Shree Flameproof Industries Manufacturer, Exporter and Supplier of Flameproof INSTRUMENTATION PANEL. Owing to our contemporary fabrication facilities and a competent team of diligent personnel, we design all design of Flameproof INSTRUMENTATION PANEL in varied specifications. These panels are quality tested and approved by the authorities. High efficiency, low maintenance, easy operation and optimum durability are some of the prime features of our Flameproof INSTRUMENTATION PANEL.

Dosing Panel Electronic dosing  pump for controlled  feeding of  liquid finishing compound.  One or more pumps as per process requirement. Rotameter1  for regulating water quantity mixed with finishing compound for diluting to     required strength. Rotameter2  for regulating water in larger quantity during wash operation. Usually dosing panel operation is controlled by PLC panel

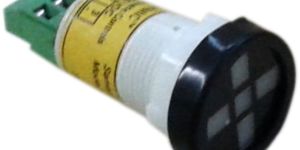

We are offering semaphore indicator. Rated insulation voltage (ui) :- ac, dc 250v rated operational voltage (ui) :- dc 240v, 30v, 48v, 100110v, 125v, 200220v voltage fluctuation range :- + 15% rated operational current (ie) :- 11ma max insulation resistance :- 1000mω over impulse withstand voltage :- +4500v, 3times for each pole(1.250µs) shock resistance :- 490ms2 durability :- over 10000 cycles degree of protection :- ip52 operating temperature :- -20 to 600 c storage temperature :- -30 to 750 c relative humidity :- 45 to 85 % altitude :- max 2000m compatible copper conductor :- awg 20 to 14 mounting plate thickness :- 1 to 6 mm confirming to standard :- iec 60947-5-1 iec 60947-1

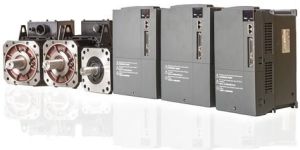

DA200 Series AC Servo System is a new generation star product made by INVT, which  is greatly improved in performance.It can satisfy needs in many different fields with its easy use, high reliability and good adaptability to the environment. DA200 Series AC Servo System achieves the first level in servo control field in China. Application： DA200 series servo system is widely applicable to CNC industry, electronic equipment, printing equipment, packaging equipment and woodworking machinery, etc. The features of the DA 200 AC Servo System are as follows：   1 Rapid speed response Speed response frequency is more than 2.0 kHz，reducing the adjusting time and ranking the top in the circle.   2 Excellent positioning accuracy 2500-wire incremental, 17/20-bit absolute and 16-bit rotating transformer encoders are applied to increase the positioning accuracy and enhance the stability.   3 Close-loop control Support the external encoder or grating ruler for full closed loop control and the gap shadow reduction and higher positioning accuracy.   4 Internal position control 128-step internal position control and simple programming through terminals combination for less PLC units and cost.   5 Various communication interface Modbus, CANopen, PROFIBUS-DP,  EtherCAT, MotionNet and other bus communication, long-distance, high-speed multi-axis synchronous control through networking.   6 CAM function Embedded CAM function for the flying shear, paper printing, textile sending and so on. The user can make or modify the internal cam curve automatically or manually through PC software.   7 Input and output signal distribution channels of digital and 6 channels of analog input and output signal can be distributed by parameters. ServoPlorer software can be modified by special interface.

We are the prominent manufacturer, supplier and service provider of Electric Panels for our precious clients. We have specialized in production of high quality PLC Panels and all types of electric panels for industrial purpose. we offer wide ranges of panels & Our offered range is appreciated among clients due to their excellent performance, high durability and longer service life. Further, we offer automation & controls panels for process controls, conveyors panels for water & waste water, textile, paper, plastic, pharmaceutical, chemical & various other industries. PLC Control Panels are used in process plants for plant automation purpose. We design, select and supply complete instrumentation required for such Instrumentation panels with instruments like indicators, controllers, recorders, annunciators and many process instruments. PLC Control Panels we manufacture are highly capable of giving higher output at less power consumption. Integrated with solid PLC logic and flawless PLC hardware programming.   Greenhouse Control Panel can aid the home gardener or professional horticulturists by automatically adjusting temperature, humidity, and light intensity from within the greenhouse or from a remote location. Greenhouse Control Panel will improve plant life within greenhouse by providing a constantly monitored atmosphere, producing a more uniform product. Specific Application Areas »Storage, warehouse and cold storage. »Building management / HVAC Systems. »Energy Management & Energy Saving Systems. »Pharmaceutical, Laboratories, Bioscience. »Climate Test Chambers. »Computer Server Rooms. »Green Houses, Agriculture farms. »Healthcare, Hospitals, Shopping Malls.

The Motor Control Panel that we manufacture are widely used and appreciated by our customers because of their quality. Made up of finest quality raw material, these products are available in several specifics such as Motor Control Panel with single phase prevented, reverse phase, under voltage and over voltage protectors and over current protectors with power factor balance. Certain distinguishable features of this product are stated below: • Protection from over load and short circuits • Longer life operation • Longer service life • Easy installation • Detects changes in frequency of current

We are the prominent manufacturer, supplier and service provider of Electric Panels for our precious clients. We have specialized in production of high quality PLC Panels and all types of electric panels for industrial purpose. we offer wide ranges of panels & Our offered range is appreciated among clients due to their excellent performance, high durability and longer service life. Further, we offer automation & controls panels for process controls, conveyors panels for water & waste water, textile, paper, plastic, pharmaceutical, chemical & various other industries. PLC Control Panels are used in process plants for plant automation purpose. We design, select and supply complete instrumentation required for such Instrumentation panels with instruments like indicators, controllers, recorders, annunciators and many process instruments. PLC Control Panels we manufacture are highly capable of giving higher output at less power consumption. Integrated with solid PLC logic and flawless PLC hardware programming.   Greenhouse Control Panel can aid the home gardener or professional horticulturists by automatically adjusting temperature, humidity, and light intensity from within the greenhouse or from a remote location. Greenhouse Control Panel will improve plant life within greenhouse by providing a constantly monitored atmosphere, producing a more uniform product. Specific Application Areas »Storage, warehouse and cold storage. »Building management / HVAC Systems. »Energy Management & Energy Saving Systems. »Pharmaceutical, Laboratories, Bioscience. »Climate Test Chambers. »Computer Server Rooms. »Green Houses, Agriculture farms. »Healthcare, Hospitals, Shopping Malls.

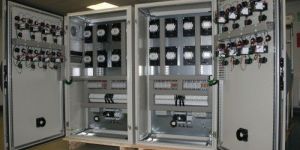

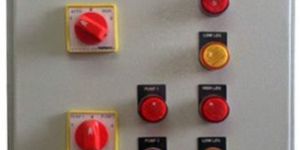

We are offering control panel. we have a wide range of control panels that are in-house manufactured as per the latest technology. The control panels are available in standard as well as customized forms and can be availed as per the client requirements and specifications.

Our company manufactures and supplies international standard Drive Panels which are made up using the high quality raw material and advanced technology. These Industrial Drive Panels cater the various requirements of electronic and automobile industries. VFD  Panel are used as power saving, automation devices and are now need of the hour. Our Custom Drive Panels are developed on custom-basis according to clients’ preferred specifications and exact needs, they expert for. Our Drive Panels find applications in the following areas: Processing units Commissioning Machine automation Factory automation Site supervising Pumping application
