Industrial Control System Dealers in Kolkata

We hold specialization in designing and manufacturing a quality assured range of Instrument Panels. These instrument panels are designed for application in several industries such as aircraft applications. These panels are easy to handle and are offered to our clients in standard and customized options as per their specifications.     Features:  * Excellent quality raw material used* Smooth finish * Easy to understand* Colored buttons for better operation

Extensively used in continuous process plants, the Drawout MCC Enclosures also known as (Drawout Module, Drawout Trolley, With drawable Module, With drawable Trolley, With drawable MCC) offered by us ensures minimal downtime. The 50 kA short circuit tested appliance can be used for switchgear assembly & wiring. Our product helps in increasing the efficiency and remarkably reducing the downtime.

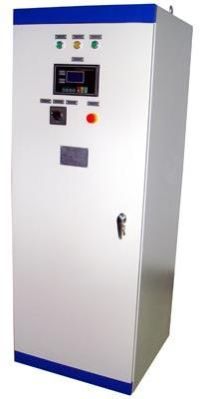

We are listed among the leading Genset Control Panel Manufacturers, Suppliers and Exporters from Kolkata, West Bengal. We offer technologically advanced Genset Control Panels that are fabricated in our own in house manufacturing facility, and is equipped with wear resistant spares and advanced technology. The Genset Control Panels offered by are perfect example of modern engineering and are therefore termed as the best available in the market. Why our Genset Control Panels?Modern engineering and designEquipped with two tier configurationFully or partially drawn out patternsDifferent variantsEnergy efficient VariantsStandard Genset control panelAMF Genset control panel Used inProcess industriesPower Control CentersMotor Control Centers

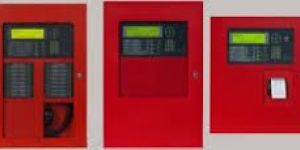

Feature     ☆  8 x Loops (242) capacity (1936) addressable points    ☆ Maximum 10 Loops Standalone    ☆ Modular constructed for future expansion    ☆ 40 x15 lines LCD Display    ☆  Up to 999 programmable zones and 140 zones indication    ☆  Day and Night Mode    ☆  Enable and Disable function    ☆  PAS and Acknowledge Function    ☆  Dirty Detector Reporting    ☆  Duplicate Address Checking    ☆  Device Mismatch Checking    ☆  Walk Test Function with optional silent mode    ☆  Programmable from PC or Panel    ☆  History record - 999 fire incident and 999 general events capacity in non-volatile memory    ☆  Advanced user friendly programming software including ‘Fuzzy Logic’    ☆  Networkable with GST Intelligent Fire panels up to 64 nodes    ☆  Optional GST-GMC graphic station    ☆  Optional RS 485 mimic and repeater up to 64    ☆  Built in Fire Alarm, FPE, Fault and Alarm Router output    ☆  Panel Printer included    ☆  Built in Battery Charger    ☆  Optional protection of re-programming    ☆  Approved by LPCB Technical Specifications      ☆ Standard: EN54 Part 2/4    ☆ Approvals: LPCB, CE    ☆ Main Input Voltage: 220/230VAC (± 10%) 50/60 Hz    ☆ Input Current Rating: 1.0A    ☆ System Operating Voltage: 24 VDC Nominal    ☆ Loop Capacity: Loop 1-10: 242- Address per loop    ☆ Zone Capacity: 999 Zones programmable    ☆ Outputs (3):               Fire Routing: 200mA /24Vdc/4.7KΩ EOLR               F.P.E. Output: 500mA /24Vdc/4.7KΩ EOLR               Sounder Circuit Output: 1A /24Vdc/4.7KΩ EOLR    ☆ Dimension: (HWD) 850 x 484 x 191 mm.

We are a deep rooted name as one of the Power Distribution Board Suppliers. We have Power Distribution Board such as Tested Power Distribution Board etc. Our Power Distribution Board is mainly used to distribute direct current or DC power from one supply to other devices. Our Power Distribution Board monitor and protect DC systems and serves as an effective power distribution system.

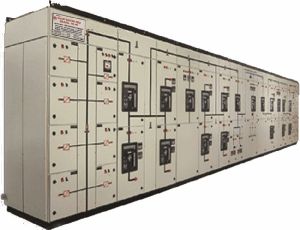

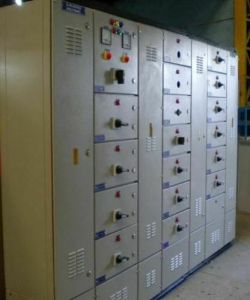

We are ISO 9001: 2008 Manufacturer, Exporter and Supplier of Electrical Control Panel Boards from Kolkata, West Bengal. Our Electrical Control Panel Boards are fabricated by engineers who have more than 30 years of industry experience and thus buyers can rest assured about quality and efficiency. Making the most of their theoretical and practical knowledge, our engineers infuse innovative ideas and technology in the designing of Control Panels. Thanks to their, we can even provide Customized Electrical Control Panel Boards.   Our Range :- LT Power Control Centre (PCC) up to 4000A LT Power Distribution Panel (PDB) up to 4000A Motor Control Center (MCC) Non Draw out type Outdoor type Feeder Pillar Control Desk Mimic Panel Instrument Panel Furnace Control Panel Protective Relay Control Panel up to 132kV substation Push Button station Indoor & Outdoor type Junction Box (JB) Lighting Distribution Board (MLDB, LDB & SLDB) Capacitor Panel for Power Factor Improvement System (APFC) Air Pollution Control Panel Outdoor type Feeder Pillar Indoor and Outdoor LT Bus duct. Auto Mains Failure (AMF) Panel Synchronizing Panel for Generator

The company is chief Manufacturer & Supplier of Solar Panel. The Solar Panel offered by us is acutely designed and manufactured by our team of experts. The Solar Panel w supply are high on demand because of the unique features like sturdy make, efficient performance, low cost maintenance and long working life. Clients can avail durable and highly functional Solar Panel from us at the market leading prices.

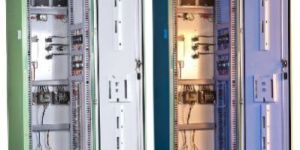

 We are also known for the production of control and relay panels, which is advanced and can be found in different models according to the customer’s requirements. Our panels are available in a range that revolves between 6.6 KV to 66 KV. We use advanced controller and protection relays for trusted and long lasting solution. We provide our clients with the complete package for power management step by step. SPECIFICATION Rated Insulation Voltage: 690 Volt AC Rated Operator Voltage: 110V (±10%), 220V (±10%), 415V (±10%) AC System: 3-Phase, 3 or 4 wire, 50Hz Withstand voltage: 8 KV for 1 Sec Rated Current: 100-6300Amp Fault level: 50KA for 1 Sec Ambient Temperature: 50°C Busbar Support: AL/CU as per client requirement Method of Cooling: Natural Process Degree of protection: IP-42, 54, 55 Dimension (mm): As per requirement Current Monitoring: As per requirement Phase Monitoring: Possible as per requirement Type test to be performed: Short Circuit with Stand temperature rise with stand & Degree Protection. Cable Entry: Top or Bottom option Panel Cote: 7 tank Powder Coated Paint or as per Client’s requirement. Paint: RAL9002 or as per client requirement Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame

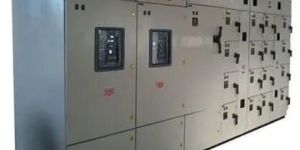

Modular construction with either top or bottom cable entry. Single or double front. Up to 6000Amp.with Aluminum or Copper bus. Design compactable for 35KA/50KA & 65KA as per the requirement. Extensible at both ends. PLC interlocking for complicated schemes with double bus system.

We are offering conventional and microprocessor based fire alarm control panels that is designed as to fulfill the need of fire alarm control systems in every industrial, institutional and residential area. these are highly durable, reliable, cost-effective and automated. We offer these fire alarm control panels in different zone capacity.

Rated Current up to 3200 A. »Fault Level up to 50 kA for 1 Sec. »Construction of Panel – Form 3B/4A/4B. »Single Front / Double Front.

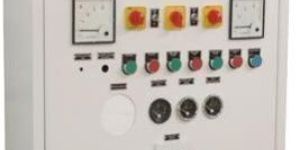

Complete with AMF Controller / Relay Based Panel capable to change over the supply from Mains to DG with necessary protections. We are Gujarat’s leading manufacturer and supply best qualityElectrical AMF Panelsdue to our vast experience and knowledge of this domain. Precisely engineered in accordance with the industry set standards, these AMF control panels are used for the purpose of supplying emergency power in case of main power failure. Offered panels are available with us at industry leading prices. AMF Panel is one of our product which can be used for automatic change over between Mains and DG supply. We offer AMF Panel with necessary switchgears like ACB / MCCB, Contactors, AMF Relay, AC MF Meters, DC Meters, Battery Charges etc and necessary protections. By installing this panel one can get power from DG at the time of failure of Mains and it will shut off the DG when Mains restores. As special features we can provide engine safety features like Low Lub Oil, Oil Temp. High, Charge Low etc.Features: High functionality Low cost of maintenance Smooth finish

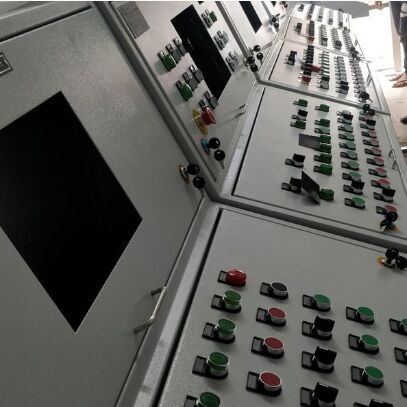

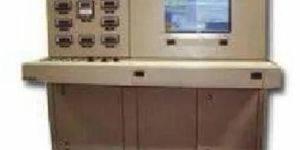

We provide highly functional range of Control Desk & Mimic Panels that is used for accurate demonstration of process plant where control panels and desks are used. With the help of this panel, one can view the whole plant sitting at one place so that we can easily recognize the status of operation or fault.

The Thyristor controlled panel supply the fully controlled Voltage and current to the Primary of the Transformer-Rectifier Set of ESP. It is a 2mm thick sheet steel powder coated encloser consisting of Switch fuse Unit, Contactor, Relays Control Transformers, Thyristors, Protection Circuits and a Micro-processor based controller. It supplies required voltage to the TR Sets from single phase 415 volts input by controlling the firing angle of two Thyristors connected back to back. Four nos of analouge meters mounted on the panel door indicate Primary voltage, Current and Secondary Voltage (kV) & Current (mA). Four nos of 22.5 mm LED lamps indicate Supply on, TR on, system Warning & System Trips respectively. It also gives the audiable sound during warning and trip. All types of safety & security interlocking facilities are provided. The thyristor control panel can also be designed and manufacture as per the customer requirement.
