Washing Machine Components Dealers

Varies ranges : from 0 to 150 mm wc up to 0 to 600 bar differential (dead band) : fixed (within 10% of set value) temperature range : -10 to 80 degree c (for high temperature use of impulse tube is advisable) accuracy : +- 1% to 2% fs no. Of switches : one no. Or, two nos. type of switches : micro switches - spdt sensing element : diaphragm (ptfe or neoprene or ss 316) or piston enclosure : dustproof ip 40, weatherproof to ip 54 ip 65 ip 66, flameproof

The WPG-G-PS3 pressure switch is a cost effective pressure monitoring solution for liquids and non aggressive gases. The compact design and rugged construction makes the WPS-G suitable for monitoring pumps, valves, etc. The unit has an adjustable setpoint with adjustable differential and comes complete with a dial to show the liquid pressure The WPG-D-FD113 differential pressure switch is a low cost effective pressure monitoring solutionfor liquids and non-aggresive gases. The unit is designed for both flow proving and flow failure detection to cover the range of 0.3 to 4.5 Bar (4.35 to 65.25 Psi). Approximate setpoint can be viewed on the dial at the front of the unit. WPS-G-PS3 - Liquid Static Pressure Switch. WPS-D-FD113 - Liquid Differential Pressure Switch.

we are actively committed towards trading, exporting and supplying well tested Pressure Switches. Offered switches are used in diverse industries to serve varied applications. As per the industry set norms, these switches are manufactured with the help of premium quality components and the latest technology at vendors’ end. Apart from this, we provide these switches in different specifications and at nominal rates.

Due to cooling of compressed air, condensation of oil & water vapour takes place in Moisture Separators, Air Receivers, Filters, etc. Regular draining of these equipment is an essential maintenance function. By installing Auto Drain Valves, you can ensure that all equipment of the Compressed Air System get drained regularly without manual dependence, except for periodic checks. Low cost timer based ADVs are commonly used, but for larger Systems, zero air loss level based ADVs are used

Automatic drain valves are used to remove accumulated water particles from the air line equipments.ANNAIR has developed different varieties of Automatic drain valve with respect to the application and ease of operation. Duel timer, solenoid operator. Dual Timer Pilot Air operator. Dual Timer solenoid operator high pressure. Mechanical float type. Single timer, solenoid operated. Zero air loss/ float type. High pressure ( 40 Bar) Drain valve. High discharge, pilot air operator.

Based in Maharashtra (India), we are a distinguished Manufacturer, Exporter and Supplier of Auto Drain Valve. Mechanical Auto Drain Valve and Electrical Auto Drain Valve are the types of Auto Drain Valves that we offer. Our skilled professionals utilize premium grade raw material and modern technology to design Auto Drain Valve in different specifications. This valve automatically drains the water from compressed air system. It is extensively used in air dryers, separator filters and drop legs. Our Auto Drain Valve features user-friendly time functions to ensure controlled operation and optimum efficiency.

We have in store with us a superior quality range of Flow Switches which are manufactured by using latest technology and machinery. Flow Switches are mainly used for observing flow rate of air, steam and liquid in pipes for all the HVAC applications. Our offered product covers the flow range of 1-6 LPM upto 20Nb size & required flow for higher size upto 200Nb with accuracy, superior finish, rugged built, corrosion resistance and durability. Customers can avail the offered product equipped with latest techniques at most reasonable prices from us.

We are offering flow switch. Creating a niche of explosion-proof flow switch such as explosion proof flow switch 12" and explosion proof flow switch 1" at its best, with utmost quality.

Flow switches when the float passes up in front of the switch the switch becomes open. (Break to alarm) Even if the float goes up beyond the level the switch remains open i.e. it latches off. Unless the float comes down and goes below the high level, the switch will not turn on. Thus the switch is Bi-stable with stable states.

Draining of Compressed air equipment such as Air Receivers, Moisture Separators, Filters, etc. is commonly done by low cost, timer - operated Auto Drain Valves. While these are effective in their functioning, they will open at the set time whether there is any condensate to be drained or not. This will result in loss of compressed air (and hence loss of energy), when there is no condensate to be drained. The 'LEVEL SENSING Auto Drain Valve operation is level - based without any timer. The ADV has a Reservoir (in which condensate accumulates) connected to a drain valve which opens when condensate level reaches the top and closes when condensate level reaches the bottom. These operations are carried out by sensors placed at different levels of the reservoir. By this method only condensate is drained when the ADV opens and there is no loss of compressed air, resulting in saving of energy. The reservoir & valve sizes are matched with the size and type , equipment to be drained, so that the ADV does not operate too frequently. Isolation valve & strainer are provided along with the ADV, for easy cleaning & servicing.

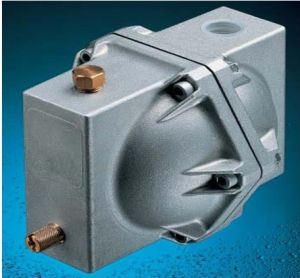

  Housing in aluminium Floating and arms in stainless steel Manual drain brass valve Gaskets oily resistant     When the condensate is collected on the bottom of the drainer, the floating goes up and open the drain. When the condensate level returns to the previous status and stop the drain. It is possible the manual drain through a valve.

A pressure switch for sensing fluid pressure contains a capsule, bellows, Bourdon tube, diaphragm or piston element that deforms or displaces proportionally to the applied pressure. The resulting motion is applied, either directly or through amplifying levers, to a set of switch contacts. Since pressure may be changing slowly and contacts should operate quickly, some kind of over-center mechanism such as a miniature snap-action switch is used to ensure quick operation of the contacts. One sensitive type of pressure switch uses mercury switches mounted on a Bourdon tube; the shifting weight of the mercury provides a useful over-center characteristic. The pressure switch may be adjustable, by moving the contacts or adjusting tension in a counterbalance spring. Industrial pressure switches may have a calibrated scale and pointer to show the set point of the switch. A pressure switch will have a differential range around its setpoint in which small changes of pressure do not change the state of the contacts.

A Flow switch is normally a simple device that monitors flow and sends a trip signal to another device such as a Pump to protect it. Flow switches are used for Pump protection, Cooling Circuit protection, high & low flow rate alarm and general flow monitoring. 32

A prominent supplier of huge range of flow control switch.
