ApplicationHandling Smooth Bottom Materials And Pallets
Special FeaturesOperated Through Gravity Or Manually

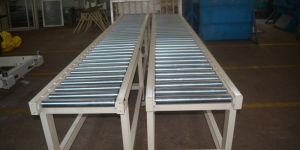

Roller bed conveyors are manufactured for handling heavy load as well as longer material transfer distances are required. Therefore, Free (or) Gravity Roller Conveyors and Power Roller Conveyors are manufactured with respect to customer’s requirements. FREE (or) GRAVITY ROLLER CONVEYOR : Free roller conveyors manufactured for handling smooth bottom materials and pallets. Free Roller conveyors move the load without utilizing motor power sources. SPECIAL FEATURES : Operated through gravity or manually No Electrical motors required Low maintenance Metallic and Nonmetallic rollers available Handles weight from 10 to 4000 kg
Roller ShaftSpring-Loaded, Threaded, Or Female-Tapped
Load Capacity Range20 Kg To Over 300 Kg Per Roller
Operating Temperature Range-10°C To +120°C
ResistanceRust, Water, Chemicals, Cleaning Agents
These rollers are precision-manufactured using stainless steel tubes with machined or pressed stainless steel end caps. They are fitted with high-quality sealed or shielded ball bearings for smooth rotation and minimal maintenance. Outer diameters typically range from 38 mm to 89 mm, with tube thicknesses between 1.2 mm to 3 mm. The roller shaft may be spring-loaded, threaded, or female-tapped, depending on mounting requirements. Load capacities range from 20 kg to over 300 kg per roller, depending on size and construction. The surface can be plain polished, knurled, or rubber-coated for grip. These rollers can operate in temperature ranges from -10°C to +120°C and are resistant to rust, water, chemicals, and cleaning agents. Lengths are customizable to fit frame widths of various conveyor systems
