Maximum Working Pressure16 bar (tube-side), 10 bar (shell-side)
Corrosion ResistanceYes
Depth1 500 mm
Outlet TemperatureTube: 70 °C, Shell: 90 °C
Inlet TemperatureTube: 150 °C, Shell: 30 °C

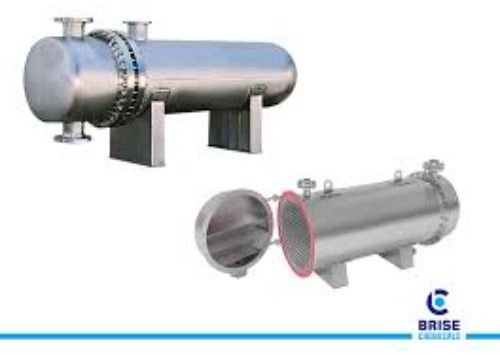

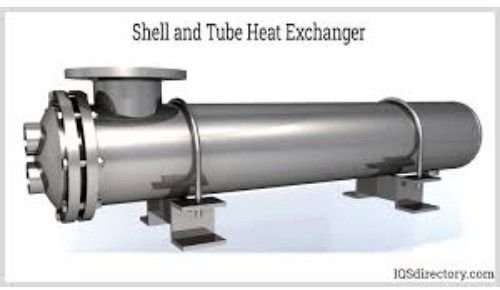

shell-and-tube heat exchangers, tube heat exchangers consist of a bundle of tubes encased within a larger cylindrical shell. One fluid flows through the tubes (tube‑side), while another flows outside the tubes but inside the shell (shell‑side), allowing heat to transfer between the fluids through the tube walls. This configuration enables handling of large temperatures and pressures in industrial applicationsShell: A pressure vessel that contains the tube bundle; fabricated from materials like carbon steel, stainless steel, or corrosion-resistant alloysTube bundle: Includes multiple tubes, tube sheets (plates with holes that hold tubes), baffles, tie rods, and spacersHeaders (Channels): Front and rear heads route fluid into and out of the tube bundle, available as removable or fixed types\\nAdvantages:\\n \\n\\n\\nVersatile design for various pressures, temperatures, and corrosive fluidsLong lifespan, repairability, and compliance with industry standardsEfficient for large-scale heat transfer; handles flammable or toxic fluids safelyWidely used across industries: petrochemical processes, power plants (steam condensers, feedwater heaters), HVAC, refrigeration, desalination, food/beverage processing, and pharmaceutical manufacturing\\n\\n
